GE Profile Spacemaker II PEM31DM Dimensions And Installation Information

PEM31DM

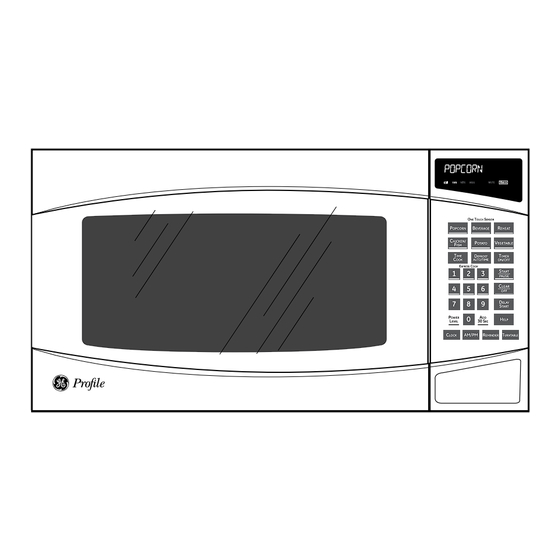

GE Profile 1.0 Cu. Ft. Countertop Microwave Oven
™
Dimensions and Installation Information (in inches)
Exterior Dimensions* (in inches)
W x H x D
23-25/32 x 11-3/16 x 12-9/32
*Height includes feet. Depth does not include handle.
Built-In trim kit for 1.0 cu. ft. microwave ovens
For a custom built-in appearance, this kit allows built-in
installation of the Spacemaker II microwave oven into a wall or
cabinet alone, and is U. L. approved for installation over a GE
single electric wall oven.
Accessory trim kit "Z" Max height
27" Deluxe
26-1/8"
Installation Information: This information is not intended to
be used for installing unit described. Before installing, consult
installation instructions packed with product for current
dimensional data.
Note: Undercabinet Installation
Install Spacemaker II microwave ovens in just a few easy steps
with the mounting template, which provides all the necessary
measurements. Installation may vary depending on cabinets.
These microwave ovens can be installed on practically any
wood or metal cabinets.
Note: 120V, 60-cycle, grounded power receptble location
optional on back within cabinet opening.
For answers to your Monogram, GE Profile
®
GE ® appliance questions, visit our website at
ge.com or call GE Answer Center
®
800.626.2000.
Trim kit
16-3/4" JX827DMWW/BB
or
™
service,
Not to be used over a thermal oven.
Undercabinet mounting kit Pub. No. 4-A019 for
Spacemaker II microwave oven models available at
additional cost.
16-3/4
Z
24-7/8 ± 1/16
A
15 ± 1/16
C
B
36" MIN.
Cabinet overlap requirements
A - Overlap of trim kit over top of cabinet
B - Overlap of trim kit over bottom of cabinet 1-1/4"
C - Overlap of trim kit over sides of cabinet
Note:
Allow an additional inch
of clearance beyond trim
frame on all sides
Specification Revised 12/07
