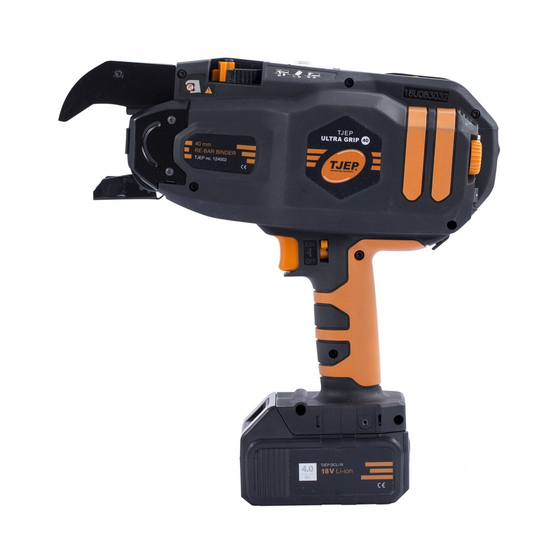

- Page 1 TJ E P U LT R A G R I P MODEL 25 / 40 / 58 www.tjep.eu...
- Page 2 www.tjep.eu EXPLORE OUR WEBSITE FOR MORE INFORMATION...
-
Page 3: Table Of Contents
English Contents Specifications and technical information ..83 Loading the wire coil ........88 Machine specification ........85 Correct use ............89 Wire specification ..........85 How to replace the wire coil ......89 Safety features ..........85 Maintenance ............90 Battery ..............85 Storage .............90 Safety instructions ...........86 Troubleshooting / repairs ........90 Precautions ............87 Troubleshooting ..........91... - Page 4 Back of machine Wire guide C Reel stopper Torque setting unit Wire coil Reel stay Socket for extension arm Battery Battery cover Charger Battery lock Power cord Main plug Battery terminals Charger terminals...
-
Page 5: Machine Specification
English Machine specification Technical info. ULTRA GRIP 25 ULTRA GRIP 40 ULTRA GRIP 58 TJEP no. 124012 124002 124022 Weight 2.5 kg 2.6 kg 2.8 kg Size (L × B × H ) 281 × 1 09 × 3 00 mm 297 ... -
Page 6: Safety Instructions
Disposal of batteries Do not use the re-bar binder in wet or damp environments. Batteries contain substances that can be harmful to human health and the environment if they are If the re-bar binder is used in direct rain or water, not handled properly. -
Page 7: Precautions
English When sliding in the battery, check the following Never use a booster-type transformer. points. Do not load a wire coil in the re-bar binder Never charge the battery in a wet or damp envi- • There is a sound from the curl guide, even though ronment. -
Page 8: How To Use
How to use If the window is dirty and it is difficult to deter- mine the position of the wire guide C. Loading the wire coil. Clean the inside of the window with a soft cloth. Close the window again to prevent the ingress of WARNING! Set the main switch in OFF po- foreign bodies in the machine. -
Page 9: Correct Use
English 10. Adjusting the wraps By default the machine is set for 3 wraps (ULTRA GRIP 58: 4 wraps). Changing the setting to 2 wraps (ULTRA GRIP 58: 3 wraps): Turn off the machine on the main switch. Press and hold the trigger while turning on the main switch. -
Page 10: Maintenance
3. Push the reel stopper to release the reel stay and Troubleshooting / repairs open it at the same time, and remove the wire coil. Reel stay The re-bar binder will eventually need maintenance service and replacement of worn parts due to normal wear and tear. -
Page 11: Troubleshooting
English Troubleshooting... - Page 13 www.tjep.eu...
