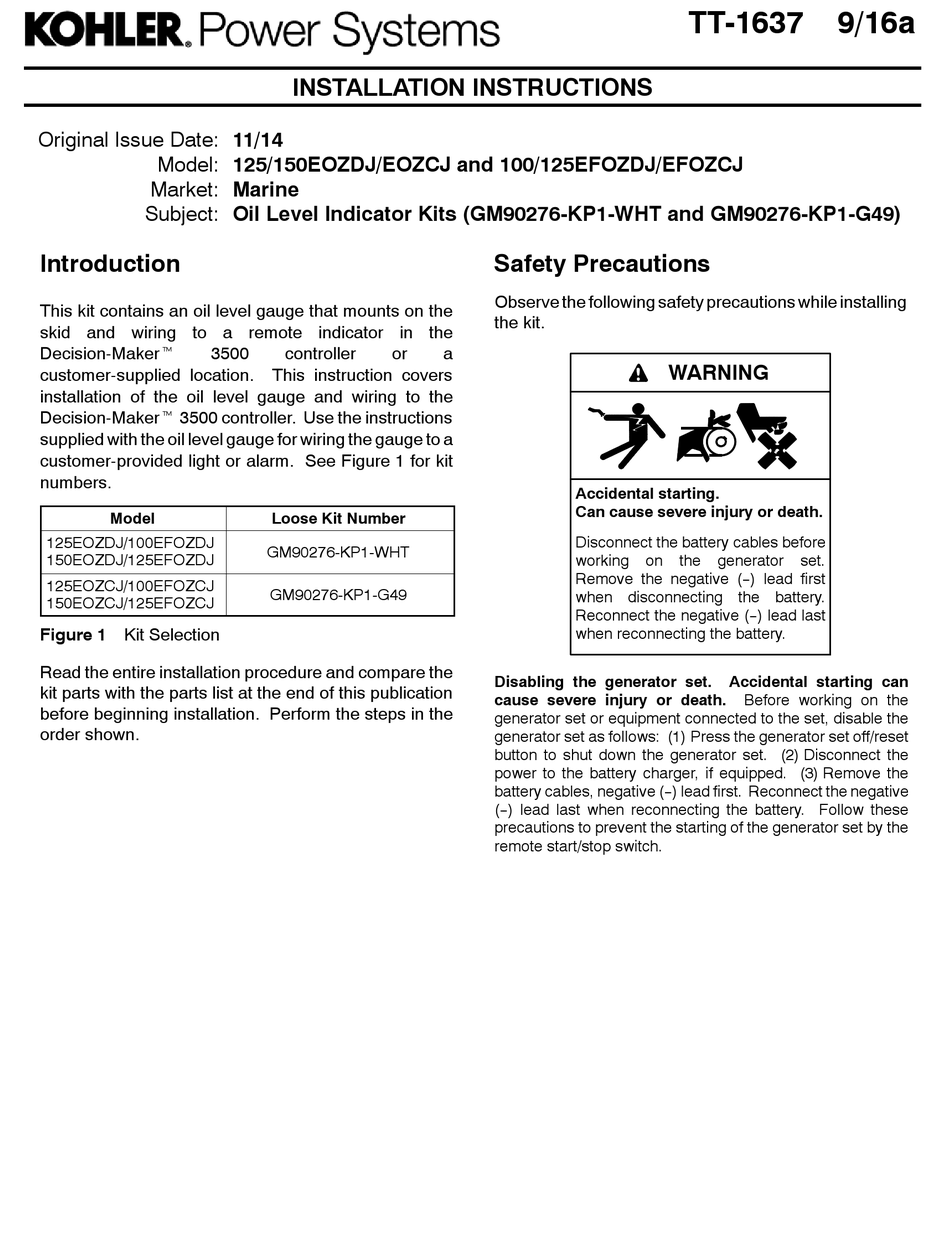

Kohler 125EOZDJ Installation Instructions Manual

Original Issue Date: 11/14
Model: 125/150EOZDJ/EOZCJ and 100/125EFOZDJ/EFOZCJ
Market: Marine
Subject: Oil Level Indicator Kits (GM90276-KP1-WHT and GM90276-KP1-G49)
Introduction
This kit contains an oil level gauge that mounts on the
skid and wiring to a remote indicator in the
Decision-Makert 3500
customer-supplied location.
installation of the oil level gauge and wiring to the
Decision-Makert 3500 controller. Use the instructions
supplied with the oil level gauge for wiring the gauge to a
customer-provided light or alarm. See Figure 1 for kit
numbers.
Model
125EOZDJ/100EFOZDJ
150EOZDJ/125EFOZDJ
125EOZCJ/100EFOZCJ
150EOZCJ/125EFOZCJ
Figure 1 Kit Selection
Read the entire installation procedure and compare the
kit parts with the parts list at the end of this publication
before beginning installation. Perform the steps in the
order shown.
INSTALLATION INSTRUCTIONS
controller or a
This instruction covers
Loose Kit Number
GM90276-KP1-WHT
GM90276-KP1-G49
Safety Precautions
Observe the following safety precautions while installing
the kit.
WARNING
Accidental starting.
Can cause severe injury or death.
Disconnect the battery cables before
working on
Remove the negative (--) lead first
when disconnecting the battery.
Reconnect the negative (--) lead last
when reconnecting the battery.
Disabling the generator set.
cause severe injury or death.
generator set or equipment connected to the set, disable the
generator set as follows: (1) Press the generator set off/reset
button to shut down the generator set. (2) Disconnect the
power to the battery charger, if equipped. (3) Remove the
battery cables, negative (--) lead first. Reconnect the negative
(--) lead last when reconnecting the battery. Follow these
precautions to prevent the starting of the generator set by the
remote start/stop switch.
TT-1637 9/16a
the generator set.
Accidental starting can
Before working on the
