JVC KD-LX30R Service Manual

Hide thumbs Also See for KD-LX30R:
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
Contents
n
All manuals and user guides at all-guides.com
SERVICE MANUAL
KD-LX30R
KD-LX10R
Safety precaution
Preventing static electricity
Instructions
Disassembly method
Adjustment method
Maintenance of laser pickup
Replacement of lase pickup
Extention cord connecting method
COPYRIGHT
CD RECEIVER
KD-LX30R
KD-LX10R
A TT
S C M
M O N O
L O C A L
MODE
TP
S E L
BAND
S
DISP
SOURCE
RDS
7
8
9
S
M
KD-LX30R
Line IN Sub Woofer
1-2
1-3
1-4~22
2-1
2-13
2-14
2-14
2-15
This service manual is made from 100% recycled paper.
2000 VICTOR COMPANY OF JAPAN, LTD.
E ---- Continental Europe
I N T
R P T
R N D
PTY
O F F
10
11
12
Remote
controller
Functions of the mechanism under
the servise mode
Flow of functional until TOC read
Description of major ICs
Block diagrams
Standard schematic diagrams
Printed circuit board
Parts list
KD-LX30R/KD-LX10R
Area Suffix
2-18
2-20
2-22
2-41
2-43
2-47,48
3-1~17
No.49551
Mar. 2000

Advertisement

loading

Related Manuals for JVC KD-LX30R

Summary of Contents for JVC KD-LX30R

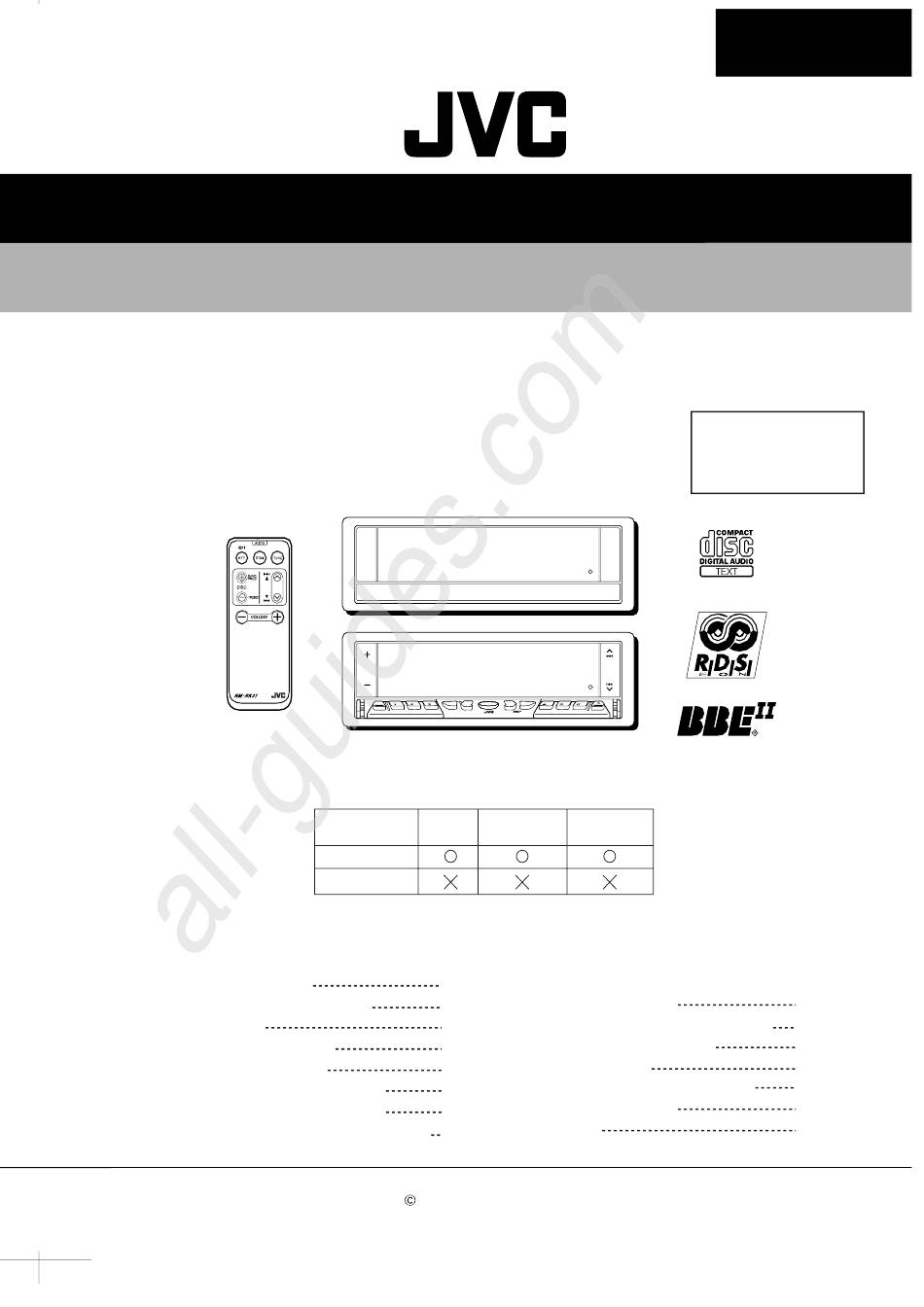

  • Page 1 All manuals and user guides at all-guides.com KD-LX30R/KD-LX10R SERVICE MANUAL CD RECEIVER KD-LX30R KD-LX10R Area Suffix E ---- Continental Europe A TT S C M M O N O L O C A L MODE I N T R P T...

  • Page 2: Functions Of The Mechanism Under The Service Mode

    All manuals and user guides at all-guides.com Functions of the mechanism under the service mode With the three error modes stored in maximum in the internal memory of the mechanism in the body of this system, it is posible under the service mode to call the contents of error according to the following steps when any error has occurred.
  • Page 3 All manuals and user guides at all-guides.com 1. Display of mechanism error Occurrence condition Description Error codes 09 0011 1. SW4 is not turned off. Disc loading error 09 0013 2. SW3 is not turned on. Eject error 01 0021 1.

  • Page 4: Block Diagrams

    PLLDA LEVEL FRONTL,FRONTR FRONT PLLCL VOL-DA Line out RDSDA VOL-CLK REARL,REARR REAR RDSSCK AMAF IC771 IC821 IC703 CH-L EPROM JVC BUS CRUISE CH-R IC701 SI/SO,SO,I/OBUSINT,BUSSCK CRUISE CDON AU.L,AU.R CASW1 RESET LCDDA CASW2 IC151 AU.LI,AU.RI IC171 Line IN W.VOL IC321 RESET...
  • Page 5 REGULATOR REAR L PLLDA LEVEL PLLCL VOL-DA Line out REAR R RDSDA VOL-CLK RDSSCK AMAF IC771 IC821 IC703 CH-L EPROM JVC BUS CRUISE CH-R IC701 SI/SO,SO,I/OBUSINT,BUSSCK CRUISE CDON CASW1 RESET LCDDA CASW2 IC151 RESET IC702 LCDCL CD LPF CASW3 REMOCON...

  • Page 6: Standard Schematic Diagrams

    All manuals and user guides at all-guides.com Standard schematic diagrams KD-LX30R Tuner & Main section TUNER SIGNAL CD SIGNAL CD CHANGER SIGNAL AUX SIGNAL FRONT SIGNAL RIGHT SIGNAL Parts are safety assurance parts. When replacing those parts make sure to use the specified one.
  • Page 7 All manuals and user guides at all-guides.com KD-LX30R CD & LCD section CD SIGNAL...
  • Page 8 All manuals and user guides at all-guides.com KD-LX10R Tuner & Main section TUNER SIGNAL CD SIGNAL CD CHANGER SIGNAL FRONT SIGNAL REAR SIGNAL Parts are safety assurance parts. When replacing those parts make sure to use the specified one.
  • Page 9 All manuals and user guides at all-guides.com KD-LX10R CD & LCD section CD SIGNAL...

This manual is also suitable for:

Kd-lx10r
