Summary of Contents for Senco ID3150

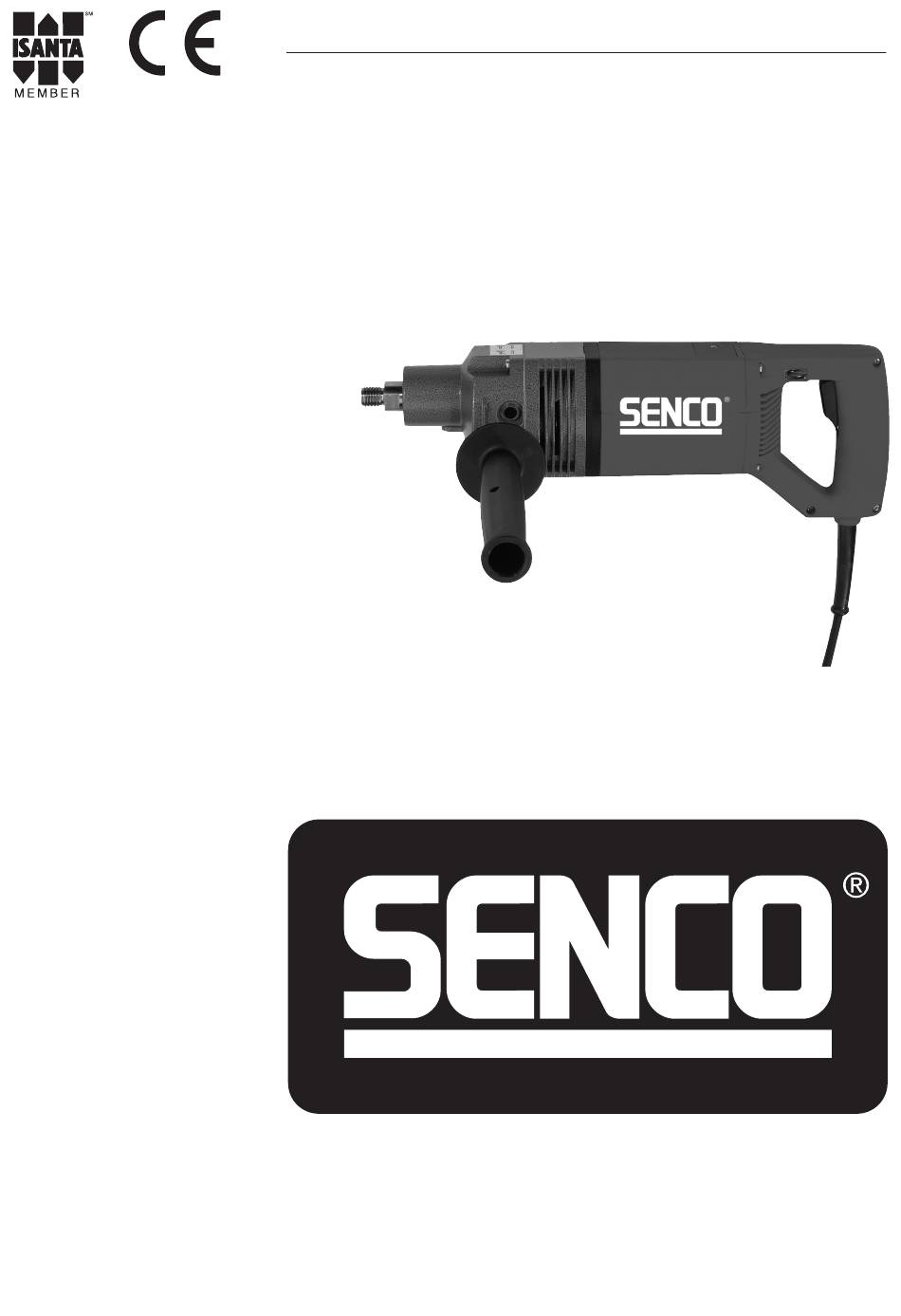

- Page 1 Drillmotor ID3150 Operating Instructions (Translation of the Original Instructions) ____________________________________ KYOCERA SENCO Netherlands B.V. Pascallaan 88 8218 NJ Lelystad, The Netherlands +31 320 295 575 senco.com EMEA: senco.eu NFE2DT2072020 © 2020 by KYOCERA SENCO Netherlands B.V.
- Page 2 | 3 |...
- Page 3 Core drill bit shank without extraction dome Core drill bit shank with extraction dome | 4 |...
- Page 4 Core drill bit shank without extraction dome Core drill bit shank with extraction dome | 5 |...
- Page 5 Core drill bit shank without extraction dome Core drill bit shank with extraction dome | 6 |...
-
Page 6: Table Of Contents
Contents About this instruction manual ... 24 Important information ......24 Symbols used in the instruction manual 24 Safety Instructions ......24 Workplace safety ........24 Electrical safety ........25 Personal safety ........25 Power tool use and care ......25 Service ............ -
Page 7: About This Instruction Manual
About this instruction WARNING manual “WARNING” indicates an imminent hazard, which This instruction manual contains all important could result in death or severe physical injuries. information necessary for safe handling of the dry Î This arrow indicates appropriate measures to diamond drill. -
Page 8: Electrical Safety
d) Remove any adjusting key or wrench before Electrical safety turning the power tool on. A wrench or a key left attached to a rotating part a) Power tool plugs must match the outlet. of the power tool may result in personal injury. Never modify the plug in any way. -
Page 9: Service
Wherever possible, use a dust extractor suitable for the material you are working on (e.g. a special SENCO dust extractor). f Ensure the workplace is properly ventilated. f We recommend wearing a face mask respirator with filter class P2 or P3 (to EN 149:2001). -
Page 10: Electrical Safety
Never use be used in conjunction with a suitable liquids. Never insert screwdrivers or any dust extractor (e.g. a special SENCO other objects into the ventilation slits. Do dust extractor). not cover the ventilation slits. -
Page 11: Hazards When Using And Handling The Power Tool
Kyocera Senco expire. • Change insert tools carefully and only use • Ensure that original SENCO spare parts and the mounting tools provided, if they are in original SENCO accessories only are used perfect condition. Disconnect the mains when needed. -
Page 12: Explanation Of The Pictograms On The Machine
2.7.7 Explanation of the pictograms on the machine The CE mark on a product means that the product conforms with all the applicable European regulations and has been subjected to the prescribed conformity assessment procedures. Protection class II equipment The machine is insulated in such a way that it has no exposed metal parts that could be live in the event of a fault. -
Page 13: Technical Characteristics
Technical Characteristics Technical specifications Dry diamond drill type ID3150 Operating voltage (V / Hz) ~230 / 50 / 60 Power consumption (watt) 1800 Protection class / II Speed (min 1650 Core drill bit diameter, hand-guided (mm) 100 – 150 Impact frequency (imp) -
Page 14: Ec Declaration Of Conformity
(clay bricks, lime-sand blocks, undressed stone) and concrete. The machines are equipped with specially The ID3150 dry diamond drills may not be used for developed electronics with soft start. It monitors wet drilling. the speed and the green / red indicator lights... -
Page 15: Before Starting Work
If harmful dust is produced during the work, a suitable dust extractor must be connected to the Inserting a core drill bit shank without dry diamond drill (e.g. SENCO special dust extraction dome extractor). Screw the core drill bit shank (4) with resettable centring drill bit (5) on the output shaft (1). -
Page 16: Inserting The Dry Diamond Core Drill Bit On The Core Drill Bit Shank
If dry diamond core drill bits with 1¼" connection are core drill bit shaft (4). Hold the output shaft (1) in used, the dust is extracted using the SENCO suction position with an open-ended spanner size SW22 rotor in combination with a SENCO special dust and tighten the dry diamond core drill bit (6) by extractor. -
Page 17: Drill Centring Hole
Push the centring drill bit (1) with the Blunt dry diamond core drill bits can be resharpened knurled sleeve (3) towards the front (A) and lock if necessary using SENCO whetstones or other by turning anti-clockwise (B). suitable materials. •... -
Page 18: Cleaning
Further, servicing will be necessary depending on the wear of the carbon brushes. Only servicing and repair firms authorised by Kyocera Senco may carry out maintenance of the machine. Also ensure that original SENCO spare parts and original SENCO accessories only are used. -
Page 19: Handling Dry Diamond Core Drill Bits 36 10 Tools And Accessories
Handling dry diamond core Tools and Accessories drill bits • SENCO dry diamond core drill bits for cutting • boxes for all kinds of different areas are Always use and store dry diamond core drill available in different sizes. bits in accordance with the manufacturer's instructions. -
Page 20: Warranty
Warranty The power tools placed on the market and distributed 4. Use of original SENCO spare parts by Kyocera Senco take into account the regulations Ensure that original SENCO spare parts and of the laws concerning engineering tools and SENCO accessories only are used. They are equipment to protect against risks to health and available from authorised dealers. - Page 21 | 38 |...
