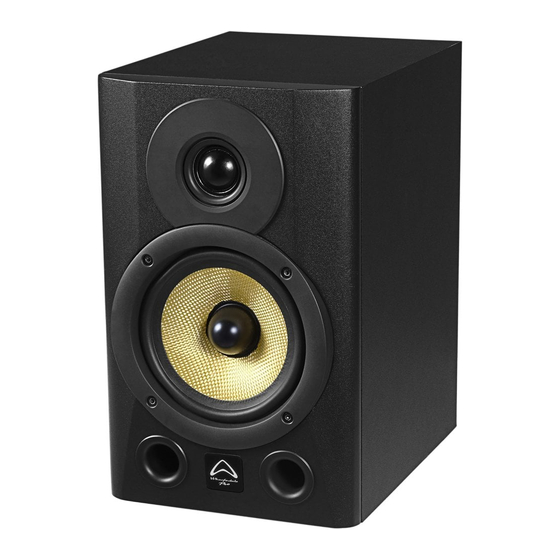

Summary of Contents for Wharfedale Pro Diamond Studio 5

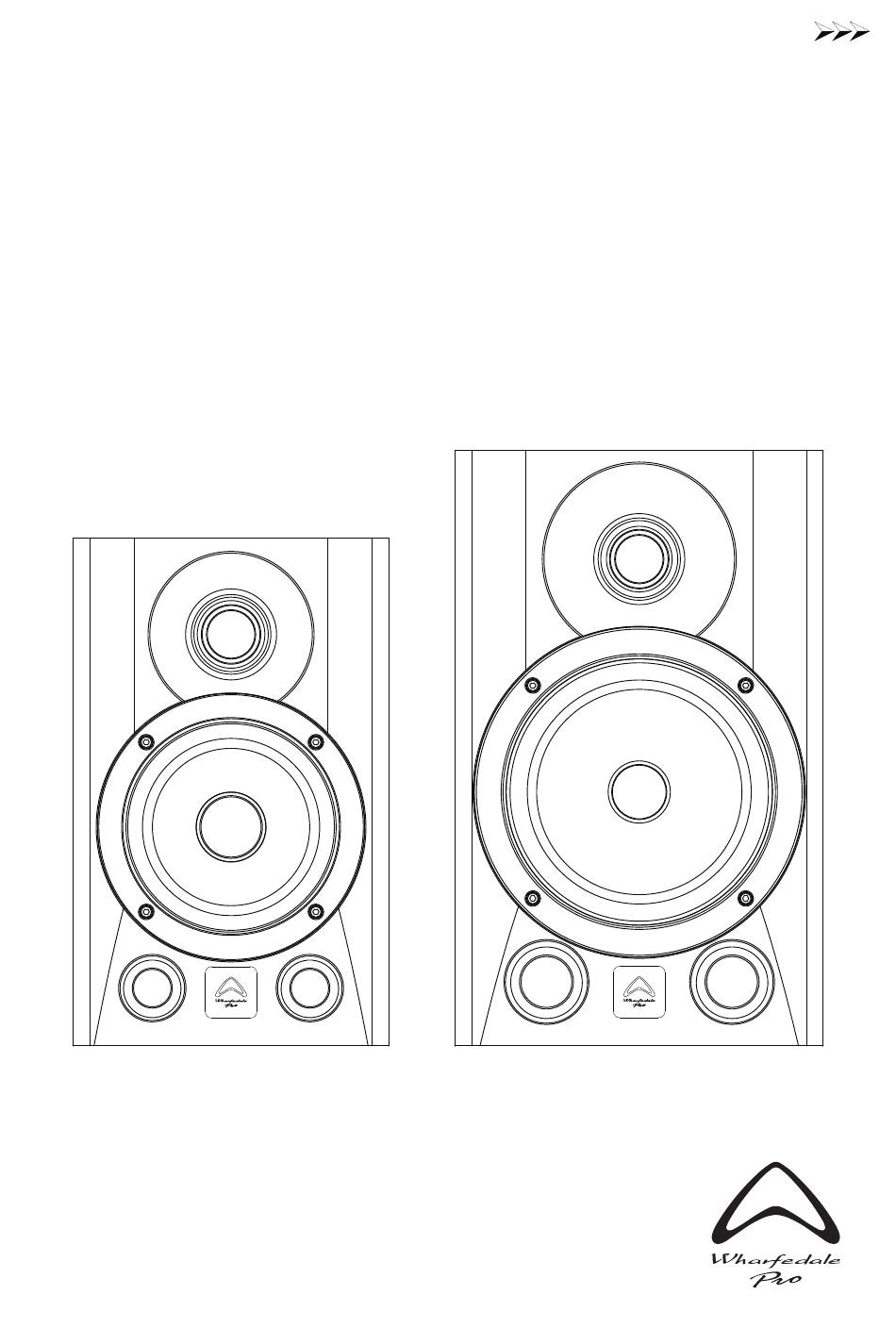

- Page 1 Wharfedale Pro Diamond Studio series User Manual Diamond Studio 5 Diamond Studio 7 ACTIVE MONITOR www.wharfedalepro.com...
- Page 2 IMPORTANT SAFETY INFORMATION Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Electronic products : This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of non-insulated "dangerous voltage" within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.
- Page 3 Loudspeakers : ACCESSORIES – Only use accessories which are designed for professional use or recommended by the manufacturer. If a cart, rack or tripod stand etc is used in conjunction with this product, care must be taken to avoid tip-over or fall risk. POWER ON WORKFLOW –...
-
Page 4: Important Safety Instructions
WHARFEDALE PRO LIMITED WARRANTY Wharfedale Pro products are warranted of manufacturing or material defects for a period of three years from the original date of purchase. In the event of malfunction, contact your authorised Wharfedale Pro dealer or distributor for information. - Page 5 Internally, there are 2 discrete amplifiers. This bi-amplification ensures that the amp stage is perfectly matched with the dedicated High Frequency and Low Frequency driver. With “HF Level” and “LF Level” rear panel controls, the Diamond Studio 5 and Diamond Studio 7 can be tailored to personal taste too.
- Page 6 Monitor positioning The Diamond Studio monitors are a ‘bookshelf’ design and can be used on monitor stands or on a rigid bookshelf. We suggest that they are positioned at least 200mm from the rear walls and 700mm from the side walls, facing slightly inwards.
-
Page 7: Dimensional Drawings
Balanced XLR input LF LEVEL (dB) Low frequency control balanced 6.3 mm input AC INPUT POWER AC 100 V-240 V ~50/60 Hz 140 W FUSE T 2.5 AL 250 V Dimensional Drawings Diamond Studio 5 180.0 Diamond Studio 7 210.0... - Page 8 Frequency Response Graphs Diamond Studio 5 110.0 +2 dB +1 dB 0 dB 100.0 - 2 dB 80.0 70.0 Diamond Studio 7 11 0 . 0 + 2 d B + 1 d B 0 dB - 2 d B 1 0 0 .
- Page 9 Diamond Studio 5 Polar Plots...
- Page 10 Diamond Studio 7 Polar Plots...
-
Page 11: Specifications
Specifications Model Name Diamond Studio 5 Diamond Studio 7 System Type Active 5” 2-way Bi-Amplified Active 6.5” 2-way Bi-Amplified Freq. Range (-10 dB) Analog Input 45 Hz-25 KHz 38 Hz-25 KHz Maximum SPL (peak @1 m) 110 dB 113 dB LF Transducer 5"... - Page 12 IAG House, 13/14 Glebe Road, Huntingdon, Cambridgeshire, PE29 7DL, UK www.wharfedalepro.com Wharfedale Professional reserves the right to alter or improve specifications without notice. All rights reserved © 2021 Wharfedale Pro. Wharfedale Pro is a member of the IAG Group. November 2021...
