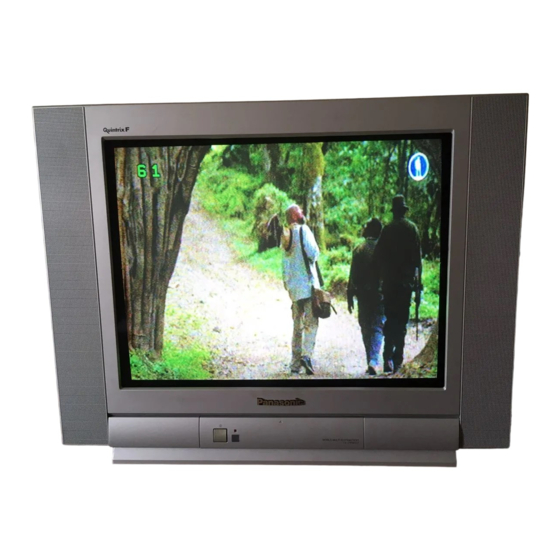

Panasonic TX-21PM30T Service Manual

Panasonic TX-21PM30T Service Manual

Hide thumbs Also See for TX-21PM30T:

Advertisement

Quick Links

All manuals and user guides at all-guides.com
Service Manual
Specifications
Power Source : AC AUTO 110-240V, 50/60Hz
Power Consumption : 86W
Aerial Impedance:75 unbalanced
Coaxial type
Receiving System : 17 System
Receiving Channels :
VHF
2-12 (PAL/SECAM B,K1)
0-12 (PAL B AUST)
1-9
(PAL B N.Z)
1-12 (PAL/SECAM D)
1-12 (NTSC M JAPAN)
2-13 (NTSC M U.S.A)
UHF
21-69 (PAL G,H,I/SECAM G,K,K1)
28-69 (PAL B AUST)
13-57 (PAL D,K)
13-62 (NTSC M JAPAN)
14-69 (NTSC M U.S.A)
CATV
S1-S41(OSCAR)
1-125 (U.S.A CATV)
C13-C41(JAPAN)
S21-S41 (HYPER)
Z1-Z37 (CHINA)
Intermediate Frequency :
Video
38.0 MHz
Sound
31.5 MHz (D,K) / 32.5MHz (B,G)
32.0 MHz (I) / 33.5MHz (M)
Colour
33.57 MHz (PAL)
33.6 MHz (SECAM)
32.5 MHz (B,G)
33.75 MHz (SECAM)
34.42 MHz (NTSC)
Panasonic
ORDER NO. MTV 0010154C3
Colour Television
TX-21PM30T
MX-7 Chassis
Video / Audio Terminals :
FAV In : Video In 1 Vp-p 75
Audio In Approx, 400mVrms
RAV In : Video In 1 Vp-p 75
Audio In Approx, 400mVrms
Monitor Out :Video Out1 Vp-p 75
Audio OutApprox, 400mVrms
High Voltage : 28.0 kV ( +/- 1.0 )
at zero beam current
Picture Tube : A51LSK955X-A
51cm (21 inches)
°
Measured diagonally, 90 deflection
Audio Output : 3.5W x 2 = 7W
Dimensions : Height : 473.6 mm
Width : 600.0 mm
Depth : 484.4 mm
Mass : 23.4 kg
Specifications are subject to change without
notice.Mass and dimensions shown are approxi
mate.
2000 Matsushita Electric Industrial Co., Ltd.
c
All right reserved.Unauthorized copying and
distribution is a violation of law.

Advertisement

loading

Summary of Contents for Panasonic TX-21PM30T
