PowerBass MC-150 Application Manual

Marine grade digital media center with tft display
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

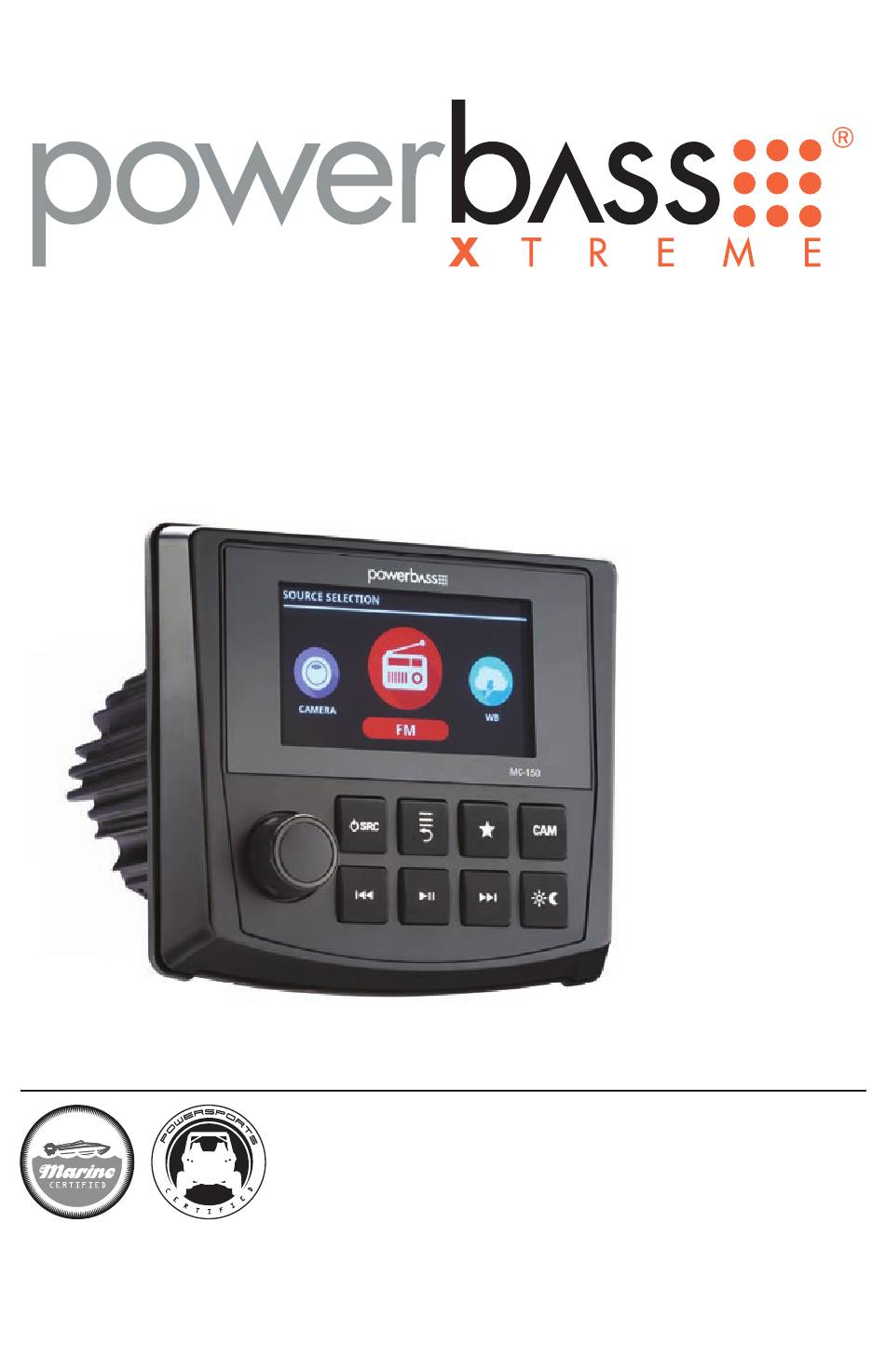

MC-150
Marine Grade Digital Media Center
with TFT Display
Application Guide
Please read through this manual to familiarize yourself with your new speakers. Should your
PowerBass Xtreme Marine Media Center ever require service, you will need to have the original dated receipt.

Advertisement

Table of Contents
loading

Related Manuals for PowerBass MC-150

Summary of Contents for PowerBass MC-150

  • Page 1 Marine Grade Digital Media Center with TFT Display Application Guide Please read through this manual to familiarize yourself with your new speakers. Should your PowerBass Xtreme Marine Media Center ever require service, you will need to have the original dated receipt.
  • Page 3 170 dB. Please observe all local sound ordinances while listening to your PowerBass system. PowerBass USA, Inc. accepts no liability for hearing loss, bodily injury, or property damage due to the result of use or misuse of this product.

  • Page 4: Key Operations

    KEY OPERATIONS 1. ROTARY / VOLUME 2. POWER / SOURCE 3. MENU / RETURN 4. PRESETS 5. CAMERA 6. DAY/NIGHT 7. SEEK DOWN / TRACK PREVIOUS 8. SEEK UP / TRACK NEXT 9. PLAY / PAUSE...
  • Page 5 KEY OPERATIONS BUTTON ACTION RADIO BLUETOOTH Volume +/- Volume +/- Volume +/- Volume +/- ROTATE Zone1, Z2 & SUB Zone1, Z2 & SUB Zone1, Z2 & SUB Zone1, Z2 & SUB Knob [ROTARY] Short Zone 2 VOL Zone 2 VOL Zone 2 VOL Zone 2 VOL Press...
  • Page 6 GENERAL OPERATION INSTRUCTIONS POWER ON/OFF THE UNIT Press the /SRC button to power on the unit. When the unit is on. Press and hold it for 2 seconds to power off the unit. PLAY PAUSE / MUTE ON/OFF When in the Radio, Weather or Aux modes. Press the button to mute the output.
  • Page 7 GENERAL SETTINGS (cont.) DAY/NIGHT MODE AND DIMMER OPERATION Shortly press the button to change between DAY/NIGHT mode. Press and hold the button to change dimmer High/Low mode. Also you can set the Dimmer setting High/Low in the main menu. SWITCH TO CAMERA INPUT SOURCE There are 3 ways to switch to the CAMERA source below: 1) Press the SRC button and rotate the VOL knob to select CAMERA source mode push knob to confirm.
  • Page 8 GENERAL SETTINGS (cont.) RDS OPERATION Press and hold the VOL knob to show the RDS menu. Rotate the VOL knob to select and push the knob to confirm the setting. ALTERNATIVE FREQUENCY MODE During operation in the USA, The AF function is disabled this setting can only be used when operating the device in EUROPE.

  • Page 9: Usb Operation

    When an USB drive is inserted to the MC-150, playback of the MP3/WMA file will begin automatically. If an USB drive was previously inserted in the MC-150. Press the SRC button then rotate the VOL knob to select USB source mode and press to confirm.

  • Page 10: Installation

    INSTALLATION NOTES: Before installation, disconnect the battery negative (-) terminal to prevent damage to the unit, fire and/or possible injury. Before beginning any installation, follow these simple rules: 1. Be sure to carefully read and understand the instructions before attempting to install the unit. 2.
  • Page 11 MOUNTING...
  • Page 12 INSTALLATION Wire Color Wire Spec Description Green 20# AWG ZONE2 LEFT SPEAKER (+) Green/Black 20# AWG ZONE2 LEFT SPEAKER (-) Yellow 16# AWG UL BATTERY (+12V) White 20# AWG ZONE1 LEFT SPEAKER (+) White/Black 20# AWG ZONE1 LEFT SPEAKER (-) 20# AWG ACC (+12V) Gray...

  • Page 13: Specifications

    SPECIFICATIONS DC 12 Volts, Negative Ground DC 10.5-17.9 Volts, Negative Ground Power Supply Requirements: 76mm(dia) x 105(D) / 3.0” x 4.13” Chassis Dimensions: 115.2mm(W) x 105.6 (H) 20.8mm(D) 4.5” x 4.15” x 0.82” Front Panel Dimensions: 105mm / 4.13” Mounting Depth (including harness brace): 4 x 40 W @ 2 Ohms Maximum Output Power: Fuse Rating:...

  • Page 14: Troubleshooting

    Select a station manually. This manual is the exclusive property of PowerBass USA, Inc. Any reproduction of this manual, or use other than its intentions is strictly prohib- ited without the express consent of PowerBass USA, Inc. Copyright 2022 PowerBass USA, Inc.
  • Page 15 Please call (909) 923-3868 for PowerBass Customer Service. You must obtain an RA# (Return Authorization Num- ber) to return any product to PowerBass. The RA number must be prominently marked on the outside of the shipping carton or the delivery will be refused. Please pack your return carefully; we are not responsible for items damaged in shipping.
  • Page 16 PowerBass Xtreme (PBX) – A division of PowerBass USA, Inc. 2133 S. Green Privado – Ontario, CA 91761 Tel. (909) 923-3868 – Fax (909) 923-8048 www.powerbassusa.com...
