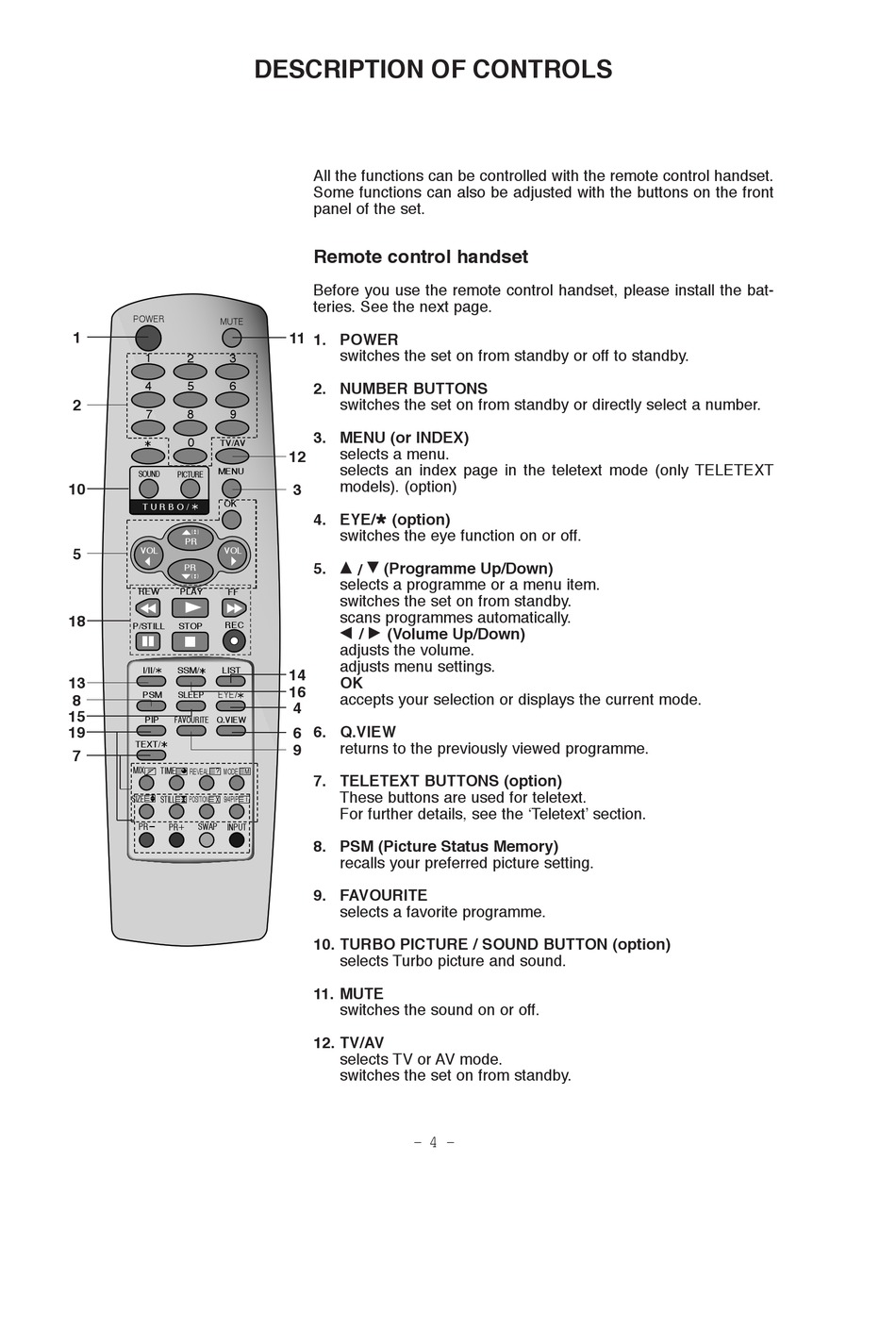

DESCRIPTION OF CONTROLS
All the functions can be controlled with the remote control handset.
Some functions can also be adjusted with the buttons on the front
panel of the set.
Remote control handset
Before you use the remote control handset, please install the bat-
teries. See the next page.
11
1. POWER
switches the set on from standby or off to standby.
3
6
2. NUMBER BUTTONS
switches the set on from standby or directly select a number.
9
3. MENU (or INDEX)
selects a menu.
12
selects an index page in the teletext mode (only TELETEXT
models). (option)
3
4. EYE/ *
switches the eye function on or off.
D E
5.
/
selects a programme or a menu item.
FF
switches the set on from standby.
scans programmes automatically.
REC
F G
/
adjusts the volume.
adjusts menu settings.
14
OK
16
accepts your selection or displays the current mode.
4
6. Q.VIEW
6
returns to the previously viewed programme.
9
M
7. TELETEXT BUTTONS (option)
These buttons are used for teletext.
i
For further details, see the ÔTeletextÕ section.
8. PSM (Picture Status Memory)
recalls your preferred picture setting.
9. FAVOURITE
selects a favorite programme.
10. TURBO PICTURE / SOUND BUTTON (option)
selects Turbo picture and sound.
11. MUTE
switches the sound on or off.
12. TV/AV
selects TV or AV mode.
switches the set on from standby.
(option)
(Programme Up/Down)
(Volume Up/Down)
