- Page 1 G.hn to Gigabit Ethernet Bridge Quick Installation Guide G1001-MR / G1001-CR...
- Page 2 Product names, other than Positron's, mentioned herein may be trademarks and/or registered trademarks their respective companies. Disclaimer Notice Although Positron Access Solutions has made every effort to ensure the accuracy of the information contained herein, this document is subject to change. Positron Access Solutions...
-
Page 3: Table Of Contents
G1001-MR (MIMO/SISO) Copper Endpoint ..............5 G1001-CR (COAX) Endpoint .................... 6 G1001 LED Definition (all models) ..................6 G1001-MR / G1001-CR Gigabit Ethernet Port ..............7 Physical Mounting of the G1001 Devices ................. 8 ............................9 Technical and Regulatory Specifications ..................9 G1001-MR and G1001-CR Technical Specifications ............ -
Page 4: About The G1001-Mr And G1001-Cr
About the G1001-MR and G1001-CR Introduction The G1001-MR and G1001-CR are G.hn to Ethernet Bridge that completes the G.hn link (copper or coax) with the G.hn Access Multiplexer (GAM) and converts the G.hn interface to a standard Gigabit Ethernet (RJ-45) interface. They also include a Reverse Power Injector function to support the rugged IP67 outdoor GAM-8-MRX / GAM-4-MRX and GAM-4-CRX reverse powered devices. -
Page 5: G1001-Mr (Mimo/Siso) Copper Endpoint
(1) Gigabit Ethernet port (RJ-45) for the connection to the Residential Gateway (RG). The front plate of the G1001-MR includes the 12Vdc power jack (on the left hand side) and the G.hn port (RJ-45). G.hn Port (RJ-45) -

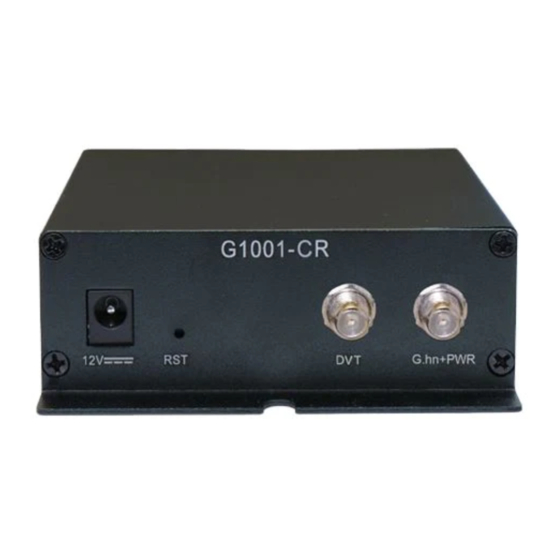

Page 6: G1001-Cr (Coax) Endpoint
(10) seconds will return the device to its factory default settings. G1001 LED Definition (all models) The G1001-MR and G1001-CR share the same status LEDs as per the following table: Positron Access Solutions Document 180-0210-001 R01... -
Page 7: G1001-Mr / G1001-Cr Gigabit Ethernet Port
4 and 5 of the RJ-45 connector. When operating in MIMO mode, the second pair (outer pair) corresponds to pins 3 and 6 of the RJ-45 connector. Figure 6: Close-up of G.hn RJ-45 Connector of G1001-MR and G1001-CR Positron Access Solutions... -
Page 8: Physical Mounting Of The G1001 Devices
Use two (2) screws #10 (5mm) to install the G1001 enclosure on a flat surface. If mounting on a dry wall, use adequate wall plugs (not supplied) Figure 7: Mounting holes to install G1001 device on a flat surface Positron Access Solutions Document 180-0210-001 R01... -
Page 9: Technical And Regulatory Specifications
12 VDC / 2A power adapter (110-220VAC), draws less than 3W Power Consumption The G1001-MR and G1001-CR devices draw power for its own operation (no more than 3W) and for the operation of the GAM device which requires 21W when it gets its power from a single G1001 device. -
Page 10: Regulatory Compliance
• Treat the product with care, keep it in a clean and dust free environment. • Do not expose the G1001 to liquid, moisture or humidity. • Do not expose the G1001 to extreme high or low temperatures; refer to the topic Environmental Conditions for more details. Positron Access Solutions Document 180-0210-001 R01... - Page 11 Declaration of Conformity Hereby, the manufacturer declares that this product (G1001-MR and G1001-CR) is in conformity with the requirements and other relevant provisions of the following European directives for the CE mark: •...
- Page 12 G1001 Quick Installation Guide • 2004/108/EC: Electromagnetic Compatibility Directive (EMC) The manufacturer declares that this product (G1001-MR and G1001-CR) is in conformity with the requirements and other relevant provisions of the following Canadian standards: • CAN ICES-3 (B)/NMB-3(B) Environmental Conditions Maximum environmental values during use: •...
-
Page 13: Warranty And Customer Service
______________________________________ Warranty and Customer Service Positron Access Solutions will replace or repair this product within the warranty period if it does not meet its published specifications or fails while in service. Warranty information can be found in your Positron Access customer web portal: http://www.positronaccess.com/Portal.php...
