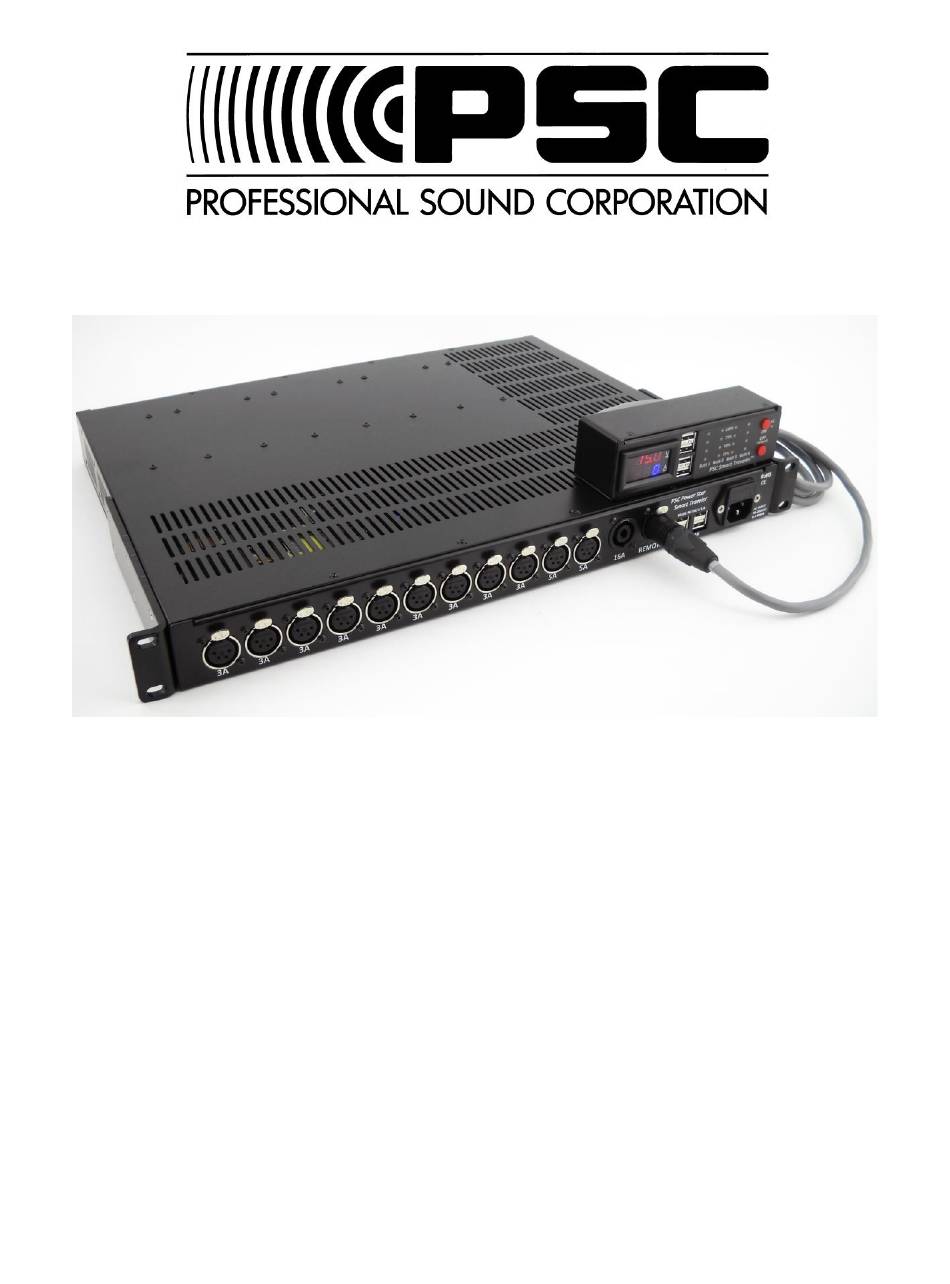

PSC POWER STAR SMART TRAVELER
•
Rack Mount Power System based on 4x Removable Smart Batteries
•
Single Rack Space Design
•
25 Amps of Use/Charge Power Available
•
All Outputs are Fully Voltage Regulated
•
9x 3A Power Outputs on XLR FE, 2x 5A power Outputs on XLR FE
•
1x 16A Power Out on SpeakOn for use with Invertor
•
8x USB power outputs, 8 Amps total current available
•
Remote Control Box w/ Full Battery Monitoring, Output Voltage and Current Meters
•
Smart Batteries Easily Removed for Transport via "Carry On" on all Airlines
•
Compatible with all brands of Smart Batteries
•
Made in the U.S.A.
Operation Manual Version 2.0
Copyright 2021 Professional Sound Corp
28085 Smyth Drive, Valencia, CA 91355 USA
CE RoHS
Printed in the U.S.A.
TM
Advertisement
Table of Contents
Related Manuals for PSC Power Star Smart Traveler
Summary of Contents for PSC Power Star Smart Traveler
- Page 1 PSC POWER STAR SMART TRAVELER • Rack Mount Power System based on 4x Removable Smart Batteries • Single Rack Space Design • 25 Amps of Use/Charge Power Available • All Outputs are Fully Voltage Regulated • 9x 3A Power Outputs on XLR FE, 2x 5A power Outputs on XLR FE •...
- Page 2 TRAVELER MAY GET WARM DURING USE. DO NOT ALLOW ANYTHING TO BLOCK THE VENT OPENINGS. ALWAYS ALLOW AT LEAST A ONE RACK SPACE AIR GAP ABOVE THE POWER STAR SMART TRAVELER. ALL AUXILARY EQUIPMENT SHOULD BE REVERSE POLARITY PROTECTED AND PROPERLY FUSED AT ALL TIMES. THE POWER STAR SMART TRAVELER IS DESIGNED FOR USE ONLY WITH “SMART”...
- Page 3 PSC highly recommends that you purchase and use an AC power tester prior to plugging in your PSC Power Star LiFE or any other AC powered device while on location. You can purchase simple to use, inexpensive AC testers for less than $20.
-
Page 4: Front Panel
9x 3A XLR, 2x 5A XLR, 1x 16A SpeakOn, 10P XLR Remote, 4x USB, AC Input REAR PANEL: On the rear panel of the Power Star Smart Traveler, you will find four (4) Smart Battery ports and four (4) multi-color LED battery level meters. - Page 5 You must leave open space above and to the sides of the PSC Power Star LiFE for proper cooling to take place.
-
Page 6: Periodic Cleaning
DC CONNECTIONS: There are eleven (11) XLR female DC output connectors located on the front panel of the PSC Power Star Smart Traveler. The first nine (9) XLRs located to left hand side of the unit are rated for up to 3 Amps of output current each. The remaining two (2) output connectors are all rated for up to 5 Amps of output current each. -
Page 7: Power Switches
Each Output Connector has Dedicated PSC “Quiet Power” filtering POWER SWITCHES: The PSC Power Star Smart Traveler can be operated (turned “ON” and “OFF”) directly from the main unit or from the remote-control box. There are two round, RED momentary push button switches used to turn the unit on and off. - Page 8 SMART BATTERY “FUEL” GAUGES: The PSC Power Star Smart Traveler is equipped with four (4) easy to read and easy to understand multi-colored battery “Fuel Gauges”. There are individual “Fuel Gauges” for each of the four Smart batteries. In normal use, all four (4) batteries will be charged and dis-charged in unison.
-
Page 9: Current Meter
CURRENT METER: The current meter displays the amount of current being drawn from the outputs of the Power Star Smart Traveler and also includes the small amount of current being used by various circuits within the Smart Traveler. This meter is designed to be very accurate in the upper ranges of current (6-25 amps). - Page 10 BLUE LED indicating AC power is connected REMOTE CONTROL: The remote-control box that is included with your PSC Power Star Smart Traveler serves several functions. It can be used to remotely turn the unit on and off. This will allow you to mount the main Power Star LiFE housing in a convenient place on your sound cart.
- Page 11 Typical recharge time ranges from 1 to 2 hours. The charging function is automatic and thus, it does not require your assistance in any way. Simply plug the PSC Power Star Smart Traveler into an AC outlet and the charging begins (if the batteries need charging). Beware that the Power Star Smart Traveler may get warm during use.
- Page 12 WARNING: It is highly recommended that you have your cables built by qualified personnel and tested prior to use with your Power Star Smart Traveler. All power cables should be clearly labeled on both ends as to what they are to be connected to. For example, label one end “Power Star Smart Traveler”...
-
Page 13: Terms Of Use
Their recommendations should be followed at all times. PSC is not a Smart battery manufacturer or supplier and cannot be held liable for the improper use, storage, charging, discharging. etc. of Smart batteries not made by PSC. - Page 14 Limited Warranty Certificate Professional Sound Corporation warrants the Power Star Smart Traveler to be free from defective material and workmanship for a period of one year from the original date of purchase and agrees to repair or replace such defective parts or the whole product at its option, provided that the equipment is returned to Professional Sound Corporation.
-
Page 15: Specifications
SPECIFICATIONS: SIZE: 17.50” wide, 13.00”deep, 1.75” high (44.5cm x 33cm x 3.8cm) WEIGHT: 9.2Lbs (4.2Kg) less batteries TEMPURATURE RANGE: Use: -4F to +124F (-20C to +50C) less effects on batteries ** AC INPUT: 100 – 240Vac, 47Hz -63Hz OUTPUTS, XLRs: 11 x 3 Amp, 2 x 5 Amp OUTPUT, SPEAKON: 16 Amps Maximum, SpeakOn 4 Pole (Mating connector Neutrik... -
Page 16: Ce Declaration Of Conformity
This product is in compliance with the requirements of the Low Voltage Directive, 73/23/EEC. 93/68/EEC as defined in EN60065, 1993 and/or EN60950/A1/A2/A3: 1995 TRADE NAME: MODEL: Power Star Smart Traveler Power Distribution System RESPONSIBLE PARTY: Professional Sound Corp. 28085 Smyth Drive...
