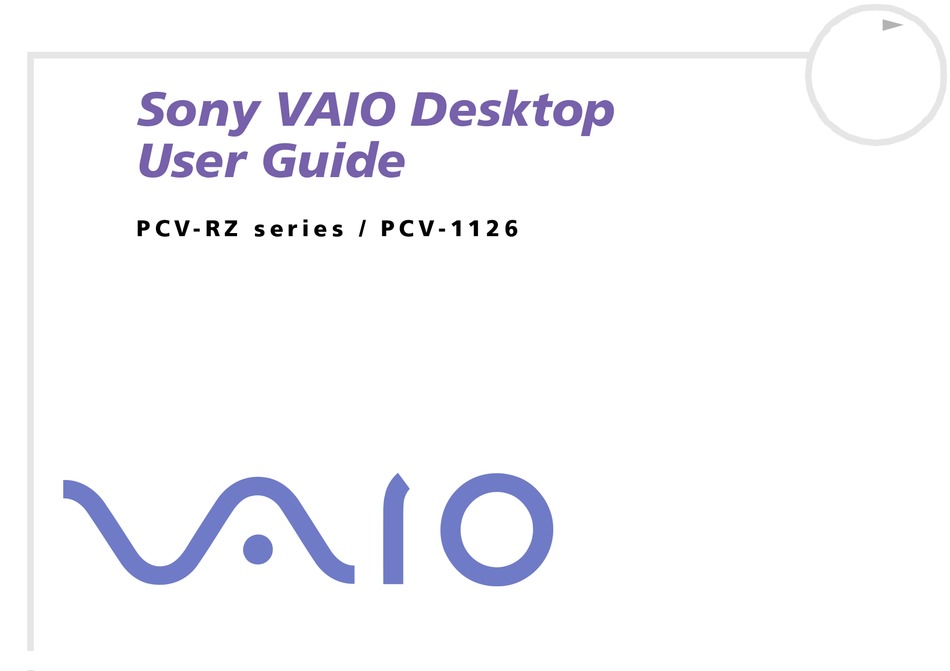

Sony VAIO Desktop
User Guide
P C V - R Z s e r i e s / P C V - 1 1 2 6

Advertisement

Table of Contents
loading

Related Manuals for Sony PCV-RZ302

Summary of Contents for Sony PCV-RZ302

  • Page 1 Sony VAIO Desktop User Guide P C V - R Z s e r i e s / P C V - 1 1 2 6...

  • Page 2: Read This First

    Macrovision Corporation. Reverse engineering or disassembly is prohibited. Sony Corporation reserves the right to make any modification to this manual or the information contained herein at any time without notice. The software described herein is governed by the terms of a separate user licence agreement.

  • Page 3: Environmental Information

    Read this first ® NERGY ® As an E Partner, Sony has determined that this product meets the E NERGY T AR International Energy Star computers and their office equipment. The program backs the development and dissemination of products with functions that effectively reduce energy consumption.

  • Page 4: Safety Information

    Safety information Owner's record The serial number and model number are located on the back of your Sony desktop. Record the serial number and the model number and refer to them if you call VAIO-Link. See also the printed Specifications document.
  • Page 5 There is visible and invisible radiation when the optical disc drive is open: avoid direct exposure to the laser beam. The disc drives are classified as CLASS 1 LASER PRODUCTS and comply with the Laser Product Safety Standard EN 60825-1. Repair and maintenance only by authorised Sony technicians. Improper repairs and use can create safety hazards. CLASS 1...

  • Page 6: Regulatory Information

    Read this first Regulatory information Sony hereby declares that this product is in compliance with the essential requirements and other relevant provisions of European Directive 1999/5/EC (radio equipment and telecommunications terminal equipment Directive). Declaration of Conformity The European Union is targeting the free movement of goods for the internal market and to prevent technical barriers to trade. This effort has resulted in several EU Directives asking that manufacturers make their products comply with essential standards.
  • Page 7 Disposing of the internal memory backup battery Your Sony VAIO desktop is equipped with an internal back-up memory battery that should not have to be replaced during the lifetime of the product. If you want to replace the battery, please contact VAIO-Link: http://www.vaio-link.com...
  • Page 8 Giga Pocket - Take advantage of the new Giga Pocket technology, allowing you to watch TV and record your favourite programs digitally and by remote control. ❑ Sony Memory Stick™ slot – The next generation in digital storage allows you to easily transfer images, sounds, data and text between cameras, computers, and more. ❑...
  • Page 9 VAIO Recovery and Documentation Disc and VAIO-Link information; ❑ A Dual Language Operating System leaflet*; ❑ Your Sony Guarantee conditions; ❑ A Safety Regulations leaflet; ❑ A Modem Regulations leaflet.
  • Page 10 ❑ Glossary refers to terms used in this manual. Refer to your Software Guide for information on the software and how to use Sony applications. ❑ About the Software is a short description of the features of the software available with VAIO systems.
  • Page 11 Welcome ❑ Installing and updating applications explains how to install, run or uninstall a software application. ❑ Managing drivers explains how to install, update or uninstall a driver. The Giga Pocket manual explains how to watch and record TV and video on your PC. In the VAIO-Link Customer Service Guide you will find all the VAIO-Link information you need, including specific contact numbers for each country.
  • Page 12 Welcome Your Sony VAIO desktop and its accessories The following hardware items are in the box: Main unit VAIO keyboard Stereo speakers VAIO optical wheel mouse Infrared receiver (for remote control) Remote control ✍ See the printed Guide to Troubleshooting and Using the VAIO Recovery and Documentation Disc for details.

  • Page 13: Ergonomic Considerations

    Welcome Ergonomic considerations Whenever possible, try and take into account the following ergonomic considerations when using your new computer, whether at home or in the office:...
  • Page 14 Welcome ❑ Position of the keyboard and mouse – Place the keyboard directly in front of you (1). Keep your forearms horizontal, with your wrists in a neutral, comfortable position (2) while using the keyboard or mouse – not at an angle. Let your upper arms hang naturally at your sides. Place the mouse at the same level as the keyboard and use your whole arm to move it.

  • Page 15: Table Of Contents

    Using your VAIO desktop Using your VAIO desktop This section describes how to start using your computer and how to use your computer’s internal and external devices. ❑ Locating connectors ❑ Starting your computer ❑ Shutting down your computer ❑ Using the keyboard ❑...

  • Page 16: Locating Connectors

    Using your VAIO desktop Locating connectors Please see the printed Specifications sheet to identify connectors on your model. Starting your computer Once you have all the components set up as described in the Getting Started guide, you can begin to use your computer.

  • Page 17: Shutting Down Your Computer

    Using your VAIO desktop Shutting down your computer It is important that you shut down your computer properly so you do not lose unsaved data. To shut down your computer, proceed as follows: Click the Start button. Click Turn Off Computer. The Turn off computer screen appears.

  • Page 18: Using The Keyboard

    Using your VAIO desktop Using the keyboard This section describes the features of the VAIO keyboard.
  • Page 19 Using your VAIO desktop Swiss keyboard If you purchased your VAIO in Switzerland, your keyboard will have the following layout: < > € Alt gr...
  • Page 20 Using your VAIO desktop Keys Escape key (1) Function keys (2) Correction keys (3) Lock keys (4) Print Screen key (5) Numeric keypad area (6) Navigation keys (7) Application key Operator keys (9) ® Windows (10) Volume buttons (11) Mute button (12) Descriptions The <Esc>...
  • Page 21 Using your VAIO desktop Keys Standby button (13) Indicator LEDs (14) Combinations and functions with the Windows Combinations + <F1> + <Tab> + <D> + <E> + <F> + <Ctrl> + <F> + <L> + <M> <Shift> + + <M> + <R>...
  • Page 22 Using your VAIO desktop Indicators Light Num Lock Caps Lock Scroll Lock Turns on when the number keys in the numeric keypad are active. Turns on when the letters appear in uppercase as you type. The <Shift> key lowers the case of typed letters when Caps Lock is on.

  • Page 23: Setting Up The Monitor

    Using your VAIO desktop Setting up the monitor If your VAIO desktop is delivered with a monitor, it may be delivered with a digital 15" or 17'' LCD (XGA TFT) monitor or with a common analogue CRT monitor, depending on your model and vendor. For more information on how to use your delivered monitor, refer to the user manual that came with it.

  • Page 24: Using The Tv Function

    Using your VAIO desktop Using the TV function For details on using Sony’s Giga Pocket software, please see the dedicated online guide. Your computer has been equipped with a TV-tuner board. In combination with Sony's Giga Pocket software, it allows you to: ❑...
  • Page 25 Using your VAIO desktop Starting to use Giga Pocket The following ports are located on the back of your desktop: Right audio-in channel Left audio-in channel Video-in S-Video-In port Antenna-in port...
  • Page 26 Using your VAIO desktop To connect terrestrial or cable TV to your computer, proceed as follows: Plug one end of your antenna cable / cable-TV cable (not supplied) into the Antenna port (5) on the back of the computer. Plug the other end in the TV wall socket. To connect an external video/audio source (such as a video camera, VCR or DVD player), proceed as follows: Connect your video/audio device’s video cable to the S-Video (4) or Video-in port (3), depending on the type of cable supplied with the external device.

  • Page 27: Using The Remote Control

    Using your VAIO desktop Using the remote control Your VAIO comes with a remote control with which you can control Giga Pocket, VAIO Media, SonicStage and PowerDVD for VAIO. Before you can use the remote control, you must insert two AA alkaline batteries and connect the infrared receiver.
  • Page 28 Using your VAIO desktop The following illustration and table describe the remote control’s features. Please see Giga Pocket’s online Help files, within the software itself, for more details.
  • Page 29 Using your VAIO desktop Button MUTE STANDBY MODE switch Numbered buttons 1 - 0 Application buttons JUMP FUNCTION VOLUME and CHANNEL SIZE AUDIO ANGLE Function Temporarily mutes the sound. Pressing it again restores the sound. Puts your computer into Standby mode. See Using power saving modes computer into Standby mode while Giga Pocket or Giga Pocket Server is running;...
  • Page 30 Using your VAIO desktop Button SUBTITLE TV/VIDEO DISPLAY REC MODE REC STOP REW and FF PREV and NEXT PLAY STOP, PLAY and PAUSE TITLE MENU Up/Down/Left/ Right and ENTER Function This is a universal DVD playback function and is not used for Giga Pocket. Use it to turn on/off the subtitles or change the language of the subtitles while playing back DVDs, as long as this function is supported by the DVD movie.
  • Page 31 Using your VAIO desktop Button CANCEL RETURN Function Closes the error message dialog box. The window returns to its original size when displayed in full-screen mode. This is a universal DVD playback function and is not used for Giga Pocket. Use it to go back to a specified moment on the DVD, as long as the DVD supports this function.

  • Page 32: Using The Optical Mouse

    Using your VAIO desktop Using the optical mouse Your computer is delivered with a VAIO PS/2 optical mouse, which uses a light-emitting diode (LED) instead of a ball. Avoid using the mouse on a piece of glass or other transparent material, as this can interfere with smooth cursor movement on the screen.

  • Page 33: Using The Disc Drives

    Using your VAIO desktop Using the disc drives Your computer is equipped with two separate drives. See the Specifications sheet for details on your model. ❑ The DVD±RW drive reads data from and writes data onto DVD and CD. ❑ The DVD-RW drive reads data from and writes data onto DVD and CD.
  • Page 34 Using your VAIO desktop ✍ When the computer is in Standby or Hibernate mode, you cannot insert or remove a disc. Make sure you seat the disc firmly in the tray. Otherwise, you could damage your disc drive and you may not be able to open the tray. When you have finished using a disc, wait until the LED indicator turns off before pressing the eject button to remove the disc.
  • Page 35 Using your VAIO desktop Playing DVDs To achieve optimum performance when playing DVD-ROMs, you should follow these recommendations: ❑ Close all open applications before playing a DVD-ROM movie. ❑ You can play DVDs in both drives with the software PowerDVD for VAIO. ❑...
  • Page 36 Using your VAIO desktop Using two screens while watching a DVD film By connecting a TV to your computer, you can watch a DVD film while still working on your desktop as normal. To use the two screens and change the DVD playback settings, proceed as follows: Connect the TV to your computer as described in Connecting a TV Go to Control Panel.

  • Page 37: Using The Floppy Disk Drive

    Using your VAIO desktop Using the floppy disk drive Your VAIO desktop is equipped with a floppy disk drive. Inserting a floppy disk To insert a floppy disk, proceed as follows: Open the cover showing the Memory Stick™ icon on the front. Hold the floppy disk with the label side facing up.
  • Page 38 Using your VAIO desktop Removing a floppy disk To remove a floppy disk, proceed as follows: Wait until the LED indicator turns off. Press the eject button and pull the disk out gently. Close the cover flap. ✍ Do not press the eject button when the LED indicator is turned on. Otherwise, data may be lost.

  • Page 39: Using The Modem

    Using your VAIO desktop Using the modem Your VAIO desktop is equipped with an internal modem. You need to connect a phone line to take advantage of online services and the Internet, to register your computer and software online, and to contact VAIO-Link.

  • Page 40: Expansion Capabilities

    The empty PCI slot allows you the choice of adding to the expansion capabilities of your computer. See Upgrading your VAIO computer You are strongly advised not to add hardware yourself. Please contact your local Sony dealer for advice on changing the internal hardware components.

  • Page 41: Using The Memory Stick

    There are currently three different types of Memory Stick™: ❑ The generic Memory Stick™, coloured blue. ❑ The MagicGate Memory Stick™, coloured white. ❑ The Memory Stick PRO™. ✍ You can purchase Memory Sticks™ from the Sony Style website (http://www.sonystyle-europe.com), or from your local Sony dealer.
  • Page 42 Using your VAIO desktop Why Memory Stick™? Sony's vision is to expand the world of communication, promoting the portability of digital data. The Memory Stick™ is the resulting medium, through which digital devices can be instantly connected. With it, you can download data from any compatible device, then transfer it to another in a single and instant transfer.
  • Page 43 Using your VAIO desktop Generic Memory Stick™ The original Memory Stick™, blue in colour, can be used to record image data taken with digital still cameras, etc. or data from the PC. With it, you can record, play back and transfer various kinds of data at any given time.
  • Page 44 Using your VAIO desktop MagicGate Memory Stick™ The MagicGate Memory Stick™, white in colour, records PC and image data just like its blue counterpart; the difference is it uses the MagicGate copyright protection technology. With this type of Memory Stick™, also called the MG Memory Stick™, you can enjoy the following features: ❑...
  • Page 45 In the music world, however, illegal acts of distributing music without the permission of the artist, logo indicates the copyright protection system devised by Sony. It is not meant to guarantee compatibility with other media.
  • Page 46 (SDMI) to study technology for protecting copyrights during the electronic distribution of music. Sony offers the MagicGate Memory Stick™ and Memory Stick™ Walkman with a copyright protection function that complies with SDMI standards, thereby providing an environment where individuals can record and enjoy third-party music data without worrying about copyright infringement.
  • Page 47 Using your VAIO desktop ❑ CLIE Handheld Entertainment Organiser ❑ Sony mobile phones ❑ Digital printers ❑ AIBO the Sony Entertainment Robot To find out more about the products available in your country, go to: http://www.sonystyle-europe.com...
  • Page 48 24 minutes of DVD quality MPEG2 video. This equates to around sixteen audio CDs, assuming 64 MB per CD, or 360 JPEG images in 5.0 Megapixel quality, more than ten rolls of 24/36 film. Compatible devices You can currently use the Memory Stick PRO™ with the following Sony products: Visual: ❑...
  • Page 49 Using your VAIO desktop Devices that can be upgraded to accept the Memory Stick PRO™ media via a software patch are: ❑ Sony CLIÉ PEG-NX70V handheld. Detailed information will be available on www.clie-link.com. ❑ Some VAIO models.Detailed information will be available on www.vaio-link.com.
  • Page 50 Using your VAIO desktop Inserting a Memory Stick™ insert a Memory Stick™, proceed as follows: Open the cover showing the Memory Stick™ icon on the front. Insert the Memory Stick™ into the Memory Stick™ slot with the connectors pointing to the right. The Memory Stick™...
  • Page 51 Using your VAIO desktop Removing a Memory Stick™ To remove a Memory Stick™, proceed as follows: Make sure the indicator light is not on. Push the Memory Stick™ in to release it, and then pull it out. Close the cover flap. ✍...

  • Page 52: Using Pc Cards

    Using your VAIO desktop Using PC Cards Your VAIO desktop has a PC Card slot on the front panel that supports Type I or Type II PC Cards. PC Cards allow you to interconnect with portable external devices.

  • Page 53: Inserting A Pc Card

    Using your VAIO desktop Inserting a PC Card To insert a PC Card proceed as follows: Open the bottom panel on the front of your VAIO. Insert the PC Card gently into the PC Card slot with the label facing upwards. The PC Card is automatically detected by your system and the Safely Remove Hardware icon...
  • Page 54 Using your VAIO desktop Removing a PC Card Follow the steps below to remove the PC Card while your computer is on. If it is not removed properly, your system may crash and unsaved data may be lost. If you want to remove a PC Card when your computer is off, skip steps 1 to 7.

  • Page 55: Using Power Saving Modes

    Using your VAIO desktop Using power saving modes The colour of the power indicator light on the main unit tells you which mode the computer is in. Colour Mode Blue Computer is in Normal mode Umber Computer is in Standby mode No colour Computer is turned off or in Hibernate mode Using Standby mode...

  • Page 56: Using Hibernate Mode

    Using your VAIO desktop Select Stand By. The computer goes into Standby mode, indicated by the umber light behind the System icon. To return to Normal mode, choose from the following: ❑ Press any key on the keyboard. ❑ Press the Standby button again. ❑...
  • Page 57 Using your VAIO desktop To activate Hibernate mode manually, use one of these two methods: ® Use the Windows Save your work. From the Start menu on the Windows Alternatively, press <Alt>+<F4> until the Turn Off Computer screen is displayed. In the Turn Off Computer screen, hold down the <Shift>...

  • Page 58: Connecting Peripheral Devices

    Connecting peripheral devices Connecting peripheral devices You can add functionality to your computer by connecting any of the following peripherals, and more. Before you connect a peripheral, turn off both the computer and the peripheral. Connect the power cord only after connecting all cables. Turn on the computer only after turning on all peripherals.

  • Page 59: Notes On Connecting Universal Serial Bus (Usb) Devices

    Connecting peripheral devices Notes on connecting Universal Serial Bus (USB) devices You can connect a USB device, for example, a scanner or a printer, to your VAIO desktop. Your computer features the latest USB technology, having been upgraded to USB Specification version 2.0. USB Specification version 2.0 increases device data throughput up to 480 Mbps, 40 times faster than USB 1.1 devices.

  • Page 60: Connecting An External Display

    Connecting peripheral devices Connecting an external display You can connect multiple displays to your desktop, each using a different port on the back of your computer: ❑ an LCD screen using the DVI connector, ❑ a CRT or LCD screen using the VGA connector, ❑...
  • Page 61 Connecting peripheral devices Click on the GeForce FX tab. Click nView Display Mode on the left. Select the Device Settings button. Click Select Output Device... and select the required display. Click OK. If you reboot after changing the settings as above, the default setting returns and the image is shown on the VGA screen again.

  • Page 62: Connecting A Projector

    Connecting peripheral devices Connecting a projector You can connect a projector (such as the Sony LCD projector) directly to your computer. To connect a projector to your VAIO desktop, proceed as follows: Plug one end of the VGA cable (not supplied) into the VGA connector on the back of your computer, and the other end into the projector you want to use (1).

  • Page 63: Connecting A Tv

    Connecting peripheral devices Connecting a TV You can connect a TV directly to your computer. See also Using the TV function screens while watching a DVD film In order to be able to use a TV screen, you also have to enable the TV-Out function. Your VAIO desktop is delivered with a TV-Out cable (or ’converter cable’), which is for use with TV sets without an S-Video port.
  • Page 64 Connecting peripheral devices ✍ This illustration may not correspond entirely to the configuration of your model. Please check the section Back Panel of your printed Specifications sheet to see where the ports are exactly. If you start playing a DVD with PowerDVD or Windows with the playback software.
  • Page 65 Connecting peripheral devices To enable TV-Out, proceed as follows: Go to Control Panel. Click Appearance and Themes. Click Display. The Display Properties dialog box appears. Click the Settings tab. Click Advanced. The ...NVIDIA GeForce FX... dialog box appears. Click on the GeForce FX tab. Click nView Display Mode on the left.

  • Page 66: Connecting An External Microphone

    Connecting peripheral devices Connecting an external microphone Your VAIO desktop does not contain an internal microphone. If you need to use a sound input device, for example to chat on the Internet, you need to plug in an external microphone. To connect an external microphone, plug the microphone cable (1) into the microphone port (2) identified by the symbol ✍...

  • Page 67: Connecting A Printer

    Connecting peripheral devices Connecting a printer To connect a printer, proceed as follows: Plug the printer cable into the printer connector on your computer. Plug the printer power cord into an AC outlet. ✍ This illustration may not correspond entirely to the configuration of your model. Please check the section Back Panel of your printed Specifications sheet to see where the ports are exactly.

  • Page 68: Connecting A Usb Printer

    Connecting peripheral devices Connecting a USB printer To connect a USB printer, simply plug the printer's USB cable into one of the USB ports on your VAIO desktop. There are USB ports at the front and at the back of your computer. ✍...

  • Page 69: Connecting An I.link™ Device

    An i.LINK™ connection with other compatible devices is not fully guaranteed. You are strongly advised to use only Sony i.LINK™ cables, as using other brands may cause problems with the i.LINK™ devices. The i.LINK™ connection varies depending on the software applications, operating system and i.LINK™ compatible devices you use. Refer to the documentation that came with your software for more information.

  • Page 70: Connecting A Digital Video Camera Recorder

    On Sony digital video cameras, ports labelled DV Out, DV In/Out or i.LINK are i.LINK™-compatible. The Sony digital video camera recorder is an example; your digital video camera recorder may need to be connected differently. If your digital video camera recorder includes a Memory Stick™ slot, you canuse it to copy images from the camera to your computer. To do so, simply...

  • Page 71: Connecting Two Vaio Computers

    Connecting peripheral devices Connecting two VAIO computers If you have adminstrator rights on your computer, you can connect your VAIO desktop to another VAIO computer using an i.LINK™ cable (not supplied). With the software delivered with your VAIO desktop, you can copy, edit or delete files on another VAIO computer that also has Windows You can also print a document on a printer connected to another VAIO computer.

  • Page 72: Connecting To A Network

    Connecting peripheral devices Connecting to a network Your computer comes with a built-in Ethernet interface. To connect to a network, proceed as follows: Connect your 10BASE-T/100BASE-TX Ethernet cable (not supplied) to the Ethernet port on the back of the computer. If there is a sticker covering the Ethernet port, this is to remind customers in Germany not to insert an ISDN cable (see caution below).
  • Page 73 Connecting peripheral devices Click Properties. Under Device Usage, select Use this device (enable). Click OK to close the Properties window. The Ethernet connection is now enabled. Connect only 10BASE-T/100BASE-TX cables to the Ethernet port. Using other cables or a telephone cable may cause a malfunction, excessive heat or even fire in the port.

  • Page 74: Getting Help

    Getting help Getting help This section describes how to get help and support from Sony, as well as troubleshooting tips for your computer. Sony's support options Sony offers you several support options for your computer. Sony documentation Please see the section Documentation pack delivered with your computer, as well as further sources of reference.
  • Page 75 Getting help e-Support What is e-Support? You have searched our user guides and website (www.vaio-link.com) but have not found an answer to your question/issue? e-Support is the ideal solution for you! Our e-Support Web Portal is an interactive website on which you can submit any technical query you may have regarding your VAIO and receive answers from our dedicated support team.
  • Page 76 Getting help Can I submit my questions at any time? Yes, you can submit your questions 24/7, but please keep in mind that our e-Support Team can only treat your queries from Monday till Friday between 8am and 6pm. Is there a cost involved for using e-Support? No, this is a complete free of charge service offered to all registered VAIO customers! How do I know when the e-Support Team has handled my query/case? As soon as your case has been dealt with by our e-Support Team, you will receive an email, notifying you...

  • Page 77: Troubleshooting

    This section describes how to solve common problems you might encounter when using your VAIO desktop. Many problems have simple solutions. Please try these suggestions before contacting VAIO-Link or your local Sony dealer. You are recommended to print out this section and keep it for future reference.

  • Page 78: About The Computer And Software

    Getting help About the computer and software My computer does not start ❑ Check that the computer is plugged directly into a power source (without an extension cord) and that it is turned on. ❑ Check that the monitor is properly connected to the main unit, plugged into a power source and turned on.
  • Page 79 Turn off the computer. Remove any peripheral devices connected to the computer. Turn on the computer and press <F2> when the Sony logo appears. The BIOS setup menu screen appears. Use the keyboard’s arrow keys to select the Exit menu.
  • Page 80 Getting help My computer does not shut down It is recommended that you shut down your computer using the Turn Off Computer command on the ® Windows Start menu. Using other methods, including those listed here, may result in loss of unsaved data. If the Turn Off Computer command does not work properly, proceed as follows: Shut down the computer by pressing <Alt>+<F4>.
  • Page 81 Getting help My computer or software program is not responding If you suspect one application is locking your system, you can try to stop it, as follows: Press <Ctrl>+<Alt>+<Delete> simultaneously. The Windows Task Manager screen appears. Scroll down until you see an application with the status Not responding. Select this application from the list and click End Task.

  • Page 82: About Giga Pocket

    Getting help ® Windows locks up during shutdown There are many reasons why the Windows incompatible or conflicting drivers, damaged files, or non-responsive hardware. To search Windows From the Start menu, select Help and Support. Click Fixing a problem. Use the browse and search functions to find a solution. About Giga Pocket The "Hardware Overlay Error"...

  • Page 83: About The Display

    Getting help About the display My monitor does not display anything ❑ Check that the computer is plugged into a power source and that it is turned on. ❑ Check that the monitor is plugged into the computer and to a power source, and turned on. ❑...

  • Page 84: About Discs And Floppy Disks

    Getting help I want to change the resolution of my display To change the resolution of your display, proceed as follows: From the Start menu, select Control Panel. Click Appearance and Themes, then Display. The Display Properties dialog box appears. Select the Settings tab.
  • Page 85 Getting help I cannot play a disc ❑ After inserting the disc, wait for a few seconds for the system to detect it before you try to access it. ❑ Make sure the label of the disc is facing up. ❑...
  • Page 86 Getting help ✍ On your computer, the default DVD region code is 2, which is the region code for European DVDs. Do not change this setting using the Region Code Change function in Windows beyond the scope of your warranty and will result in service charges for repair. I cannot record to DVD (for models with a DVD writer) You can find general troubleshooting points below, but the VAIO-Link website has more detailed advice, including links to help files and DVD software manuals.
  • Page 87 Getting help ❑ Check www.vaio-link.com ❑ If your VAIO is updated to the latest BIOS (Basic Input/Output System). ❑ If a firmware update is available for your DVD recordable drive. ❑ Perform a system recovery on the VAIO. Make sure you aware of the consequences of this action beforehand.

  • Page 88: About Sound

    Getting help About sound The sound is distorted after recording with the Giga Pocket software If you have problems with the sound while playing back a clip recorded with Giga Pocket, proceed as follows: In the Control Panel, choose Sounds, Speech and Audio Devices. Select Advanced Volume Controls on the left-hand side.
  • Page 89 Getting help My microphone is too sensitive to background noise If you find there is too much background noise when you record sound, you can adjust the microphone gain. To adjust the microphone settings, proceed as follows: In the Control Panel, choose Sounds, Speech and Audio Devices. Click Sounds and Audio Devices.

  • Page 90: About The Modem

    Getting help About the modem My internal modem does not work or cannot establish a connection ❑ Check that the phone line is plugged into your computer. ❑ Make sure that the modem is the only device connected to your phone line. ❑...

  • Page 91: About Peripherals

    ❑ If you are using the supplied PS/2 mouse, you must connect it before you turn on your computer. ❑ If you are using an optional Sony USB mouse, check that the appropriate driver and software are properly installed. ❑...
  • Page 92 If this is the case, turn off all connected devices and disconnect unused devices. Check the connection and then turn on the power again. ❑ You are strongly advised to use only Sony i.LINK™ cables, as using other brands may cause problems with the i.LINK™ devices. How do I install a printer? Always check the printer manufacturer’s website for the latest drivers for Windows...
  • Page 93 The default setting for the printer port mode is correct for most printers. If you cannot print, try changing the printer port mode, as follows: Restart your computer. When you see the Sony logo, press <F2>. The BIOS setup menu screen appears. Use the keyboard’s arrow keys to select the Advanced menu.
  • Page 94 Getting help If you still cannot print, try resetting the printer connection, as follows: Click the icon of the printer installed on your computer. In the Printer Tasks menu, which has now expanded, click Set printer properties. Have a look through the different tabs and check for abnormalities that you may be aware of. If you are unsure, check with the printer manufacturer's support service about the correct installation for the printer.

  • Page 95: About Digital Video Captures And Dvgate

    The connected i.LINK™ device is not recognised Disconnect the i.LINK™ device, then connect it again. You are strongly advised to use only Sony i.LINK™ cables, as using other brands may cause problems with the i.LINK™ devices. I cannot establish an i.LINK™ connection between two VAIO computers ❑...

  • Page 96: Upgrading Your Vaio Computer

    To avoid the invalidation of your guarantee by mishandling, it is recommended that: You contact your local Sony dealer to install any new internal hardware components. You do not install memory modules yourself, if you are not familiar with upgrading memory on a computer.
  • Page 97 Upgrading your VAIO computer Opening the side cover To remove the side panel from the main unit, proceed as follows: Shut down your computer and disconnect all peripheral devices. Unplug the computer from the mains. Wait until the computer cools down. The inside of the main unit becomes very hot during operation.

  • Page 98: Inserting A Pci Add-On Board

    Upgrading your VAIO computer Inserting a PCI add-on board Your computer has an open PCI expansion slot. This slot enables you to install an add-on board to expand the functionality of your system. Add-on board configuration can vary. To insert an add-on board, proceed as follows: Shut down your computer and turn off all peripheral devices, such as your printer.
  • Page 99 Upgrading your VAIO computer Install the add-on board by plugging it into the expansion slot and secure it with the screw from the expansion slot, as shown: Attach any internal cables that the board requires (see the manual that came with the add-on board). Replace the side cover as described in Closing the side cover Reconnect all peripheral devices and the power cord, and then turn on the computer.

  • Page 100: Upgrading Memory

    Upgrading your VAIO computer Upgrading memory In the future, you may want to upgrade the memory installed on your VAIO by replacing / adding memory modules. However, we recommend that you do not install them yourself unless you are familiar with upgrading memory on a computer.
  • Page 101 Upgrading your VAIO computer ✍ Do not place the memory module in places subject to: - Heat sources such as radiators or air ducts, - Direct sunlight, - Excessive dust, - Mechanical vibration or shock, - Strong magnets or speakers that are not magnetically shielded, - Ambient temperature of more than +35°C or less than +10°C, - High humidity.
  • Page 102 Upgrading your VAIO computer Adding / replacing a memory module If you are not familiar with upgrading memory on a computer, we highly recommend that you contact your dealer. To add or change a memory module, proceed as follows: Shut down the computer, unplug it, and remove any peripheral devices. Wait for the computer to cool down.
  • Page 103 Upgrading your VAIO computer Locate the notch on the bottom edge of the memory module. Align the memory module over the slot, making sure the module is facing the correct way. Press evenly against the memory module's upper corners. The end latches snap into position automatically, as shown: Reinstall any add-on cards or components you removed.

  • Page 104: Closing The Side Cover

    Upgrading your VAIO computer Viewing the amount of memory To view the amount of memory, proceed as follows: Turn on the computer. Click the Start button, point to All Programs, then VAIO System Information, and click VAIO System Information again. You can view the amount of installed memory here.
  • Page 105 Precautions Precautions This section describes safety guidelines and precautions to help you protect your computer from potential damage. Please contact VAIO-Link if you need assistance. ❑ On handling the hard disk ❑ On using the power source ❑ On handling your computer ❑...

  • Page 106: On Handling The Hard Disk

    Precautions On handling the hard disk The hard disk has a high storage density and reads or writes data in a short time. However, it can be easily damaged by mechanical vibration, shock or dust. Although the hard disk has the internal safety device to prevent losing data due to mechanical vibration, shock or dust, you should be careful when handling your computer.

  • Page 107: On Handling Your Computer

    Precautions On handling your computer ❑ Clean the unit with a soft cloth, which is either dry or lightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder, or solvent such as alcohol or benzine, as these may damage the finish of your computer.

  • Page 108: On Handling Lcd Screens

    Precautions ❑ Do not use cut or damaged connection cables. ❑ If the computer is brought directly from a cold location to a warm one, moisture may condense inside your computer. In this case, allow at least one hour before turning on your computer. If any problems occur, unplug your computer and contact VAIO-Link.

  • Page 109: On Handling Floppy Disks

    Precautions On handling floppy disks ❑ Do not open the shutter manually or touch the surface of the floppy disk. ❑ Keep floppy disks away from magnets. ❑ Keep floppy disks away from direct sunlight and other sources of heat. On handling compact discs ❑...
  • Page 110 Precautions ❑ Do not let Memory Sticks™ get wet. ❑ Do not use or store Memory Sticks™ in a location subject to: ❑ Extremely high temperatures, such as in a car parked in the sun ❑ Direct sunlight ❑ High humidity or ❑...
  • Page 111 Glossary Glossary This section refers to terms used in this manual and elsewhere in the VAIO world. These terms and definitions have been compiled to provide you with a better understanding of your VAIO computer. Term 10BASE-T/100BASE-TX ACPI Application recovery BIOS CD-ROM CD-RW...
  • Page 112 Glossary Term DC In Driver DVD-R DVD+R DVD-ROM DVD-RW Definition Short for Communication and Networking Riser. A hardware device that plugs into a motherboard and holds chips for functions like modems and audio devices. The CPU (Central Processing Unit) is the brains of the computer; it processes the instructions of your system’s programs.
  • Page 113 Definition The DVD+RW is a slightly different rewritable DVD format, backed by a group of companies known as the DVD+RW Consortium, which includes Sony. Its advantages include high- compatibility, high capacity and easy-to-use functionality. Like the DVD-RW, it can be rewritten about 1,000 times.
  • Page 114 RAM Definition i.LINK™ is Sony’s version of the IEEE 1394 standard for high-speed digital serial interface. The standard is regarded in the audio/video and IT industries as the most suitable interface for connecting computers and digital audio/video devices (such as digital cameras etc.).
  • Page 115 Glossary Term Motherboard MPEG Operating system Optical mouse Partition Definition The motherboard is the main circuit board inside your computer. It holds the CPU, the BIOS, the memory and so on. MPEG or Moving Pictures Experts Group is a standard for audio-visual compression of video sequences.
  • Page 116 Glossary Term PC Card PCMCIA Pixel Processor PS/2 PSTN Definition A PCMCIA card. The term PC Card is more widely used than PCMCIA. See PCMCIA. PCMCIA (Personal Computer Memory Card International Association) is the name of the group that produced the specification for the credit card-sized plug-in boards for laptop computers.
  • Page 117 Glossary Term Resolution RGB signal cable Service pack 1 S-video SDRAM Standard RAM System recovery Definition The degree of sharpness and clarity of an image. Resolution is expressed in pixels. Frequent computer screen resolutions are 640 x 480 pixels (VGA resolution; appropriate for a 14-inch screen), 800 x 600 (appropriate for a 15-inch screen), 1,024 by 768 (appropriate for a 17-inch screen), and 1,280 by 1,024.
  • Page 118 You can connect up to 127 devices to a USB port. The USB standard is Hot Plug and Play. Short for Video Audio Integrated Operation. Brand name covering Sony's PC products, peripherals, accessories and software. VAIO-branded items are all designed to make the best use of Sony's Audio-Video (AV) and Information Technology (IT) skills.
  • Page 119 Sony, BlueSpace NE, DVgate, Giga Pocket, HotKey Utility, Memory Stick Formatter, PicoPlayer, PictureGear Studio, Network Smart Capture, SonicStage, Sony Notebook Setup, Sony Style Imaging, UI Design Selector, VAIO Action Setup, VAIO Edit Components, VAIO Media, VAIO System Information, VAIO Web Phone, Memory Stick, the Memory Stick logo, VAIO and the VAIO logo are trademarks of Sony Corporation.
