Type - SMC Networks PF2M7 Series Manual

2-Color Display
Digital Flow Switch
PF2M7
PF2M 7 10

Type

7
Integrated display
Rated flow range
10
0.1 to 10 L/min
25
0.3 to 25 L/min
50
0.5 to 50 L/min
11
1 to 100 L/min
Flow adjustment valve
Nil
None
S
Yes
Rated flow range
Port
Symbol
size 10
C6
ø6
C8
ø8
Symbol OUT1
A
NPN
B
PNP
C
NPN Analog 1 to 5 V
D
NPN Analog 4 to 20 mA
E
PNP Analog 1 to 5 V
F
PNP Analog 4 to 20 mA
∗1 1 to 5 V or 0 to 10 V can be selected by pressing the button.
The default setting is 1 to 5 V.
Nil
Lead wire with connector (2 m)
Rubber cover for connector (Silicone rubber)
ZS-33-F
ZS-33-D
ZS-33-D
∗ Interchangeable with the
existing PFM series
N
Without lead wire with connector
Unit conversion table is located inside back cover.

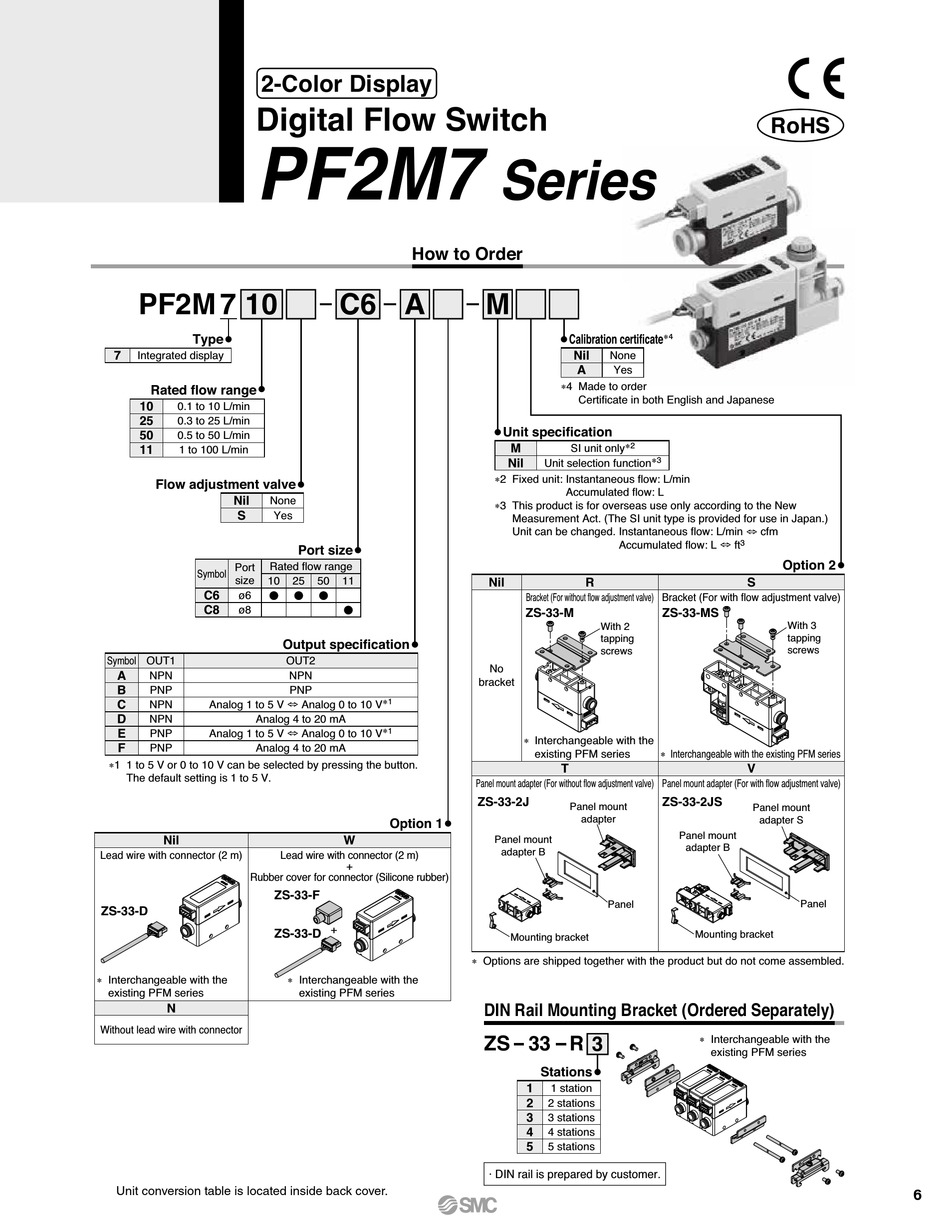

How to Order
C6 A
Port size
25 50 11
Output specification
OUT2
NPN
PNP
1
Analog 0 to 10 V ∗
1
Analog 0 to 10 V ∗
Option 1
W
Lead wire with connector (2 m)
+
+
∗ Interchangeable with the
existing PFM series
Series
M
Calibration certificate rtificate
Nil
None e
A
Yes s
∗4 Made to order rder
Certificate in both English and Japanese
Unit specification
M
2
SI unit only ∗
Nil
Unit selection function ∗
∗2 Fixed unit: Instantaneous flow: L/min
Accumulated flow: L
∗3 This product is for overseas use only according to the New
Measurement Act. (The SI unit type is provided for use in Japan.)
Unit can be changed. Instantaneous flow: L/min
Accumulated flow: L
Nil R
Bracket (For without flow adjustment valve)
ZS-33-M
With 2
tapping
screws
No
bracket
∗ Interchangeable with the
existing PFM series
T
Panel mount adapter (For without flow adjustment valve)
ZS-33-2J
Panel mount
adapter
Panel mount
adapter B
Panel
Mounting bracket
∗ Options are shipped together with the product but do not come assembled.
DIN Rail Mounting Bracket (Ordered Separately)
ZS 33 R 3
Stations
1
1 station
2
2 stations
3
3 stations
4
4 stations
5
5 stations
· DIN rail is prepared by customer.
RoHS
4 4
∗ ∗
3
cfm
ft
3
Option 2
S
Bracket (For with flow adjustment valve)
ZS-33-MS
With 3
tapping
screws
∗ Interchangeable with the existing PFM series
V
Panel mount adapter (For with flow adjustment valve)
ZS-33-2JS
Panel mount
adapter S
Panel mount
adapter B
Panel
Mounting bracket
∗ Interchangeable with the
existing PFM series
6
