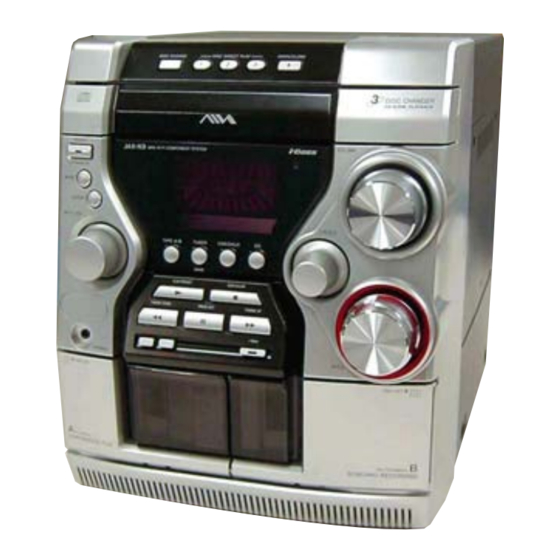

Compact disc deck receiver
Hide thumbs Also See for CX-JN3:
Table of Contents

Advertisement

Quick Links

Download this manual
All manuals and user guides at all-guides.com
SERVICE MANUAL
Ver. 1.2 2005.05
CX-JN3 is the amplifier, CD player, tape deck
and tuner section in JAX-N3/PK3.
TUNER
FM tuning range
87.5 MHz to 108 MHz
FM usable sensitivity (IHF)
13.2 dBf
FM antenna terminal
75 ohms (unbalanced)
AM tuning range
530 kHz to 1710 kHz (10 kHz step)
531 kHz to 1710 kHz (9 kHz step)
350 µV/m
AM usable sensitivity
AM antenna
Loop antenna
AMPLIFIER
Power output
40 W + 40 W (40 Hz - 20 kHz, THD
less than 1 %, 6 ohms)
50 W + 50 W (1 kHz, THD less than
10 %, 6 ohms)
Total harmonic distortion
0.08 % (20 W, 1 kHz, 6 ohms)
Input
VIDEO/AUX: 400 mV
Outputs
SPEAKERS: 6 ohms or more
PHONES: 32 ohms or more
Sony Corporation
9-877-248-03
2005E05-1
Personal Audio Group
© 2005.05
Published by Sony Engineering Corporation
Model Name Using Similar Mechanism
CD Mechanism Type
CD
Base Unit Name
Section
Optical Block Name
Optical Pick-up Name
Model Name Using Similar Mechanism
Tape deck
Section
Tape Transport Mechanism Type
SPECIFICATIONS
CASSETTE DECK
Track format
4 tracks, 2 channels stereo
Frequency response
50 Hz – 8 kHz
Recording system
AC bias
Heads
Deck A: playback x 1
Deck B: recording/playback x 1,
erase x 1
CD PLAYER
Semiconductor laser ( λ = 780 nm)
Laser
Emission duration:
continuous
D/A converter
1 bit dual
Signal-to-noise ratio
85 dB (1 kHz, 0 dB)
Harmonic distortion
0.05 % (1 kHz, 0 dB)
CX-JN3
NEW
CDM74-K6BD71A, CDM74S-K6BD71A,
CDM74S-K6BD72
BU-K6BD71A, BU-K6BD72
KSM-213DCP
KSS-213D
NEW
CWM43FF13, CWM43FF25
GENERAL
Power requirements
Power consumption
Power consumption
in standby mode
Dimensions (W x H x D)
Weight
Specifications and external appearance are subject to change
without notice.
COPYRIGHT
Check copyright laws relevant to recordings from discs,
or tape for the country where the unit is to be used.
Licensed by BBE Sound, Inc. under USP4638258, 5510752
and 5736897.
COMPACT DISC DECK RECEIVER
US Model
AEP Model
UK Model
E Model
120 V AC, 60 Hz
65 W
With ECO mode on: 0.25 W
With ECO mode off: 15 W
280 x 330 x 392.5 mm
(11
1
/
x 13 x 15
/
in.)
1
8
2
6.7 kg (14 lbs 12 oz)
