Powerline AV+
Networking Adapter
User Manual
PM01611
F5D4075

Advertisement

Table of Contents
loading

Related Manuals for Belkin F5D4075

Summary of Contents for Belkin F5D4075

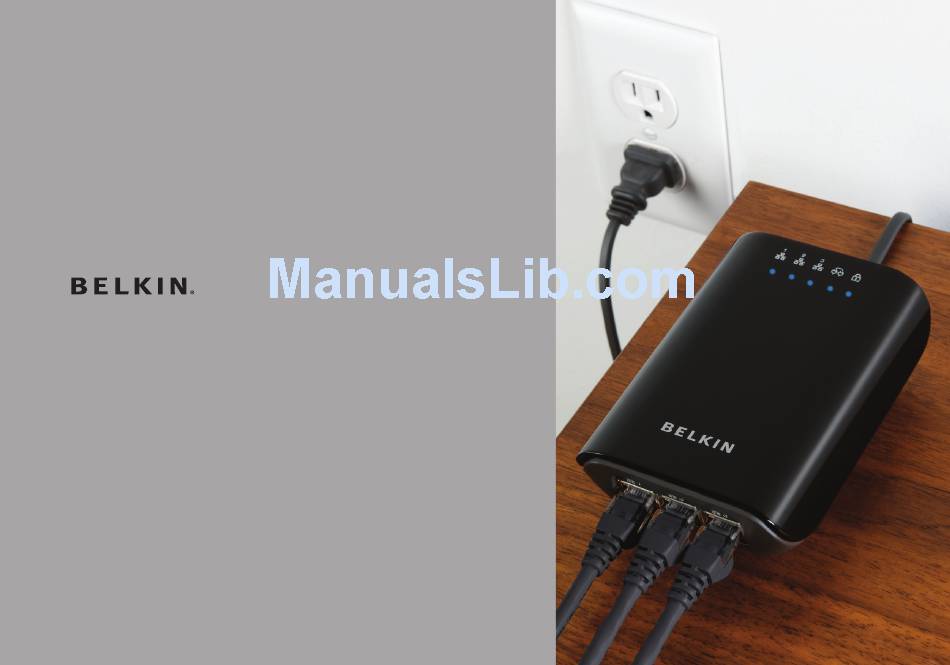

  • Page 1 Powerline AV+ Networking Adapter User Manual PM01611 F5D4075...
  • Page 2 TAble of CoNTeNTs seCTions Table of Contents 1 Introduction ...1 Features Product Specifications System Requirements Package Contents 2 Installing and setting Up the Adapters ...4 3 Configuration ...5 4 Information ...7 Powerline AV+ Networking Adapter...
  • Page 3 INTrodUCTIoN seCTions Table of Contents Thank you for purchasing the Powerline AV+ Networking Adapter (the Adapter). Most people don’t enjoy buying long and expensive Ethernet cables or pulling the cables from one place to another, but the Adapter offers one of the easiest ways to enjoy home or small-business networking.

  • Page 4: Product Specifications

    INTrodUCTIoN seCTions Table of Contents features • Up to 200Mbps* bandwidth over standard home power lines • HomePlug signal easily passes through circuit breaker • 128-bit DES encryption ensures data security • Encryption completed by hardware, without sacrifice to bandwidth • Includes 3 IEEE 802.3 computer interface ports • Plug-and-play installation • HomePlug Powerline Specification 2.0-compliant • Coexistence with HomePlug 1.0 and 1.0 Turbo networks Powerline AV+ Networking Adapter Product specifications Computer Interface: IEEE 802.3/802.3u Operating Temperature: 32–104 degrees F (0–40 degrees C) Storage Temperature: -4–176 degrees F (-20–80 degrees C) Humidity: Max.

  • Page 5: Package Contents

    INTrodUCTIoN seCTions Table of Contents security led Blinking Blue Encryption setting up Solid Blue Encryption setup successful Double Flash Fail in encryption Powerline link led Blinking Powerline data transmitting or receiving Color Blue Link rate excellent: greater than 60Mbps Color Magenta Link rate normal: 30–60Mbps Color Amber Link rate low: 0–30Mbps No activity ethernet link leds Solid Blue 10/100Mbps port linked No Ethernet link...

  • Page 6: Installing And Setting Up The Adapters

    INsTAllINg ANd seTTINg UP The AdAPTers seCTions Table of Contents overview Installation of the Powerline AV+ Networking Adapter takes only seconds and does not require setting up long wires throughout the house. Simply plug the units directly into any available wall outlet and connect to any device with an Ethernet port.

  • Page 7: Changing The Network Password

    CoNfIgUrATIoN seCTions Table of Contents overview The Adapter uses 128-bit AES encryption to block access from the outside. By default, the protection is enabled. However, it is recommended that you change the default network password with the “Encryption” button located on the units. Powerline AV+ Networking Adapter Changing the Network Password 1.

  • Page 8: Technical Support

    Using a pointed object, press and hold the “Reset” button for one second to restore defaults. This procedure resets the network password to the default out-of-box value. Powerline AV+ Networking Adapter Technical support You can find technical support information at www.belkin.com/support or www.belkin.com.

  • Page 9: Fcc Statement

    CoNforMITY WITh fCC rUles for eleCTroMAgNeTIC CoMPATIbIlITY We, Belkin International, Inc., of 501 West Walnut Street, Compton, CA 90220, declare under our sole responsibility that the products, F5D4074-S, to which this declaration relates, comply with Part 15 of the FCC Rules.

  • Page 10: Belkin International, Inc., Limited 1-Year Product Warranty

    Product Warranty What this warranty covers. Belkin International, Inc. (“Belkin”) warrants to the original purchaser of this Belkin product that the product shall be free of defects in design, assembly, material, or workmanship. What the period of coverage is. Belkin warrants the Belkin product for one year.
  • Page 11 Belkin product and how to proceed with your claim. Belkin reserves the right to review the damaged Belkin product. All costs of shipping the Belkin product to Belkin for inspection shall be borne solely by the purchaser.
  • Page 12 © 2008 Belkin International, Inc. All rights reserved. All trade names are registered trademarks of respective manufacturers listed. Windows is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. Mac is a trademark of Apple Inc., registered in the U.S. and other...
