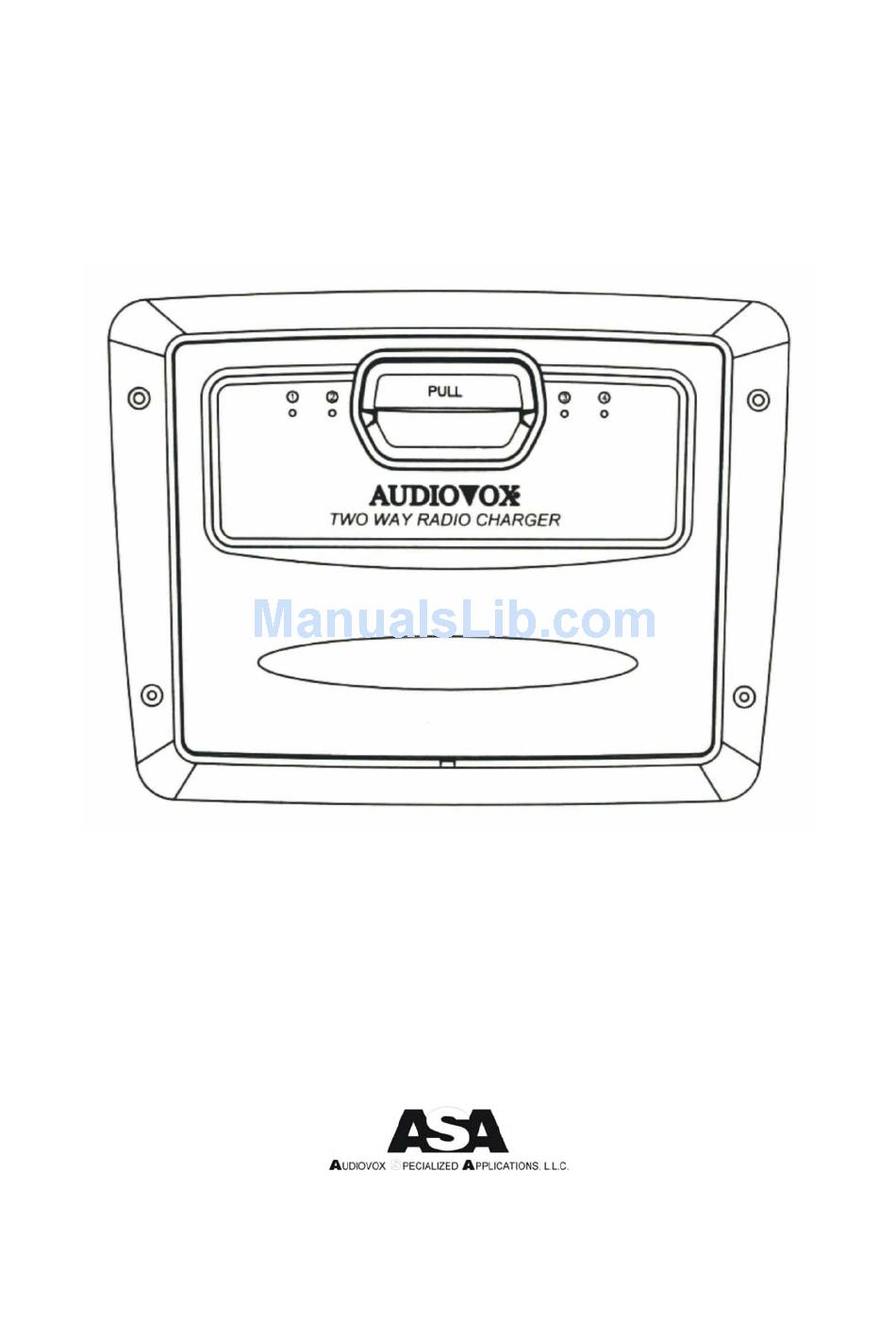

Page 1: General Mobile Radio Service Charger Unit
AUDIOVOX GMRS4WM Owner’s/Installation Manual GMRS (General Mobile Radio Service) Wall Mount Charger Patent Pending www.asaelectronics.com... -
Page 2: Table Of Contents
Function and Location of Handset Controls Specifications Your GMRS4WM is a 12VDC wall mount charger that includes 4 GMRS (General Mobile Radio System) radios (P/N GMRS100). The charger keeps the radio batteries fully charged and stored when not in use. These radios are skillfully constructed to give reliable communication in many applications. -
Page 3: Rechargeable Batteries
INSTALLATION Locate an area in the vehicle’s wall which will permit mounting of the GMRS4WM. The area inside the wall should allow a mounting depth of 4 inches minimum and must be free from obstructions such as wall braces, wires, or other impediments. -
Page 4: Transceiver (Handset)
1) Install the transceivers with the PTT (Push To Talk) switch facing out. There are four docking bays in the GMRS4WM charger to accommodate up to four GMRS100 Handsets. 2) Close and latch the GMRS4WM door. The latch can be engaged by gently pressing against the center of the door. -
Page 5: Function And Location Of Charger Controls
FUNCTION AND LOCATION OF CHARGER CONTROLS 1) Mounting screw locations – 4 places Use the mounting screws provided to mount the charger unit to the wall. Use the provided template. 2) Handset Compartment Indicators Indicates which handsets (transceivers) are in the unit. 3) LED Handset Recharge Indicators Red indicates a handset is being charged. -
Page 6: Cutout Installation Dimensions
MINIMUM CUTOUT DEPTH 4.00” INDICATOR LIGHT STATUS Each charging station in the GMRS4WM has an indicator light in the charger door. When a handset is present, the status is indicated in the following manner: - The light glows RED when the handset is being charged. -
Page 7: Function And Location Of Handset Controls
The GMRS100Y Transceivers should not be immersed in water. FUNCTION AND LOCATION OF HANDSET(GMRS4WM) CONTROLS 1. Battery Cover 2. Monitor (M) Button 3. Detachable Carry Clip 4. Push-To-Talk (PTT) and Function Confirmation Button 5. Antenna 6. External Speaker (SP)/ Microphone (MIC)/CHG Jack... -
Page 8: Specifications
This button is used to select various feature settings in the GMRS and FRS modes. External Speaker (SPK)/ Microphone (MIC)/CHG Jack (6) This jack accepts both the optional Audiovox headset/microphone connector. For additional equipment and accessories for the GMRS100, visit the Audiovox web site at www.audiovox.com http://www.audiovox.com/... -
Page 9: Main Channel Frequencies
Power Source Operating Time (Transmit: Receive: Standby) (5: 5: 90 ratio) Note: Replace the batteries only with exact replacements. Other batteries will not operate properly with the GMRS4WM charger. Receiver Useable Sensitivity : >-119 dBm Maximum Audio Output Power Modulation Distortion... - Page 10 NOTE: Channels 1 through 7 are shared with FRS radios. Channels 8 through 14 are FRS only. Channels 15 through 22 are GMRS only. Continuous Tone Coded Squelch System Tone Frequencies (in Hz) CTCSS = No Tone Freq. Hz CTCSS 67.0 71.9 74.4...
- Page 11 For replacement parts or to see a list of equipment specifically designed for the mobile environment, please visit us at www.asaelectronics.com."...
