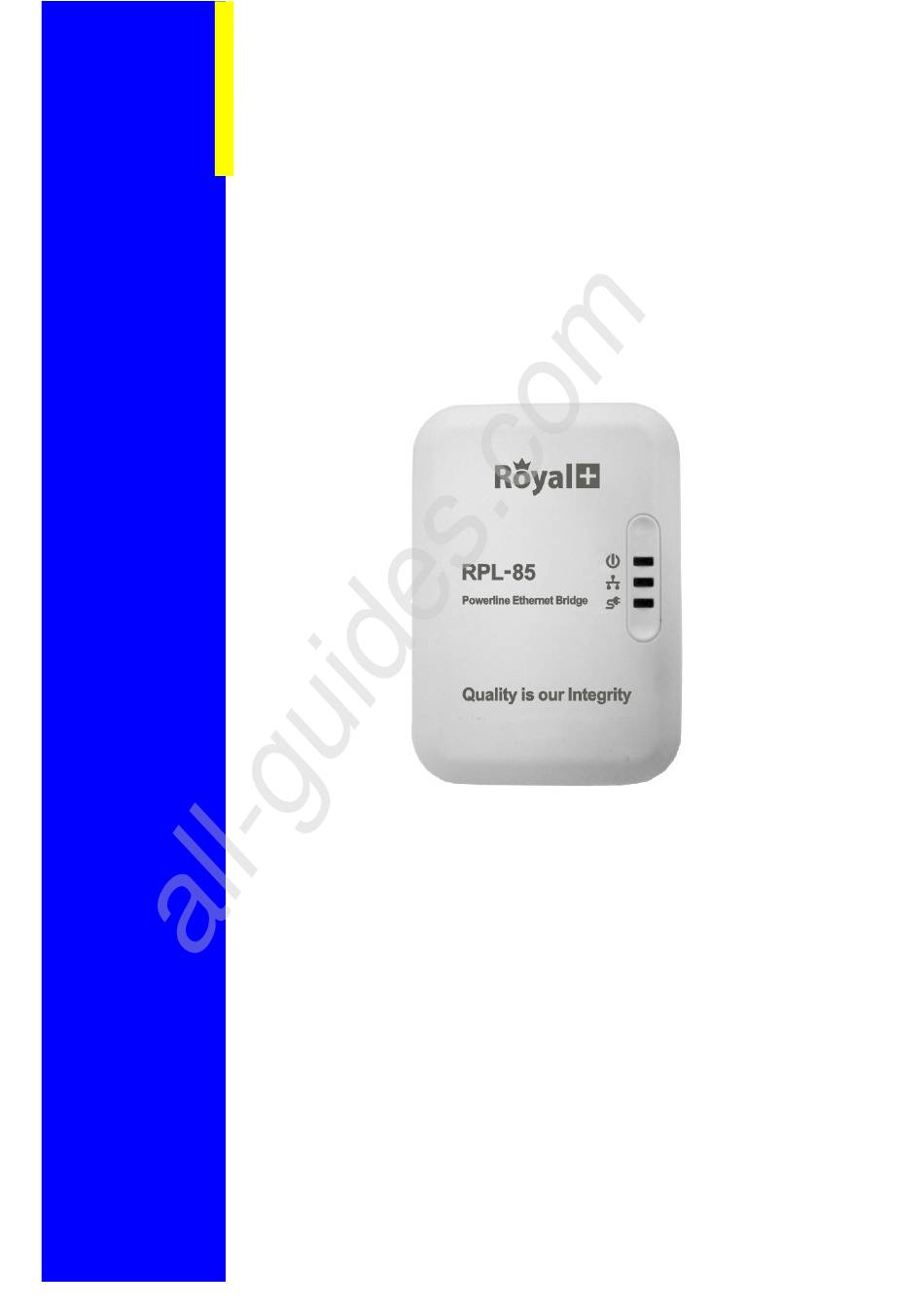

- Page 1 All manuals and user guides at all-guides.com Powerline Network RPL-85 User Manual RPL-85 Powerline Ethernet Bridge V1.0.0 © 2009 . All rights reserved. Page 1...
- Page 2 All manuals and user guides at all-guides.com Powerline Network REFACE This document describes installation of the RPL-85 Ethernet Bridge Network products. Please read this document before installing the product. O THE NSTALLER This publication contains the following sections: Important safety instructions...
-
Page 3: Important Safety Instructions
DO NOT locate this product where people may walk on the cords. Because the RPL-85 PLC Ethernet Bridge product sends data over the powerline, it is recommended that you plug directly into a power outlet. Do not plug the device into a UPS or power strip with surge protection. The 85Mbps PLC Ethernet Bridge product has its own power filter for protection against surges. - Page 4 Microsoft Windows® 98SE, ME, NT, 2000, XP, Vista, MAC or Linux OS Pentium® 166 MHz processor, equivalent or higher At least one free Ethernet port for RPL-85 PLC Ethernet Bridge 2. Your PC must not be configured for another network. This means that:...
- Page 5 All manuals and user guides at all-guides.com Powerline Network RODUCT NSTALLATION UIDE Product installation guide Important: Do not plug the device into a power strip or surge protector because these devices may consist of filter and impair signal. Also avoid plugging the device right next to noisy sources such as cell phone charger, Halogen light, Energy saving bulb, noisy desktop computer, vacuum cleaner, etc.
-
Page 6: Specification
All manuals and user guides at all-guides.com Powerline Network PECIFICATION Specification RPL-85 Items Description Line Rate 85Mbps Effect Data Rate Up to 25Mbps effective throughput 4.3~20.9 MHz Frequency Band Access Methods CSMA/CA 4 Levels Modulation OFDM (QAM 256/64/16, DBPSK, DQPSK)
