Ryobi RCPP900-D Owner's Operating Manual

Constant pressure pump
Hide thumbs
Table of Contents

Advertisement

Quick Links

RCPP900-D
CONSTANT PRESSURE PUMP

Advertisement

Table of Contents
loading

Related Manuals for Ryobi RCPP900-D

Summary of Contents for Ryobi RCPP900-D

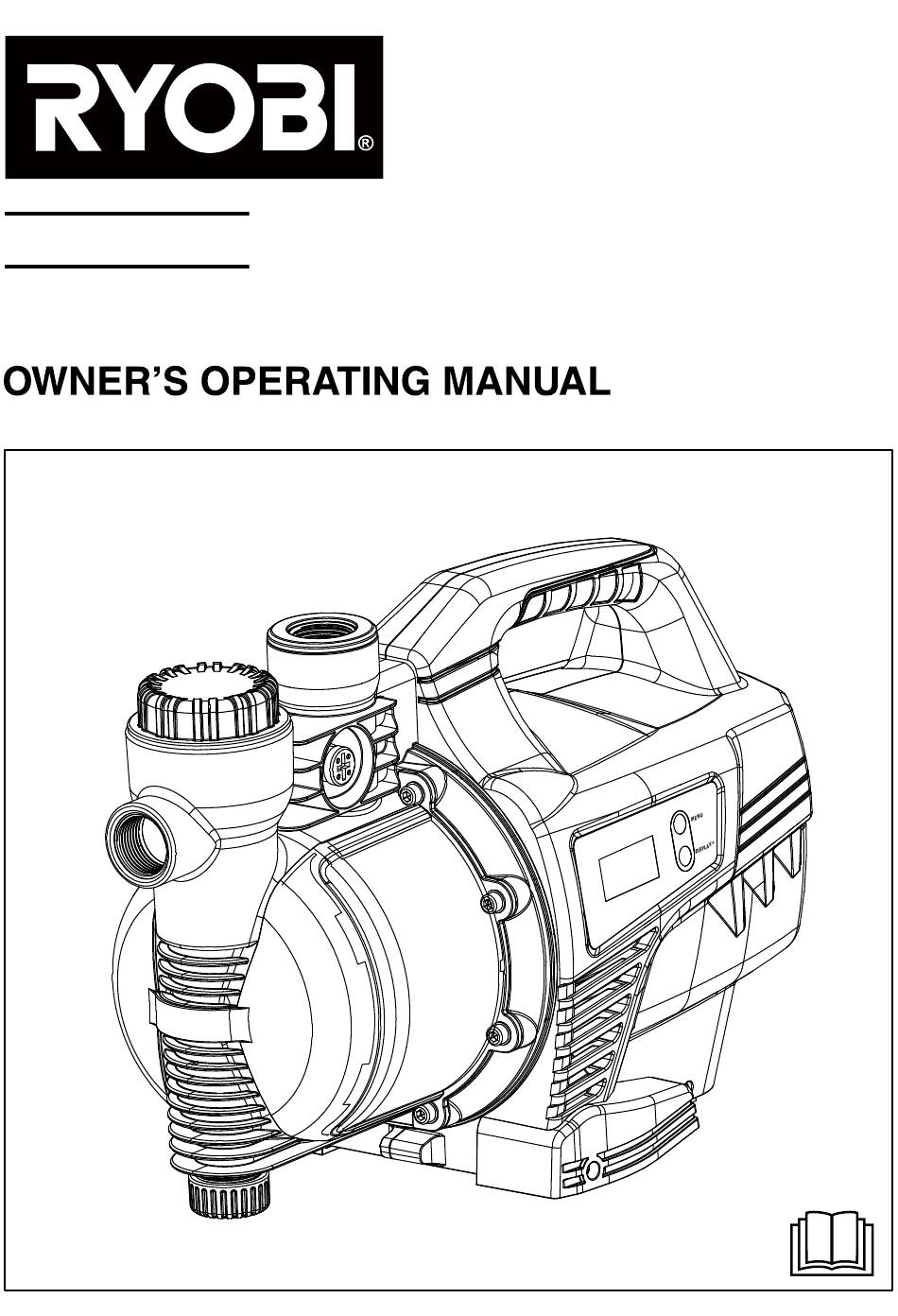

  • Page 1 RCPP900-D CONSTANT PRESSURE PUMP...
  • Page 2 Important! It is essential that you read the instructions in this manual before assembling, operating and maintaining the product. Subject to technical modification.
  • Page 3 DESCRIPTION Components List 1. 25mm Water inlet 2. Pre-Filter 3. 25mm Water outlet 4. Drain plug 5. Pump Head 6. LCD Display screen 7. Carry Handle 8. 900W Induction motor with thermal overload 9. Spanner...

  • Page 4: Lcd Display

    DESCRIPTION LCD DISPLAY Flow Rate MENU MENU DISPLAY/+ DISPLAY/+ Pump Head Timer MENU MENU DISPLAY/+ DISPLAY/+ No Flow Error Leakage Error MENU MENU DISPLAY/+ DISPLAY/+ Current Time Setting Timer ON Setting MENU MENU TIME NOW TIME 12 : 00 12 : 00 DISPLAY/+ DISPLAY/+...

  • Page 5: Pump Installation

    DESCRIPTION Timer OFF Setting MENU TIME 12 : 00 DISPLAY/+ PUMP INSTALLATION Fig. 1 Fig. 2 Fig. 3 Fig. 4 Fig. 6 Fig. 5...
  • Page 6 DESCRIPTION Fig. 7 Fig. 8 Fig. 9 Fig. 10...

  • Page 7: General Safety Warnings

    ■ Keep handles and grasping surfaces dry, clean GENERAL SAFETY WARNINGS and free from oil and grease. Slippery handles ■ Read all safety warnings and all instructions. and grasping surfaces do not allow for safe handling Failure to follow the warnings and instructions and control of the tool in unexpected situations.

  • Page 8: Maintenance

    3. Tap the filter and non-return valve on a flat surface ■ Ensure the water pump is disconnected from mains power when installing. gently. For stubborn dirt, simply rinse with water. ■ Do not install or operate the water pump in an NOTE: Do not use abrasive cleaning agents to clean explosive environment or near flammable material.

  • Page 9: Clock Settings

    adjust head height. Once the parameter is set press Installation precautions of outlet water pipes (Fig. 3) and hold "Menu" to return back to normal operation. Diameter of outlet water pipes should be at least the same as that of water outlet to minimize pressure, CLOCK/TIMER SETTINGS: To enter clock settings press and hold "Menu"...

  • Page 10: Specifications

    1. In summer or when temperature is high, ensure pump is well ventilated. 2. If electric pump overheats or malfunctions, please turn off power immediately. SPECIFICATIONS Input Voltage 240V Frequency 50Hz Rated Power 900W Weight 10.4kg Pump Dimensions L:470xW:215xHx305 Operation Noise Level 80dB Inlet/Outlet Size 25.4mm...
  • Page 11 COMMON FAILURES AND TREATMENT Failures Causes Measures Turn off pump and refill pump chamber with Water pump is not filled with water water No water output Water level lowers bottom valve Adjust water inlet pipeline to submerge bottom from pump valve Leakage of suction pipes Examine joints sealing of all suction pipes...
  • Page 12 Imported by: Techtronic Industries Australia Pty Ltd 31 Gilby Road, Mount Waverley, VIC 3149 Melbourne, Australia Techtronic Industries N.Z. Limited Unit C 70 Business Parade South Highbrook Auckland 2013 New Zealand...
