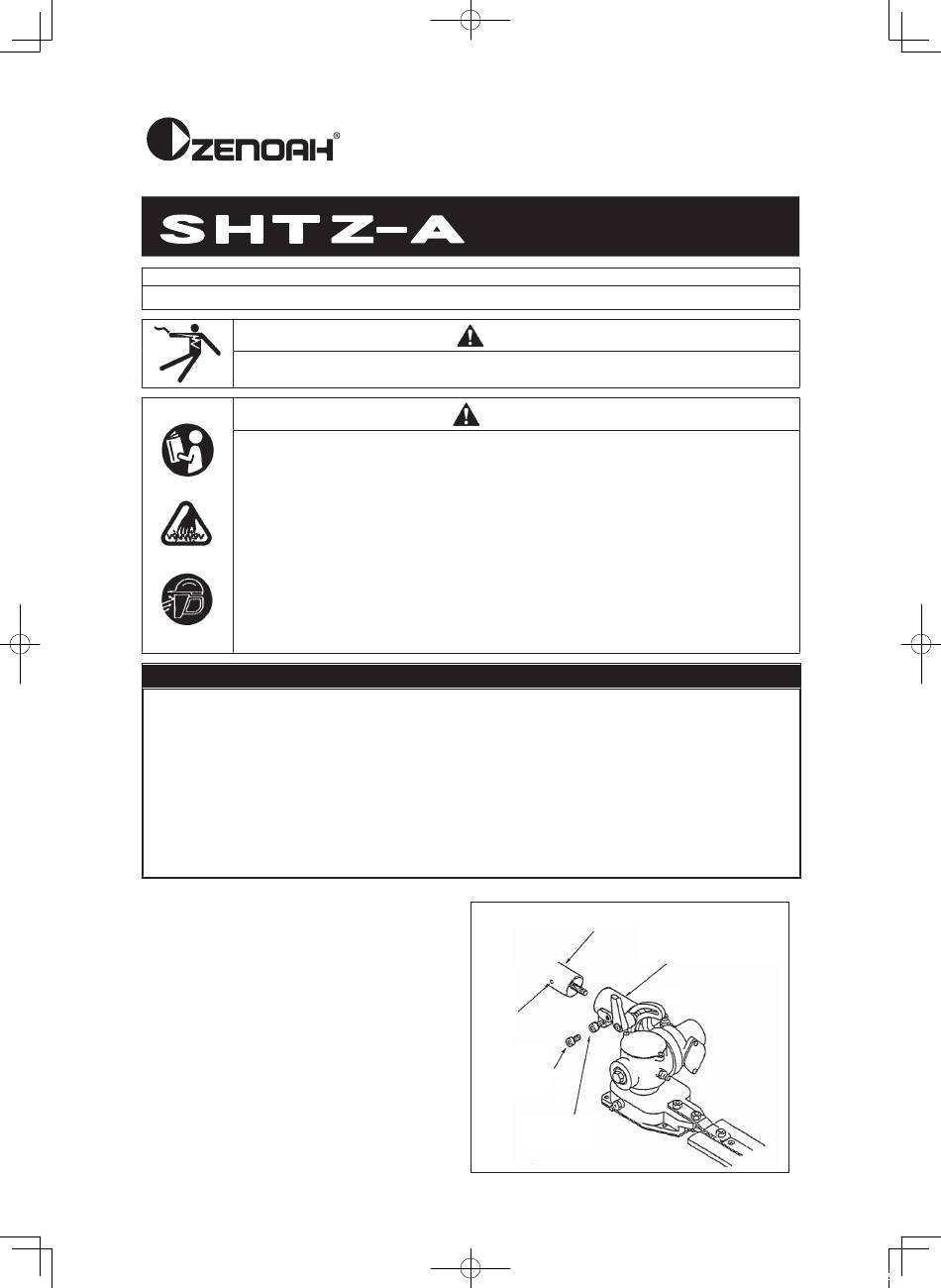

Zenoah SHTZ-A Owner's Manual

Zenoah Hedge Trimmer Attachment
Keep blades away from power lines. Accidental cutting of power lines could result in inju-
ry and even death due to electrical shock.
The blades used in this product are very sharp. Failure to handle the product correctly
could result in serious injury. Observe all precautions to ensure correct operation of the
product.
● When using this attachment with cutters having engines of 25cc or more displacement, open the
throttle only partially as such engines produce too much power for suitable operation of this attach-
ment.
● This product contains an overload protection mechanism to prevent damage to blades and drive
gears due to excessive force.
Note the following precautions if branches frequently get caught in the blades.
※ Branch thickness: Try not to cut branches more than 5mm or so in thickness.
※ Blade condition: Using worn blades results in a loss of cutting ability and increases likeliness of
caught branches.
● Do not allow blades to remain wet. Do not allow the drive unit to become wet. Doing so may result in
rust or failure.
■ Attachment Installation
(1) Loosen the setting screw and gear case
mounting bolt in the weed cutter gear case.
Then remove the gear case.
(2) Remove the partially tightened setting screw
in the attachment mount.
(3) Place the attachment mount over the main
pipe of the cutter. Fig. 1
(4) Align the setting screw hole with the hole in
the main pipe and then fully tighten the set-
ting screw.
(5) Use a 4-mm Allen wrench to fully tighten the
attachment mounting bolt.
