Instructions - Parts List
RAZOR

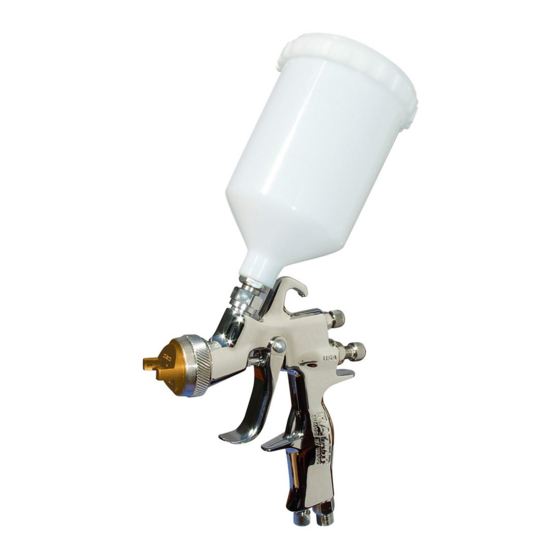

Feed Gun
A premier gun for the automotive refinish market.
Important Safety Instructions
Read all warnings and instructions in this manual.
Save these instructions.
Includes LVLP, HVLP, Compliant, and Conventional Series.
See page 2 for List of Models and maximum working pressures.
See page 10 for Parts.
This manual is available in the following
languages.
English
312101
Spanish
312102
French
312103
German
312104
Italian
312105
Contents
Models . . . . . . . . . . . . . . . . . . . . . . . 2
Warnings . . . . . . . . . . . . . . . . . . . . . 3
Setup . . . . . . . . . . . . . . . . . . . . . . . . 4
Operation . . . . . . . . . . . . . . . . . . . . 4
Maintenance . . . . . . . . . . . . . . . . . . 5
Repair . . . . . . . . . . . . . . . . . . . . . . . 6
Troubleshooting . . . . . . . . . . . . . . . 7
Technical Data . . . . . . . . . . . . . . . . 8
Accessories . . . . . . . . . . . . . . . . . . 9
Parts . . . . . . . . . . . . . . . . . . . . . . . 10
Graco Standard Warranty . . . . . . 12
Graco Information . . . . . . . . . . . . 12
Graco Inc. P.O. Box 1441 Minneapolis, MN 55440-1441
Copyright 2007, Graco Inc. is registered to I.S. EN ISO 9001
®
Gravity
312101E
TI8206
II 2 G
Advertisement
Table of Contents
Related Manuals for Graco RAZOR 288561
Summary of Contents for Graco RAZOR 288561
-
Page 1: Table Of Contents
Parts ..... . . 10 Graco Standard Warranty ..12 Graco Information ... . 12 Graco Inc. P.O. Box 1441 Minneapolis, MN 55440-1441 II 2 G Copyright 2007, Graco Inc. -
Page 2: Models
Models Models Air Cap Max HVLP/ with Part Comp Pressure Nozzle Needle Needle Retaining Number Series Spray Type psi (MPa, bar) (mm) Application Nozzle Assy Ring 288561 LVLP 16 (0.1, 1.1) Clear, Base 253823 253802 253771 288752 289500 288562 LVLP 16 (0.1, 1.1) Clear, Base 253823 253803 253771 288752 289500... -
Page 3: Warnings
Check equipment daily. Repair or replace worn or damaged parts immediately. • Do not alter or modify equipment. • Use equipment only for its intended purpose. Call your Graco distributor for information. • Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces. -
Page 4: Setup
Regulatory agencies in certain states prohibit the air flow. If an air adjusting valve is the operation of a spray gun above 10 psi (69 desired, use a Graco adjustable air kPa, 0.7 bar) atomizing air cap pressure. valve (288744 or 234387) or Digi-tell (288652). -
Page 5: Maintenance
Maintenance Volatile Organic Compounds Cleaning Gun and Cup (VOC) Regulation CAUTION • Do not submerge gun in solvent. Solvent In certain states, spraying solvents that release dissolves lubricant, dries out packings, VOCs into the atmosphere when cleaning a and clogs air passages. spray gun is prohibited. -
Page 6: Repair
Repair Compliant Cleaning Methods Air Valve Replacement 1. Place spray gun in a gun washer that com- 1. Remove trigger nut (24), trigger pin (23), pletely encloses the gun and components wave washer (18), and trigger (10). during cleaning, rinsing, and draining. 2. -
Page 7: Troubleshooting
Troubleshooting Troubleshooting Problem Cause Solution Normal pattern. No action necessary. Right Dirty or damaged air cap or fluid Rotate air cap 180°. nozzle. If pattern follows air cap, problem is in air cap (13). Clean and inspect. If pattern is not corrected, replace air cap. -
Page 8: Technical Data
Technical Data Technical Data Maximum Air Inlet Pressure ..... . 100 psi (0.7 MPa, 7 bar) Maximum HVLP/Compliant Inbound Air Pressure: LVLP gravity feed . -
Page 9: Accessories
Accessories Accessories Repair Kits Part No. Description 253748 Needle Packing Repair Kit 253783 Gun Repair Kit 253784 Air Cap Seal Kit 253785 Trigger Repair Kit 253933 Air Inlet Fitting Repair Kit 253934 Air Valve Repair Kit 289213 Cup gasket 10 Pack Kit Air Valves Part No. -
Page 10: Parts
Parts Parts 8‡ ✿ 7‡ ‡29 ‡22 ‡31 ‡22 ‡6 ◆✓ 13✓ ◆✓ †16 †15 14✓ TI8205 Pull trigger before installing nozzle (11). Insert spreader (15) with tapered end facing rear of gun. Insert u-cup (16) with open end facing front of gun. - Page 11 Parts Ref. Part Description Qty. Included in Gun Repair Kit 253783 (purchase BODY, gun separately). GASKET, fluid inlet ** Included in Trigger Repair Kit 253785 (purchase 253971 FITTING, fluid inlet separately). 253976 VALVE, air control, assy † Included in Needle Packing Repair Kit 253748 6*‡...
-
Page 12: Graco Standard Warranty
With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
