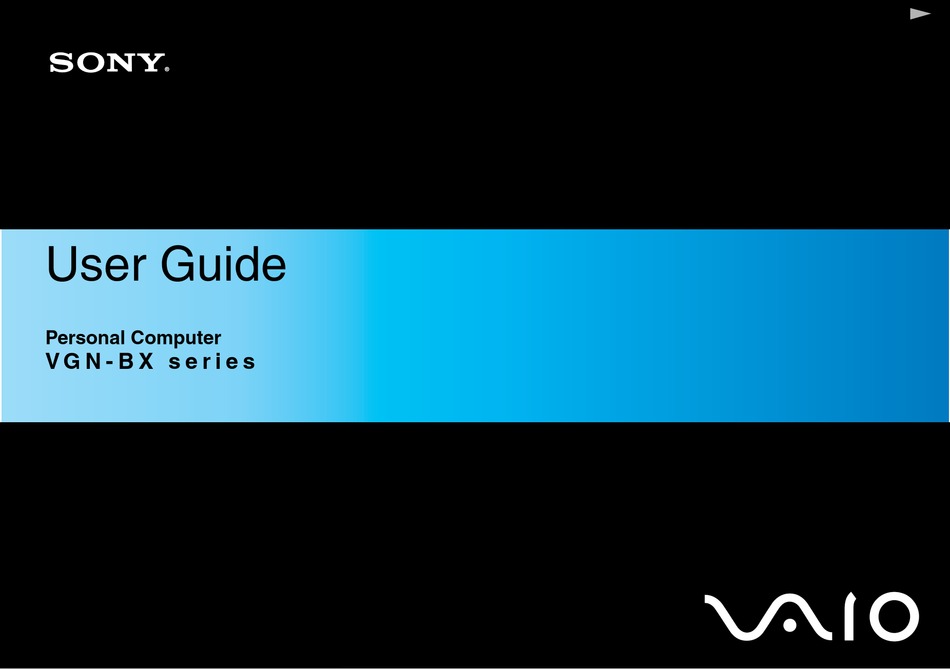

  • Page 1: User Guide

    User Guide Personal Computer V G N - B X s e r i e s...

  • Page 2: Table Of Contents

    Contents Before Use ...6 Notice ...6 Documentation ...7 Ergonomic Considerations ...11 Getting Started ...13 Locating Controls and Ports...14 About the Indicator Lights ...21 Connecting a Power Source ...22 Using the Battery Pack ...24 Shutting Down Your Computer Safely ...30 Using Your VAIO Computer ...31 Using the Keyboard ...32 Using the Pointing Device ...34 Using Special-function Buttons ...37...
  • Page 3 Using Peripheral Devices...71 Using the Optical Disc Drive ...72 Connecting a Multi Function Bay Docking Station ...81 Connecting External Speakers ...94 Connecting an External Display ...95 Selecting Display Modes...102 Using the Multiple Monitors Function ...104 Connecting an External Microphone ...106 Connecting a Universal Serial Bus (USB) Device...107 Connecting a Printer ...110 Connecting an i.LINK Device ...112...
  • Page 4 Precautions ...160 On Handling the LCD Screen ...161 On Using the Power Source ...162 On Handling Your Computer...163 On Using the Built-in MOTION EYE Camera...165 On Handling Floppy Disks ...165 On Handling Discs ...166 On Using the Battery Pack...167 On Using Headphones...168 On Handling Memory Stick Media...169 On Handling the Hard Disk ...170 On Updating Your Computer ...171...
  • Page 5 Speakers ...206 Pointing Device ...207 Keyboard...208 Floppy Disks ...209 Audio/Video...210 Memory Stick Media ...211 Peripherals ...212 Multi Function Bay Docking Station ...213 Support Options ...217 Sony Support Information ...217 e-Support ...218 Trademarks ...220...

  • Page 6: Before Use

    In the manual, the ™ or ® marks are not specified. Sony Corporation reserves the right to make any modification to this manual or the information contained herein at any time without notice. The software described herein is governed by the terms of a separate user license agreement.

  • Page 7: Documentation

    Documentation Your documentation includes printed information and user guides to read on your VAIO computer. Guides are provided in PDF format, which you can easily browse through and print out. The My Club VAIO portal is a perfect starting point to use your computer — a comprehensive collection of everything you need to get the most from your computer.

  • Page 8: Printed Documentation

    Recovery Guide — Contains an explanation of how to make a backup copy of your data and recover your computer system, and solutions to computer malfunctions. Booklets containing the following information: Sony GUARANTEE conditions, Safety / Regulations, Modem Regulations, Wireless LAN Regulations, Bluetooth Regulations, End User Software License Agreement, and Sony Support services.
  • Page 9 Feeling creative? Click this icon for an overview of your software and check out our upgrade options. Wallpapers Click this icon and check out our most popular Sony and Club VAIO wallpapers. Links Click this icon and check out our most popular Sony and Club VAIO Web sites. Before Use...
  • Page 10 Windows Help and Support Windows Help and Support is a comprehensive resource for practical advice, tutorials, and demonstrations to help you learn to use your computer. Use the Search feature, Index, or table of contents to view all Windows Help resources, including those that are on the Internet.

  • Page 11: Ergonomic Considerations

    Ergonomic Considerations You will be using your computer as a portable device in a variety of environments. Whenever possible, you should attempt to take account of the following ergonomic considerations for both stationary and portable environments: Position of your computer – Place the computer directly in front of you (1). Keep your forearms horizontal (2), with your wrists in a neutral, comfortable position (3) while using the keyboard, touch pad, or external mouse.
  • Page 12 Before Use Viewing angle of the computer's display – Use the display's tilting feature to find the best position. You can reduce eye strain and muscle fatigue by adjusting the tilt of the display to the proper position. Adjust the brightness setting of the display as well.

  • Page 13: Getting Started

    Getting Started This section describes how to get started using your VAIO computer. Locating Controls and Ports (page 14) About the Indicator Lights (page 21) Connecting a Power Source (page 22) Using the Battery Pack (page 24) Shutting Down Your Computer Safely (page 30) Getting Started...

  • Page 14: Locating Controls And Ports

    Locating Controls and Ports Take a moment to identify the controls and ports shown on the following pages. The appearance of your computer may be different from those illustrated in this manual due to variations in specifications. It may also vary depending on the country or area of your residency.
  • Page 15 Front Built-in microphone (monaural) Built-in MOTION EYE camera (page 38) LCD screen (page 161) Pointing stick (page 35) Keyboard (page 32) Power button Touch pad (page 34) Built-in speakers (stereo) WIRELESS switch (page 56) Memory Stick PRO/Duo media slot (page 47) Media Access indicator (page 21) SD memory card slot...
  • Page 16 Muting button (page 37) S1/S2 buttons (page 37) Num lock indicator (page 21) Caps lock indicator (page 21) Scroll lock indicator (page 21) Fingerprint sensor (page 128) Getting Started...
  • Page 17 Back Network (Ethernet) port (page 114) Modem port (page 55) Battery connector (page 24) DC IN port (page 22) Getting Started...
  • Page 18 Right Multi function bay (page 39) Multi function bay unit eject button (page 39) i.LINK (IEEE 1394) S400 port (page 112) Hi-Speed USB (USB 2.0) ports (page 107) Monitor (VGA) port (page 96) Supports high-/full-/low- speeds. Getting Started...
  • Page 19 Left Security slot Air vent Microphone jack (page 106) Headphones jack (page 94) Universal ExpressCard slot (page 44) ExpressCard module release button (page 45) Getting Started...
  • Page 20 Bottom Air vents Battery RELEASE latch (page 29) Battery LOCK/UNLOCK switch (page 24) Multi function bay docking station connector Getting Started (page 84)

  • Page 21: About The Indicator Lights

    About the Indicator Lights Your computer is equipped with the following indicator lights. Indicator Functions Power 1 Illuminates when the power of the computer is on, blinks when the computer is in Sleep mode, and turns off when the computer is in Hibernate mode or off. Battery e Illuminates when the computer is using battery power, blinks when the battery pack is running out of power, and double-blinks when the battery pack is charging.

  • Page 22: Connecting A Power Source

    Connecting a Power Source You can use either an AC adapter or a rechargeable battery pack as a power source for your computer. Using the AC Adapter Use your computer only with the supplied AC adapter. To use the AC adapter Plug one end of the power cord (1) into the AC adapter (3).
  • Page 23 Getting Started To disconnect your computer completely from AC power, unplug the AC adapter. Make sure that the AC outlet is easily accessible. If you do not use your computer for a long period of time, place the computer into Hibernate mode. See Using Hibernate Mode (page 147).

  • Page 24: Using The Battery Pack

    Using the Battery Pack The battery pack supplied with your computer is not fully charged at the time of purchase. Installing the Battery Pack To install the battery pack Turn off the computer and close the LCD screen lid. Slide the battery LOCK/UNLOCK switch (1) on the bottom of the computer to the UNLOCK position. Getting Started...
  • Page 25 Slide the battery pack diagonally into the battery compartment until the projections (2) on either side of the battery compartment fit into the U-shaped cuts (3) on either side of the battery pack. Rotate the battery pack in the direction of the arrow, and push the battery pack down into the compartment until it clicks into place.
  • Page 26 When your computer is directly connected to AC power and has a battery pack installed, it uses power from the AC outlet. Certain rechargeable batteries do not meet Sony quality and safety standards. For safety reasons this computer only functions with genuine Sony...

  • Page 27: Charging The Battery Pack

    Charging the Battery Pack The battery pack supplied with your computer is not fully charged at the time of purchase. To charge the battery pack Install the battery pack. Connect the AC adapter to the computer. The computer automatically charges the battery pack (the battery indicator light flashes in a double blink pattern as the battery pack charges).
  • Page 28 Getting Started You can charge the battery pack in such a usual manner as mentioned in this manual from the first time. When the battery pack is running out of power, both the battery and power indicator lights blink. Keep the battery pack in your computer while it is directly connected to AC power. The battery pack continues to charge while you are using the computer.

  • Page 29: Removing The Battery Pack

    Removing the Battery Pack You may lose data if you remove the battery pack while your computer is on and not connected to the AC adapter or if you remove the battery pack while the computer is in Sleep mode. To remove the battery pack Turn off the computer and close the LCD screen lid.

  • Page 30: Shutting Down Your Computer Safely

    Shutting Down Your Computer Safely To avoid losing unsaved data, be sure to shut down your computer properly, as described below. To shut down your computer Turn off any peripherals connected to the computer. Click Start, the arrow next to the Lock button, and Shut Down. Respond to any prompts warning you to save documents or to consider other users and wait for the computer to turn off automatically.

  • Page 31: Using Your Vaio Computer

    Using Your VAIO Computer This section describes how to get the most out of using your VAIO computer. Using the Keyboard (page 32) Using the Pointing Device (page 34) Using Special-function Buttons Using the Built-in MOTION EYE Camera Using the Multi Function Bay Using the ExpressCard Module Using the Memory Stick Media Using Other Memory Cards...

  • Page 32: Using The Keyboard

    Your keyboard is very similar to a desktop computer keyboard, but has additional keys that perform model-specific tasks. The VAIO-Link Web site (http://support.vaio.sony.eu) also contains glossary information to help you use the keyboard. Combinations and Functions with the Fn Key Some functions are not available before the operating system launches.
  • Page 33 Combinations/Feature Fn + (F10): zoom Fn + (F12): Hibernate Functions Changes the screen resolution to magnify/restore your computer's screen view. The default resolutions of the standard view and the magnified view are as follows: XGA LCD models Standard view: 1024 x 768 pixels Magnified view: 800 x 600 pixels WXGA LCD models Standard view: 1280 x 800 pixels...

  • Page 34: Using The Pointing Device

    Using the Pointing Device Your computer is equipped with two types of the pointing device: the touch pad and the pointing stick. By default, both pointing devices are enabled but you can disable one of the devices to suit your preference. To change the pointing device settings, see Disabling a Pointing Device Using the Touch Pad You can point to, select, drag, and scroll objects on the screen using the touch pad.

  • Page 35: Using The Pointing Stick

    Using the Pointing Stick The keyboard contains a cursor-pointing device, the pointing stick (1). You can point to, select, drag, and scroll objects on the screen using the pointing stick in combination with the buttons located below the space bar. The pointer (2) moves in the direction that you push the pointing stick.
  • Page 36 Disabling a Pointing Device You can change the pointing device settings to disable the pointing devices. To disable a pointing device Click Start and Control Panel. Click Hardware and Sound. Click Mouse. The Mouse Properties window appears. Click the Device Select tab. Select radio buttons to disable the desired pointing device.

  • Page 37: Using Special-Function Buttons

    Using Special-function Buttons Your computer is equipped with special buttons to help you use specific functions of the computer. Special-function button S1/S2 buttons Muting button Functions By default, the S1 button launches VAIO Help and Support Center and the S2 button activates the Multiple Monitors mode.

  • Page 38: Using The Built-In Motion Eye Camera

    Using the Built-in MOTION EYE Camera Your computer is equipped with a built-in MOTION EYE camera. The built-in MOTION EYE camera adds video functionality to instant messaging software and video editing software. Turning on the computer activates the built-in MOTION EYE camera, so the computer is ready for a video conference using such software.

  • Page 39: Using The Multi Function Bay

    Using the Multi Function Bay Your computer is equipped with a component bay, called multi function bay, for hardware enhancement, and is delivered with a DVD±RW/±R DL/RAM drive bay unit. Additionally, you can purchase an optional bay unit and install it in the computer. Available optional bay units are: HDD adapter bay unit (for installing your PATA hard disk drive) 80GB HDD bay unit...
  • Page 40 To change a bay unit To remove a bay unit when your computer is off, skip steps 1 to 7. Double-click the Safely Remove Hardware icon on the taskbar. The Safely Remove Hardware window appears. Select the hardware you want to unplug. Click Stop.
  • Page 41 Push the multi function bay unit eject button (1) to pop it out. Gently pull the button to pop out the installed bay unit. 10 Gently take hold of the unit and pull it out of the bay. Using Your VAIO Computer...
  • Page 42 Using Your VAIO Computer 11 Insert another bay unit with the label facing upward into the bay until it clicks into place.

  • Page 43: Using The Expresscard Module

    Using the ExpressCard Module Your computer is equipped with either a Universal ExpressCard among digital cameras, camcorders, music players, and other audio/video devices. The former can accommodate either an ™ ExpressCard /34 (34 mm wide) or ExpressCard ™ ExpressCard /34 module only.

  • Page 44: Inserting An Expresscard Module

    Inserting an ExpressCard Module Use care when inserting or removing the ExpressCard module from the slot. Do not force it in or out of the slot. You do not need to shut down your computer before inserting or removing the ExpressCard module. To insert an ExpressCard module Carefully slide the ExpressCard module (1) into the slot until it clicks into place.

  • Page 45: Removing An Expresscard Module

    Removing an ExpressCard Module Follow the steps below to remove the ExpressCard module while your computer is on. If it is not removed properly, your system may not work properly. To remove an ExpressCard module To remove an ExpressCard module when your computer is off, skip steps 1 to 7. Double-click the Safely Remove Hardware icon on the taskbar.

  • Page 46: Using The Memory Stick Media

    For the latest information about the Memory Stick media, visit the Memory Stick Web site at http://www.memorystick.com/en/. Your computer has been tested and found compatible with the Sony branded Memory Stick media with capacity of up to 8 GB that are available as of January 2007.

  • Page 47: Inserting A Memory Stick Media

    Inserting a Memory Stick Media To insert a Memory Stick media Locate the Memory Stick PRO/Duo media slot. Hold the Memory Stick media with the arrow facing upward and pointing toward the Memory Stick PRO/Duo media slot. Carefully slide the Memory Stick media into the slot until it clicks into place. The Memory Stick media is automatically detected by your system and the content of the Memory Stick media is displayed.
  • Page 48 Be sure to hold the Memory Stick media with the arrow pointing in the correct direction as you insert it into the slot. To avoid damaging your computer or the Memory Stick media, do not force the Memory Stick media into the slot if you cannot insert it smoothly. Do not insert more than one Memory Stick media into the slot.
  • Page 49 To format a Memory Stick media The Memory Stick media has been formatted in the factory default setting and is ready for use. If you want to reformat the media with your computer, follow these steps. Be sure to use the device that is designed to format the media and supports the Memory Stick media when formatting the media. Formatting the Memory Stick media erases the entire data on the media.
  • Page 50 Click Start. At the confirmation prompt, click OK. The formatting process starts. It may take time to format the Memory Stick media depending on the media. Once completed, click OK. Click Close. Using Your VAIO Computer...

  • Page 51: Removing A Memory Stick Media

    Removing a Memory Stick Media To remove a Memory Stick media Check that the Media Access indicator light is off. Push the Memory Stick media in toward the computer. The Memory Stick media ejects. Pull the Memory Stick media out of the slot. Always remove the Memory Stick media gently, or it may pop out unexpectedly.

  • Page 52: Using Other Memory Cards

    MultiMediaCard (MMC) Secure Digital (SD) For the latest information on compatible memory cards, visit the Sony online support Web site regularly. Always insert the correct memory card into the SD memory card slot. SD memory cards with capacity of up to 2 GB and SD High Capacity (SDHC) memory cards with capacity of up to 4 GB have been tested and found compatible with your computer.

  • Page 53: Inserting A Memory Card

    Inserting a Memory Card To insert a memory card Locate the SD memory card slot on the front of the computer. Hold the memory card with the arrow facing upward and pointing toward the memory card slot. Carefully slide the memory card into the slot until it clicks into place. Do not force the card into the slot.

  • Page 54: Removing A Memory Card

    Removing a Memory Card Do not remove a memory card while the To remove a memory card Check that the Media Access indicator light is off. Press the extended part of the memory card, causing it to extend out from the slot. When the card extends, carefully pull it out of the slot.

  • Page 55: Using The Internet

    Using the Internet Setting Up a Dial-up Internet Connection Before you can connect to the Internet, you need to connect your computer to a telephone line with a telephone cable (not supplied). Once you have set up your telephone cable connection, you are ready to connect to the Internet. To connect a telephone cable Plug one end of the phone cable (1) into the modem port Plug the other end into the wall jack (2).

  • Page 56: Using Wireless Lan (Wlan)

    (radio) connection. So there is no need anymore to pull cables or wires through walls and ceilings. The Sony WLAN supports all normal Ethernet activities, but with the added benefits of mobility and roaming. You can still access information, Internet/intranet and network resources, even in the middle of a meeting, or as you move from one place to another.
  • Page 57 Using Your VAIO Computer IEEE 802.11b/g is a wireless LAN standard, using the 2.4 GHz bandwidth. The IEEE 802.11g standard provides high-speed communications, faster than the IEEE 802.11b standard. IEEE 802.11a is a wireless LAN standard, using the 5 GHz bandwidth, and provides high-speed communications of up to 54 Mbps. IEEE 802.11n is a wireless LAN standard, using the 2.4 or 5 GHz bandwidth, and provides high-speed communications of up to 300 Mbps * Actual communication speed varies depending on your access point settings and so on.
  • Page 58 Using Your VAIO Computer Deploying IEEE 802.11b and IEEE 802.11g products on the same wireless network may reduce the communication speed due to radio interference. Taking this into consideration, the IEEE 802.11g products are designed to reduce the communication speed to ensure communications with IEEE 802.11b products.

  • Page 59: Communicating Without An Access Point (Ad-Hoc)

    Communicating without an Access Point (Ad-hoc) An ad-hoc network is a network in which a local network is created only by the wireless devices themselves, with no other central controller or access point. Each device communicates directly with other devices in the network. You can set up an ad-hoc network easily at home.
  • Page 60 To communicate without an access point (ad-hoc) The IEEE 802.11n standard, using the 2.4 or 5 GHz bandwidth, is not available on ad-hoc networks. Turn on the WIRELESS or WIRELESS LAN switch. The Wireless LAN indicator lights up. Double-click ) on the taskbar to display the Wireless Device Switch window. Select your desired wireless option(s) and click OK.

  • Page 61: Communicating With An Access Point (Infrastructure)

    An infrastructure network is a network that extends an existing wired local network to wireless devices by providing an access point (not supplied), for example the Sony Access Point. The access point bridges the wireless and wired LAN and acts as a central controller for the wireless LAN.
  • Page 62 To connect to a wireless network Make sure an access point is set up. See the manual that came with your access point for more information. Turn on the WIRELESS or WIRELESS LAN switch. The Wireless LAN indicator lights up. Double-click ) on the taskbar to display the Wireless Device Switch window.

  • Page 63: Using The Bluetooth Functionality

    Using the Bluetooth Functionality The Bluetooth functionality is available on selected models only. See the online Specifications to see whether your model supports the Bluetooth functionality. You can establish wireless communication between your computer and other Bluetooth devices such as another computer or a mobile phone.
  • Page 64 Notes on using the Bluetooth functionality The data transfer rate varies, depending on the following conditions: Obstacles, such as walls, located between devices Distance between devices Material used in walls Proximity to microwaves and cordless telephones Radio frequency interference and other environmental conditions Device configuration Type of software application Type of operating system...
  • Page 65 Using Your VAIO Computer The 2.4 GHz band, with which Bluetooth devices or wireless LAN devices work, is used by various devices. Bluetooth devices use the technology to minimize the interference from other devices that use the same wave length. Simultaneous use of the Bluetooth functionality and wireless communication devices, however, may cause radio interference and result in poorer communication speeds and distances than the standard values.
  • Page 66 Bluetooth Security The Bluetooth wireless technology has an authentication function, which allows you to determine with whom you choose to communicate. With the authentication function, you can avoid any anonymous Bluetooth device to access your computer. The first time two Bluetooth devices communicate, a common passkey (a password required for authentication) should be determined for both devices to be registered.

  • Page 67: Communicating With Another Bluetooth Device

    Using Your VAIO Computer Communicating with Another Bluetooth Device You can connect your computer to a Bluetooth device such as another computer, a mobile phone, a PDA, a headset, a mouse, or a digital camera without the use of any cables.

  • Page 68: Stopping The Bluetooth Connection

    Using Your VAIO Computer To communicate with another Bluetooth device To communicate with another Bluetooth device, you need first to set up the Bluetooth functionality. For setting up and using the Bluetooth functionality, see the help file on the Bluetooth utility software. To see the help file Right-click the Bluetooth icon on the taskbar, and select Help from the menu.

  • Page 69: Using The Bluetooth Headset

    Using the Bluetooth Headset The Bluetooth headset (not supplied) will come in handy during a video conference over the Internet using instant messaging software. For details on using the Bluetooth headset, see the manual that came with your Bluetooth headset. To connect the headset with your computer Press and hold the headset power button for at least five seconds to turn on the Bluetooth headset.
  • Page 70 To disconnect the headset from your computer Right-click the Bluetooth icon The Bluetooth Settings window appears. Right-click the headset icon and select Disconnect from the menu. Click Yes. on the taskbar and select Bluetooth Settings from the menu. Using Your VAIO Computer...

  • Page 71: Using Peripheral Devices

    Using Peripheral Devices You can add functionality to your VAIO computer by using the various ports on the computer. Using the Optical Disc Drive (page 72) Connecting a Multi Function Bay Docking Station Connecting External Speakers Connecting an External Display Selecting Display Modes (page 102) Using the Multiple Monitors Function...

  • Page 72: Using The Optical Disc Drive

    Using the Optical Disc Drive When playing or recording on CDs or DVDs, replace the installed weight saver with the supplied optical disc drive bay unit. See Using the Multi Function Bay To insert a disc Turn on the computer. Press the drive eject button (1) to open the drive.
  • Page 73 Using Peripheral Devices Do not remove the optical disc when your computer is in a power saving mode (Standby or Hibernate). Doing so may cause the computer to malfunction. Before removing the optical disc, make sure that the optical disc drive indicator (2) is unlit. If the drive eject button does not work, use the manual eject hole (3).

  • Page 74: Reading And Writing Optical Discs

    Using Peripheral Devices Reading and Writing Optical Discs Your computer plays and records CDs, DVDs, or Blu-ray Discs, depending on the supplied optical disc drive bay unit. Check your specifications for type of your optical disc drive bay unit. Use the table below to see which types of media your optical disc drive supports.
  • Page 75 Video Music Extra DVD±RW/ ±R DL/RAM CD-RW/ DVD-ROM DVD-ROM Blu-ray Disc P Supports writing data to DVD-R discs compliant with DVD-R for General Version 2.0/2.1. Supports writing data to DVD-RW discs compliant with DVD-RW Version 1.1/1.2. The DVD±RW/RAM disc drive on your computer does not support the DVD-RAM cartridge. Use non-cartridge discs or discs with removable cartridge. Writing data to single-sided DVD-RAM discs (2.6 GB) compliant with DVD-RAM Version 1.0 is not supported.
  • Page 76 Due to the multiple formats of discs now available, when buying pre-recorded or blank discs for use with a VAIO computer, be sure to read the notices on the disc packaging carefully to check both playback and recording compatibility with your computer's optical disc drives. Sony does NOT guarantee the compatibility of VAIO CD drives with discs that are not compliant with the official "CD"...
  • Page 77 Using Peripheral Devices Notes on writing data to a disc Use only Sony recommended software, which is preinstalled on your computer, to write data to a disc. Other software programs may not be fully compatible and errors may result. To make data on a disc readable on the optical disc drive, you need to close the session before you eject it. To complete this process, follow the instructions included with your software.
  • Page 78 Notes on playing discs To achieve optimum performance when playing discs, you should follow these recommendations. Some CD players and computer's optical disc drives may not be able to play audio CDs created with the CD-R or CD-RW disc media. Some DVD players and computer's optical disc drives may not be able to play DVDs created with the DVD+R DL, DVD- R DL, DVD+R, DVD+RW, DVD-R, DVD-RW, or DVD-RAM disc media.

  • Page 79: Playing Cds

    Playing CDs To play an audio CD Insert a disc into the optical disc drive. If nothing appears on the desktop, then click Start, All Programs, and the desired CD software to play the CD. If the Audio CD window appears, click to select an option. Copying Files to CDs To copy files to a disc Do not strike or shake your computer while writing data to a disc.

  • Page 80: Playing Dvds

    Playing DVDs To play a DVD Close all running software applications. Insert a DVD into the optical disc drive. If nothing appears on the desktop, then click Start, All Programs, and the desired DVD software to play the DVD. For instructions on how to use the software, see the help file on your DVD software. Copying Files to DVDs To copy files to a disc Connect the AC adapter to the computer.

  • Page 81: Connecting A Multi Function Bay Docking Station

    Using Peripheral Devices Connecting a Multi Function Bay Docking Station Attaching a multi function bay docking station enables you to connect additional peripherals to your computer, such as a printer and an external display. A multi function bay docking station is not supplied with your computer and is available as an optional accessory.
  • Page 82 Locating Ports on the Multi Function Bay Docking Station Right DC IN indicator Illuminates when the multi function bay docking station is powered. Battery CHARGE indicator Fast blinks: The battery pack is improperly inserted or incompatible with the computer. Double blinks: The battery pack is charging. Off: The battery pack is fully charged.
  • Page 83 Left/Back The multi function bay docking station can be powered only through the AC adapter supplied with the multi function bay docking station. Do not unplug the AC adapter from the multi function bay docking station and the AC outlet while using the multi function bay docking station; this may cause data damage or hardware malfunctions.
  • Page 84 Attaching Your Computer to the Multi Function Bay Docking Station When your computer has no battery pack installed, do not attach the computer to the multi function bay docking station. To attach your computer to the multi function bay docking station To prevent loss of unsaved data, be sure to turn off your computer before attaching it to the multi function bay docking station.
  • Page 85 Gently push and slide open the multi function bay docking station connector cover on the bottom of the computer. Slide the LOCK/UNLOCK switch on the multi function bay docking station to the UNLOCK position. Using Peripheral Devices...
  • Page 86 Using Peripheral Devices Place the computer on the multi function bay docking station. Bring the arrows on the back of the LCD screen and on the multi function bay docking station together so that the connector on the bottom of the computer comes in contact with that on the docking station.
  • Page 87 Gently push down the computer until it clicks into place. Slide the LOCK/UNLOCK switch to the LOCK position. Turn on the computer. Be sure to use the AC adapter supplied with the multi function bay docking station. Do not move your computer while attached to the multi function bay docking station; this may detach the multi function bay docking station and cause damage to both units.
  • Page 88 Using Peripheral Devices Disconnecting Your Computer from the Multi Function Bay Docking Station To prevent loss of unsaved data, be sure to turn off your computer before disconnecting it from the multi function bay docking station. Be sure that no devices connected to the multi function bay docking station are in use before disconnecting your computer. Do not disconnect your computer from the multi function bay docking station when the IN USE indicator is lit.
  • Page 89 To disconnect your computer from the multi function bay docking station Turn off the computer and the connected peripherals; and then disconnect all connected peripherals. Slide the LOCK/UNLOCK switch on the multi function bay docking station to the UNLOCK position. Using Peripheral Devices...
  • Page 90 Using Peripheral Devices Press the UNDOCK button (1). If the IN USE indicator is unlit, you do not have to press the UNDOCK button. Pressing the UNDOCK button while your computer is in a power saving mode returns the computer to Normal mode first, and then initiates the disconnection process.
  • Page 91 Using Peripheral Devices Wait until the IN USE indicator (2) turns off and then press the PUSH RELEASE button (3).
  • Page 92 Lift the computer away from the multi function bay docking station. Close the multi function bay docking station connector cover on the bottom of the computer. Using Peripheral Devices...
  • Page 93 Alternatively, you can disconnect the computer from the multi function bay docking station as follows: Turn off the computer and the connected peripherals; and then disconnect all connected peripherals. Slide the LOCK/UNLOCK switch on the multi function bay docking station to the UNLOCK position. Click Start and Undock Computer.

  • Page 94: Connecting External Speakers

    Connecting External Speakers You can enhance the sound quality of your computer by connecting external speakers. To connect external speakers Plug the speaker cable (1) into the headphones jack (2) i. Plug the other end of the speaker cable to the external speaker (3). Turn down the volume of the speakers before you turn them on.

  • Page 95: Connecting An External Display

    Connecting an External Display You can connect an external display (not supplied) to your computer. For example, you can use the computer with a computer display or a projector. Connect the power cord after connecting all other cables. Connected external displays are used as secondary screens. On the Windows operating system, you can also use an external display to set up multiple monitors.

  • Page 96: Connecting A Computer Display

    Connecting a Computer Display You can connect a computer display (monitor) either directly to your computer or via the optional multi function bay docking station. To connect a computer display The monitor (VGA) port on your computer is not accessible when the computer is attached to the multi function bay docking station. If necessary, plug one end of the display's power cord (1) into your display, and the other end into an AC outlet.
  • Page 97 Using Peripheral Devices DVI-D stands for Digital Visual Interface - Digital. It is a type of DVI connector that supports only digital video signals (no analog video signals). It has 24 pins. A DVI-I connector (Digital Visual Interface - Integrated) supports digital video and analog video signals. It has 29 pins. You can use a TFT/DVI monitor only when a model with the ATI video controller is attached to the multi function bay docking station.

  • Page 98: Connecting A Multimedia Computer Display

    Connecting a Multimedia Computer Display You can connect a multimedia computer display that includes built-in speakers and a microphone directly to your computer or via the optional multi function bay docking station. To connect a multimedia computer display The monitor (VGA) port on your computer is not accessible when the computer is attached to the multi function bay docking station. Plug the power cord of your multimedia computer display (1) into an AC outlet.
  • Page 99 Using Peripheral Devices...

  • Page 100: Connecting A Projector

    Connecting a Projector You can connect a projector (for example, the Sony LCD projector) directly to your computer or via the optional multi function bay docking station. To connect a projector The monitor (VGA) port on the computer is not accessible when the computer is attached to the multi function bay docking station.
  • Page 101 Using Peripheral Devices...

  • Page 102: Selecting Display Modes

    Selecting Display Modes You can select which display to be used as the primary monitor when an external display (desktop monitor, etc.) is connected to your computer. The procedure for selecting a display depends on the video controller used in the computer. See the online Specifications for detailed information on the video controller.
  • Page 103 Models with the Intel Graphics Media Accelerator Right-click on the desktop and select Personalize from the shortcut menu. Click Display Settings. The Display Settings window appears. Follow the on-screen instructions to change the settings. You may not be able to display the same contents on your computer screen and the external display or projector at the same time, depending on the type of your external display or projector.

  • Page 104: Using The Multiple Monitors Function

    Using the Multiple Monitors Function The Multiple Monitors function allows you to distribute portions of your desktop across separate displays. For example, if you have an external display attached to the monitor (VGA) port, your computer screen and the external display can function as a single desktop.
  • Page 105 To select the Multiple Monitors mode The monitor (VGA) port on your computer is not accessible when the computer is attached to the multi function bay docking station. To find which video controller your model includes, see the online Specifications. Models with the ATI video controller Click Start and Control Panel.

  • Page 106: Connecting An External Microphone

    Using Peripheral Devices Connecting an External Microphone If you need to use a sound input device (for example, to chat over the Internet) you need to plug in an external microphone (not supplied). To connect an external microphone Plug the microphone cable (1) into the microphone jack (2) m. Make sure your microphone is designed for computer use.

  • Page 107: Connecting A Universal Serial Bus (Usb) Device

    Connecting a Universal Serial Bus (USB) Device To prevent your computer and/or USB devices from damage, observe the following: When moving the computer with USB devices connected, avoid any shock or force to the USB ports. Do not put the computer into a bag or carrying case when it has USB devices connected. Connecting a USB Mouse To connect a USB mouse Choose the USB port (1)

  • Page 108: Connecting A Usb Floppy Disk Drive

    Connecting a USB Floppy Disk Drive You can purchase a USB floppy disk drive and connect it to your computer. To connect a USB floppy disk drive Choose the USB port (1) you prefer to use. Plug the USB floppy disk drive cable (2) into the USB port. Your USB floppy disk drive (3) is now ready for use.

  • Page 109: Disconnecting A Usb Floppy Disk Drive

    Disconnecting a USB floppy disk drive You can disconnect a USB floppy disk drive when your computer is on or off. Disconnecting the drive when the computer is in a power saving mode (Sleep or Hibernate) may cause the computer to malfunction. If the computer is off, you can unplug the USB cable directly from the computer.

  • Page 110: Connecting A Printer

    Connecting a Printer You can connect a Windows-compatible printer to your computer to print documents. Connecting a Printer Using the USB Port You can connect a USB printer compatible with your version of Windows to the computer. To connect a printer using the USB port Plug the power cord (1) of your printer into an AC outlet.

  • Page 111: Connecting A Printer Using The Printer Port

    Connecting a Printer Using the Printer Port To connect a printer using the printer port Plug the power cord (1) of your printer into an AC outlet. Plug the printer cable (2) supplied with your printer into the printer port (3) station.

  • Page 112: Connecting An I.link Device

    Connecting an i.LINK Device Notes on connecting i.LINK devices Your computer is equipped with an i.LINK port, which you can use to connect to an i.LINK device such as a digital video camcorder. The i.LINK port on your computer does not supply power to external devices generally powered by i.LINK ports. The i.LINK port supports transfer rates up to 400 Mbps;...

  • Page 113: Connecting A Digital Video Camcorder

    On Sony digital video cameras, ports labeled DV Out, DV In/Out, or i.LINK are i.LINK-compatible. The Sony digital video camcorder shown here is an example; your digital video camcorder may need to be connected differently. You cannot access the pictures stored on a Memory Stick media when using an i.LINK connection.

  • Page 114: Connecting To A Network (Lan)

    Connecting to a Network (LAN) You can connect your computer to 1000BASE-T/100BASE-TX/10BASE-T-type networks with an Ethernet network cable. Connect one end of a network cable (not supplied) to the network (Ethernet) port on the computer or the optional multi function bay docking station and the other end to your network. For detailed settings and devices needed to connect to the network, ask your network administrator.

  • Page 115: Customizing Your Vaio Computer

    Customizing Your VAIO Computer This section briefly describes how to change the main settings of your VAIO computer. Among other things, you will learn how to use and customize the look of your Sony software and utilities, etc. Setting the Password...

  • Page 116: Setting The Password

    Customizing Your VAIO Computer Setting the Password In addition to the Windows password, you can use BIOS functions to set two types of passwords to protect your computer: power-on password and hard disk password. Once you have set the power-on password, you will be prompted to enter the password after the VAIO logo appears to start your computer.
  • Page 117 Adding the Power-on Password The power-on password is provided to protect your computer from unauthorized access. There are two types of the power-on password: machine password and user password. The machine password is provided for users with administrator rights on the computer to change all the setup options on the BIOS setup screen, as well as to start the computer.
  • Page 118 To add the power-on password (machine password) Turn on the computer. Press the F2 key when the VAIO logo appears. The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo appears.
  • Page 119 To add the power-on password (user password) Make sure you set the machine password before setting the user password. Turn on the computer. Press the F2 key when the VAIO logo appears. The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo appears.

  • Page 120: Changing/Removing The Power-On Password

    Changing/Removing the Power-on Password To change or remove the power-on password (machine password) Turn on the computer. Press the F2 key when the VAIO logo appears. The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo appears.
  • Page 121 To change or remove the power-on password (user password) Turn on the computer. Press the F2 key when the VAIO logo appears. The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo appears.

  • Page 122: Adding The Hard Disk Password

    Adding the Hard Disk Password The hard disk password provides additional security for the data stored on your hard disk drive. If you enable the hard disk password, this adds an extra level of security. When adding the hard disk password, you must set both the master and user passwords. The master password is provided for users with administrator rights on the computer to reset the user password on the BIOS setup screen.
  • Page 123 To add the hard disk password Turn on the computer. Press the F2 key when the VAIO logo appears. The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo appears.
  • Page 124 Changing the Hard Disk Password To change the hard disk password Turn on the computer. Press the F2 key when the VAIO logo appears. The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo appears.
  • Page 125 Removing the Hard Disk Password To remove the hard disk password Turn on the computer. Press the F2 key when the VAIO logo appears. The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo appears.

  • Page 126: Adding The Windows Password

    Adding the Windows Password The Windows password comes in handy when you have to share a single computer with other people. By setting the Windows password, you can protect your user account from unauthorized access. Entry of the Windows password will be prompted after you select your user account. Make sure not to forget the password.

  • Page 127: Changing/Removing The Windows Password

    Changing/Removing the Windows Password To change the Windows password Click Start and Control Panel. Click User Accounts and Family Safety or User Accounts. Click User Accounts. Click Change your password. In the Current password field, enter your current password. In the New password and Confirm new password fields, enter a new password. Click Change password.

  • Page 128: Using Fingerprint Authentication

    Using Fingerprint Authentication Your computer is equipped with a fingerprint sensor to provide you with additional convenience. A small horizontal bar located at the upper right of the keyboard is the sensor of the fingerprint reader and will be referred to as the fingerprint sensor hereinafter.

  • Page 129: Precautions On Using Fingerprint Authentication

    The fingerprint authentication technology does not assure complete user authentication or complete protection of your data and hardware. Sony assumes no liabilities for any problems and damages arising out of your use of or inability to use the fingerprint sensor.

  • Page 130: Enrolling A Fingerprint

    Enrolling a Fingerprint To use the fingerprint authentication functionality, you must enroll your fingerprint(s) in your computer. Set the Windows password on your computer before enrollment. See Adding the Windows Password To enroll a fingerprint Up to 10 fingerprints can be enrolled for each user and up to 21 fingerprints can be enrolled for logging onto your system using the Power-on Security feature.
  • Page 131 If you have failed to enroll a fingerprint, follow these steps to try again. Place the top joint of your finger on the fingerprint sensor (1). Swipe your finger perpendicularly across the fingerprint sensor. Customizing Your VAIO Computer...
  • Page 132 Customizing Your VAIO Computer Place your fingertip flat in the center of the fingerprint sensor. Scan your fingerprint from the top joint of the finger to the fingertip. Keep your finger in contact with the fingerprint sensor while swiping. Fingerprint enrollment may fail if you move your finger too fast or too slow. Let the fingerprint sensor take about one second to scan your fingerprint. You may not be able to enroll and/or recognize your fingerprint(s) if your finger is dry or wet, wrinkled, injured, dirty, etc.
  • Page 133 Customizing Your VAIO Computer Logging Onto Your System To use the fingerprint authentication functionality in place of password entry to log onto your system, you need to set the power-on, hard disk, and Windows passwords and configure your computer for fingerprint authentication. For setting the power-on, hard disk, and Windows passwords, see Setting the Password (page 116).

  • Page 134: Using The Password Bank

    Customizing Your VAIO Computer Using the Password Bank Once you have registered your user information (user accounts, passwords, etc.) for Web sites in the password bank, you can substitute fingerprint authentication for entering information required to access the password-protected Web sites. For detailed information on using the password bank, click Start, All Programs, Protector Suite QL, and Help to read the help file.
  • Page 135 Using Fingerprint Authentication with the TPM With the TPM data encryption feature, using fingerprint authentication can strengthen computer security. For instructions on how to use the TPM, see Using Trusted Platform Module (TPM) For detailed information on using fingerprint authentication with the TPM, click Start, All Programs, Protector Suite QL, and Help to read the help file.

  • Page 136: Using Trusted Platform Module (Tpm)

    Customizing Your VAIO Computer Using Trusted Platform Module (TPM) The embedded Trusted Platform Module (TPM) provides your computer with basic security functions. In combination with the TPM, you can encrypt and decrypt your data to strengthen computer security against inappropriate access. TPMs are defined by Trusted Computing Group (TCG) and also called security chips.
  • Page 137 Although your computer is provided with the latest TPM security functions, these functions do not assure complete protection of your data and hardware. Sony assumes no liabilities for any problems and damages arising out of your use of the functions.

  • Page 138: Important Notice

    Important Notice Do not encrypt files containing keys to be used for encryption and folders including such files. Encrypting the files in the folders containing basic user keys and others, using the Encrypting File System (EFS) will disable you to launch your TPM software and decrypt the encrypted data in the following cases: The TPM software has been installed.
  • Page 139 Do not encrypt the following archive, backup, or token files. There will be no way to restore them if you carelessly encrypt them. Sony assumes no liabilities for any troubles and damages arising out of your careless encryption of the following files and folders including them.
  • Page 140 Do not encrypt the following password reset token or secret files. There will be no way to reset the password if you carelessly encrypt them. Sony assumes no liabilities for any troubles and damages arising out of your careless encryption of the following files and folders including them.
  • Page 141 Configuring the TPM To use the embedded TPM, you need to: Enable the TPM on the BIOS setup screen. Install the Infineon TPM Professional Package. Initialize and configure the TPM. To enable the TPM on the BIOS setup screen Turn on your computer. Press the F2 key when the VAIO logo appears.
  • Page 142 See the online documentation for detailed information. To open the documentation, click Start, All Programs, Infineon Security Platform Solution, and Help. The maintenance and management of TPM-protected data must be carried out at your own risk. Sony assumes no liabilities for any defects arising out of your data maintenance and management.

  • Page 143: Setting Up Your Computer With Vaio Control Center

    Setting Up Your Computer with VAIO Control Center The VAIO Control Center utility allows you to consult system information and to specify preferences for system behavior. To use VAIO Control Center Click Start, All Programs, and VAIO Control Center. The VAIO Control Center window appears. Select the desired control item and change the settings.

  • Page 144: Using The Power Saving Modes

    Using the Power Saving Modes When you use a battery pack as the power source for your computer, you can take advantage of the power management settings to conserve battery life. In addition to the normal operating mode, which allows you to turn off specific devices, your computer has two distinct power saving modes: Sleep and Hibernate.

  • Page 145: Using Sleep Mode

    Using Sleep Mode Sleep mode turns off the LCD screen and places the hard disk drive and the CPU into a low power consumption mode. The umber power light flashes during this mode. If you do not use your computer for a long period of time while it is disconnected from AC power, place the computer into Hibernate mode or turn it off. To activate Sleep mode Click Start, the arrow next to the Lock button, and Sleep.
  • Page 146 If the computer is not used for a certain period of time, it will enter Sleep mode. To modify this, you can change the Sleep mode settings. To change the Sleep mode settings Right-click the power status icon on the taskbar and select Power Options. Click Change plan settings under the current power plan.

  • Page 147: Using Hibernate Mode

    Using Hibernate Mode In Hibernate mode, the state of the system is saved on the hard disk drive and power is turned off. Even when the battery runs down, no data will be lost. The power indicator light is off in this mode. To activate Hibernate mode Press the Fn+F12 keys.

  • Page 148: Managing Power With Vaio Power Management

    Managing Power with VAIO Power Management Power management helps you set up power schemes for running on AC power or batteries to suit your requirements for power consumption. VAIO Power Management is a software application developed exclusively for VAIO computers. With this software application, you can enhance the Windows power management functions to ensure better operation of your computer and longer battery life.
  • Page 149 Activating VAIO Power Management Power Schemes VAIO Power Management provides several predefined power schemes. Each power scheme consists of a group of power management settings that are designed to meet specific power management needs, ranging from maximum power management to no power management. To activate a VAIO Power Management power scheme Right-click the power status icon on the taskbar and select Power Options.

  • Page 150: Configuring Your Modem

    Configuring Your Modem Before you can start using your internal modem (not all modem are built-in), or each time you use your modem while traveling, make sure that the country of the active location defined in the Phone and Modem Options window matches the country you are dialing from.
  • Page 151 Check that your modem is listed on the Modems tab. If your modem is not listed, click Add and follow the wizard. 10 Click Apply/OK. Your modem is configured. Before applying new country settings, please make sure your phone cable is disconnected from your computer. Customizing Your VAIO Computer...

  • Page 152: Protecting The Hard Disk

    Protecting the Hard Disk Your computer has the VAIO HDD Protection utility preinstalled for customizing your settings for protecting your hard disk drive against shock hazards. You can select the sensitivity level of the built-in shock sensor to set the appropriate protection level.

  • Page 153: Upgrading Your Vaio Computer

    Upgrading Your VAIO Computer Your VAIO computer and memory modules use high precision components and electronic connectors technology. To avoid invalidation of the warranty during your product warranty period, we recommend that: You should contact your dealer to install a new memory module. You should not install it yourself, if you are not familiar with upgrading memory on a computer.

  • Page 154: Adding And Removing Memory

    Adding and Removing Memory If you want to expand the functionality of your computer, you can increase the memory by installing optional memory modules. Before you upgrade your computer's memory, read the notes and procedures in the following pages. Notes on adding/removing memory modules Be careful when changing memory.
  • Page 155 Use the special bag delivered with the memory module or wrap the module in aluminum foil to protect it from ESD. Introducing any liquids, foreign substances, or objects into the memory module slots or other internal components of your computer will result in damage to the computer and any repair costs will not be covered by the warranty. Do not place the memory module in a location subject to: Heat sources such as radiators or air ducts Direct sunlight...

  • Page 156: Removing And Installing A Memory Module

    Removing and Installing a Memory Module To change or add a memory module Shut down the computer and disconnect all peripheral devices. Unplug the computer and remove the battery pack. Wait until the computer cools down. Unscrew the screw (indicated by the arrow below) on the bottom of the computer and remove the memory module compartment cover.
  • Page 157 Remove the currently installed memory module as follows: Pull the latches in the direction of the arrows (1). The memory module is released. Make sure that the memory module tilts up and then pull it out in the direction of the arrow (2). Remove the new memory module from its packaging.
  • Page 158 Slide the memory module into the memory module slot and push it in until it clicks into place. Do not touch any other components on the motherboard. Be sure to insert the connector edge of the memory module into the slot while aligning the notch on the module with the small projection in the open slot.

  • Page 159: Viewing The Amount Of Memory

    Viewing the Amount of Memory To view the amount of memory Turn on the computer. Click Start, All Programs, and VAIO Control Center. Double-click the System Information folder in the VAIO Control Center window. Double-click the System Information icon in the System Information folder. You can view the amount of system memory.

  • Page 160: Precautions

    Precautions This section describes safety guidelines and precautions to help you protect your VAIO computer from potential damage. On Handling the LCD Screen On Using the Power Source (page 162) On Handling Your Computer (page 163) On Using the Built-in MOTION EYE Camera On Handling Floppy Disks (page 165) On Handling Discs...

  • Page 161: On Handling The Lcd Screen

    Do not change the LCD screen orientation setting in the Tablet PC Settings window even when another option is available for selection, as it may make your computer unstable. Sony assumes no liabilities for any defects arising out of the change.

  • Page 162: On Using The Power Source

    Make sure that the AC outlet is easily accessible. When the AC adapter is not used, unplug it from the AC outlet. Use the AC adapter supplied with your computer or genuine Sony products. Do not use any other AC adapter as it may cause a malfunction.

  • Page 163: On Handling Your Computer

    On Handling Your Computer Clean the cabinet with a soft cloth, which is dry or lightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder, or solvent such as alcohol or benzine, as these may damage the finish of your computer.
  • Page 164 Precautions Use only specified peripheral equipment and interface cables; otherwise, problems may occur. Do not use cut or damaged connection cables. If your computer is brought directly from a cold location to a warm one, moisture may condense inside the computer. In this case, allow at least one hour before turning on the computer.

  • Page 165: On Using The Built-In Motion Eye Camera

    On Using the Built-in MOTION EYE Camera Do not touch the front mirror plate over the lens of the built-in MOTION EYE camera, as it may make scratches on the plate and such scratches will appear on the captured images. Do not let the direct sunlight get into the scope of the built-in MOTION EYE camera regardless of your computer's power state, as it may cause a malfunction of the camera.

  • Page 166: On Handling Discs

    Precautions On Handling Discs Do not touch the surface of the disc. Do not drop or bend the disc. Fingerprints and dust on the surface of a disc may cause read errors. Always hold the disc by its edges and central hole, as shown below: Proper care of the disc is essential to its continuous reliability.

  • Page 167: On Using The Battery Pack

    Certain rechargeable batteries do not meet Sony quality and safety standards. For safety reasons this computer only functions with genuine Sony batteries designed for this model. When installing another kind of battery, the battery will not be charged and the computer will not function.

  • Page 168: On Using Headphones

    Precautions On Using Headphones Road safety – Do not use headphones while driving, cycling, or operating any motorized vehicle. It may create a traffic hazard and is illegal in some areas. It can also be potentially dangerous to play loud music while walking, especially at pedestrian crossings.

  • Page 169: On Handling Memory Stick Media

    On Handling Memory Stick Media Do not touch the Memory Stick media connector with your finger or metallic objects. Use only the adhesive label supplied with the Memory Stick media as a label. Do not bend, drop, or apply strong shock to the Memory Stick media. Do not disassemble or modify Memory Stick media.

  • Page 170: On Handling The Hard Disk

    On Handling the Hard Disk The hard disk drive has a high storage density and reads or writes data in a short time. However, it can be easily damaged by mechanical vibration, shock, or dust. Although the hard disk drive has the internal safety device to prevent losing data due to mechanical vibration, shock or dust, you should be careful when handling your computer.

  • Page 171: On Updating Your Computer

    On Updating Your Computer Confirm that the latest updates have been installed on your computer using the following software applications so that the computer can run more efficiently. To confirm that they have been installed on the computer, follow these steps for each software application: Windows Update Click Start, All Programs, and Windows Update and then follow the on-screen instructions.

  • Page 172: Troubleshooting

    Troubleshooting This section describes how to solve common problems you might encounter when using your VAIO computer. Many problems have simple solutions. Try these suggestions before contacting VAIO-Link. Computer (page 173) System Security (page 180) Battery (page 181) Built-in MOTION EYE Camera Internet (page 186) Networking...

  • Page 173: Computer

    Remove any extra memory modules you may have installed since purchase. Check that you are using the supplied Sony AC adapter. For your safety, use only genuine Sony rechargeable battery packs and AC adapter, which are supplied by Sony for your VAIO computer.

  • Page 174: What Should I Do If A Bios Error Appears When I Turn On My Computer

    What should I do if a BIOS error appears when I turn on my computer? If the message "Press <F1> to resume, <F2> to setup" appears at the bottom of the screen, follow these steps: Press the F2 key. The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo appears.

  • Page 175: What Should I Do If My Computer Or Software Stops Responding

    Troubleshooting What should I do if my computer or software stops responding? If your computer stops responding while a software application is running, press the Alt+F4 keys to close the application window. If the Alt+F4 keys do not work, click Start, the arrow next to the Lock button, and Shut Down to turn off your computer. If your computer does not turn off, press the Ctrl+Alt+Delete keys and click the arrow next to the Shut down button and Shut Down.

  • Page 176: What Should I Do If The Battery Indicator Is Flashing And My Computer Does Not Start

    Why doesn't my computer enter Sleep or Hibernate mode? Your computer may become unstable if the operating mode is changed before the computer completely enters Sleep or Hibernate mode. To restore your computer to normal operating stability Close all open programs. Click Start, the arrow next to the Lock button, and Restart.
  • Page 177 What should I do if a message window, notifying of incompatibility or improper installation of the battery pack, appears and my computer enters Hibernate mode? This symptom could be due to the battery pack not being installed properly. To resolve this symptom, turn off your computer and remove the battery pack.

  • Page 178: What Should I Do If I Cannot Remember The Bios Password

    What should I do if my game software does not work or it keeps crashing? Check the Web site of the game if there are any patches or updates to download. Make sure you have installed the latest video driver. On some VAIO models, the graphics memory is shared with the system.

  • Page 179: To The Computer

    Troubleshooting Why doesn't my screen turn off when the time selected for the automatic turn-off action has passed? The VAIO Original Screen Saver disables the timer setting, which you can select using the Windows power options, for your screen to turn off. Select the screen saver other than the VAIO Original Screen Saver.

  • Page 180: System Security

    System Security How can I protect my computer against security threats, such as viruses? The Microsoft Windows operating system is preinstalled on your computer. The best way to protect your computer against security threats, such as viruses, is to download and install the latest Windows updates regularly. You can get important Windows updates by doing the following: Your computer must be connected to the Internet before you can receive updates.

  • Page 181: Battery

    Battery How do I find the battery charging status? See Charging the Battery Pack (page When is my computer using AC power? When your computer is directly connected to the AC adapter, it uses AC power, even if the battery pack is installed. When should I recharge the battery pack? When the battery level falls below 10 percent.

  • Page 182: Can My Computer Enter Hibernate Mode While Using Battery Power

    Troubleshooting Should I be concerned that the installed battery pack is warm? No, it is normal for the battery pack to be warm when it is powering your computer. Can my computer enter Hibernate mode while using battery power? Your computer can enter Hibernate mode while using battery power, but some software programs and peripheral devices prevent the system from entering Hibernate mode.

  • Page 183: Built-In Motion Eye Camera

    Built-in MOTION EYE Camera Why does the viewer window show no images or poor-quality images? The built-in MOTION EYE camera cannot be shared by more than one software application. If another software application is using the camera, exit the application before using the built-in MOTION EYE camera. The video memory of your computer may have become insufficient for displaying images from the built-in MOTION EYE camera.
  • Page 184 Why does movie playback show dropped frames when my computer is running on the battery? The battery pack is running out of power. Connect your computer to an AC power source. Why do the images captured by the built-in MOTION EYE camera flicker? This problem occurs when you use the camera under fluorescent lights due to the mismatch between lighting output frequency and shutter speed.

  • Page 185: Why Can't I Use The Built-In Motion Eye Camera

    Why can't I use the built-in MOTION EYE camera? The built-in MOTION EYE camera cannot be shared by more than one software application. If another software application is using the camera, exit the application before using the built-in MOTION EYE camera. If the problem persists, you must reinstall the driver software for the camera.

  • Page 186: Internet

    Make sure the telephone cable is working. Plug the cable into an ordinary telephone and listen for a dial tone. Make sure that the telephone number the program is dialing is correct. Make sure the software you are using is compatible with your computer's modem. (All preinstalled Sony programs are compatible.) Make sure the modem is the only device connected to your telephone line.

  • Page 187: Why Is My Modem Connection Slow

    Why is my modem connection slow? Your computer is equipped with a V.92/ V.90 compatible modem. Many factors may influence modem connection speed, including telephone line noise or compatibility with telephone equipment, such as fax machines or other modems. If you think your modem is not connecting properly to other PC-based modems, fax machines, or your Internet Service Provider (ISP), do any of the following: Ask your telephone company to verify your telephone line is free of any line noise.

  • Page 188: Networking

    Networking What should I do if my computer cannot connect to a wireless LAN access point? Connection availability is affected by distance and obstructions. You may need to move your computer away from obstructions or closer to any access point you may be using. Make sure the WIRELESS or WIRELESS LAN switch is on and the Wireless LAN indicator is lit on your computer.

  • Page 189: What Should I Do If I Cannot Access The Internet

    What should I do if I cannot access the Internet? Check the access point settings. See the manual that came with your access point for more information. Make sure your computer and the access point are connected to one another. Move your computer away from obstructions or closer to any access point you may be using.

  • Page 190: How Do I Avoid Data Transfer Interruptions

    Wireless LAN communication occurs on divided frequency bands known as channels. Third-party wireless LAN access point channels may be preset to different channels from Sony devices. If you are using a wireless LAN access point, see connectivity information contained in the manual that came with your access point.

  • Page 191: Bluetooth Technology

    Bluetooth Technology What should I do if other Bluetooth devices cannot discover my computer? Make sure both devices have the Bluetooth functionality enabled. If the Bluetooth indicator is off, turn on the WIRELESS switch. You cannot use the Bluetooth functionality when your computer is in a power saving mode. Return to Normal mode, then turn on the WIRELESS switch.
  • Page 192 What should I do if other Bluetooth devices cannot connect to my computer? Make sure the other device is authenticated. Your computer may not allow connections from other devices. To enable Bluetooth device connections, follow these steps: Right-click the Bluetooth icon Select Options from the menu.

  • Page 193: Why Is My Bluetooth Connection Slow

    Why is my Bluetooth connection slow? The data transfer speed depends on the obstacles and/or the distance between the two devices, on the radio wave quality, and on the operating system or the software in use. Move your computer and Bluetooth devices closer to each other. The 2.4 GHz radio frequency used by Bluetooth and wireless LAN devices is also used by other devices.
  • Page 194 Troubleshooting Why can't I connect to a Bluetooth device by specifying its IP address on a Personal Area Network (PAN)? The Bluetooth utility software uses Dynamic Host Configuration Protocol (DHCP) to assign IP addresses to active wireless devices. If you specify a fixed IP address for the device to which you want to connect, the utility cannot assign a dynamic IP address to the device and fails.

  • Page 195: Optical Discs

    Optical Discs Why does my computer freeze when I try to read a disc? The disc that your computer is trying to read may be dirty or damaged. Follow these steps: Press the Ctrl+Alt+Delete keys and click the arrow next to the Shut down button and Restart to restart the computer. Remove the disc from the optical disc drive.
  • Page 196 What should I do if I cannot play a disc properly on my computer? Make sure the disc is inserted into the optical disc drive with the label facing upward. Make sure the necessary program(s) is installed according to the manufacturer's instructions. If a disc is dirty or damaged, your computer will stop responding.
  • Page 197 Double-click the desired drive. You can confirm the driver software by selecting the Driver tab, and clicking Driver Details. Click OK to close the window. Make sure an adhesive label is not affixed to a disc. Adhesive labels can come off while the disc is in the optical disc drive and damage the drive or cause it to malfunction.
  • Page 198 What should I do if I cannot write data to CD media? Make sure you neither launch any software application nor allow any to launch automatically, not even a screen saver. Stop using the keyboard. If you are using a CD-R/RW disc with an adhesive label affixed, replace it with one with no affixed adhesive label. Using a disc with an affixed adhesive label could cause a write error or other damage.

  • Page 199: Display

    Display Why did my screen go blank? Your computer screen may go blank if the computer loses power or enters a power saving mode (Sleep or Hibernate). If the computer is in LCD (Video) Sleep mode, press any key to bring the computer back into Normal mode. See Using the Power Saving Modes (page 144) Make sure your computer is securely plugged into a power source and turned on.

  • Page 200: Why Doesn't My Screen Display A Video

    Why doesn't my screen display a video? If the external display is selected for the display output and the external display is disconnected, you cannot display a video on your computer screen. Stop video playback, change the display output to the computer screen, and then restart video playback.
  • Page 201 What should I do if the LCD brightness of my screen changes? The LCD brightness setting, adjusted with the Fn+F5/F6 keys, is temporary and may be restored to the original setting when your computer returns to Normal mode from Sleep or Hibernate mode. To save your preference for the brightness, follow these steps: Right-click the power status icon on the taskbar and select Power Options.
  • Page 202 On models with the ATI video controller, you may find your computer screen temporarily goes blank: When you connect or disconnect the AC adapter Immediately after you start the computer with battery power To save your preference for the brightness, follow these steps: Click Start and Control Panel.

  • Page 203: How Do I Run Windows Aero

    What should I do if the Fn+F7 keys do not switch the display output to the external display connected to the monitor (VGA) port on my computer? When your computer is attached to the optional multi function bay docking station, the monitor (VGA) port on your computer is disabled.

  • Page 204: Printing

    Printing What should I do if I cannot print a document? Make sure your printer is on, and the printer cable is securely connected to the ports on the printer and computer. Make sure your printer is compatible with the Windows operating system installed on your computer. You may need to install the printer driver software before you use your printer.

  • Page 205: Microphone

    Microphone What should I do if my microphone does not work? If you are using an external microphone, make sure the microphone is turned on and is properly plugged into the microphone jack on your computer. How can I prevent microphone feedback? Microphone feedback occurs when the microphone receives the sound from a sound output device, such as a speaker.

  • Page 206: Speakers

    Speakers What should I do if my external speakers do not work? Make sure your speakers are properly connected and the volume is turned up loud enough to hear sound. Make sure your speakers are designed for computer use. If your speakers have a muting button, set the button to off. The volume may have been turned off by the muting button.

  • Page 207: Pointing Device

    Pointing Device What should I do if my pointing device does not work? You may have disabled the pointing device without connecting a mouse to your computer. See Using the Pointing Device (page 34). Make sure that a mouse is not connected to your computer. If the pointer does not move while a software application is running, press the Alt+F4 keys to close the application window.

  • Page 208: Keyboard

    Keyboard What should I do if the keyboard configuration is wrong? The language layout of your computer's keyboard is labeled on the packaging box. If you choose a different regional keyboard when you complete the Windows setup, the key configuration will be mismatched. To change the keyboard configuration, follow these steps: Click Start and Control Panel Click Clock, Language, and Region, and click Regional and Language Options.

  • Page 209: Floppy Disks

    Floppy Disks Why doesn't the Safely Remove Hardware icon appear on the taskbar when the drive is connected? Your computer does not recognize the floppy disk drive. First, make sure the USB cable is properly connected to the USB port. If you need to secure the connection, wait a few moments for the computer to recognize the drive. If the icon still does not appear, follow these steps: Close all programs that are accessing the floppy disk drive.

  • Page 210: Audio/Video

    Sony used only to designate that a product contains an IEEE 1394 connection. The procedure to establish an i.LINK connection may vary, depending on a software application, an operating system, and a compatible i.LINK device. Not all products with an i.LINK connection can communicate with each other.

  • Page 211: Memory Stick Media

    Use of recorded music requires permission from the copyright holders. Sony is not responsible for music files that cannot be recorded from a CD or downloaded from other sources. Can I copy images from a digital camera using Memory Stick media? Yes, and you can view video clips that you have recorded with Memory Stick media-compatible digital cameras.

  • Page 212: Peripherals

    Peripherals What should I do if I cannot connect a USB device? If applicable, check the USB device is turned on and using its own power supply. For example, if you are using a digital camera, check if the battery is charged. If you are using a printer, check if the power cable is connected properly to the AC outlet.

  • Page 213: Multi Function Bay Docking Station

    Troubleshooting Multi Function Bay Docking Station What should I do if I cannot use the devices connected to the multi function bay docking station? Be sure to use the AC adapter supplied with the multi function bay docking station to connect the docking station to a power source.

  • Page 214: What Should I Do If I Cannot Print A Document

    What should I do if I cannot print a document? Make sure the printer driver supports Windows Vista. Ask the manufacturer of your printer for the driver that supports Windows Vista. The printer port on the multi function bay docking station is internally connected to the USB. Follow these steps to check the printer port settings: Click Start, Control Panel, and Printer under Hardware and Sound.
  • Page 215 If the bidirectional communication functions are provided with your printer, disabling the functions on your computer may enable printing. Follow these steps: Click Start, Control Panel, and Printer under Hardware and Sound. Right-click the printer icon and select Properties. Click the Ports tab. Click the check box for Enable bidirectional support to deselect it.
  • Page 216 Troubleshooting Why does an error message appear when I press the UNDOCK button or select Undock Computer from the Start menu? When any device inserted or connected to the multi function bay docking station is in use, you cannot disconnect your computer form the docking station.

  • Page 217: Support Options

    VAIO-Link help lines: Before contacting VAIO-Link by telephone, try to solve the problem by reading the printed and non- printed documentation. Visit the other Sony Web sites: http://www.club-vaio.com if you want to know more about VAIO and become part of the growing VAIO community.

  • Page 218: E-Support

    What is e-Support? You have searched our user guides and Web site (http://support.vaio.sony.eu) but have not found an answer to your question/ issue? e-Support is the ideal solution for you! Our e-Support Web Portal is an interactive Web site on which you can submit any technical query you may have regarding your computer and receive answers from our dedicated support team.
  • Page 219 Support Options Can I submit my questions at any time? Yes, you can submit your questions 24/7, but please keep in mind that our e-Support Team can only treat your queries from Monday till Friday between 8am and 6pm. Is there a cost involved for using e-Support? No, this is a complete free of charge service offered to all registered VAIO customers! How do I know when the e-Support Team has handled my query/case? As soon as your case has been dealt with by our e-Support Team, you will receive an email, notifying you that your case has...

  • Page 220: Trademarks

    Macromedia and Flash are trademarks of Macromedia, Inc. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc., and any use of such marks by Sony Corporation is under license. Other trademarks and trade names are those of their respective owners.
  • Page 221 Support Options The ExpressCard word mark and logos are owned by the PCMCIA and any use of such marks by Sony Corporation is under license. Other trademarks and trade names are those of their respective owners. SD Logo is a trademark.
  • Page 222 © 2007 Sony Corporation...

This manual is also suitable for:

Vgn-bx41xnVgn-bx51vnVgn-bx51xp

Table of Contents
