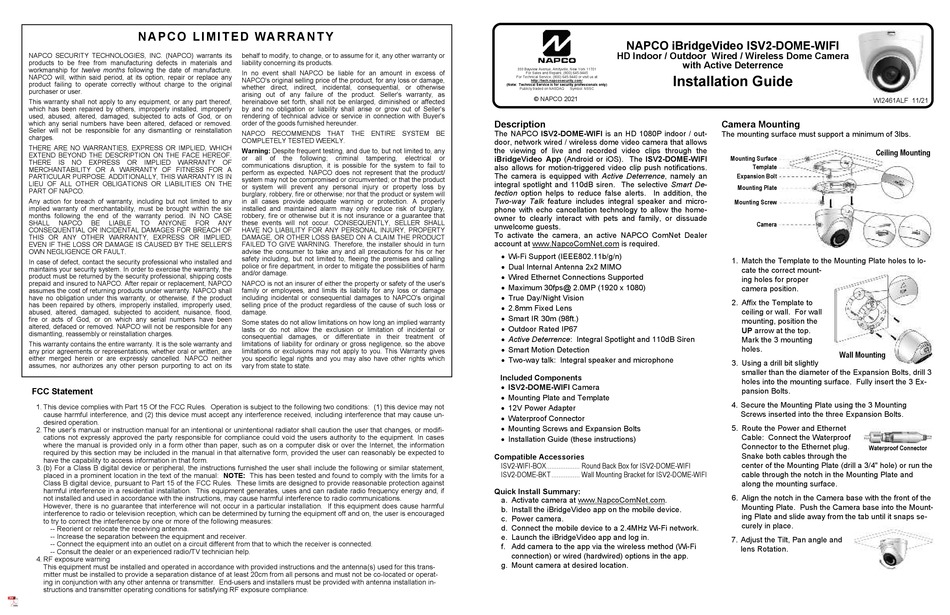

NAPCO ISV2-DOME-WIFI Installation Manual

N A P C O L I M I T E D WA R R A N T Y
NAPCO SECURITY TECHNOLOGIES, INC. (NAPCO) warrants its
products to be free from manufacturing defects in materials and
workmanship for twelve months following the date of manufacture.
NAPCO will, within said period, at its option, repair or replace any
product failing to operate correctly without charge to the original
purchaser or user.
This warranty shall not apply to any equipment, or any part thereof,
which has been repaired by others, improperly installed, improperly
used, abused, altered, damaged, subjected to acts of God, or on
which any serial numbers have been altered, defaced or removed.
Seller will not be responsible for any dismantling or reinstallation
charges.
THERE ARE NO WARRANTIES, EXPRESS OR IMPLIED, WHICH
EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF.
THERE IS NO EXPRESS OR IMPLIED WARRANTY
MERCHANTABILITY OR A WARRANTY OF FITNESS FOR A
PARTICULAR PURPOSE. ADDITIONALLY, THIS WARRANTY IS IN
LIEU OF ALL OTHER OBLIGATIONS OR LIABILITIES ON THE
PART OF NAPCO.
Any action for breach of warranty, including but not limited to any
implied warranty of merchantability, must be brought within the six
months following the end of the warranty period. IN NO CASE
SHALL NAPCO BE LIABLE TO ANYONE FOR
CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR BREACH OF
THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED,
EVEN IF THE LOSS OR DAMAGE IS CAUSED BY THE SELLER'S
OWN NEGLIGENCE OR FAULT.
In case of defect, contact the security professional who installed and
maintains your security system. In order to exercise the warranty, the
product must be returned by the security professional, shipping costs
prepaid and insured to NAPCO. After repair or replacement, NAPCO
assumes the cost of returning products under warranty. NAPCO shall
have no obligation under this warranty, or otherwise, if the product
has been repaired by others, improperly installed, improperly used,
abused, altered, damaged, subjected to accident, nuisance, flood,
fire or acts of God, or on which any serial numbers have been
altered, defaced or removed. NAPCO will not be responsible for any
dismantling, reassembly or reinstallation charges.
This warranty contains the entire warranty. It is the sole warranty and
any prior agreements or representations, whether oral or written, are
either merged herein or are expressly cancelled. NAPCO neither
assumes, nor authorizes any other person purporting to act on its
FCC Statement
1. This device complies with Part 15 Of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause un-
desired operation.
2. The user's manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes, or modifi-
cations not expressly approved the party responsible for compliance could void the users authority to the equipment. In cases
where the manual is provided only in a form other than paper, such as on a computer disk or over the Internet, the information
required by this section may be included in the manual in that alternative form, provided the user can reasonably be expected to
have the capability to access information in that form.
3. (b) For a Class B digital device or peripheral, the instructions furnished the user shall include the following or similar statement,
placed in a prominent location in the text of the manual: NOTE: This has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician help.
4. RF exposure warning
This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this trans-
mitter must be installed to provide a separation distance of at least 20cm from all persons and must not be co-located or operat-
ing in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation in-
structions and transmitter operating conditions for satisfying RF exposure compliance.
8
behalf to modify, to change, or to assume for it, any other warranty or
liability concerning its products.
In no event shall NAPCO be liable for an amount in excess of
NAPCO's original selling price of the product, for any loss or damage,
whether direct, indirect, incidental, consequential, or otherwise
arising out of any failure of the product. Seller's warranty, as
hereinabove set forth, shall not be enlarged, diminished or affected
by and no obligation or liability shall arise or grow out of Seller's
rendering of technical advice or service in connection with Buyer's
order of the goods furnished hereunder.
NAPCO RECOMMENDS THAT THE ENTIRE SYSTEM BE
COMPLETELY TESTED WEEKLY.
Warning: Despite frequent testing, and due to, but not limited to, any
or all of the following; criminal tampering,
OF
communications disruption, it is possible for the system to fail to
perform as expected. NAPCO does not represent that the product/
system may not be compromised or circumvented; or that the product
or system will prevent any personal injury or property loss by
burglary, robbery, fire or otherwise; nor that the product or system will
in all cases provide adequate warning or protection. A properly
installed and maintained alarm may only reduce risk of burglary,
robbery, fire or otherwise but it is not insurance or a guarantee that
ANY these events will not occur. CONSEQUENTLY, SELLER SHALL
HAVE NO LIABILITY FOR ANY PERSONAL INJURY, PROPERTY
DAMAGE, OR OTHER LOSS BASED ON A CLAIM THE PRODUCT
FAILED TO GIVE WARNING. Therefore, the installer should in turn
advise the consumer to take any and all precautions for his or her
safety including, but not limited to, fleeing the premises and calling
police or fire department, in order to mitigate the possibilities of harm
and/or damage.
NAPCO is not an insurer of either the property or safety of the user's
family or employees, and limits its liability for any loss or damage
including incidental or consequential damages to NAPCO's original
selling price of the product regardless of the cause of such loss or
damage.
Some states do not allow limitations on how long an implied warranty
lasts or do not allow the exclusion or limitation of incidental or
consequential damages, or differentiate in their treatment of
limitations of liability for ordinary or gross negligence, so the above
limitations or exclusions may not apply to you. This Warranty gives
you specific legal rights and you may also have other rights which
vary from state to state.
NAPCO iBridgeVideo ISV2-DOME-WIFI Installation Guide
333 Bayview Avenue, Amityville, New York 11701
For Sales and Repairs, (800) 645-9445
For Technical Service, (800) 645-9440 or visit us at
http://tech.napcosecurity.com/
(Note: Technical Service is for security professionals only)
Publicly traded on NASDAQ Symbol: NSSC
© NAPCO 2021
Description
The NAPCO ISV2-DOME-WIFI is an HD 1080P indoor / out-
door, network wired / wireless dome video camera that allows
the viewing of live and recorded video clips through the
electrical or
iBridgeVideo App (Android or iOS). The ISV2-DOME-WIFI
also allows for motion-triggered video clip push notifications.
The camera is equipped with Active Deterrence, namely an
integral spotlight and 110dB siren. The selective Smart De-
tection option helps to reduce false alerts. In addition, the
Two-way Talk feature includes integral speaker and micro-
phone with echo cancellation technology to allow the home-
owner to clearly interact with pets and family, or dissuade
unwelcome guests.
To activate the camera, an active NAPCO ComNet Dealer
account at www.NapcoComNet.com
 Wi-Fi Support (IEEE802.11b/g/n)
 Dual Internal Antenna 2x2 MIMO
 Wired Ethernet Connections Supported
 Maximum 30fps@ 2.0MP (1920 x 1080)
 True Day/Night Vision
 2.8mm Fixed Lens
 Smart IR 30m (98ft.)
 Outdoor Rated IP67
 Active Deterrence: Integral Spotlight and 110dB Siren
 Smart Motion Detection
 Two-way talk: Integral speaker and microphone
Included Components
 ISV2-DOME-WIFI Camera
 Mounting Plate and Template
 12V Power Adapter
 Waterproof Connector
 Mounting Screws and Expansion Bolts
 Installation Guide (these instructions)
Compatible Accessories
ISV2-WIFI-BOX ................... Round Back Box for ISV2-DOME-WIFI
ISV2-DOME-BKT ................ Wall Mounting Bracket for ISV2-DOME-WIFI
Quick Install Summary:
a. Activate camera at www.NapcoComNet.com.
b. Install the iBridgeVideo app on the mobile device.
c. Power camera.
d. Connect the mobile device to a 2.4MHz Wi-Fi network.
e. Launch the iBridgeVideo app and log in.
f. Add camera to the app via the wireless method (Wi-Fi
connection) or wired (hardwired) options in the app.
g. Mount camera at desired location.
NAPCO iBridgeVideo ISV2-DOME-WIFI Installation Guide
NAPCO iBridgeVideo ISV2-DOME-WIFI
HD Indoor / Outdoor Wired / Wireless Dome Camera
with Active Deterrence
Installation Guide
Camera Mounting
The mounting surface must support a minimum of 3lbs.
Mounting Surface
Template
Expansion Bolt
Mounting Plate
Mounting Screw
Camera
is required.
1. Match the Template to the Mounting Plate holes to lo-
cate the correct mount-
ing holes for proper
camera position.
2. Affix the Template to
ceiling or wall. For wall
mounting, position the
UP arrow at the top.
Mark the 3 mounting
holes.
3. Using a drill bit slightly
smaller than the diameter of the Expansion Bolts, drill 3
holes into the mounting surface. Fully insert the 3 Ex-
pansion Bolts.
4. Secure the Mounting Plate using the 3 Mounting
Screws inserted into the three Expansion Bolts.
5. Route the Power and Ethernet
Cable: Connect the Waterproof
Connector to the Ethernet plug.
Snake both cables through the
center of the Mounting Plate (drill a 3/4" hole) or run the
cable through the notch in the Mounting Plate and
along the mounting surface.
6. Align the notch in the Camera base with the front of the
Mounting Plate. Push the Camera base into the Mount-
ing Plate and slide away from the tab until it snaps se-
curely in place.
7. Adjust the Tilt, Pan angle and
lens Rotation.
WI2461ALF 11/21
Ceiling Mounting
Wall Mounting
Waterproof Connector
1
