ADJUSTMENT [LCD Color Television] ASIA_EU
ADJUSTMENT

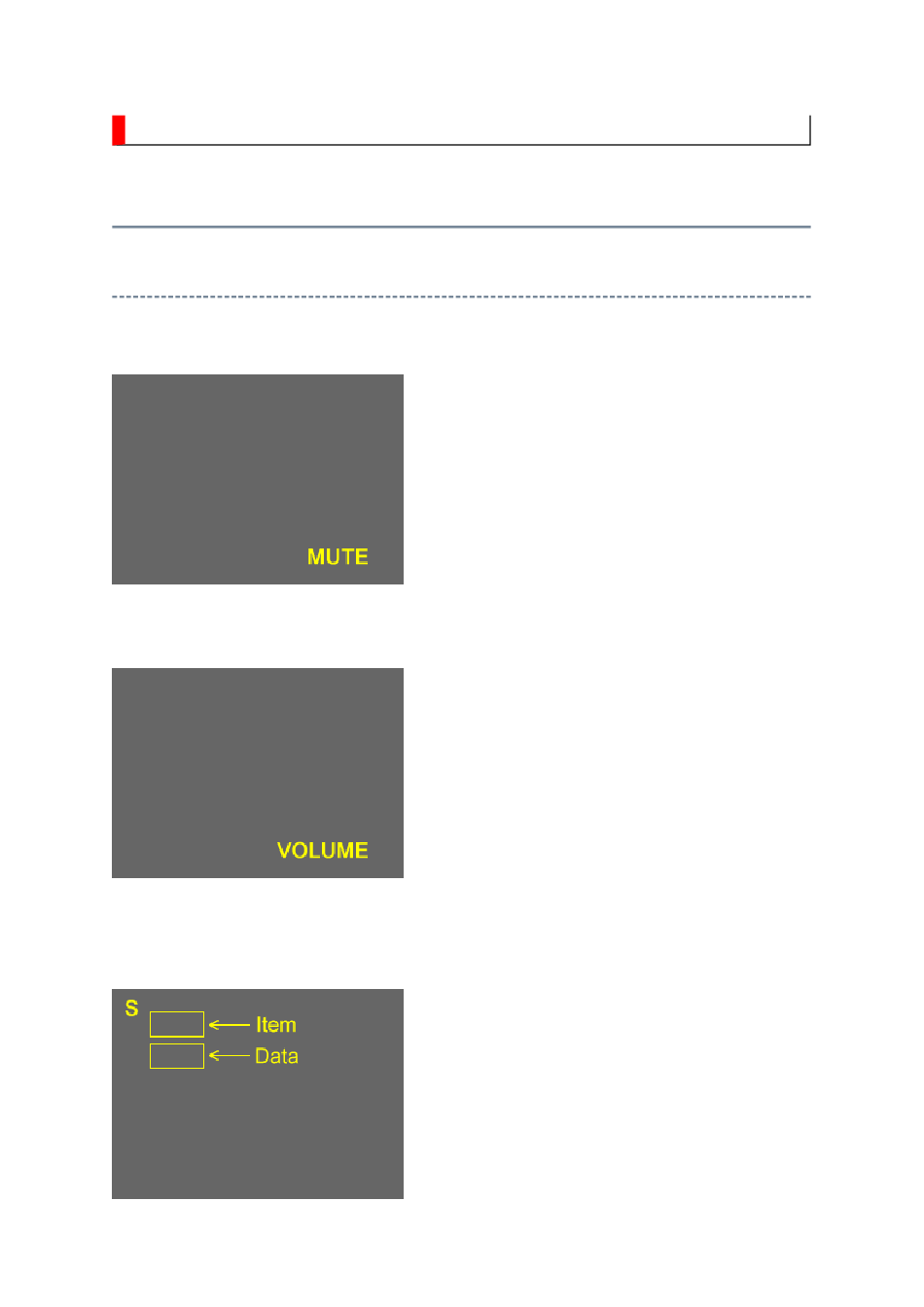

Service Mode
Entering to Service Mode
↓ ↓ ↓ ↓
↓ ↓ ↓ ↓
Service Mode display
file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.010\37C...
1. Set VOLUME to minimum and press MUTE
button twice on Control.
2. Press MUTE button again and hold button
down.
3. While holding the MUTE button, press MENU
button on TV set.
Стр. 1 из 7
08.05.2015

Advertisement

Table of Contents
loading

Related Manuals for Toshiba 37CV510U

Summary of Contents for Toshiba 37CV510U

  • Page 1 ADJUSTMENT [LCD Color Television] ASIA_EU Стр. 1 из 7 ADJUSTMENT Service Mode Entering to Service Mode 1. Set VOLUME to minimum and press MUTE button twice on Control. ↓ ↓ ↓ ↓ 2. Press MUTE button again and hold button down.
  • Page 2 ADJUSTMENT [LCD Color Television] ASIA_EU Стр. 2 из 7 Key Function in the Service Mode The following key entry during display of adjustment menu provides special functions. Selection of the adjustment items CH (on TV or remote control) Change of the data value Volume +/- (on TV or remote control) Adjustment menu mode ON/OFF MENU button (on remote control) Reset the count of operating...
  • Page 3 ADJUSTMENT [LCD Color Television] ASIA_EU Стр. 3 из 7 (a) Seine3 LV Data CV510U VDC-MM000030 Rev00 (VX4A00024400) (b) CV510U TV-MICRO EEPROM Data VDC-MM000027 Rev00 (VX4A00024600) (2) Prior to changing any board containing an EEPROM IC, the exisiting data in each image format should be copied down as a precautionary measure.
  • Page 4 ADJUSTMENT [LCD Color Television] ASIA_EU Стр. 4 из 7 OPT2 TV SET OPTION 2 OPT3 TV SET OPTION 3 OPT4 TV SET OPTION 4 OPT5 TV SET OPTION 5 SET-ID MODEL ID VOLX Volume Limiter For Hotel 64H Factory preset data will be loaded after setting Model ID data. Note: (*1) SET-ID data is subject to the models.
  • Page 5 ADJUSTMENT [LCD Color Television] ASIA_EU Стр. 5 из 7 Pressing POWER button to turn off the TV once. Self Diagnostic Function 1. Press "Recall" button on Remote Control during display of adjustment menu in the service mode. This will bring up the "S" in the right corner of screen. Now press "9" button on remote.
  • Page 6 ADJUSTMENT [LCD Color Television] ASIA_EU Стр. 6 из 7 (11) DMD Engine System status : LCD Model not used. (12) TV-MICRO System status : Not used. (13) IIC-BUS status Bus line normal is "None" displayed. When it is abnormal, the block name is displayed as follows. "SCL-GND"...
  • Page 7 ADJUSTMENT [LCD Color Television] ASIA_EU Стр. 7 из 7 6 IIC BUS Error Blink (Slow) 7 Power Protect Detection Blink (Fast) 8 Seine Booting Blink (3 Times) 9 Upgrade In Progress 10 Upgrade Successful 11 Upgrade Failed 12 Charis caribration error file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.010\37C...

  • Page 8: Function And Operation

    Стр. 1 из 2 FUNCTION AND OPERATION TV Front and Side Panel Controls and Connections Model 37CV510U is used in this manual for illustration purposes. file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.333\37C... 08.05.2015...
  • Page 9 Стр. 2 из 2 file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.333\37C... 08.05.2015...

  • Page 10: Learning About The Remote Control

    Стр. 1 из 3 FUNCTION AND OPERATION Learning about the Remote Control file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.279\37C... 08.05.2015...
  • Page 11 Стр. 2 из 3 file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.279\37C... 08.05.2015...
  • Page 12 Стр. 3 из 3 file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.279\37C... 08.05.2015...

  • Page 13: Programming Channels Into The Tv's Channel Memory

    Стр. 1 из 4 FUNCTION AND OPERATION Programming Channels into the TV's Channel Memory Programming Channels Automatically file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.462\37C... 08.05.2015...
  • Page 14 Стр. 2 из 4 Manually Adding and Deleting Channels in the Channel Memory file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.462\37C... 08.05.2015...
  • Page 15 Стр. 3 из 4 file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.462\37C... 08.05.2015...
  • Page 16 Стр. 4 из 4 file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.462\37C... 08.05.2015...

  • Page 17: Safety Instruction

    Handling the LCD Module Стр. 1 из 4 SAFETY INSTRUCTION Handling the LCD Module Safety Precaution In the event that the screen is damaged or the liquid crystal (fluid) leaks, do not breathe in or drink this fluid. Also, never touch this fluid. Such actions could cause toxicity or skin irritation. If this fluid should enter the mouth, rinse the mouth thoroughly with water.
  • Page 18 Handling the LCD Module Стр. 2 из 4 3. If the panel surface becomes soiled, wipe with cotton or a soft cloth. If this does not remove the soiling, breathe on the surface and then wipe again. If the panel surface is extremely solied, use a CRT cleaner as a cleaner. Wipe off the panel surface by drop the cleaner on the cloth.
  • Page 19 Handling the LCD Module Стр. 3 из 4 6. CMOS-LSI circuitry is used in the LCD module, so avoid damage due to static electricity. When handling the module, use a wrist ground or anchor ground. 7. Do not expose the LCD module to direct sunlight or strong ultraviolet rays for an extended period of time.
  • Page 20 Handling the LCD Module Стр. 4 из 4 10. When transporting the LCD module, do not use packing containing epoxy resin (amine) or silicon resin (alcohol or oxim). The gas generated by these materials can cause loss of polarity. file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.983\37C... 08.05.2015...

  • Page 21: Panel Identification

    Стр. 1 из 1 PANEL IDENTIFICATION Panel Identification If the several panels are alternatively used in the same model without amending the model name, the identification marking will be shown at the last digit of the set serial number on the specification label on the back cover.
  • Page 22 U01A U03A POWER MAIN U04A LED U04B RMT...

  • Page 23: Safety Precaution

    Стр. 1 из 3 SAFETY INSTRUCTION WARNING: BEFORE SERVICING THIS CHASSIS, READ THE "SAFETY PRECAUTION" AND "PRODUCT SAFETY NOTICE" INSTRUCTIONS BELOW. Safety Precaution WARNING: SERVICING SHOULD NOT BE ATTEMPTED BY ANYONE UNFAMILIAR WITH THE NECESSARY PRECAUTIONS ON THIS RECEIVER. THE FOLLOWING ARE THE NECESSARY PRECAUTIONS TO BE OBSERVED BEFORE SERVICING THIS CHASSIS.
  • Page 24 Стр. 2 из 3 inflammability, voltage resistance, etc. therefore, use only replacement parts that have these same characteristics. Use only the specified parts when the mark is indicated in the circuit diagram or parts list. 7. Parts mounting and routing dressing of wirings should be the same as that used originally.

  • Page 25: Product Safety Notice

    Стр. 3 из 3 limit constitutes a potential shock hazard and must be corrected immediately. Product Safety Notice Many electrical and mechanical parts in this chassis have special safety-related characteristics. These characteristics are often passed unnoticed by a visual inspection and the protection afforded by them cannot necessarily be obtained by using replacement components rated for higher voltage, wattage, etc.

  • Page 26: Specification

    Стр. 1 из 2 SPECIFICATION file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.870\37C... 08.05.2015...
  • Page 27 Стр. 2 из 2 file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.870\37C... 08.05.2015...

  • Page 36: Schematic Diagram

    Стр. 1 из 2 SCHEMATIC DIAGRAM Precaution WARNING: BEFORE SERVICING THIS CHASSIS, READ THE "X-RAY RADIATION PRECAUTION" FOR DIRECT VIEW CTV ONLY, "SAFETY PRECAUTION" AND "PRODUCT SAFETY NOTICE" OF THIS MANUAL. CAUTION: The international hazard symbols " " in the schematic diagram and the parts list designate components which have special characteristics important for safety and should be replaced only with types identical to those in the original circuit or specified in the parts list.
  • Page 37 Стр. 2 из 2 = Electrolytic capacitor = Mylar capacitor 3. The parts indicated with " " have special characteristics, and should be replaced with identical parts only. 4. Voltages read with DIGITAL MULTI-METER from point indicated to chassis ground, using a color bar signal with all controls at normal, line voltage at nominal AC volts.
  • Page 116 Стр. 1 из 1 PARTS LIST All Block Block : Search 1 / 1295 Jump Page : Location : Search Parts No. : Block Location Parts No. Description U01A POWER (PE0531) U01A 75011638 POWER, PE0531B1 U01A POWER (PE0531) C801 76503513 CAPACITOR, PLASTIC FILM, LE474-C U01A POWER (PE0531) C802 76503510 CAPACITOR, PLASTIC FILM, LE224-C...
  • Page 117 Стр. 1 из 1 PARTS LIST U01A POWER (PE0531) Block : Search 1 / 303 Jump Page : Location : Search Parts No. : Block Location Parts No. Description U01A POWER (PE0531) U01A 75011638 POWER, PE0531B1 U01A POWER (PE0531) C801 76503513 CAPACITOR, PLASTIC FILM, LE474-C U01A POWER (PE0531) C802...
  • Page 118 Search Parts No. : Block Location Parts No. Description U03AS MAIN (PE0552) U03AS 75012470 PC BOARD ASSY, PE0552A(37CV510U), MAIN U03AS MAIN (PE0552) C1000 75009870 CHIP CERAMIC CAPACITOR (1005) U03AS MAIN (PE0552) C1020 75009863 CHIP CERAMIC CAPACITOR (1005) U03AS MAIN (PE0552)
  • Page 119 Стр. 1 из 1 PARTS LIST U04A LED (PE0548) Block : Search 1 / 11 Jump Page : Location : Search Parts No. : Block Location Parts No. Description U04A LED (PE0548) U04A 75011330 PWU, LED, PE0548B1 U04A LED (PE0548) CB104 76100104 CAPACITOR, CERAMIC CHIP, 25V F 0.1UF Z U04A LED (PE0548)
  • Page 120 Стр. 1 из 1 PARTS LIST U04B REMOTE (PE0548) Block : Search 1 / 8 Jump Page : Location : Search Parts No. : Block Location Parts No. Description U04B REMOTE (PE0548) U04B 75011331 PWU, REMOTE, PE0548B2 U04B REMOTE (PE0548) CB102 76619102 CAPACITOR, ELECTROLYTIC CHIP, 16V 47UF M U04B REMOTE (PE0548)
  • Page 121 Стр. 1 из 1 PARTS LIST Miscellaneous Block : Search 1 / 6 Jump Page : Location : Search Parts No. : Block Location Parts No. Description Miscellaneous B001 75011157 DISPLAY, LC370WXN-SAC1 Miscellaneous MZ01 75011355 WIRE, LVDS CABLE Miscellaneous P801 75002678 POWER CORD, INQ2682(1) Miscellaneous PP12...
  • Page 122 Стр. 1 из 1 PARTS LIST Accessory Block : Search 1 / 4 Jump Page : Location : Search Parts No. : Block Location Parts No. Description Accessory K902 75010932 REMOCON HAND UNIT, CT-90302 Accessory Y102 75011336 MANUAL, OWNERS MANUAL E/F Accessory Y109 23945015 BAG, POLYETHYLENE COVER 250X400...
  • Page 123 Стр. 1 из 1 PARTS LIST Cabinet Block : Search 1 / 8 Jump Page : Location : Search Parts No. : Block Location Parts No. Description Cabinet A201 75011356 CABINET/RACK FRONT BEZEL ASSY, FRONT BEZEL ASSY Cabinet A401 75011232 CABINET/RACK BACK COVER ASSY, BACK COVER ASSY Cabinet A411 23717267 SCREW, BITTB4X16 SBN...
  • Page 124 Стр. 1 из 1 PARTS LIST Packing Block : Search 1 / 4 Jump Page : Location : Search Parts No. : Block Location Parts No. Description Packing A701 75011357 CARTON CASE, CASE Packing A702A 75011358 PAD TOP PACKING, TOP PACKING Packing A702B 75011359 PAD BOTTOM PACKING, BOTTOM PACKING...
  • Page 125 Стр. 1 из 2 PARTS LIST Precaution WARNING: BEFORE SERVICING THIS CHASSIS, READ THE "X-RAY RADIATION PRECAUTION" FOR DIRECT VIEW CTV ONLY, "SAFETY PRECAUTION" AND "PRODUCT SAFETY NOTICE" OF THIS MANUAL. CAUTION: The international hazard symbols " " in the schematic diagram and the parts list designate components which have special characteristics important for safety and should be replaced only with types identical to those in the original circuit or specified in the parts list.
  • Page 126 Стр. 2 из 2 : Metal Film : Fusible Resistor All CD and PF capacitors are ±5 %, 50 V and all resistor, ±5 %, 1/6 W unless otherwise noted. file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.104\37C... 08.05.2015...
