Minelab ML 100 User Manual

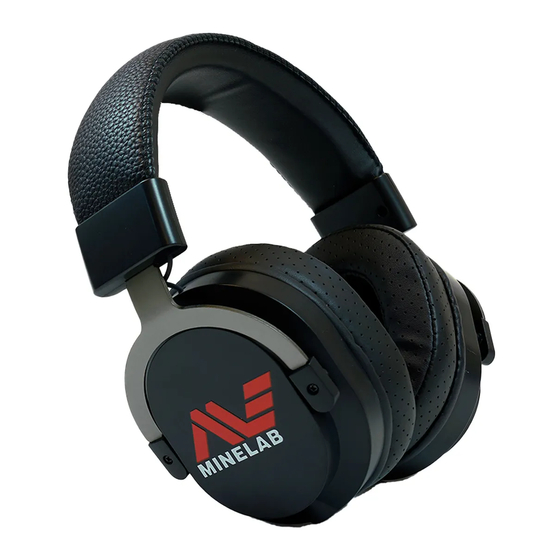

MINELAB ML 100 HEADPHONES
Minelab ML 100 headphones use aptX™ Low
Latency technology, which delivers faster, higher
quality audio than standard Bluetooth, so it will give
more precise and faster detection responses when
used for metal detecting.
They contain the latest CSR8670 chipset with aptX
and aptX Low Latency, and are compatible with
devices that support Bluetooth.
PACKAGE CONTENTS
•
ML 100 Headphones
•
3.5 mm (1/8 inch) Detachable Auxiliary Cable
•
USB Charging Cable
•
Instruction Manual
GETTING STARTED
1. Ensure the Bluetooth headphones are
fully charged.
2. Pair the charged Bluetooth headphones with a
Bluetooth enabled device.
PAIRING TO A DETECTOR
1. Place the headphones and the detector no more
than 1 metre (3 feet) apart.
2. Ensure the headphones are turned off.
3. Press and hold the MFB until a double
2
ascending tone is heard and the Status LED
flashes red and blue.
4. Press and hold the wireless button on the
detector for 3 seconds. The Bluetooth icon on the
detector display will flash rapidly.
5. When the pairing is complete, the headphones
will beep and the Status LED will flash blue
4
3 times repeatedly, indicating that they are
connected to the detector.
NOTE: If the pairing cannot be completed within
5 minutes after the pairing mode has been
activated, the headphones will automatically enter
Standby Mode.
NOTE: ML 100 headphones can be paired with two
devices simultaneously so you can pair them with
both your detector and your smart phone.
BUTTONS AND INDICATIONS
1 2
3 4
CONNECT WITH THE LAST PAIRED DEVICE
The headphones will automatically connect with the
last-paired device. If connection is successful, the
Status LED will flash blue 3 times repeatedly.
4
RESET TO FACTORY DEFAULTS
4
Make sure the headphones are turned off. Press the
MFB for approximately 10 seconds until there are
2
2 beeps and the Status LED flashes pink 2 times.
4
Release the button.
The Status LED will now be flashing red and blue,
4
indicating that the headphones are in pairing mode.
All previously paired devices will be unpaired.
1 VOLUME PLUS BUTTON (+)
Increases the Volume by one level, plays the next
track (music function).
2 MULTI-FUNCTION BUTTON (MFB)
Turns the headphones on or off, plays and pauses
music (music function), activates Pairing Mode,
resets the headphones to factory defaults.
3 VOLUME MINUS BUTTON (−)
Decreases the Volume by one level, plays
previous track (music function).
STATUS LED
4
Alternating blue / red
Flash blue 3 times
Flash blue 2 times
6
5
Solid red
Solid Blue
5 USB MICRO-B CHARGING SOCKET
6 HEADPHONE SOCKET 3.5 mm (
MUSIC FUNCTIONS
PLAY / PAUSE MUSIC
Press the MFB to pause / play music on your
2
connected device.
When music is playing, the Status LED
blue 3 times repeatedly.
NEXT / PREVIOUS TRACK
Long press the Volume + button
play the next track.
Long press the Volume − button
play the previous track.
ADJUST THE VOLUME
Press the Volume + button
volume by one level.
Press the Volume − button
volume by one level.
When maximum or minimum volume has been
reached there will be a high or low tone (beep).
CHARGING THE HEADPHONES
Connect the USB charging cable to charging USB
socket 5 of the headphones. The Status LED
will remain solid red during charging. When charging
is complete, the Status LED
NOTE: USB Charger is not supplied. Any generic high
quality USB charger can be used.
TURNING ON THE HEADPHONES
Press and hold the MFB
flashes solid blue for 1 second and then flashes blue
with an ascending 'beep' sound.
The headphones enter pairing mode automatically
when no device is paired.
Pairing mode
Connected
Standby mode TURNING OFF THE HEADPHONES
Charging
To turn off the ML 100 headphones, press and hold
Charging complete
the MFB for 2 seconds until the Status LED
2
flashes red. There will be a series of descending
tones and the headphone will turn off.
1 ⁄ inch)
8
CONNECTING THE AUXILIARY CABLE
The ML 100 headphones are supplied with a
detachable 3.5 mm (
operation. This allows the headphones to be used
if the battery is flat, or for use with devices that do
not have Bluetooth capability.
will flash
4
To use the cable, plug the connector into the
headphone jack
lock the connector. This prevents the connector
for 2 seconds to
1 from being accidentally disconnected.
for 2 seconds to
3
once to increase the
1
once to decrease the
3
4
4 will turn solid blue.
until the Status LED
2 4
4
/ inch) auxiliary cable for wired
1
8
and turn 90° anti-clockwise to
6
