PORTABLE AIR CONDITIONER
User Manual
MODEL
CPT10WB | CPT10HWB

Advertisement

Table of Contents
loading

Related Manuals for commercial cool CPT10WB

Summary of Contents for commercial cool CPT10WB

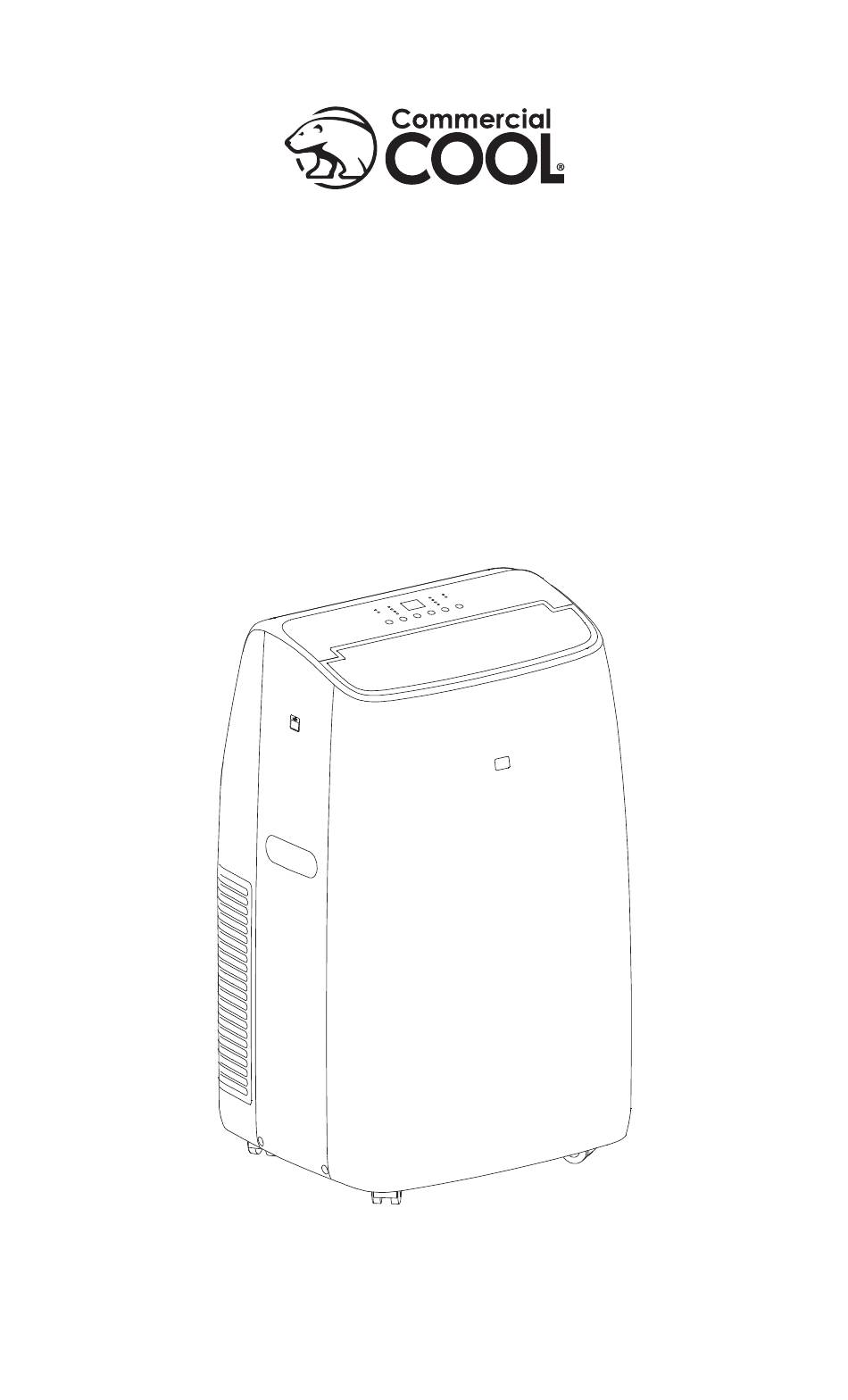

  • Page 1 PORTABLE AIR CONDITIONER User Manual MODEL CPT10WB | CPT10HWB...

  • Page 3: Table Of Contents

    CONTENTS SAFETY INFORMATION Important Safety Instructions ............................4-6 Grounding Instructions ..............................7-8 Safety Guidelines ..............................9 Power Cord Operation ............................10 SET UP & USE Parts & Features ..................................11 Specifications ................................12 Installation Guide ..............................12 Window Slider Kit Installation ...........................13 Exhaust Hose Installation ............................14 Control Panel ................................15 Operating from the Control Panel ......................

  • Page 4: Safety Information

    SAFETY INFORMATION DANGER WARNING CAUTION DANGER - Immediate hazards WARNING - Hazards or unsafe CAUTION - Hazards or unsafe which WILL result in severe practices which COULD result in practices which COULD result in personal injury or death severe personal injury or death minor personal injury IMPORTANT SAFETY INSTRUCTIONS WARNING...
  • Page 5 SAFETY INFORMATION HANDLING ALKALINE BATTERIES WARNING When handling alkaline batteries, basic safety precautions should be followed, including the following Should fluid from the battery accidentally get into your eyes, there is a threat of loss of eyesight, do not rub them. Immediately rinse your eyes with clean tap water and then consult a physician immediately.
  • Page 6 SAFETY INFORMATION HANDLING ALKALINE BATTERIES WARNING When handling alkaline batteries, basic safety precautions should be followed, including the following 10. Do not drop, throw or expose the battery to extreme impact. Doing so may cause the battery to leak fluid, overheat or explode. 11.

  • Page 7: Grounding Instructions

    SAFETY INFORMATION GROUNDING INSTRUCTIONS ELECTRICAL REQUIREMENTS In the event of malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. The appliance must be connected to a cord having an equipment- grounding conductor and a grounding plug.
  • Page 8 SAFETY INFORMATION LCDI POWER CORD AND PLUG This air conditioner is equipped with an LCDI (Leakage Current Detection and Interruption) power cord that is required by UL. This power supply cord contains state-of-the-art electronics that sense leakage current. If the cord is damaged and leakage occurs, power will be disconnected from the unit.

  • Page 9: Safety Guidelines

    SAFETY INFORMATION SAFETY GUIDELINES To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage. ALWAYS DO THIS NEVER DO THIS ENERGY SAVE •...

  • Page 10: Power Cord Operation

    SAFETY INFORMATION OPERATING CONDITION The air conditioner must be operated within the temperature range indicated below: NOTE: · Unit performance may be affected when in use outside of these operating temperatures. MODE ROOM TEMPERATURE COOL 64˚F (18˚C) ~ 95˚F (35˚C) DEHUMIDIFY 64˚F (18˚C) ~ 95˚F (35˚C) HEAT...

  • Page 11: Set Up & Use

    SET UP & USE PARTS & FEATURES Air Exhaust Housing Control Panel Plug Holder Deflector Filter Remote Handle control (both Dehumidification receiver sides) Drain Intake Grill Condensation Drain Castors (4) Power Cable Air Exhaust Hose Hose Outlet Hose Inlet Locking Screw Window Bracket Drain Hose Drip Pan...

  • Page 12: Specifications

    SET UP & USE SPECIFICATIONS CPT10WB Unit dimensions (W x D x H): 17.72” x 15.59” x 29.33” Unit weight approx.: 74.61 lbs. CPT10HWB Unit dimensions (W x D x H): 17.72” x 15.59” x 29.33” Unit weight approx.: 75.2 lbs.

  • Page 13: Window Slider Kit Installation

    SET UP & USE WINDOW SLIDER KIT INSTALLATION Your window slider kit has been designed to fit most standard “Vertical” and “Horizontal” window applications; however, it may be necessary for you to improvise/modify some aspect of the installation procedures for certain types of window.

  • Page 14: Exhaust Hose Installation

    SET UP & USE EXHAUST HOSE INSTALLATION The air exhaust hose and hose inlet must be installed or removed from the portable air conditioner in accordance with the way it is being used: COOL, AUTO: Air exhaust hose and hose inlet should be connected to the portable air conditioner.

  • Page 15: Control Panel

    SET UP & USE CONTROL PANEL Display Area Timer Fan Speed Selected Mode Sleep Indicator Light Indicator Light Indicator Light Indicator Light Timer Button ON/OFF Decrease Increase Fan Speed Mode Temp/Time Temp/Time Selection Button Selection Button Button Button Pictures are for illustration purpose only. Your model may or may not have all the features. OPERATING FROM THE CONTROL PANEL The Control Panel enables you to manage all the main functions of the appliance, but to fully exploit its potential, you must use the remote...
  • Page 16 SET UP & USE FAN MODE COOL MODE Adjust fan speed by pressing Ideal for hot weather when the Fan Speed button as you need to cool the room. Fig. 9 described for the cool mode. To set operation of the appliance correctly, press In this mode, AUTO fan cannot be buttons until the desired...
  • Page 17 SET UP & USE SMART MODE TIMER BUTTON Press the button repeatedly until PROGRAMMING SHUT DOWN the LED screen indicates the below. Press the TIMER button when the unit is ON to select an auto STOP Time. Continue to press TIMER repeatedly to scroll through the time selections of 1-24 hours.

  • Page 18: Operating From The Remote Control

    SET UP & USE OPERATING FROM THE REMOTE CONTROL BATTERY INSTALLATION (BATTERIES NOT INCLUDED) (1) Slide open the battery compartment cover. (2) Insert 2 × “AAA”batteries as shown. (3) Slide back the battery cover. CAUTION: Use only AAA or IEC R03 1.5V alkaline batteries. Remove the batteries if the remote is not used for a month or longer.
  • Page 19 SET UP & USE REMOTE CONTROL Dehumidify Heat Smart Cool ˚C / ˚F Remote Signal Auto Fan Speed Child Lock Timer Follow Me Turbo Sleep Function Power Button Button Fan Speed Increase Mode Button Swing Timer Button Button Decrease ˚C / ˚F Selector Sleep Button Fan Speed...
  • Page 20 SET UP & USE LED Display Indicators Cooling mode Fan speed Dehumidify mode Auto speed Fan mode Child lock Heat mode (Heat Timer on model CPT10HWB only) Smart mode Timer off Signal Sleep Display tempera- Turbo ture or hours Fahrenheit or Follow me Celsius Swing...
  • Page 21 SET UP & USE DEHUMIDIFY Ideal for reducing humidity. • Keep window and door closed for the best dehumidifying effect. • Exhaust hose attachment is not required in this mode. Draining in Dehumidify mode • It is recommended that the dehumidification drain and drain hose be used for continuous drainage.
  • Page 22 SET UP & USE SMART MODE • In SMART model the air conditioner will make automatic selections based on the room temperature. FOR COOL ONLY MODELS • The air conditioner will automatically operate in FAN mode when the room temperature is below 73˚F (23˚C). •...
  • Page 23 SET UP & USE FUNCTION BUTTON • Press the to access FOLLOW ME and TURBO functions. • TURBO is ideal for a warm room. It will automatically set the temperature to 64°F (18°C) at HIGH Fan speed to cool the room in the shortest time. •...
  • Page 24 SET UP & USE FOLLOW ME Parts of the room are cooler where there is a draft. Other parts are warmer due to direct sunlight. The FOLLOW ME Function allows the room to be cooled according to the room temperature, wherever the remote is located. •...
  • Page 25 SET UP & USE PROGRAMMING SHUT DOWN • With the appliance ON Press the button twice, the LED screen will display hours, the symbol and symbol will flash • Press the button to set the time when you want the appliance to shut down using the buttons (from 30 minutes to 24 hours).
  • Page 26 SET UP & USE °C / °F SELECTOR BUTTON • When the appliance is powered on, press the °C / °F button, then you can select the unit of temperature from Fahrenheit or Celsius. NOTE: This will indicate an “E” momentarily when battery is installed. It will automatically change to °F and display Fahrenheit CHILD LOCK •...

  • Page 27: Water Drainage

    SET UP & USE WATER DRAINAGE Draining in Cooling Mode. This air conditioner is equipped with auto water evaporation so the water compartment would not typically fill in cooling mode unless there is high humidity. Water drainage will generally only be required at the end of the season (see START-END OF SEASON OPERATIONS in cooling mode.) NOTE: As a safety measure to positively prevent water spillage the air conditioner is equipped with a fail safe device if the water tank fills.
  • Page 28 SET UP & USE Continuous Draining for Dehumidification Mode. Unplug the unit from the power source. Remove the drain cap located in the back center of the unit. While doing this operation some residual water may spill so have a drip pan (not supplied) to collect the water.

  • Page 29: Cleaning & Care

    CLEANING & CARE CLEANING WARNING: Before cleaning or maintenance, turn the appliance off by pressing the button on the control panel or button on the remote control. Unplug from the electrical outlet. CLEANING THE CABINET You should clean the appliance with a slightly damp cloth then dry with a dry cloth.

  • Page 30: Troubleshooting & Warranty

    TROUBLESHOOTING & WARRANTY BEFORE YOU CALL FOR SERVICE IF THE AIR CONDITIONER FAILS TO OPERATE: A) Check to make sure that the air conditioner is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds and plug it in again securely.

  • Page 31: Troubleshooting

    TROUBLESHOOTING & WARRANTY Troubleshoot your problem by using the chart below. If the air conditioner still does not work properly, contact W Appliance Co. customer service center or the nearest authorized service center. Customers must never troubleshoot internal components. TROUBLE POSSIBLE CAUSE POSSIBLE REMEDY Unit does not start when...

  • Page 32: Limited Warranty

    TROUBLESHOOTING & WARRANTY LIMITED WARRANTY REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF Any repair, replacement, or warranty service, THE CUSTOMER; W Appliance Co. SHALL NOT BE and all questions about this product should be LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL 1 (855) 855- directed to W Appliance Co.
  • Page 33 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules.
  • Page 34 © 2021 Commercial Cool is a W Appliance Company. All Rights Reserved. February 2021 Page 34...
