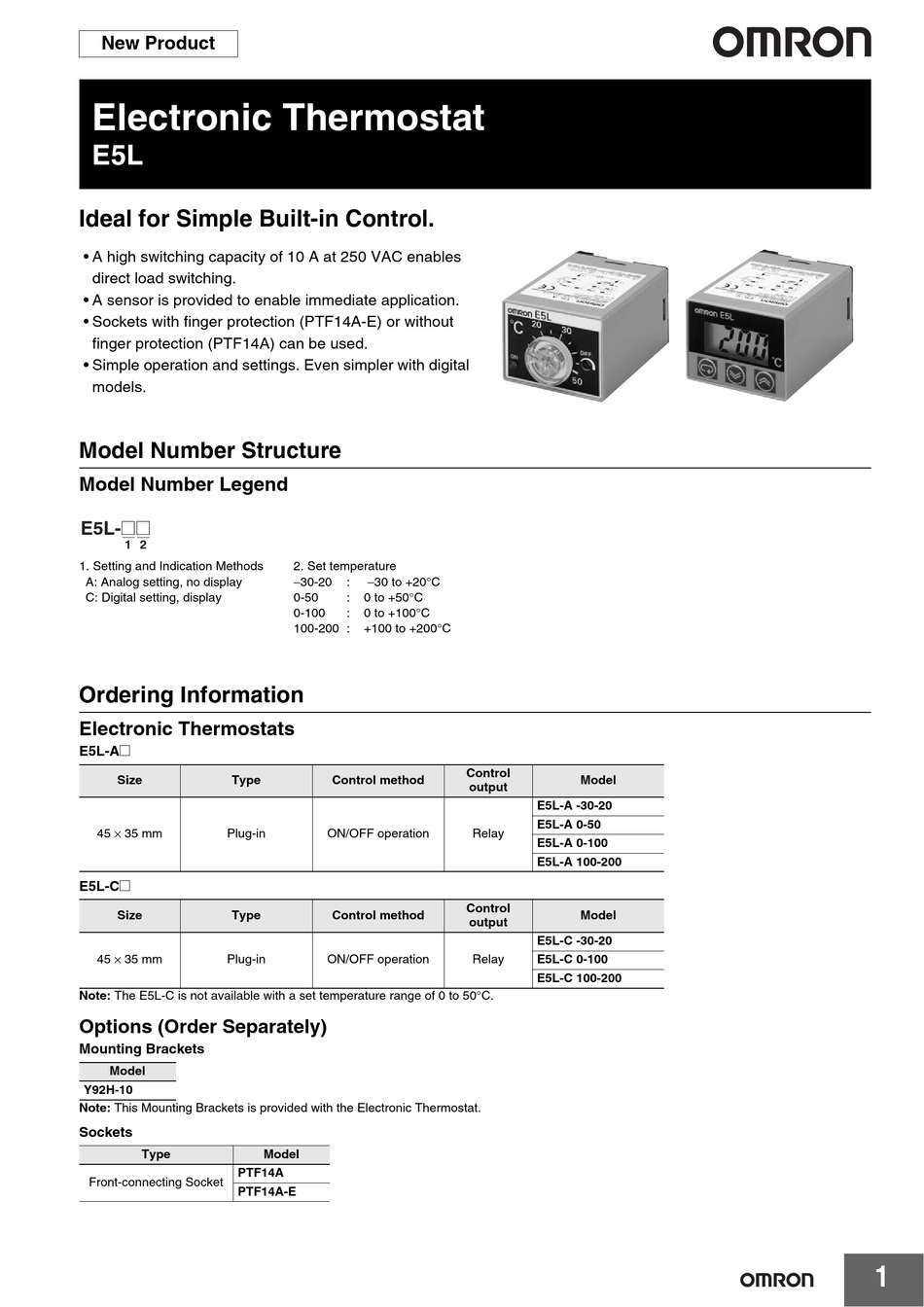

Electronic Thermostat
E5L
Ideal for Simple Built-in Control.
• A high switching capacity of 10 A at 250 VAC enables
direct load switching.
• A sensor is provided to enable immediate application.
• Sockets with finger protection (PTF14A-E) or without
finger protection (PTF14A) can be used.
• Simple operation and settings. Even simpler with digital
models.
Model Number Structure
Model Number Legend
E5L-@@
1 2
1. Setting and Indication Methods
A: Analog setting, no display
C: Digital setting, display
Ordering Information
Electronic Thermostats
E5L-A@
Size
Type
45 × 35 mm
Plug-in
E5L-C@
Size
Type
45 × 35 mm
Plug-in
Note: The E5L-C is not available with a set temperature range of 0 to 50°C.
Options (Order Separately)
Mounting Brackets
Model
Y92H-10
Note: This Mounting Brackets is provided with the Electronic Thermostat.
Sockets
Type
PTF14A
Front-connecting Socket
PTF14A-E
2. Set temperature
−30-20
−30 to +20°C
:
0-50
:
0 to +50°C
0-100
:
0 to +100°C
100-200 :
+100 to +200°C
Control method
ON/OFF operation
Control method
ON/OFF operation
Model
Control
Model
output
E5L-A -30-20
E5L-A 0-50
Relay
E5L-A 0-100
E5L-A 100-200
Control
Model
output
E5L-C -30-20
Relay
E5L-C 0-100
E5L-C 100-200
1
Advertisement
Table of Contents
Related Manuals for Omron E5L-A -30-20
Summary of Contents for Omron E5L-A -30-20
- Page 1 0 to +100°C 100-200 : +100 to +200°C Ordering Information Electronic Thermostats E5L-A@ Control Size Type Control method Model output E5L-A -30-20 E5L-A 0-50 45 × 35 mm Plug-in ON/OFF operation Relay E5L-A 0-100 E5L-A 100-200 E5L-C@ Control Size Type...
- Page 2 Ratings and Characteristics Ratings Item Model E5L-A@ E5L-C@ Power supply voltage 100 to 240 VAC, 50/60 Hz Operating voltage range 85% to 110% of the rated supply voltage Power consumption Approx. 3 VA Inputs Element-interchangeable thermistor Control method ON/OFF control Control output SPDT contacts, 250 VAC, 10 A, cosφ...
-
Page 3: External Connections
External Connections E5L-A@ E5L-C@ Control output Control output 250 VAC, 10 A 250 VAC, 10 A Element- Element- interchangeable interchangeable Thermistor Thermistor Input power supply: 100 to 240 VAC Input power supply: 100 to 240 VAC * Control output Heating load: Terminals 8 and 12 * Control outputs: Terminals 8 and 12 Cooling load: Terminals 4 and 12 Use the keys on the front panel to set direct/reverse operation. - Page 4 Note: Included with product. If a mounting bracket is missing or damaged, order a new bracket separately. 63.7 10.3 Temperature Sensors (Order Separately) E52-THE5A, E52-THE6D, and E52-THE6F Temperature Sensors can be ordered separately. For details, refer to an OMRON Web site.
-
Page 5: Set Temperature
Operating the E5L-C@ Power ON Temperature Input Shift Direct/Reverse Setting Protection Operation Press the Press the Press the Press the Keys Keys for at least 3 s. for at least 3 s. for at least 1 s. for at least 1 s. Process value Set temperature Process value... - Page 6 Setting Protection 1. Setting Protection (Process Value Display) Press the Keys simultaneously while the process value is being displayed to change to the setting protection state. 2. Setting Protection (Set Temperature Display) From the Setting Protection (process value display) Mode, press Keys simultaneously to change to the setting protection (set temperature display) state.
-
Page 7: Safety Precautions
Safety Precautions CAUTION Precautions for Safe Use Do not touch the terminals while power is being supplied. Be sure to observe the following precautions to prevent failure to Doing so may occasionally result in minor injury due to operate, malfunction, or adverse effects on the performance and electric shock. -
Page 8: Other Precautions
• Do not apply mechanical force to the temperature-sensing part of the thermistor. • The E52-THE@@ Thermistor can be used for applications that require metal protective tubing. Consult with your OMRON representative. Other Precautions • Do not use the E5L-C@ if the front sheet is peeling or torn. - Page 9 MEMO...
