INSTRUCTION MANUAL
C2620 / C2640
FRONT PANEL WITH WINCH DOOR
CLOSED BACK PANEL
www.hardlifeutility.com

Advertisement

Table of Contents
loading

Summary of Contents for Hardlife Utility C2620

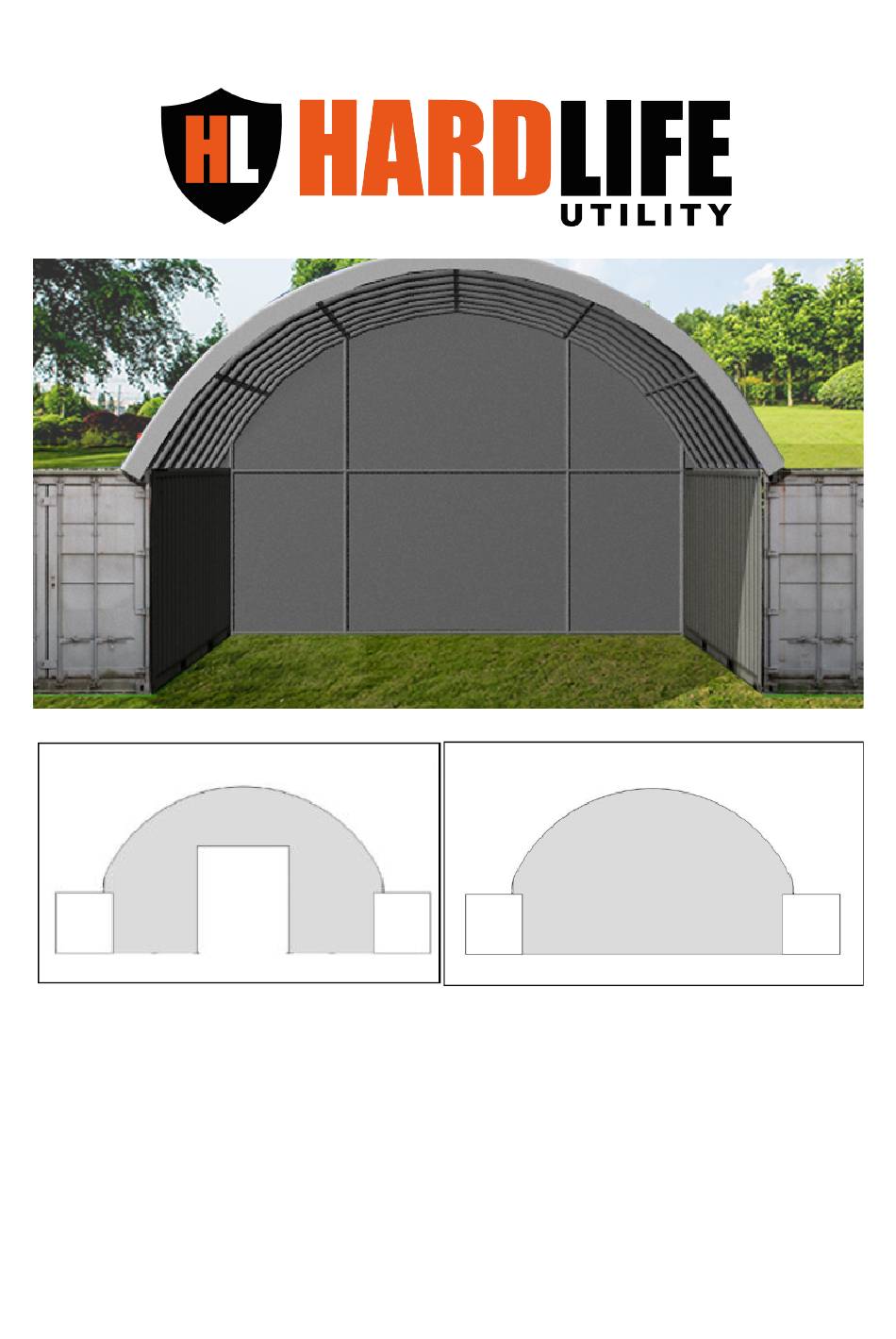

  • Page 1 INSTRUCTION MANUAL C2620 / C2640 FRONT PANEL WITH WINCH DOOR CLOSED BACK PANEL www.hardlifeutility.com...
  • Page 3: Table Of Contents

    TABLE OF CONTENTS COMPONENT LIST ..................TOOLS REQUIRED FOR INSTALLATION ............SITE PREPARATION ..................FRONT / BACK PANEL SPECIFICATIONS ............FRONT WALL ASSEMBLY ................FRONT COVER INSTALLATION ..............BACK WALL ASSEMBLY .................. BACK COVER INSTALLATION ................ MAINTENANCE ....................www.hardlifeutility.com...
  • Page 4: Component List

    COMPONENT LIST COMPONENT C2620 / C2640 DESCRIPTION CODE (Quantity) Both End Panels’ Base Plate at the Side Base Plate for the Front Door Both End Panels’ Base Plate at the Middle Standing Legs at the Side Standing Legs at the Front Panel’s Side Upper Standing Legs at the Side Winch Door’s Left Lower Track...
  • Page 5 Upper Standing Legs at the Middle of the Back Panel Back Panel Horizontal Tubes Horizontal Tubes at the Shoulder of the Back Panel Bottom Tensioning Tubes at the Back Panel Cover for the Front Panel Cover for the Back Panel Ropes M10 x 90 mm Bolts M8 x 80 mm Carriage Bolts...
  • Page 6: Tools Required For Installation

    2. Lay out all the components within the marked-out site, in the approximate locations at which they will be assembled. This makes preliminary work easier on an open, clear space rather than having parts scattered in the way. FRONT / BACK PANEL SPECIFICATIONS DIMENSIONS C2620 / C2640 Overall Dimensions (m) 8W x 5.6H www.hardlifeutility.com...
  • Page 7: Front Wall Assembly

    FRONT WALL ASSEMBLY Figure 1 1. Install both end panels’ base plate at the side (component 8) and the base plates for the front door (com- ponent code 8A), as shown in Figure 1. Secure the base plates (8 and 8A) using the 700 mm stake pegs (component code 35), as shown in Figure 2.
  • Page 8 5. Insert the winch door’s left upper track (component code 11L) into the winch door’s left lower track (com- ponent code 10L) and the winch door’s right upper track (component code 11R) into the winch door’s right lower track (component code 10R). 6.
  • Page 9: Front Cover Installation

    11. Connect the winch door’s suspending tube (component code 12A) to the winch door beam (component code 12) using M10 x 90 mm bolts (component code 29), as shown in Figures 1 and 2. Secure the winch door’s suspending tube to the top bent tube using the angle iron (component code 34A) and M10 x 30 mm bolts (component code 32), as shown in Figure 2.
  • Page 10: Back Wall Assembly

    Figure 3 BACK WALL ASSEMBLY 1. Install both end panels’ base plates at the side (component code 8) and both end panels’ base plate at the middle (component code 8B), as shown in Figure 4. Secure the base plates (8 and 8B) using two stake pegs (component code 35) each, as shown in Figure 4.
  • Page 11 Figure 4 4. Insert the upper standing legs at the side (component code 9B) into component code 9, and secure using M10 x 90 mm carriage bolts (component code 31). Insert the middle standing legs at the middle of the back panel (component code 16) into component code 15, as shown in Figure 4, and secure using M8 x 80 mm carriage bolts (component code 30).
  • Page 12 NOTE: The soldering iron (component code 34) is welded on to the container, in line with the top hole of the upper standing legs (9B), to connect the standing legs closest to the containers, as shown in Figure 6. Figure 6 5.
  • Page 13: Back Cover Installation

    BACK COVER INSTALLATION CAUTION: Do not install the back cover on to the frame of the back wall of the shelter in high wind conditions. 1. Install the cover for the back panel (component code 21) on to the frame of the back wall, as shown in Figure 7.
  • Page 14 Hardlife Advantage ECONOMICAL SHELTERS The best price guarantee in the UK. 24-HOUR DISPATCH Dispatch of orders within 24 hours of receiving your payment (subject to availability). 5-YEAR SPARE PART REPLACEMENT Spare part availability for 5 years from the date of purchase. EFFICIENT AFTER SALES SUPPORT Lifelong technical assistance for all our products.
  • Page 15 www.hardlifeutility.com...
  • Page 16 Unit 4, Dawson Road, Bletchley, Milton Keynes, MK1 1LH United Kingdom Call us: +(44) 01525 30 90 70 / 01525 85 19 12 www.hardlifeutility.com...

This manual is also suitable for:

C2640
