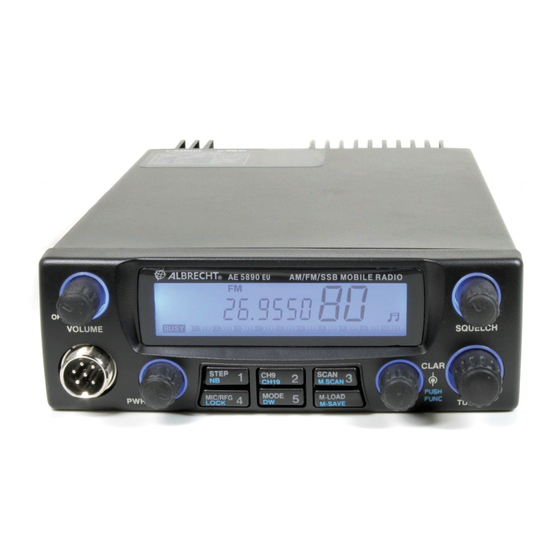

Albrecht AE-5890 EU Quick Start Manual

Only for licensed radio amateurs!
Channel conversion from code: 0 to US
1. Turn OFF the unit
2. Open the cover speaker side.
3. Between CHANNEL and PUSH FUNC there are five terminals provided for
conversion. Terminal 1,2,3,4, and 5
1
4. By using mini jumper put into terminal 1&2 and then turn on the unit,and take
out mini jumper.
5. Using the ''CHANNEL'' selector, select the desired code from Code 0 to code
US.
6. After selecting the desired code turn ''OFF'' and then ''ON'' the unit to
operate it on the selected code.
7. Terminal 4&5 are use to lock the set code by installing mini jumper
MIC Gain can be programmed in 7 steps between "3" and "10" from low to high via
keypad. Just press the menu button 1 x and then You can select MIC sensitivity by UP
/Down.
Same procedure with RF Gain
The radio is sold with officially allowed CB country codes
• dE (80/40/40),
• E (40/40/40) ,
• PL 40/40/40 with Poland offset) ,
• UK (40 CH UK FM + 40 CH international FM) ,
• CE (only 40 international FM) and
• US (only AM and SSB, 40 Channels).
4 5
2
Other settings summary
.
