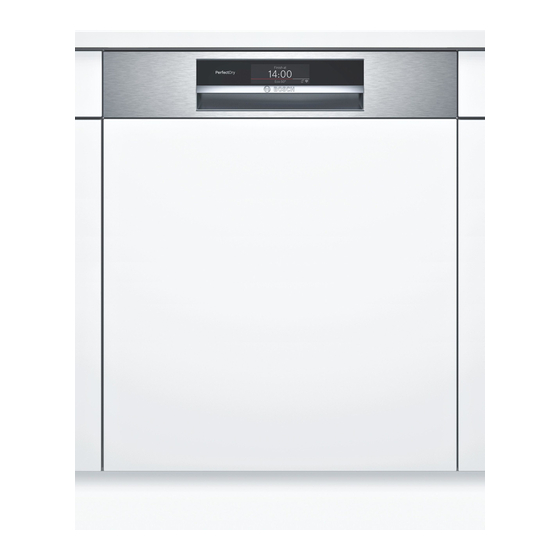

- Page 1 Dishwasher SMI8ZCS07E [en] User manual...
-
Page 2: Table Of Contents
Table of contents Safety .......... 4 Etagere ........... 25 General information...... 4 Folding prongs ....... 26 Intended use........ 4 Extra Clean Zone ...... 26 Restriction on user group.... 4 Basket heights........ 27 Safe installation ........ 5 Before using for the first time .. 27 Safe use ........... 6 Performing initial start-up .... 27 Damaged appliance ...... 8 Risk to children ........ 9... - Page 3 Customer Service...... 59 Terminate programme.... 37 Product number (E-Nr.), produc- Display programme information.. 37 tion number (FD) and consecut- Switching off appliance .... 37 ive numbering (Z-Nr.) ..... 60 Basic settings........ 38 AQUA-STOP guarantee .... 60 Overview of basic settings ..... 38 Technical specifications.... 61 Changing basic settings.... 39 Information regarding Free and Setting the time ...... 39...
-
Page 4: Safety
en Safety Safety Please read the safety information to ensure that you use the ap- pliance safely. General information You can find general information for this instruction manual here. ¡ Read this instruction manual carefully. Only this will ensure you use the appliance safely and efficiently. ¡... -
Page 5: Safe Installation
Safety en Keep children under the age of 8 years away from the appliance and power cable. Safe installation Follow these safety instructions when installing the appliance. WARNING ‒ Risk of injury! Improper installation may cause injury. ▶ When installing and connecting the appliance, follow the in- structions in the manual and installation instructions. -
Page 6: Safe Use
en Safety WARNING ‒ Risk of fire! It is dangerous to use an extended power cord and non-ap- proved adapters. ▶ Do not use extension cables or multiple socket strips. ▶ If the power cord is too short, contact Customer Service. ▶ Only use adapters approved by the manufacturer. WARNING ‒ Risk of injury! Hinges move when opening and closing the appliance door and can cause injury. - Page 7 Safety en ¡ Highly caustic alkaline or highly acidic cleaning agents in con- junction with aluminium parts in the interior of the appliance may cause explosions. ▶ Never use highly caustic alkaline or highly acidic cleaning agents, in particular commercial or industrial products, in conjunction with aluminium parts (e.g.
-
Page 8: Damaged Appliance
en Safety ¡ If the insulation of the power cord is damaged, this is danger- ous. ▶ Never let the power cord come into contact with hot appli- ance parts or heat sources. ▶ Never let the power cord come into contact with sharp points or edges. -
Page 9: Risk To Children
Safety en Risk to children Follow the safety instructions if there are children in your home. WARNING ‒ Risk of suffocation! ¡ Children may put packaging material over their heads or wrap themselves up in it and suffocate. ▶ Keep packaging material away from children. ▶... - Page 10 en Safety WARNING ‒ Risk of injury! Children may get their fingers caught in the slots of the tablet collecting tray and injure themselves. ▶ Keep children away from the appliance when open. WARNING ‒ Risk of suffocation! Children may become trapped in the appliance and suffocate. ▶...
-
Page 11: Preventing Material Damage
Preventing material damage en ¡ Modified or damaged water hoses Preventing material damage Preventing material dam- may result in material damage and damage to the appliance. Never kink, crush, modify or cut ▶ through water hoses. Follow these instructions to prevent Preventing material damage Only use the water hoses sup- material damage to your appliance,... -
Page 12: Environmental Protection And Saving Energy
en Environmental protection and saving energy ¡ Unsuitable cleaning agents may Change the sensor setting to the de- damage the appliance. fault. Do not use a steam cleaner. ▶ Consumption is reduced. So as not to scratch the finish ▶ → "Sensors", Page 13 on the appliance, do not use sponges with a rough surface or Zeolith drying automatically helps to... -
Page 13: Aquasensor
Installation and connection en AquaSensor Sensor setting Description when using organic or eco- The AquaSensor is an optical meas- logical detergents contain- uring device (light barrier) which ing low levels of active measures the turbidity of the rinsing agents. Energy and water water. -
Page 14: Installing And Connecting The Appliance
en Installation and connection When doing so, check that the Installing and connecting the wastewater hose is not kinked, appliance crushed or twisted. You can position your built-under or Also check that there is no cover integrable appliance in a fitted kit- in the drainage system preventing chen between wooden and plastic the wastewater from being dis-... - Page 15 Installation and connection en Insert the non-heating appliance plug of the power cable into the appliance. Insert the mains plug of the appli- ance into a nearby socket. The connection data for the appli- ance can be found on the rating plate.
-
Page 16: Familiarising Yourself With Your Appliance
en Familiarising yourself with your appliance Familiarising yourself with your appliance Familiarising yourself with your appliance Familiarise yourself with the parts of your appliance. Familiarising yourself with your appliance Appliance You can find an overview of the parts of your appliance here. Rating plate Rating plate with "E number and FD number"... -
Page 17: Controls
Familiarising yourself with your appliance en "Detergent" → Page 31 is added to the detergent Detergent dispenser dispenser. "Bottom basket" → Page 24 Bottom basket Dispenser for special salt Add the special salt to the dispenser for special salt. → "Water softening system", Page 28 Lower spray arm The lower spray arm washes the tableware in the bot- tom basket. - Page 18 en Familiarising yourself with your appliance "Switching on the appliance" → Page 36 ON/OFF button and reset button "Switching off the appliance" → Page 37 "Terminating the programme" → Page 37 "Programmes" → Page 20 Programme buttons Info button If you press , the display shows information about selected programmes, basic settings and additional functions.
- Page 19 Familiarising yourself with your appliance en buttons You can use these buttons to scroll between the basic settings. → "Changing basic settings", Page 39 Display The display shows information about pro- grammes, basic settings or additional functions. You can change the basic settings via the display and the setting buttons.
-
Page 20: Programmes
en Programmes Programmes Programmes You can find an overview of the pro- ning time will change if the rinse aid Programmes grammes that can be selected here. system is switched off or rinse aid Different programmes, which can be needs to be added. found on the control panel of your The consumption values can be appliance, are available depending... - Page 21 Programmes en Programme Programme sequence Additional func- tions Tableware: Reduced noise: → "Additional ¡ Cleaning mixed table- ¡ Pre-Rinse Silence 50 ware and cutlery. functions", ¡ Cleaning 50 °C Level of soiling: Page 22 ¡ Intermediate rinse ¡ Removing common ¡ Final rinse 35 °C household food remnants ¡...
-
Page 22: Information For Test Institutes
en Additional functions Press for approx. 3 seconds. Information for test institutes a The selected programme and the Test institutes are provided with in- additional function will flash. formation for comparability tests, e.g. flashes. according to EN60436. a The programme and the additional These are the conditions for conduct- function are saved. -
Page 23: Features
Features en Additional func- Features Features tion ¡ To ensure a higher hy- You can find an overview of the pos- Features giene status for the ap- sible features of your appliance and Hygiene+ pliance and tableware, how to use them here. the temperature is These features depend on the model raised and maintained... -
Page 24: Bottom Basket
en Features Press in the levers on the right and Bottom basket left on the outside of the basket. Arrange pans and plates in the bot- tom basket. The basket can then slip down slightly. Raise or lower the basket evenly to Large plates up to a diameter of the right level. -
Page 25: Etagere
Features en Arrange cutlery with the points and Etagere sharp edges downwards. Use the cutlery shelf and space un- You can reorganise the cutlery derneath for small cups and glasses drawer to make more space for or for large items of cutlery, e.g. longer/wider items of cutlery. -
Page 26: Folding Prongs
en Features Folding prongs Extra Clean Zone Use the folding prongs to position Use the Extra Clean Zone in the top tableware securely, e.g. plates. basket to clean soiled tableware thor- oughly, e.g. muesli bowls. You can fold the prongs down to po- sition pans, bowls and glasses Selecting Extra Clean Zone better. -
Page 27: Basket Heights
Before using for the first time en Pull the tab on the Extra Clean Place the Extra Clean Zone in the Zone up and forwards . top basket and lock in place . Check that the mounts are in the Set the slider to ON. -
Page 28: Water Softening System
en Water softening system Note: If you select Initial start-up Water softening system Water softening system Home Connect here, make further settings using the Home Connect Hard water leaves limescale on the Water softening system app on your mobile device. tableware as well as the washing You can change the settings for tank and parts of the appliance may initial start-up and other "Basic set-... -
Page 29: Special Salt
Water softening system en To open the basic settings, press Note: Only use special salt for for approx. 3 seconds. dishwashers. Do not use salt tablets. Press repeatedly until the display Do not use table salt. shows "Water hardness". Press repeatedly until the Add the special salt to the dis- right water hardness has been set. -
Page 30: Regeneration Of The Water Softening System
en Rinse aid system erally only be used up to a water Additional power consumption in 0.05 hardness of 26 °E without adding special salt. The consumption values specified ¡ The water hardness is 0 - 8 °E. are laboratory measurements determ- You do not need to use special ined in accordance with the currently salt. -
Page 31: Setting The Amount Of Rinse Aid
Detergent en Add rinse aid up to the max mark. Switching the rinse aid sys- tem off If you find the rinse aid refill indicator irritating, e.g. when using combined detergents with a rinse aid compon- ent, you can switch the rinse aid sys- tem off. - Page 32 en Detergent Note: Follow the manufacturer's in- Separate detergents structions for each detergent. Separate detergents are products that do not contain components other Detergent Description than detergent, e.g. powder deter- Tabs Tabs are suitable for all gent or liquid detergent. cleaning functions and do With powder and liquid detergent the not need to be measured dosage can be individually adjusted...
-
Page 33: Unsuitable Detergents
Detergent en ¡ The function of rinse aid is limited Unsuitable detergents with combined detergents. You will Do not use detergent which could generally get better results using cause damage to the appliance or rinse aid. present a risk to health. ¡... -
Page 34: Tableware
en Tableware Close the lid of the detergent dis- Damage to glass and table- penser. ware Avoid damage to glass and table- ware. Cause Recommendation The following table- Only put tableware in ware is not dish- the dishwasher if it is washer-safe: marked as dish- ¡... -
Page 35: Arrange Tableware
Tableware en To save resources, do not pre- Cause Recommendation rinse tableware under running wa- The water temperat- Select a programme ter. ure of the programme with lower temperat- Observe the following when arran- is too high. ures. ging tableware: After the programme –... -
Page 36: Removing Tableware
en Basic operation If you do not perform any actions Removing tableware on the appliance for 10 minutes, the appliance will automatically WARNING switch off. Risk of injury! Hot tableware can cause burns to the Setting a programme skin. When hot, tableware is sensitive to shock, may crack and can result in To adjust the wash cycle to the soil- injury. -
Page 37: Starting The Programme
Basic operation en To activate timer programming, Terminate programme press . To end a programme early or to Note: To deactivate timer program- switch from a programme that has ming, press for approx. already started, you will need to can- 4 seconds. cel it first. -
Page 38: Basic Settings
en Basic settings Basic settings Basic settings You can configure the appliance to meet your needs. Basic settings Overview of basic settings The basic settings depend on the features of your appliance. Basic setting Selection Description Time setting 00:00 - 24:00 Set the current time. -
Page 39: Changing Basic Settings
Basic settings en Basic setting Selection Description Eco forecast Switch EcoCheck on or off. When selecting the programme, the average wa- ter consumption and energy consumption is briefly shown on the display. Emotion Light Switch the interior lighting of the appliance on or On via main switch off. -
Page 40: Home Connect
en Home Connect To save the settings, press Home Connect quick start approx. 3 seconds. Connect your appliance to a mobile device quickly and easily. Home Connect Home Connect Installing app Install the Home Connect app on This appliance is network-capable. Home Connect your mobile device. Connect your appliance to a mobile device to control its functions via the Home Connect app. -
Page 41: Home Connect Settings
Home Connect en Home Connect settings Remote Diagnostics Adapt Home Connect to your needs. Customer Service can use Remote You can find the Home Connect set- Diagnostics to access your appliance tings in the basic settings for your ap- if you contact them, have your appli- pliance. -
Page 42: Cleaning And Servicing
Dishwasher Care and Ma- ance to malfunction. To avoid such chine Cleaner for Dishwashers online faults and reduce odours, we recom- at https://www.bosch-home.com/ mend cleaning your appliance at reg- store or from customer service. ular intervals. Machine Care is a programme which... - Page 43 Cleaning and servicing en Phase Removal of Detergent Placement Grease and limescale Liquid machine care product Appliance interior, e.g. bottle or machine descaler in hung in the cutlery basket or powder form. powder in the interior. Food remnants and deposits Machine cleaner Detergent dispenser To ensure optimum cleaning perform- ¡...
-
Page 44: Filter System
en Cleaning and servicing Pull down the micro filter to re- Filter system move. The filter system removes coarse soiling from the dishwashing cycle. Press the locking catches gether and lift the coarse filter out . Micro filter Fine filter Coarse filter Cleaning filters Soiling in the dishwashing water may... -
Page 45: Cleaning Spray Arms
Cleaning and servicing en Cleaning spray arms Limescale and soiling in the dish- washing water may block the nozzles and bearings on the spray arms. Clean the spray arms regularly. Unscrew the upper spray arm and pull down to remove . Pull up the lower spray arm to re- move. -
Page 46: Troubleshooting
en Troubleshooting Troubleshooting Troubleshooting You can rectify minor faults on your appliance yourself. Read the troubleshoot- Troubleshooting ing information before contacting after-sales service. This will avoid unneces- sary costs. WARNING Risk of electric shock! Incorrect repairs are dangerous. Repairs to the appliance should only be carried out by trained specialist ▶... - Page 47 Troubleshooting en Fault Cause Troubleshooting E:3200 or indicator for wa- The filters in the water con- Switch off the appliance. ter supply lights up. nection of the supply or Pull out the mains plug. AquaStop hose are blocked. Turn off the water tap. Unscrew the water connection.
-
Page 48: Washing Results
en Troubleshooting Fault Cause Troubleshooting E:9001 lights up. Mains voltage is too low. This is not a fault on the appliance. Contact an electrician. Have the mains voltage and elec- trical installation checked by an electrician. A different error code ap- A technical fault is present. - Page 49 Troubleshooting en Fault Cause Troubleshooting Tableware is not dry. Water collects in recesses of Position tableware at an angle ▶ the tableware or cutlery. where possible. The combined detergent Use rinse aid to improve drying per- used has a poor drying per- formance.
- Page 50 en Troubleshooting Fault Cause Troubleshooting Remnants of food on table- Tableware is placed too Arrange tableware with sufficient ware. close together or basket is space in between. overfilled. The spray jets must reach the sur- faces of the tableware. Avoid points of contact. Spray arm rotation is Arrange tableware so that it does ▶...
- Page 51 Troubleshooting en Fault Cause Troubleshooting Detergent residue in the ap- Tabs are used in the quick Select a more intensive "Pro- ▶ gramme" → Page 20 or use pliance or short programme. Dissolv- "Powder detergent" → Page 31. ing time of the tab is not at- tained.
- Page 52 en Troubleshooting Fault Cause Troubleshooting Stubborn white coatings are Too little detergent is being Increase the amount of detergent ▶ present on tableware, inside used. used or change "Detergent " → Page 31. the appliance or the door. Washing programme selec- Select a more intensive washing ▶...
- Page 53 Troubleshooting en Fault Cause Troubleshooting Coloured deposits (yellow, The formation of films is due Check the setting of the water orange, brown) that are easy to ingredients of food rem- softening system. to remove are present inside nants and tap water (limes- Add special salt.
- Page 54 en Troubleshooting Fault Cause Troubleshooting Irreversible clouding of Glasses are not dishwasher- Use dishwasher-proof glasses. ▶ glassware. proof, only suitable for dish- Glasses are usually only suitable for washers. use in a dishwasher, i.e. long-term wear or long-term changes must be expected.
-
Page 55: Home Connect Problem
Troubleshooting en Home Connect problem Fault Cause Troubleshooting Connection to home net- WLAN on router is not act- Check the wireless network con- ▶ work is not established. ive. nection of your router. WLAN display is flashing. Connection to home net- Activate the wireless network con- ▶... -
Page 56: Mechanical Damage
en Troubleshooting Fault Cause Troubleshooting Appliance cannot be Appliance functions have Pull out the mains plug or switch off switched on or operated. failed. the fuse. Wait at least 2 minutes. Connect the appliance to the power supply. Switch the appliance on. Appliance does not start. -
Page 57: Noise
Troubleshooting en Fault Cause Troubleshooting Lid on the detergent dis- Detergent dispenser or lid Remove detergent residue. ▶ penser cannot be closed. are blocked by sticky deter- gent residue. Noise Fault Cause Troubleshooting Filling valves making knock- Caused by the domestic in- Can only be remedied in the do- ▶... -
Page 58: Clean Wastewater Pump
en Transportation, storage and disposal Insert the pump cover and press Clean wastewater pump down . Large remnants of food or foreign bodies can block the waste water pump. As soon as the rinsing water no longer drains properly, the waste water pump must be cleaned. -
Page 59: Protect Appliance From Frost
Customer Service en Protect appliance from frost Disposing of old appliance If there is a risk of frost where the ap- Valuable raw materials can be re- pliance will be standing, e.g. in a holi- used by recycling. day home, empty the appliance com- pletely. -
Page 60: Product Number (E-Nr.), Produc- Tion Number (Fd) And Consecut- Ive Numbering (Z-Nr.)
en Customer Service We will always find an appropriate Product number (E-Nr.), pro- solution and try to avoid unnecessary duction number (FD) and con- visits being made by a Customer Ser- secutive numbering (Z-Nr.) vice technician. With any warranty claims, we will You can find the product number (E- make sure that your appliance is re- Nr.), the production number (FD) and... -
Page 61: Technical Specifications
Technical specifications en needs to be turned off if you are Capacity 14 place settings away from home for a long period, This product contains light sources e.g. on holiday for several weeks. from energy efficiency class G. These light sources are available as a spare part and should only be replaced by Technical specifications Technical specifications... -
Page 62: Declaration Of Conformity
2.4 GHz band: 100 mW max. 5 GHz band: 100 mW max. Declaration of Conformity Robert Bosch Hausgeräte GmbH hereby declares that the appliance with Home Connect functionality 5 GHz WLAN (Wi-Fi): For indoor use only. - Page 64 Expert advice for your Bosch home appliances, help with problems or a repair from Bosch experts. Find out everything about the many ways Bosch can support you: www.bosch-home.com/service Contact data of all countries are listed in the attached service direct- ory.
