IMPORTANT MANUAL
OPERATOR'S MANUAL
MODEL:
PB22VA48

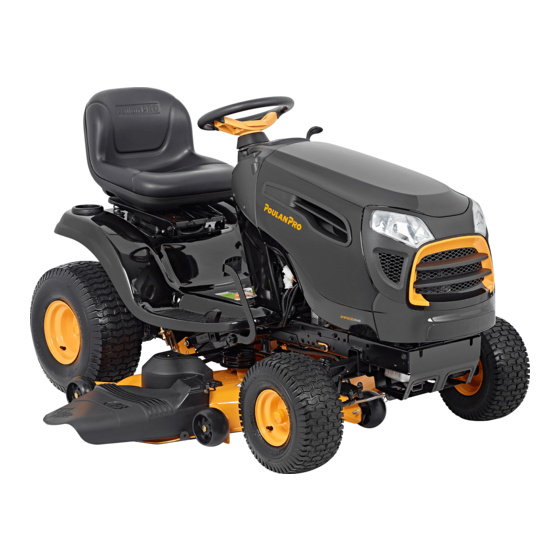

LAWN TRACTOR
ALWAYS WEAR EYE PROTECTION DURING OPERATION
Visit our website: www.poulanpro.com
Gasoline containing up to 10% ethanol (E10) is acceptable for use in this machine.
The use of any gasoline exceeding 10% ethanol (E10) will void the product warranty.
587 64 19-26 Rev. 1
DO NOT THROW AWAY
WARNING:
Read this Man u al and follow all Warnings
and Safety Instructions. Fail ure to do so can
re sult in serious in ju ry.
11.19.14 BD/TH
Printed in the U.S.A.
Advertisement
Table of Contents
Related Manuals for Poulan Pro PB22VA48
Summary of Contents for Poulan Pro PB22VA48
- Page 1 Read this Man u al and follow all Warnings MODEL: and Safety Instructions. Fail ure to do so can re sult in serious in ju ry. PB22VA48 LAWN TRACTOR ALWAYS WEAR EYE PROTECTION DURING OPERATION Visit our website: www.poulanpro.com Gasoline containing up to 10% ethanol (E10) is acceptable for use in this machine.
-
Page 2: Safety Rules
SAFETY RULES Safe Operation Practices for Ride-On Mowers DANGER: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROW ING OBJECTS. FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH. • Be alert and turn machine off if a child enters the area. WARNING: In order to prevent ac ci den tal •... - Page 3 SAFETY RULES Safe Operation Practices for Ride-On Mowers III. SLOPE OPERATION • Never remove gas cap or add fuel with the engine running. • Allow engine to cool before refueling. WARNING! When loading or unloading • Never fuel the machine indoors. this machine, do not exceed the maximum •...
-
Page 4: Table Of Contents
PRODUCT SPECIFICATIONS CONGRATULATIONS on your purchase of a new tractor. It has been designed, engineered and manu fac tured to give you the best possible dependability and performance. Gasoline Capacity 2.5 Gallons/9,46 L and type: Regular Unleaded Should you experience any problem you cannot easily remedy, please contact your nearest authorized service Oil Type: SAE30 (above 32°F/0°C) -
Page 5: Assembly
UNASSEMBLED PARTS Slope Sheet Keys (1) Oil Drain Tube (1) Quick Key(s) Connect ASSEMBLY Your new tractor has been assembled at the factory with the exception of those parts left unassembled for shipping purposes. TOOLS REQUIRED FOR ASSEMBLY A socket wrench set will make assembly easier. Stan dard LABEL wrench sizes are listed. - Page 6 ASSEMBLY ✓ NOTE: You may now roll your tractor off the skid. Continue CHECKLIST using the instructions that follow to remove the tractor from the skid. BEFORE YOU OPERATE YOUR NEW TRAC TOR, WE WARNING: Before start ing, read, un der stand and fol- WISH TO ENSURE THAT YOU RECEIVE THE BEST low all in struc tions in the Op er a tion section of this man u al.
-
Page 7: Operation
OPERATION These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their meaning. REVERSE NEUTRAL HIGH COLD WEATHER FAST SLOW IGNITION SWITCH STARTING POSITION ENGINE ENGINE ENGINE DIFFERENTIAL CLUTCH/ PARKING MOWER MOWER START LOCK BRAKE PEDAL BRAKE... - Page 8 OPERATION KNOW YOUR TRACTOR READ THIS OPERATOR'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and ad just ments. Save this manual for future reference. Fig.
- Page 9 OPERATION The operation of any tractor can result in foreign objects thrown into the eyes, which can result in severe eye dam age. Always wear safety glass es or eye shields while operating your tractor or per form ing any ad just ments or repairs. We rec om mend standard safety glasses or a wide vision safety mask worn over spectacles.
- Page 10 OPERATION TO MOVE FORWARD AND BACKWARD TO ADJUST GAUGE WHEELS (See Fig. 9) (See Fig. 7) Gauge wheels are prop er ly ad just ed when they are slight ly off the ground when mower is at the desired cutting height in The direction and speed of movement is controlled by the operating position.
- Page 11 OPERATION REVERSE OPERATION SYSTEM (ROS) (See TO TRANSPORT (See Fig. 3 & 12) Fig. 11) When push ing or tow ing your trac tor, ensure transmission Your tractor is equipped with a Reverse Operation System is disengaged by placing freewheel control in free wheel ing (ROS).
- Page 12 OPERATION BEFORE STARTING THE ENGINE TO START ENGINE (See Fig. 3) The Briggs & Stratton Endurance engine equipped with CHECK ENGINE OIL LEVEL your tractor features a Ready-Start automatic choke system The engine in your tractor has been shipped from the fac- to provide simplified starting in normal conditions.
- Page 13 OPERATION MOWING TIPS • DO NOT use tire chains when the mower hous ing is attached to tractor. • Mower should be properly leveled for best mowing performance. See “TO LEVEL MOWER HOUSING” in the Service and Adjustments section of this manual. •...
-
Page 14: Maintenance Schedule
MAINTENANCE BEFORE EVERY EVERY EVERY EVERY EVERY BEFORE MAINTENANCE SCHEDULE EACH SEASON STORAGE HOURS HOURS HOURS HOURS Check Brake Operation Check Tire Pressure Check Operator Presence and ROS Systems Check for Loose Fasteners Check/Replace Mower Blades Lubrication Chart Check Battery Level Clean Battery and Terminals Clean Debris off Steering Plate Check Transaxle Cooling... -
Page 15: Maintenance
MAINTENANCE TRACTOR BLADE CARE For best results mower blades must be kept sharp. Re place Always observe safety rules when per form ing any bent or damaged blades. main te nance. BRAKE OPERATION CAUTION: Use only a replacement blade ap- proved by the manufacturer of your tractor. - Page 16 MAINTENANCE V-BELTS TO CHANGE ENGINE OIL (See Fig. 16 & 17) Check V-belts for deterioration and wear after 100 hours Determine temperature range expected before oil change. of operation and replace if necessary. The belts are not All oil must meet API service classification SG-SL. ad just able.
- Page 17 MAINTENANCE CLEANING AIR FILTER Your engine will not run properly using a dirty air filter. • Clean engine, battery, seat, finish, etc. of all foreign Service air cleaner more often under dusty conditions. matter. • Clean debris from steering plate. Debris can restrict CLEAN AIR SCREEN clutch/brake pedal shaft movement, causing belt slip The air screen is over the air intake blower located on top...
- Page 18 MAINTENANCE DECK WASHOUT PORT (See Fig. 20) Your tractor’s deck is equipped with a washout port as part of its deck wash system. It should be utilized after each use. 1. Drive the tractor to a level, clear spot on your lawn, near enough to a water spigot for your garden hose to reach.
-
Page 19: Service And Adjustments
SERVICE AND ADJUSTMENTS WARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY SER VICE OR AD JUST MENTS: • Depress brake pedal fully and set parking brake. • Place attachment clutch in “DISENGAGED” position. • Turn ignition key to “STOP” and remove key. •... - Page 20 SERVICE AND ADJUSTMENTS 2. ASSEMBLE FRONT GAUGE WHEEL (W) TO FRONT 5. INSTALL ANTI-SWAY BAR (S) (IF EQUIPPED) OF MOWER (See Fig. 24) (See Fig. 27 - 29) H. FRONT MOWER ANTI-SWAY BAR (S) BRACKET W. FRONT GAUGE TOWARDS TOWARDS WHEEL TRANSAXLE MOWER DECK...
- Page 21 SERVICE AND ADJUSTMENTS 6. ATTACH MOWER SIDE SUSPENSION ARMS (A) TO • Insert other end of link (E) into hole in front mower CHASSIS (See Fig. 30) bracket (H) and secure with washer and small retainer spring (J). • Position front hole in side suspension arm (A) over pin on outside of tractor chassis and secure with large NOTE: Requires deck lifting.
- Page 22 SERVICE AND ADJUSTMENTS TO LEVEL MOWER • Recheck measurements, adjust if necessary until both sides are equal. Ensure tires are properly inflated to the PSI shown on tires. If tires are over or under inflated, it may affect the appear- FRONT-TO-BACK ADJUSTMENT (See Figs.
- Page 23 SERVICE AND ADJUSTMENTS TO REPLACE MOWER BLADE DRIVE BELT TO REPLACE MOTION DRIVE BELT (See Fig. 38) (See Fig. 39) Park the tractor on level surface. En gage parking brake. MOWER DRIVE BELT REMOVAL For as sis tance, there is a belt installation guide decal on •...
- Page 24 SERVICE AND ADJUSTMENTS TO CHECK BRAKE TO START ENGINE WITH A WEAK BATTERY (See Fig. 41) If tractor requires more than five (5) feet to stop at highest speed in high est gear on a level, dry concrete or paved surface, then brake must be serviced.
- Page 25 SERVICE AND ADJUSTMENTS REPLACING BATTERY (See Fig. 42) INTERLOCKS AND RELAYS Loose or damaged wiring may cause your tractor to run poorly, stop running, or prevent it from starting. WARNING: Do not short battery ter mi- nals by allowing a wrench or any other •...
-
Page 26: Storage
STORAGE ENGINE Immediately prepare your tractor for storage at the end of the season or if the tractor will not be used for 30 days or more. FUEL SYSTEM IMPORTANT: IT IS IMPORTANT TO PREVENT GUM DEPOSITS WARNING: Never store the trac tor with FROM FORMING IN ES SEN TIAL FUEL SYSTEM PARTS SUCH gas o line in the tank inside a building AS CARBURETOR, FUEL FIL TER, FUEL HOSE, OR TANK... -
Page 27: Troubleshooting
TROUBLESHOOTING PROBLEM CAUSE CORRECTION 1. Out of fuel. 1. Fill fuel tank. Will not start 2. Engine flooded. 2. Wait several minutes before attempting to start. 3. Bad spark plug. 3. Replace spark plug. 4. Dirty air filter. 4. Clean/replace air filter. 5. - Page 28 TROUBLESHOOTING PROBLEM CAUSE CORRECTION Engine continues to 1. Faulty operator-safety presence control 1. Check wiring, switches and connections. If not system. corrected, contact an authorized service center/ run when operator department. leaves seat with attachment clutch CAUTION: DO NOT operate machine until engaged problem is corrected.
- Page 30 SERVICE NOTES...
