ULTRA PHASE SHIFTER UP300
Thank you for showing your confidence in us by purchasing the BEHRINGER
ULTRA PHASE SHIFTER UP300. This high-quality effects pedal is designed for all musicians
yearning for a way to pep up their sound. Thanks to its high-performance features you
can create phase shifting effects modeled after two of the most legendary pedals.
With the phaser, a second, phase-shifted signal is added to the original audio signal. The
result is thicker and enhanced sound. This effect is often used for guitar sounds and
keyboards. In the ’70s, it was also extensively used for other instruments like electric pianos.
The MODE switch lets you choose between negative feedback (Mode 1) or positive
feedback (Mode 2) phaser modes. Negative feedback means that the delayed
signal is inverted before it is fed back to the original signal. In positive feedback
mode the delayed signal is not inverted. In this case the effect has a more detuned
character perfect for vibrato effects.
The LEVEL control adjusts the output level.
The RATE control determines the speed of the phase shifting effect.
Turn up the DEPTH control to achieve a fuller, deeper effect sound.
The RES(onance) control determines the amount of output signal fed back to the
phaser input to increase the effect intensity.
This blue ON/BATT LED illuminates when the effect is activated. It also serves as
a battery level indicator.
Use the footswitch to activate/deactivate the effect.
Use this ¼" TS IN connector to plug in the instrument cable.
The ¼" TS OUT connector sends the signal to your amp.
Use the DC IN connection at the front of the unit to plug in 9 V power supply (not included).
The BATTERY COMPARTMENT is located underneath the pedal cover. To install or
replace the 9 V battery, press the hinges with a ballpen and remove the pedal cover.
1. CONTROLS

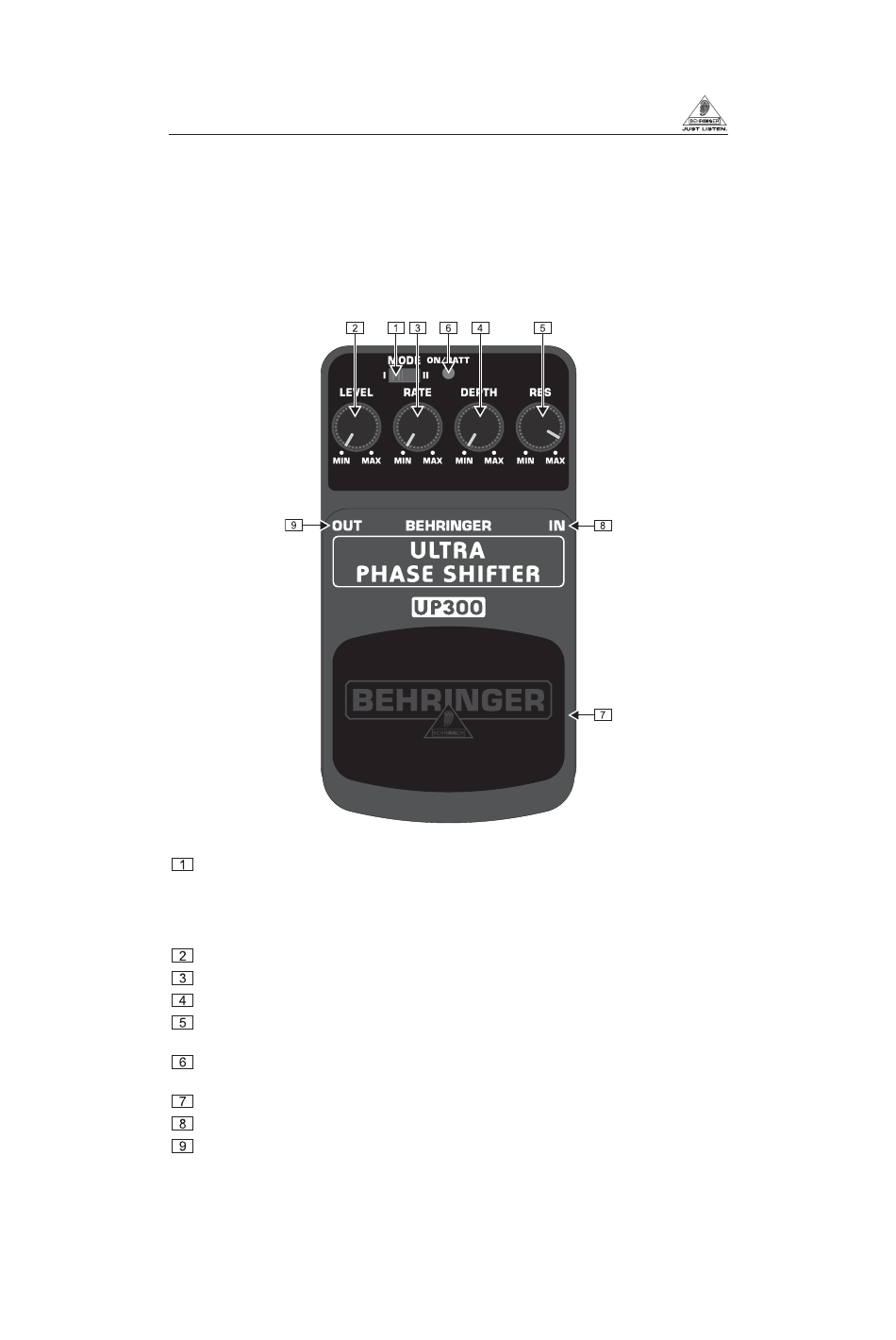

Top view
