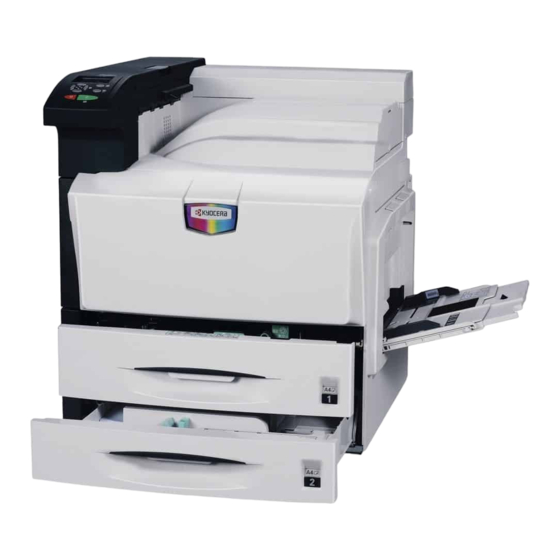

FS-C8100DN Clearing Paper Jams
If the paper jams in the paper transport system, or no paper sheets were fed at all, the Pape r j am
message appears and the location of the paper jam (the component where the paper jam has
occurred) is also indicated. The printer automatically goes off-line when this message is displayed.
Remove the jammed paper. After removing the jammed paper, the printer will re-start printing.
Possible Paper Jam Locations

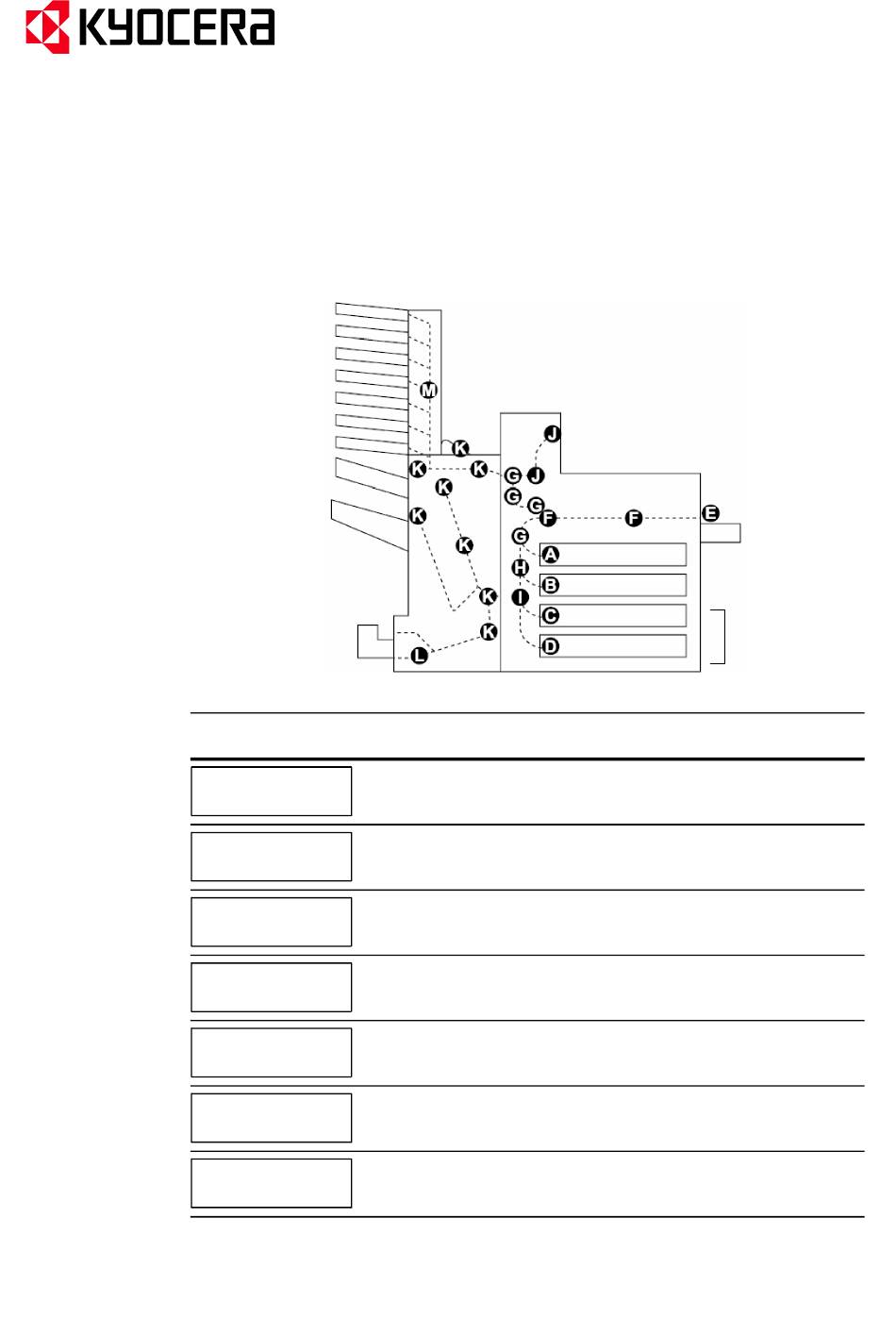

The figure below explains the printer's paper paths including the options. The locations where paper
jams might occur are also shown here, with each location explained in the table below. Paper jams
can occur in more than one component on the paper paths.
Page 1 of 12
Mail Box
MT-710
Document Finisher
DF-710/DF-730
Booklet Folder
BF-710
Paper jam message
Pape r j am
Casse t t e 1
Pape r j am
Casse t t e 2
Pape r j am
Casse t t e 3
Pape r j am
Casse t t e 4
Pape r j am
MP T ray
Pape r j am
Feed Un i t
Pape r j am
Le f t Cove r 1
Paper jam
Description
location
A Paper is jammed at the upper cassette or
inside the printer.
B Paper is jammed at the lower cassette or
inside the printer.
C Paper is jammed at an optional paper
feeder cassette. (PF-710 upper cassette,
PF-750)
D Paper is jammed at an optional paper
feeder cassette. (PF-710 lower cassette)
E Paper is jammed at the MP tray.
F Paper is jammed in the feed unit.
G Paper is jammed in the left cover section. 9
Paper Feeder
PF-710/PF-750
Reference page
3
4
5
5
6
6
