- Page 1 Deluxe 2-way alarm & Remote Start may 29, 2013 Operation guide Temporary cover. Color cover is in a separate fi le.
-
Page 2: Table Of Contents
Table Of Contents Controller & Transmitter Overview 3 The 2-Way Controller 3 The 1-Way Transmitter 3 Controller & Transmitter Functions 3 Other Remote Start Features 7 Low Battery/Low Temp Automatic Starting 7 Turbo Timer Feature 8 Pit-Stop Feature 8 Manual Transmission Starting 8 Security System Features 8... -
Page 3: Controller & Transmitter Overview

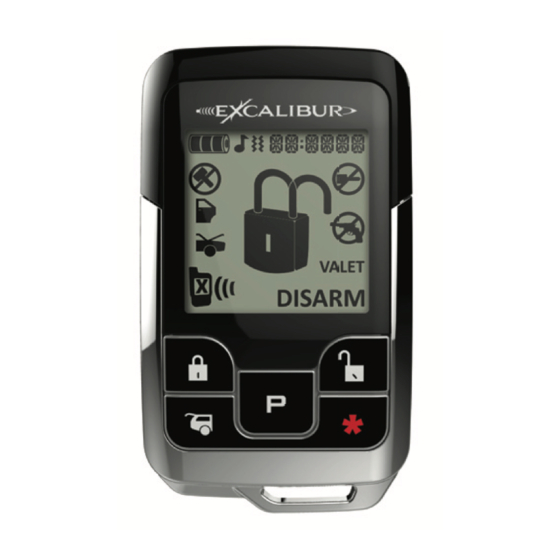

Controller & Transmitter Overview The 2-Way COnTROlleR Controller part number: 154-03 (black w/ CR2032 batteries) 157-03 (red w/ rechargeable battery) 158-03 (black w/ rechargeable battery) 1) antenna: Sends commands to the system and receives confi rmations for 2-way functions. 2) lCD Display: Displays all controller func- tions as well as the status of your system. - Page 4 Controller & Transmitter Functions (cont’d) unlOCK / DiSaRm: Press and release the “UNLOCK” button • THE SIREN WILL CHIRP TWICE & THE PARKING LIGHTS WILL FLASH TWICE THEN ILLUMINATE FOR 30 SECONDS • UPON RECEIVING CONFIRMATION FROM YOUR SYSTEM, THE CONTROLLER WILL SHOW THE UNLOCK/ DISARM ICON AND BEEP TWICE (1-WAY TRANSMITTER: PRESS THE UNLOCK BUTTON) TRunK ReleaSe / Channel 2: Press the “TRUNK”...
- Page 5 Controller & Transmitter Functions (cont’d) The engine will run for the preset run time (see user feature #17). • Run Time extender : Press the “ ” button one time during remote start to restart the engine run timer The timer will restart at “0:00” nOTe: This can only be used once per remote start cycle.
- Page 6 Controller & Transmitter Functions (cont’d) PaniC: Press and hold the “LOCK” or “UNLOCK” button for 3 seconds • THE SIREN/HORN WILL SOUND, THE PARKING LIGHTS WILL FLASH, AND THE DOORS WILL LOCK OR UNLOCK DEPENDING WHICH BUTTON IS PRESSED (1-WAY TRANSMITTER: PRESS AND HOLD THE LOCK OR UNLOCK BUTTON FOR 3 SECONDS) SilenT aRm / DiSaRm: Press and release the “TRUNK”...
-
Page 7: Other Remote Start Features
Controller & Transmitter Functions (cont’d) RemOTe ValeT: Press and release the “ ” button within 5 sec- onds of unlocking/disarming the alarm system. • THE SYSTEM WILL ENTER ALARM VALET MODE SEE PAGE 10 FOR MORE INFO ON VALET MODES (1-WAY TRANSMITTER: PRESS AND RELEASE THE “START”... -
Page 8: Turbo Timer Feature
Other Remote Start Features (cont’d) TuRbO TimeR FeaTuRe It is typically recommended that vehicles equipped with turbocharged engines allow the engine to idle after driving to cool the turbocharger. When this Installer Program- mable Feature #4 is enabled, the system will automatically keep the engine running as follows: •... -
Page 9: Automatic Rearming
Security System Features (cont’d) auTOmaTiC ReaRming This automatically rearms the alarm if the system is disarmed from the remote. (see user feature #3). When disarmed by remote, the system will start a 90 second countdown (fast flashing status light) to arm the system. This is useful if the controller may accidentally disarms the system when it’s kept in a purse or pocket where other items could potentially press the buttons ENHANCED AUTO REARM allows you to cancel the countdown by pressing UNLOCK a second time within 5 seconds of the... -
Page 10: Valet Modes
using The Valet Switch (cont’d) ValeT mODeS alaRm ValeT mODe, while active, completely disables all security functions. Keyless entry and remote start are still operable. To enter valet mode, perform the following steps: STeP 1 - Disarm the system either with the controller or by performing an emergency override (make sure not to hold the brake pedal) STeP 2 - Press and hold the valet switch (located in the window-mount antenna) for 2 seconds. -
Page 11: The Status Light 11
The Status light The status lights, located in the window-mount antenna, provide a visual indication of the system’s status via GREEN (remote start status) and RED (alarm status) lights. SeCuRiTy SySTem STaTuS (ReD lighT): OFF: The alarm is disarmed and not performing any automatic functions. On COnSTanT: The alarm is in valet mode FlaShing SlOW: The alarm is armed and monitoring all entry points FlaShing FaST: One of the automatic arming features is in progress. -
Page 12: Multi-Car Operation
The Status light (cont’d) SOliD gReen W/ ReD FlaSh: System is in remote start valet w/ the alarm armed SOliD ReD W/ gReen FlaSh: System is in alarm valet w/ remote start activated FaST alTeRnaTeS gReen/ReD: Alarm armed w/ remote start activated SlOW FlaShing gReen W/ 1-4 ReD FlaSheS: Zone violation recall during remote start mode SlOW FlaShing ReD W/ 1 gReen FlaSh: System is armed and ready to remote... -
Page 13: Setting The Clock
Controller Options (cont’d) SeTTing The ClOCK 1) Press the “P” button for 5 seconds to access the controller features. The controller will beep twice 2) Press and release the “P“ button once to select the clock (hour digits will flash). 3) Press the “TRUNK“... -
Page 14: Anti-Carjacking Protection
anti-Carjacking Protection The system is equipped with two separate Anti-Carjacking protection features (igni- tion, open door, or both). All are programmable, and must be turned on to operate. Once activated, the user has 53 seconds to cancel the Anti-Carjacking protection process (described below). -
Page 15: Programming Controllers/Transmitters
Programming Controllers/Transmitters Standard Programming: Using this method to program additional or replace- ment transmitters does not turn on or otherwise affect the Unauthorized Transmitter Alert (UTA) feature. Before you begin, have all transmitters which are to operate the system at hand and make sure the correct vehicle profile (see page 12) is selected on the controller(s) Step 1 Then, turn the ignition “on”. -
Page 16: User Programmable Features
user Programmable Features Feature #1 - SecureCode DeFaulT - 1 Press SecureCode is a unique patented feature which allows you to custom select the num- ber of Valet Switch presses in two stages, instead of a single “1 press”, which would be required in order to perform an Emergency Override. - Page 17 user Programmable Features (cont’d) Feature #5 - ignition activated Override (press “unlock” button to program) - DeFaulT (press “lock” button to program) This feature allows an activated system to be overridden and disarmed by simply turning the ignition switch on within 10 seconds of the system’s activation. After 10 seconds, the Emergency Override must be performed.
- Page 18 user Programmable Features (cont’d) Feature #11 - Flashing Light Confirmations On w/ Disarm, Flash w/ RS (press “unlock” button to program) - DeFaulT On w/ Disarm & Remote Start (press “lock” button to program) On During Remote Start (press “trunk” button to program) Flashing During Remote Start (press “start”...
-
Page 19: Installer Programmable Features
user Programmable Features (cont’d) Feature #17 - Remote Start activation Press “start” button 2 times (press “lock” button to program) - DeFaulT Press “start” button 1 time (press “unlock” button to program) Press lock & unlock (press “trunk” button to program) This feature changes how the remote start feature is activated using the controller or transmitter. - Page 20 installer Programmable Features (cont’d) Feature #3 - horn Relay Functions horn Output (press “lock” button to program) - DeFaulT Door unlock (press “unlock” button to program) Trunk Release (press “trunk” button to program) Pulse after Start (press “start” button to program) The primary function of this second relay, is to operate the vehicle’s existing horn;...
- Page 21 installer Programmable Features (cont’d) Feature #7 - Starter Cranking Time 0.75 Second (press “lock” button to program) - DeFaulT 1.00 Second (press “unlock” button to program) 1.5 Seconds (press “trunk” button to program) 2.25 Seconds (press “start” button to program) This feature determines the crank time of the 1st start attempt when in “Tachless”...
- Page 22 installer Programmable Features (cont’d) Feature #12 low Temp Crank extender 0ms (Off) (press “lock” button to program) 200ms (press “unlock” button to program) - DeFaulT 300ms (press “trunk” button to program) 400ms (press “start” button to program) When the vehicle’s interior temperature is below freezing, this feature adds extra crank time to the base timing (see installer feature #7).
-
Page 23: Programmable Features Matrix
Programmable Features matrix User Feature Programming: Ignition on, off, press valet 5 times # Feature Lock Button Unlock button Trunk button ”START” button 1 Secure Code 1, 0 (default) 2 Last Door Arming On w/o lock On w/ Lock 3 Automatic Rearming On w/o lock On w/ Lock Enhanced Rearm... - Page 24 back Cover Color cover is in a separate file.
- Page 25 LIMITED LIFETIME WARRANTY Products manufactured and sold by OMEGA RESEARCH & DEVELOPMENT (the Company), are warranted to be free from defects in materials and workmanship under normal use. If a product sold by the Company proves to be defective, the Company will repair or replace it free of charge within the first year and thereafter all parts to be repaired will be free with only a nominal charge for Omega Research and Development’s labor...
