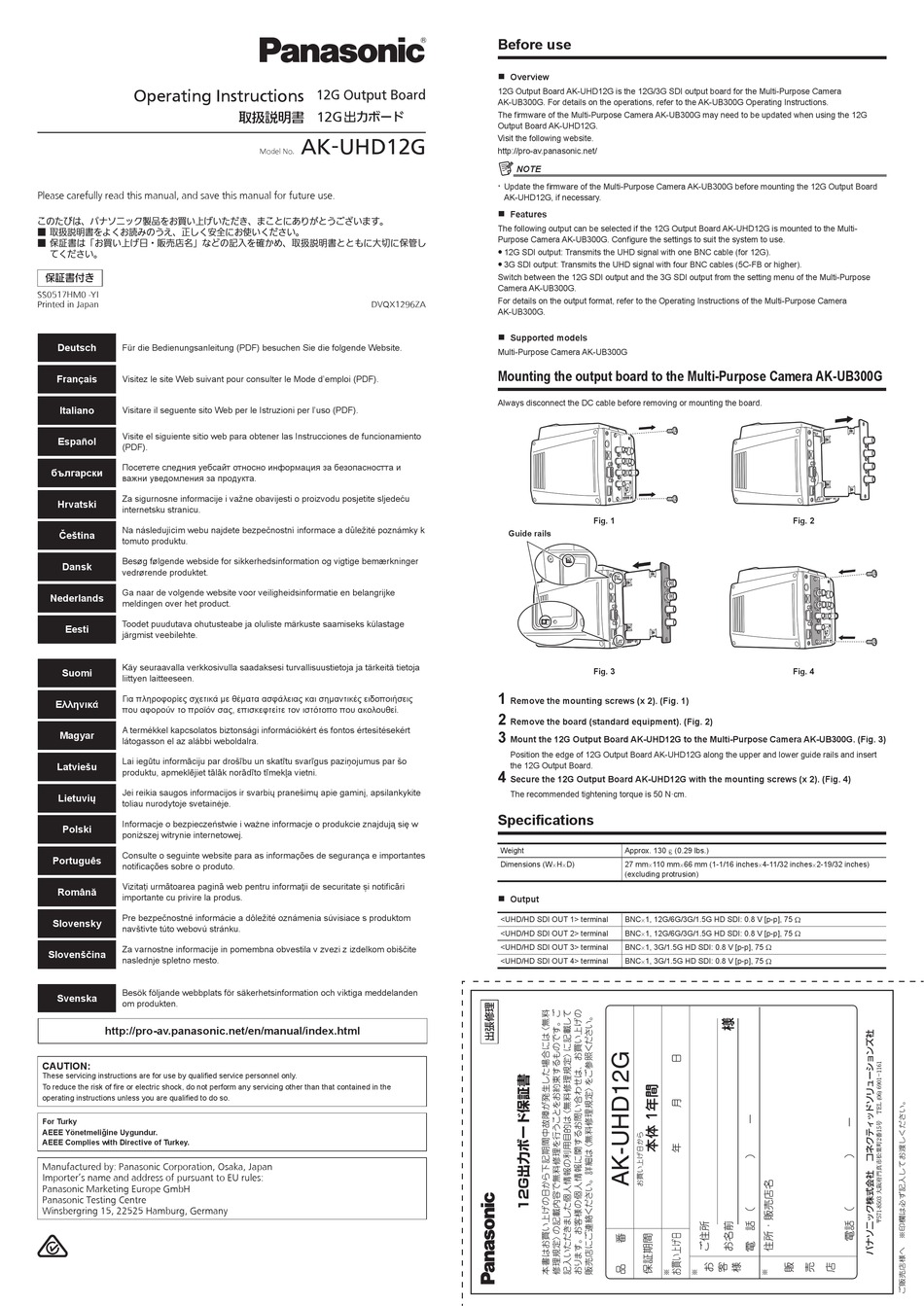

Panasonic AK-UHD12G Operating Instructions

Operating Instructions
Please carefully read this manual, and save this manual for future use.
このたびは、パナソニック製品をお買い上げいただき、まことにありがとうございます。
■ 取扱説明書をよくお読みのうえ、正しく安全にお使いください。
■ 保証書は「お買い上げ日・販売店名」などの記入を確かめ、取扱説明書とともに大切に保管し
てください。
保証書付き
SS0517HM0 -YI
Printed in Japan
Deutsch
Für die Bedienungsanleitung (PDF) besuchen Sie die folgende Website.
Français
Visitez le site Web suivant pour consulter le Mode d'emploi (PDF).
Italiano Visitare il seguente sito Web per le Istruzioni per l'uso (PDF).
Visite el siguiente sitio web para obtener las Instrucciones de funcionamiento
Español
(PDF).
Посетете следния уебсайт относно информация за безопасността и
български
важни уведомления за продукта.
Za sigurnosne informacije i važne obavijesti o proizvodu posjetite sljedeću
Hrvatski
internetsku stranicu.
Na následujícím webu najdete bezpečnostní informace a důležité poznámky k
Čeština
tomuto produktu.
Besøg følgende webside for sikkerhedsinformation og vigtige bemærkninger
Dansk
vedrørende produktet.
Ga naar de volgende website voor veiligheidsinformatie en belangrijke
Nederlands
meldingen over het product.
Toodet puudutava ohutusteabe ja oluliste märkuste saamiseks külastage
Eesti
järgmist veebilehte.
Käy seuraavalla verkkosivulla saadaksesi turvallisuustietoja ja tärkeitä tietoja
Suomi
liittyen laitteeseen.
Για πληροφορίες σχετικά με θέματα ασφάλειας και σημαντικές ειδοποιήσεις
Ελληνικά
που αφορούν το προϊόν σας, επισκεφτείτε τον ιστότοπο που ακολουθεί.
A termékkel kapcsolatos biztonsági információkért és fontos értesítésekért
Magyar
látogasson el az alábbi weboldalra.
Lai iegūtu informāciju par drošību un skatītu svarīgus paziņojumus par šo
Latviešu
produktu, apmeklējiet tālāk norādīto tīmekļa vietni.
Jei reikia saugos informacijos ir svarbių pranešimų apie gaminį, apsilankykite
Lietuvių
toliau nurodytoje svetainėje.
Informacje o bezpieczeństwie i ważne informacje o produkcie znajdują się w
Polski
poniższej witrynie internetowej.
Consulte o seguinte website para as informações de segurança e importantes
Português
notificações sobre o produto.
Vizitați următoarea pagină web pentru informaţii de securitate și notificări
Română
importante cu privire la produs.
Pre bezpečnostné informácie a dôležité oznámenia súvisiace s produktom
Slovensky
navštívte túto webovú stránku.
Za varnostne informacije in pomembna obvestila v zvezi z izdelkom obiščite
Slovenščina
naslednje spletno mesto.
Besök följande webbplats för säkerhetsinformation och viktiga meddelanden
Svenska
om produkten.
http://pro-av.panasonic.net/en/manual/index.html
CAUTION:
These servicing instructions are for use by qualified service personnel only.
To reduce the risk of fire or electric shock, do not perform any servicing other than that contained in the
operating instructions unless you are qualified to do so.
For Turky
AEEE Yönetmeliğine Uygundur.
AEEE Complies with Directive of Turkey.
Manufactured by: Panasonic Corporation, Osaka, Japan
Importer's name and address of pursuant to EU rules:
Panasonic Marketing Europe GmbH
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Germany
12G Output Board
取扱説明書 12G 出力ボード
AK-UHD12G
Model No.
DVQX1296ZA
Before use
r Overview
12G Output Board AK‑UHD12G is the 12G/3G SDI output board for the Multi‑Purpose Camera
AK‑UB300G. For details on the operations, refer to the AK‑UB300G Operating Instructions.
The firmware of the Multi‑Purpose Camera AK‑UB300G may need to be updated when using the 12G
Output Board AK‑UHD12G.
Visit the following website.
http://pro‑av.panasonic.net/
@
NOTE
t Update the firmware of the Multi‑Purpose Camera AK‑UB300G before mounting the 12G Output Board
AK‑UHD12G, if necessary.
r Features
The following output can be selected if the 12G Output Board AK‑UHD12G is mounted to the Multi‑
Purpose Camera AK‑UB300G. Configure the settings to suit the system to use.
f 12G SDI output: Transmits the UHD signal with one BNC cable (for 12G).
f 3G SDI output: Transmits the UHD signal with four BNC cables (5C‑FB or higher).
Switch between the 12G SDI output and the 3G SDI output from the setting menu of the Multi‑Purpose
Camera AK‑UB300G.
For details on the output format, refer to the Operating Instructions of the Multi‑Purpose Camera
AK‑UB300G.
r Supported models
Multi‑Purpose Camera AK‑UB300G
Mounting the output board to the Multi-Purpose Camera AK-UB300G
Always disconnect the DC cable before removing or mounting the board.
Fig. 1
Guide rails
Fig. 3
1
Remove the mounting screws (x 2). (Fig. 1)
2
Remove the board (standard equipment). (Fig. 2)
3
Mount the 12G Output Board AK-UHD12G to the Multi-Purpose Camera AK-UB300G. (Fig. 3)
Position the edge of 12G Output Board AK‑UHD12G along the upper and lower guide rails and insert
the 12G Output Board.
4
Secure the 12G Output Board AK-UHD12G with the mounting screws (x 2). (Fig. 4)
The recommended tightening torque is 50 N·cm.
Specifications
Weight Approx. 130 ] (0.29 lbs.)
Dimensions (W×H×D) 27 mm×110 mm×66 mm (1‑1/16 inches×4‑11/32 inches×2‑19/32 inches)
(excluding protrusion)
r Output
<UHD/HD SDI OUT 1> terminal BNC×1, 12G/6G/3G/1.5G HD SDI: 0.8 V [p‑p], 75 Ω
<UHD/HD SDI OUT 2> terminal BNC×1, 12G/6G/3G/1.5G HD SDI: 0.8 V [p‑p], 75 Ω
<UHD/HD SDI OUT 3> terminal BNC×1, 3G/1.5G HD SDI: 0.8 V [p‑p], 75 Ω
<UHD/HD SDI OUT 4> terminal BNC×1, 3G/1.5G HD SDI: 0.8 V [p‑p], 75 Ω
Fig. 2
Fig. 4
