Monarch 433TSPW2K Quick Start Manual

All manuals and user guides at all-guides.com
MONARCH 433TSPW2K
Transmitter
Solutions
Thank you for choosing a Transmitter Solutions product .
Please read this manual carefully before using the product.
Made in Italy. Copyright © 2006 by Transmitter Solutions
CONTENTS
1 - TRANSMITTER OVERVIEW
1A - General information
1B - Technical specifications
1C - Main components
2 - NUMBERING
3 - PROGRAMMING
4 - OPERATION
5 - BATTERY ACCESS
6 - TROUBLESHOOTING
1A - General information
The Transmitter Solutions Monarch - 433TSPW2K is a key chain style
mini transmitter operating at 433.92 MHz. It has been designed for use
with programmable telephone entry, security, and access control
systems operating with a 433.92 MHz frequency receiver.
The code sent by the transmitter includes a 16 bit security code which
allows up to 65,536 number combinations and 8 bits of facility code
which allows up to 256 facility codes .
The Transmitter Solutions - 433R receiver which operates with this
transmitter has a Wiegand 30 bit format output, which will operate any
type of access control system equipped to accept a 30 bit Wiegand
input. The CR 2016 lithium batteries have a shelf life of about 6 months.
The product fully complies with Part 15 of FCC Regulations and
European Directives 99/5/CE, 89/336/CEE, 73/23/CEE.
1B - Technical specifications
Operating frequency 433.92 MHz
Number of keys: 2
Battery : 2 x 3V lithium batteries CR2016
Battery life: 18 ÷ 24 months
Number combinations : 65,536
Facility Codes : 256
Operating temperature: -20°F÷+131°F (-20°C
Overall dimensions: 2.4"x1.4"x0.63" (61x36x16 mm)
Weight: 1 oz. (20 gr.)

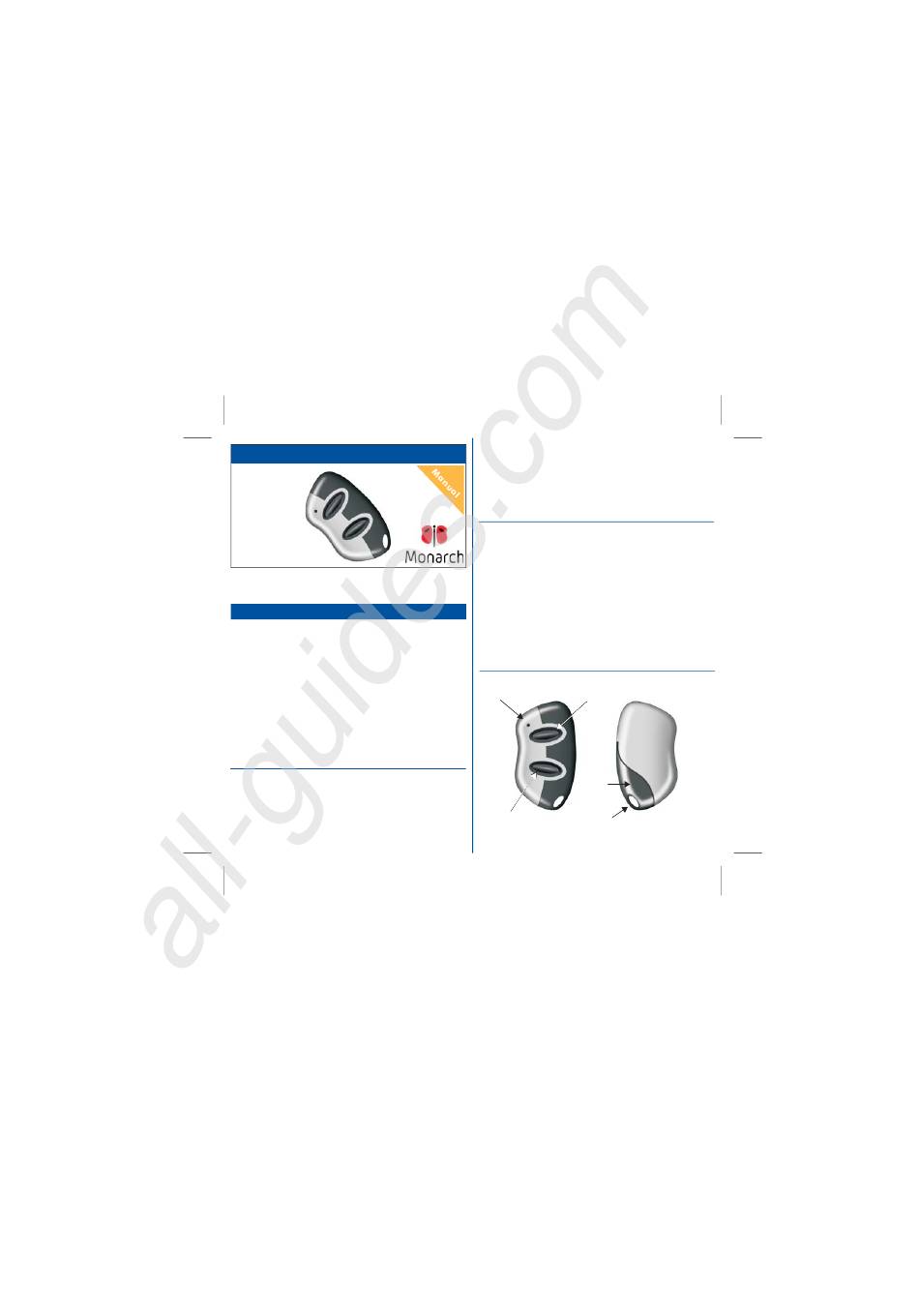

1C - Main components
Red
Push-button A
LED
Battery
door
Key ring
Push-button B
holder
Dark Red & White Case
the
÷+55°C)
