Page 12

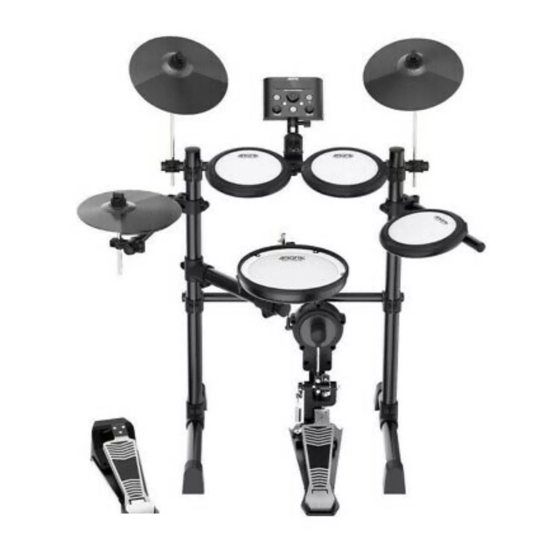

All the Tom drums and Snare use mesh heads, which are feeling much better and quieter. TDX-21 metronome features 10 di erent tones, independent control of tempo \ beat \ rhythm \ volume, beat indicator light. TDX-21host machine has only 7 buttons, 2 volume control knobs, 1 LCD screen to make operation easy.
Page 13
Crash Cymbal 1, Crash Cymbal 2 Mark name: CR 10”diameter. Made from high quality silicone and plastic. Crash cymbal has mute function. Mark name: HH.10”diameter.Made from high quality silicone and plastic. Posituined left of drum kit.
Page 14
This is a brief introduction on how to play with your both hands and both feet. Stamp down Hi-Hat pedal, hit Hi-Hat, make short sounds‘tzi tzi …’, refer to Diagram 2. Release Hi-Hat pedal, hit Hi-Hat, make long sound‘tza…’, refer to Diagram 3. Play with Hi-Hat pedal alone, to make different strong or weak sound of ‘tza, tza…’...
Page 16
TDX-25S Diagram 11 refer to next page next page...
Page 17
Use the attached audio cable to connect OUTPUT of host machine to your drum amp. Or, connect your headphone to the earphone port of Host Machine. And then connect the power adapter to DC9V port of Host Machine. Vioce.
