- Page 1 WLA-25 WLA-25SUB WLA-25SUB MKII WLA-25 FLY FRAMES USER MANUAL www.wharfedalepro.com...
-
Page 2: Table Of Contents
DIMENSIONAL DRAWINGS - WLA-25 STAND FRAME ....................10 DIMENSIONAL DRAWINGS-WLA-25SUB ........................11 DIMENSIONAL DRAWINGS-WLA-25 FLY FRAME ......................12 DIMENSIONAL DRAWINGS-WLA-25SUB FLY FRAME ....................13 DIMENSIONAL DRAWINGS-WLA-25 COMMON FLY FRAME ..................14 SPECIFICATION ................................15 WHARFEDALE PRO LIMITED WARRANTY ........................17... -
Page 3: Important Warnings & Safety Instructions
IMPORTANT WARNINGS & SAFETY INSTRUCTIONS • Read these instructions • Follow these instructions • Keep these instructions for future reference • Heed all warnings • Do not use this system near moisture or water • Clean only with a dry cloth • Install in accordance with these Wharfedale Pro operating instructions • Follow the manufacturer’s operating instructions for all peripheral devices such as amplifiers and processors • Do not install near heat sources such as radiators, heat registers, stoves or any other apparatus that produces heat (for example lighting systems and amplifiers) • Use only accessories specified or supplied by Wharfedale Pro • Do not use shielded microphone/instrument cables to connect amplifiers and speakers, use only approved speaker cables with proper connectors • Use caution with placement and operation of this speaker system, permanent hearing damage can be caused by prolonged exposure to excessive sound pressure levels • Refer all servicing to qualified professionals. Servicing is required when the loudspeaker has been damaged in any way, such as impact damage, liquid ingress or foreign object damage. In addition the loudspeaker should be referred to qualified service personnel if there is any kind of malfunction. Rigging, suspending and mounting should only be attempted by experience qualified professionals. Incorrect usage can result in damage to equipment and property, injury and even death. Under no circumstances should you attempt to rig, suspend or mount these speakers unless you are fully qualified and certified to do so by relevant local, state and national authorities. If you are not properly qualified or do not know of pertinent regulations consult qualified personnel for advice. Consult a structural engineer before suspending a speaker system and ensure that the total weight of your system can be held by the truss or mounting surface. -
Page 4: Introduction
INTRODUCTION Designed for the most demanding concert and installation audio professionals, the WLA-25 system sets new standards for astonishing acoustical performance in a compact size. Line arrays are increasingly employed in a wider range of venues and applications. Frequently these venues have height or sightline restrictions that limit the placement and size of the array. Rising fuel costs are putting pressure on touring system providers to downsize their transportation requirements. At the same time, client and audience expectations for audio performance has never been higher. To meet these needs, Wharfedale Pro embarked on a program to develop the most compact, highest output line array speaker system available. Each WLA-25 element uses a pair of high-power, 5” low-frequency drivers. Both cover low frequencies while only one extends into the mid range, thus maintaining horizontal dispersion control at a crossover. High frequencies are handled by a premium 1.75” diaphragm, neodymium compression driver, 100° x 10° multiple aperture diffraction waveguide. This creates a wide coverage with a superb stereo image and allows for more diverse placement. The waveguide exit extends nearly to the top and bottom of the enclosure to create a continuous acoustical source with minimal discontinuities between adjacent elements resulting in greatly reduced destructive interaction. Premium materials are used throughout the system. The enclosure is constructed of Baltic birch plywood and coated in an environmentally friendly, waterborne polymer finish that is field repairable. To keep the weight to a minimum and prevent rust, suspension fittings are made of aluminium. An elegantly simple 3-point suspension system combined with light weight, compact size and excellent handling ergonomics mean that a one person crew can easily deploy an array. With a choice of 3 different fly frame options suspension is easy, tidy and safe. The WLA-25 system is equally at home in the air or ground-stacked. -
Page 5: Features
FEATURES WLA-25 High sensitivity, Full Horn Loaded design 120W RMS/240W Program/480W Peak Power Handling Dual 5” woofer, 1.5” voice coils 1x1” exit HF compression driver 1.7 “ Titanium diaphragm, neodymium magnet compression driver 100°x10° degree constant-directivity horn Nominal Passive Crossover Network Front hinged rigging system Captive rigging hardware with tethered quick release pins Comprehensive adjustable splay angles Integral, side plate adjustable rigging system, vertical splay adjustable in 1° increments from 0°-10° Trapezoid Baltic birch plywood enclosure 2 x Parallel Speakon Inputs Black or white paint finish WLA-25SUB 700W RMS/1400W Program/2800W Peak power handling Road ready subwoofer system Dual 10” woofers, 2.5” voice coil Nominal Impedance 4 Ohm Strong internal bracing prevents bass loss and distortion from enclosure, vibration and resonance 2 x Parallel Speakon Inputs Black or white paint finish WLA-25SUB MKII 700W RMS/1400W Program/2800W Peak power handling Road ready subwoofer system Dual 10” woofers, 2.5” voice coil Nominal Impedance 4 Ohm Strong internal bracing prevents bass loss and distortion from enclosure, vibration and resonance 2 x Parallel Speakon Inputs Black or white paint finish M20 threaded pole socket for integration into a pole and WLA-25 Stand Frame system. -
Page 6: Splay Angles
SPLAY ANGLES The WLA can be configured with several different splay angles. The splay angles determine the amount of overlap between the individual units. This is used to determine the amount of summation or ‘throw’ for separate sections of the array. As the splay angle between boxes increases the summation decreases but the spectral variance due to interactions between the elements is also decreased. -
Page 7: Flexible Arrays

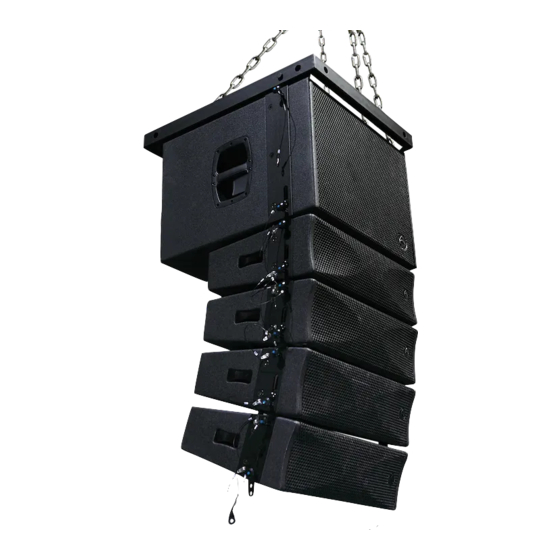

FLEXIBLE ARRAYS Arrays can be assembled using only WLA-25 line array modules or with WLA-25SUB Subwoofers at the top of the array. The WLA-25SUB Fly Frame allows for a WLA-25SUB subwoofer to be used at the top of the array. The WLA-25SUB Fly Frame supports up to 12 x WLA-25 modules and 1 x WLA-25SUB with a safety factor of 12. Arrays can be assembled using only WLA-25 line array modules. The smaller WLA-25 Fly Frame supports up to 12 x WLA-25 modules with a safety factor of 12. The WLA-25 Common Fly Frame allows for either WLA-25 elements or WLA-25SUB elements to be flown. -
Page 8: Optimised Ground Stacking
OPTIMISED GROUND STACKING WLA-25 rigging doubles up as an optimized ground stacking system, using the WLA-25SUB subwoofer as a base. Arrays of WLA-25 line array elements can be aimed downwards by as much as 10° to cover audience areas close to a stage, as well as upward by as much as 10° in order to better cover distant balcony seating areas. AIR ABSORPTION The high frequency performance of the medium and long throw sections of the line array will be limited by air absorption. As the distance from the source increases, the mid and high frequencies will be reduced. The amount of absorption at a given frequency is function of pressure, temperature and relative humidity. By far the most important factor is the relative humidity, although temperature does have a significant effect. To achieve minimal spectral variance across the coverage of the array, the groups of loudspeakers covering the middle to rear of the venue will require equalization to compensate for this effect. Air absorption is difficult to predict with any great accuracy, and in any case the relative humidity of the venue is likely to change when the audience arrive or the weather changes. It is important that the venue is monitored during the event as the equalization applied during the design stage with an empty venue may not be suitable during the event. As a general guide, boost above 8kHz for a long throw group of loudspeakers and 12kHz for a medium throw group of loudspeakers. The chart overleaf shows attenuation in dB/m for a given frequency and humidity. It is important to note that the effects of air attenuation are linear, unlike the level of attenuation from distance from the inverse square law. For example, at 100m a source would be 40dB down compared to it’s SPL at 1m. Assuming 50% relative humidity and 20° the level at 10kHz will be an additional 16dB below this (approximately 56dB down). -
Page 9: Air Absorption
AIR ABSORPTION The WLA-25 has internal crossovers. The internal crossover of the WLA-25 loudspeaker divides the audio signal into the separate frequency ranges for each driver. The WLA-25SUB subwoofers do not have internal crossovers. This function must be supplied by external electronic devices such as the Wharfedale Pro Versadrive series or LMX-204. -
Page 10: Wla-25 / Wla-25Sub / Wla-25 Common Fly Frames
WLA-25 / WLA-25SUB / WLA-25 Common Fly Frames The WLA-25 / WLA-25SUB and the WLA-25 Common Fly Frames are certified to hold a total weight (including third party hardware) of 280kg. Up to 12 WLA-25 1 WLA-25SUB elements can be flown with a safety factor of 12. The WLA-25 fly frame is certified to hold a total weight (including third party hardware) of 230kg. Up to 12 WLA-25 elements can be flown with a safety factor of 12. Only use Wharfedale Pro fly frames. Ensure that only rated, certified hardware such as tumbuckles, shackles and chains are used. Ensure that all truss, structures and flying hardware are capable of suspending the entire array, plus flying hardware, to a suitable safety factor. Rigging, suspending and mounting should only be attempted by experienced qualified professionals. Incorrect usage can result in damage to equipment and property, injury and even death. Under no circumstances should you attempt to rig, suspend or mount these speakers unless you are fully qualified or do not know of pertinent regulations consult qualified personel for advice. Consult a structural engineer before suspending a speaker system and ensure that the total weight of your system can be held by the truss or mounting surface. -
Page 11: Dimensional Drawings-Wla-25
DIMENSIONAL DRAWINGS-WLA-25... -
Page 12: Dimensional Drawings - Wla-25 Stand Frame
DIMENSIONAL DRAWINGS - WLA-25 STAND FRAME... -
Page 13: Dimensional Drawings-Wla-25Sub
DIMENSIONAL DRAWINGS-WLA-25SUB... -
Page 14: Dimensional Drawings-Wla-25 Fly Frame
DIMENSIONAL DRAWINGS-WLA-25 FLY FRAME 543.0 The WLA-25 fly frame is certified to hold a total weight (including third party hardware) of 230kg. Up to 12 WLA-25 elements can be flown with a safety factor of 12. -
Page 15: Dimensional Drawings-Wla-25Sub Fly Frame
DIMENSIONAL DRAWINGS-WLA-25SUB FLY FRAME 543.0 The WLA-25/ WLA-25SUB fly frame is certified to hold a total weight (including third party hardware) of 280kg. Up to 12 WLA-25 and 1 WLA-25SUB elements can be flown with a safety factor of 12. -
Page 16: Dimensional Drawings-Wla-25 Common Fly Frame
DIMENSIONAL DRAWINGS-WLA-25 COMMON FLY FRAME... -
Page 17: Specification
SPECIFICATION Model Name WLA-25 WLA-25SUB System Type Passive Passive Configuration two-way Subwoofer Frequency Response (+/-3dB) 108-18kHz 56-1.5kHz Frequency Range (- 10 dB) 108-20kHz 56-2.0kHz Sensitivity 2.83v/1m HF:108dB/LF:100dB 107dB Calculated Maximum SPL @1m HF:135dB/LF:127dB 141dB System Rated Impedance 16Ω 4Ω Low Frequency Transducer LF Size (mm / inches) 130mm / 5'' 254mm / 10'' LF Voice-Coil Size (mm / inches) 35.0mm / 1.4'' 65.5mm / 2.5'' LF Magnet Material ferrite ferrite... - Page 18 SPECIFICATION Model Name WLA-25SUB MKII System Type Passive Configuration Subwoofer Frequency Response (+/-3dB) 56-1.5kHz Frequency Range (- 10 dB) 56-2.0kHz Sensitivity 2.83v/1m 107dB Calculated Maximum SPL @1m 141dB System Rated Impedance 4Ω Low Frequency Transducer LF Size (mm / inches) 254mm / 10'' LF Voice-Coil Size (mm / inches) 65.5mm / 2.5'' LF Magnet Material ferrite LF Frame Material aluminium Rated Impedance 8Ω LF Power re:AES2-2012 2X350W High Frequency Transducer HF Driver Type: Coil Size (mm / inches) Exit Size (mm / inches) HF Magnet Material...
-
Page 19: Wharfedale Pro Limited Warranty
WHARFEDALE PRO LIMITED WARRANTY Wharfedale Pro products are warranted of manufacturing or material defects for a period of one year from the original date of purchase. In the event of malfunction, contact your authorized Wharfedale Pro dealer or distributor for information. *Be aware that warranty details may differ from country to country. Contact your dealer or distributor for information. These terms do not infringe your statutory rights. - Page 20 Wharfedale Professional IAG House 13/14 Glebe Road Huntingdon Cambridgeshire PE29 7DL UK www.wharfedalepro.com Wharfedale Professional reserves the right to alter or improve specifications without notice. All rights reserved © 2018 Wharfedale Pro. Wharfedale Pro is a member of the IAG Group.
