Hearth and Home Technologies PHTRIM-MCE-36 Installation Instructions

PHTRIM-MCE-36, PHTRIM-PRIMO-48, PHTRIM-PRIMO-60, PHTRIM-MCE-72
Leave this manual with party responsible for use
and operation.
CAUTION! Risk of Cuts, Abrasions or Flying Debris.
Wear protective gloves and safety glasses during instal-
lation. Sheet metal edges are sharp.
CAUTION! Do not install damaged components.
If any parts are missing or damaged, contact your dealer before
starting installation. DO NOT install a damaged kit.
DANGER
DO NOT TOUCH GLASS
NEVER ALLOW CHILDREN
A barrier designed to reduce the risk of
burns from the hot viewing glass is provided
with this appliance and shall be installed for
the protection of children and other at-risk
individuals.
WARNING! Risk of Fire! DO NOT apply combustible
materials beyond the minimum clearances. Comply with
all minimum clearances to combustibles as specified.
Overlapping materials could ignite and will interfere with
proper operation of decorative fronts.
The PRIMO appliances come standard with patented
SafeSurface Glass which keeps the surface temperature
TM
of the barrier glass at a safe level and will still be hot to
the touch when operated for long periods of time.
If the barrier glass is removed, the inner glass temperature
will be very hot and cause burns.
Hearth & Home Technologies • PHTRIM-MCE-36, PHTRIM-PRIMO-48, PHTRIM-PRIMO-60, PHTRIM-MCE-72 Instructions • 2560-971 Rev. D • 5/20
Trim Kit for PHFR-PRIMO Series and PHFR-MCE Series
Passive Heat System for Heat Management
Installation Instructions
HOT GLASS WILL
CAUSE BURNS.
UNTIL COOLED.
TO TOUCH GLASS.
Introduction
Installation of the Passive Heat Trim Kit is a required part
of the installation of the PHFR-PRIMO and PHFR-MCE
(front discharge) Passive Heat system for heat manage-
ment. The appropriate Passive Heat Front Discharge Kit
must be purchased separately and installed prior to this trim
kit. Installation of the Passive Heat Kit and Passive Heat
Trim Kit must be done in conjunction with the appliance
installation. Installation of this kit MUST be performed by
a qualified service technician.
PRIMO Models Only:
PRIMO48 PRIMO48ST
PRIMO60 PRIMO60ST
Other Approved Models:
PHTRIM kits are also approved for all sizes of the MEZZO-
C, CRAVE-C, and ECHELON-C Series appliances. Refer
to Table 1 in Figure 1 for compatibility between appliance
models and the appropriate passive heat kit and trim kit.
WARNING! Risk of Fire! DO NOT install the Passive
Heat with models that are not approved. Overheating of
appliance and combustible materials will occur.
Kit Contents/Service Parts:

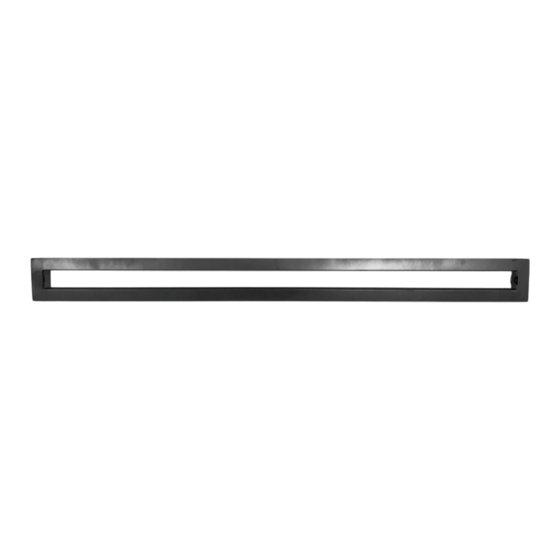

• (1) Register Cover
• (1) Register Backer
• (12) #8 x 1-1/4 in. Screw
• (2) Hurricane Screws
Verify and remove contents from packaging before
beginning installation. See Figure 1.
Preparation
CAUTION! Risk of Burns!
• The fireplace should be turned off and cooled before kit
is installed.
• Shut off gas supply.
Painting
If desired finishing includes a painted register cover and
screws, 100% acrylic latex with compatible primer is rec-
ommended.
1
