SEC.

甲

WORK

BRAND

<FRONT>

甲

乙

255

180

add odour and some mistake revise

Rev01_072117

REV.No.

REVISION DESCRIPTION

RER.NO.

PRINTING DEGREE

乙

丙

MODEL

P/NO.

EXTERIER INTERIER

FH2G7QDYP5

FH4G6QDYP4

FH4G7TDYP5

FH2G7QDYP0

MFL70203922

FH4G6QDYP2

Rev01_072117

FH4G6TDYP2

FH4G7TDYP0

FH4G6TDYP6

<BACK>

P/NO. 丙

180

17.7.24

郭海锋

侯孟奇

PREPARED APPROVALED

DATE

MATERIAL AND PRINTING DESCRIPTION

LG MODEL NAME

FH2G7QDYP5.GLSPEEC

FH4G6QDYP4.GLSPEEC

FH4G7TDYP5.GLSPEEC

材质: 70g 双层纸

FH2G7QDYP0.GBWPEEC

FH4G6QDYP2.GBWPEEC

FH4G6TDYP2.GBWPEEC

FH4G7TDYP0.GBWPEEC

FH4G6TDYP6.GESPEEC

<<备注 >>

1. 材质，印刷，尺寸参照作业表.

2. 印刷，文字大小和线条以LG设计基准.

3. 数字大小依据一般规格.

4. 批量生产前取的设计限度.

5. 本部品不应含有禁止物质(Pb,Cd,Hg,Cr+6,PBB,PBDE)，详细内容满足LGEPN-Z-1023.

<< NOTES >>

1. Material,printing and exterier size are refer to work tables.

2. Printing, tsxt size and line are based on LG desing film.

3. Exterier size on the drawing is cutting line.

4. Before product controlled by criteria sample.

5. The part should not contain prohibited substances(Pb,Cd,Hg,Cr+6,PBB,PBDE)

and detailsShould comply with LGEPN-Z-1023.

MODELING

DESIGNED

侯孟奇

LGEPN

LG Electronics Inc.

LANGUAGE

SUFFIX

PAGE

Mega Touch Spa Steam

Eng

G*EEC

SCALE

Unit

MANUAL,OWNER'S

REVIEWED

APPROVALED

CHECKED

DRUM-DOMESTIC

郭海锋

朱宇杰

金坤

MFL70203922

RELATED DRAWING

DWG.

No.

RELEASING THIS DRAWING

WITHOUT PERMISSIONG Electronics

SHOULD BEACCUSED ACCORDING

TO THE LAWS ADN COMPANY

RULES.

图纸为LGEPN资产，非法流通时，

根据相关法律和公司有关规定追究法律责任

REMARK

1/1

Table of Contents

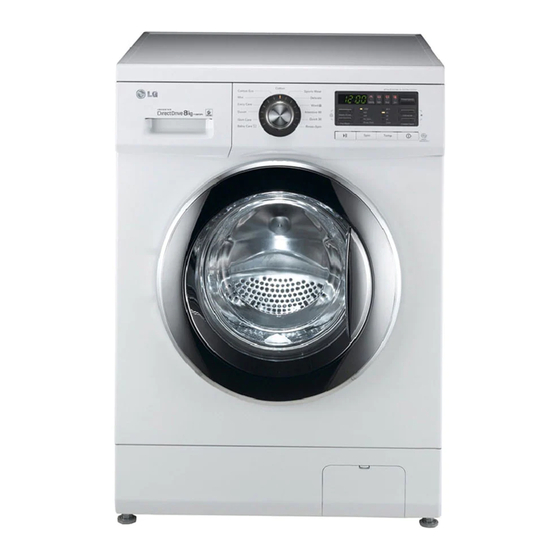

Summary of Contents for LG FH4G6TDY

Page 1 << NOTES >> 1. Material,printing and exterier size are refer to work tables. 2. Printing, tsxt size and line are based on LG desing film. 3. Exterier size on the drawing is cutting line. 4. Before product controlled by criteria sample.
Page 2 This will simplify installation and ensure that the product is installed correctly and safely. Leave these instructions near the product after installation for future reference. FH4G6TDY(G)(0-9) FH2G6TDY(G)(0-9) FH4G7TDY(G)(0-9) FH2G7TDY(G)(0-9) FH4G6QDY(G)(0-9) FH2G6QDY(G)(0-9) FH4G7QDY(G)(0-9) FH2G7QDY(G)(0-9) www.lg.com MFL70203922 Rev.01_072117 Copyright © 2017 LG Electronics Inc. All Rights Reserved.
Page 3: Table Of Contents
Table of ConTenTs This manual is produced for a group of products and may contain images or content different from the model you purchased. This manual is subject to revision by the manufacturer. safeTy InsTruCTIons ........03 Important Safety Instructions ...............05 InsTallaTIon ............08 Specifications ..................08 Accessories ..................08...
Page 4: Safety Instructions
SAfETy INSTruCTIoNS The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the product. The guidelines are separated into ‘WArNING’ and ‘CAuTIoN’ as described below. This symbol is displayed to the indicate matters and operations that can cause risk.
Page 5 GrouNdING rEQuIrEMENTS WARNING for your safety, the information in this manual must be followed to minimize the risk of fire, explosion, or electric shock, or to prevent property damage, injury to persons, or death. • This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current.
Page 6: Important Safety Instructions
It can cause electric shock or injury. • Only an authorized repair person from LG Electronics service centre should • This appliance is heavy. Two or more disassemble, repair, or modify the people may be needed to install and product.
Page 7 This can cause fire. • In case of flood, stop using the product and contact the LG Electronics service • Remove the power plug when you clean centre. Contact with water can cause the product. Not removing the plug may electric shock.
Page 8 disposal • Before discarding an old appliance, unplug it. Render the plug useless. Cut off the cable directly behind the appliance to prevent misuse. • Dispose of the packaging material (such as vinyl and styrofoam) away from children. The packaging material can suffocate a child.
Page 9: Installation
INSTALLATIoN Specifications Transit bolts Power plug Drawer Control panel Drum Door Drain hose Drain plug Drain pump filter Cover cap (Location may vary depending on products) Adjustable feet Model fH*G*Tdy(G)(0-9) fH*G*Qdy(G)(0-9) Wash Capacity 8 kg 7 kg Power supply 220‒240 V~, 50 Hz Size 600 mm (W) X 550 mm (D) X 850 mm (H) Product weight...
Page 10: Installation Place Requirements
Installation place requirements • Do not install your washing machine in rooms where freezing temperatures may occur. Frozen hoses may Location burst under pressure. The reliability of the electronic control unit may be impaired at temperatures below 0.5 cm freezing point. •...
Page 11: Unpacking And Removing Shipping Bolts
unpacking and removing Install the hole caps. Shipping Bolts • Locate the hole caps included in the accessory pack and install them in the shipping bolt holes. Lift the washing machine off the foam base. • After removing the carton and shipping material, lift the washing machine off the foam base.
Page 12: Using Non-Skid Pads (Optional)
• It is most effective to install the non-skid pads • You can obtain rubber cups (p/no.4620ER4002B) from under the front legs. If it is difficult to place the the LG Service Centre. pads under the front legs, place them under the NoTE back legs.
Page 13: Leveling The Washing Machine
Leveling the Washing Machine Connecting Inlet Hose If the floor is uneven, turn the adjustable feet as required • Water supply pressure must be between 0.1 MPa and (Do not insert pieces of wood etc. under the feet). Make 1.0 MPa (1.0‒10.0 kgf/cm sure that all four feet are stable and resting on the floor •...
Page 14 Connecting Hose to Water Tap Push the inlet hose vertically upwards so that the rubber seal within the hose can adhere completely Connecting screw-type hose to tap with thread to the tap and then tighten it by screwing it to the right.
Page 15 Connecting Hose to Washing Machine Make sure that there are no kinks in the hose and that they are not crushed. When your washing machine has two valves. • The Inlet hose with the red connector is for the hot water tap.
Page 16: Installation Of Drain Hose
Installation of drain Hose Electrical Connections (In the uK only) • The drain hose should not be placed higher than 100 cm above the floor. Water in the washing machine The wires in the mains lead are coloured in accordance may not drain or may drain slowly.
Page 17: Operation
opErATIoN using the Washing Machine Choose the desired washing cycle. • Press the Cycle button repeatedly or turn the Before the first wash, select a cycle (Cotton 60 °C, add cycle selector knob until the desired cycle is a half load of detergent), allow the washing machine selected.
Page 18: Sorting Iaundry
Sorting Iaundry Caring before loading. • Combine large and small items in a load. Load Look for a care label on your clothes. large items first. • This will tell you about the fabric content of your • Large items should not be more than half the garment and how it should be washed.
Page 19: Adding Cleaning Products
Adding Cleaning products NoTE • Do not let the detergent harden. detergent dosage Doing so may lead to blockages, poor rinse performance or odour. • Detergent should be used according to the instruction of the detergent manufacturer and selected according •...
Page 20 using tablet • Do not leave the fabric softener in the detergent drawer for more than 2 days (Fabric softener may Open the door and put tablets into the drum. harden). • Softener will automatically be added during the last rinse cycle.
Page 21: Control Panel
Control panel power button programme dial • Press the power button to turn the washing • Programmes are available according to laundry machine on. type. • Press and hold the Power button for 1 second • Lamp will light up to indicate the selected programme.
Page 22: Programme Table
programme Table Washing programme proper Maximum programme description fabric Type Temp. Load Provides better performance by 40°C Cotton Coloured fast garments (shirts, combining various drum motions. (Cold to 95°C) nightdresses, pajamas, etc) Rating and normally soiled cotton load Provides optimised washing 60°C (underwear).
Page 23 proper Maximum programme description fabric Type Temp. Load Use for laundy that need rinsing only Normal fabrics which can be rinse+Spin or to add rinse-added fabric softener Rating washable. to laundry. • Water Temperature: Select the appropriate water temperature for chosen wash cycle. Always follow garment manufacturer’s care label or instructions when washing.
Page 24 Extra Options programme Time delay Medic rinse pre Wash Intensive Crease Care ● ● ● ● ● Cotton ● ● ● ● ● Cotton Large ● ● ● ● ● Easy Care ● ● ● ● ● ● ●** ● ●...
Page 25 operating data Max RPM programme fH4* fH2* Cotton 1400 1200 Cotton Large 1400 1200 Easy Care 1400 1200 Baby Steam Care Allergy Care 1400 1200 Steam Cotton Sports Wear delicate Wool Quick 30 1400 1200 Intensive 60 1400 1200 rinse+Spin 1400 1200...
Page 26: Options
options Crease Care If you want to prevent creasing, select Crease Care Medic rinse option. For best results or for cleaner rinsing. This allows the Press the power button. final rinse to be heated to 40 degrees. Press the power button. Select a washing programme.
Page 27 Spin Child Lock • Spin speed level can be selected by pressing the Spin Select this function to lock the buttons on the control button repeatedly. assembly to prevent tampering. • Spin Only Locking the control panel Press the power button. Press and hold the Medic rinse and pre Wash Press the Spin button to select RPM.
Page 28: Maintenance
MAINTENANCE Care and Cleaning of the Interior WArNING • Unplug the washing machine before cleaning to • Use a towel or soft cloth to wipe around the washing avoid the risk of electric shock. Failure to follow machine door opening and door glass. this warning may result in serious injury, fire, •...
Page 29: Cleaning The Drain Pump Filter
Cleaning the drain pump filter After cleaning, turn the pump filter and insert the drain plug. • The drain filter collects threads and small objects left in the laundry. Check regularly that the filter is clean to ensure smooth running of your washing machine. •...
Page 30: Cleaning The Dispenser Drawer
Cleaning the dispenser drawer Tub Clean (optional) Detergent and fabric softener may build up in the Tub Clean is a special cycle to clean the inside of the dispenser drawer. Remove the drawer and inserts and washing machine. check for buildup once or twice a month. A higher water level is used in this cycle at higher spin speed.
Page 31: Caution On Freezing During Winter
Caution on freezing during • After closing the tap, disconnect the cold inlet hose from the tap, and remove water while keeping the Winter hose facing downwards. • When frozen, the product does not operate normally. Make sure to install the product where it will not freeze during winter.
Page 32 How to Handle freezing • When water is removed completely from the drum, close the hose plug used for removal of residual • Make sure to empty the drum, pour warm water of water, select Rinse and Spin, and press the Start/ 50–60 °C up to the rubber part inside the drum, close pause button.
Page 33: Using The Smart Diagnosis™ Function
Use this function if you need an accurate diagnosis using the information transmitted for analysis. by an LG Electronics service centre when the product NoTE malfunctions or fails. Use this function only to contact •...
Page 34: Troubleshooting
TrouBLESHooTING • Your washing machine is equipped with an automatic error-monitoring system to detect and diagnose problems at an early stage. If your washing machine does not function properly or does not function at all, check the following before you call for service: diagnosing problems Symptoms reason...
Page 35 Symptoms reason Solution Electrical power cord may not be plugged in or connection may be • Make sure plug fits tightly in wall outlet. loose. • Reset circuit breaker or replace fuse. Do Washing machine does House fuse blown, circuit breaker not increase fuse capacity.
Page 36 Symptoms possible Cause Solution • It is the normal odor of new rubber and This odor is caused by the rubber will disappear after the machine has been attached to the washing machine. run a few times. If the rubber door gasket and •...
Page 37: Error Messages
Error Messages Symptoms reason Solution Water supply is not adequate in • Check another tap in the house. area. Water supply taps are not • Fully open tap. completely open. Water inlet hose(s) are kinked. • Straighten hose(s). The filter of the inlet hose(s) are •...
Page 38 Symptoms reason Solution • Close the door completely. Ensure door is not open. If ‘ ’ is not released, call for service. • Unplug the power plug and call for service. • Close the water tap. Water overfills due to the faulty •...
Page 39: Warranty
• Damage or failure caused by incorrect electrical current, voltage, or plumbing codes, commercial or industrial use, or use of accessories, components, or consumable cleaning products that are not approved by LG. • Damage caused by transportation and handling, including scratches, dents, chips, and/or other damage to the finish of your product, unless such damage results from defects in materials or workmanship.
Page 40 Water is not coming because too Clean the detergent Dispenser much detergent use. disperser drawer. Laundry is hot or warm after Cold finished washing because the Water Reinstall the inlet hoses. Water Inlet inlet hoses are installed in Inlet reverse. Water is not supplied because Turn on the water tap.
