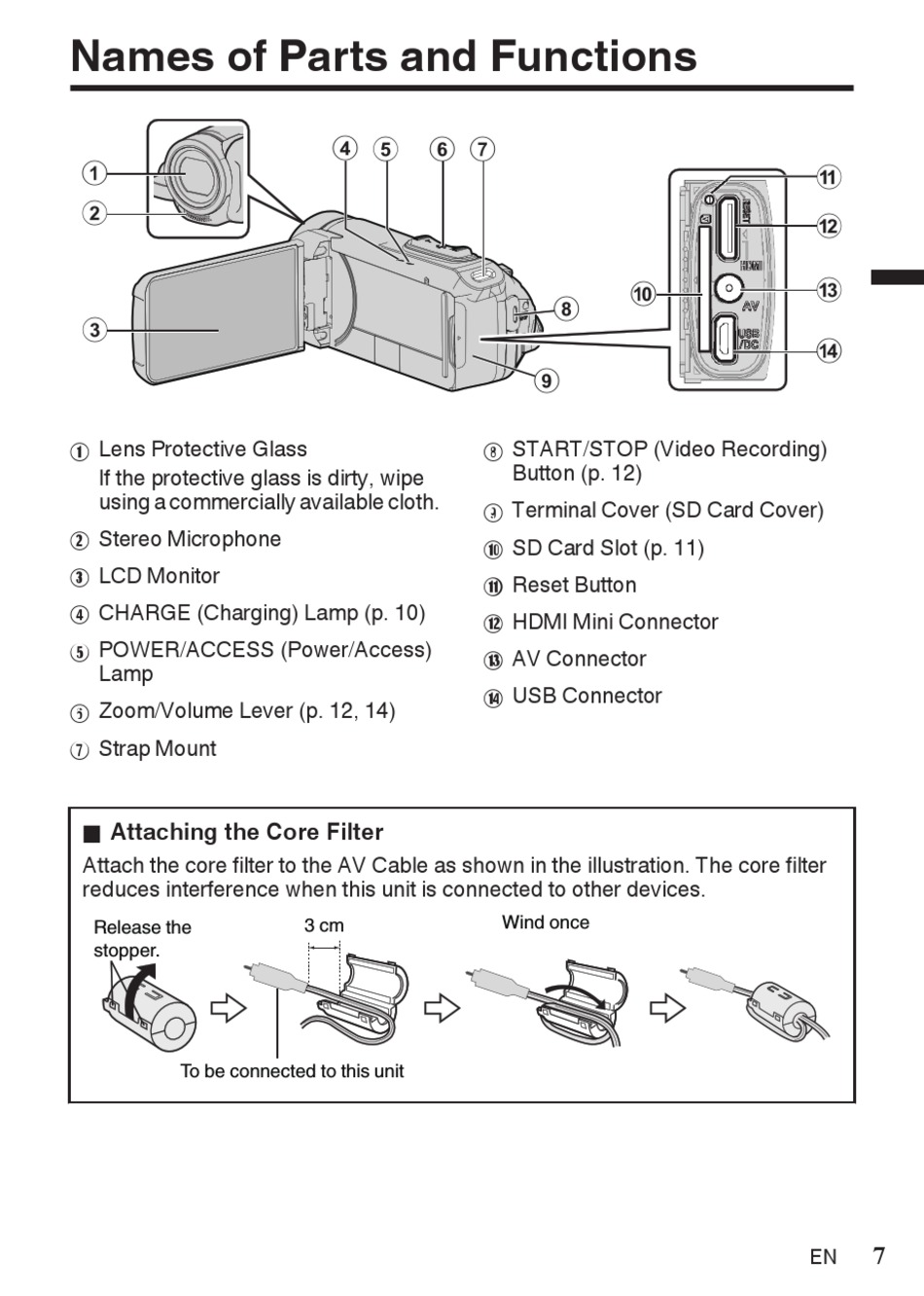

Names of Parts and Functions

1
2
3
.
Lens Protective Glass
A
If the protective glass is dirty, wipe
using a commercially available cloth.
Stereo Microphone
B
LCD Monitor
C
CHARGE (Charging) Lamp (p. 10)
D
POWER/ACCESS (Power/Access)
E
Lamp
Zoom/Volume Lever (p. 12, 14)
F
Strap Mount
G
o Attaching the Core Filter
Attach the core filter to the AV Cable as shown in the illustration. The core filter
reduces interference when this unit is connected to other devices.
Release the
stopper.
To be connected to this unit
.
4 5 6 7
3 cm
0
8
9
START/STOP (Video Recording)
H
Button (p. 12)
Terminal Cover (SD Card Cover)
I
SD Card Slot (p. 11)
J
Reset Button
K
HDMI Mini Connector
L
AV Connector
M
USB Connector
N
Wind once
a
b
c
d
