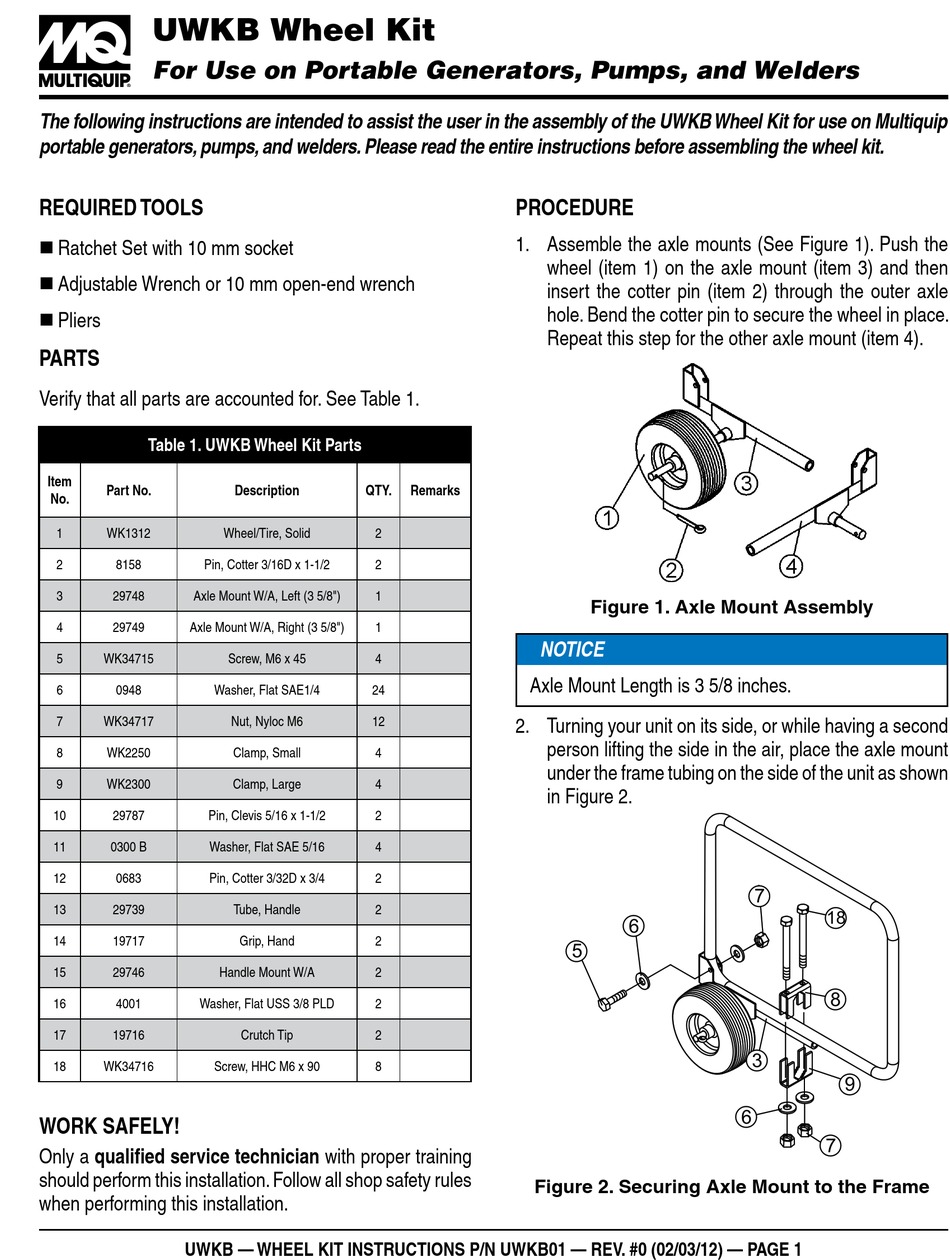

MULTIQUIP UWKB Instructions

  UWKBWheelKit
For Use on Portable Generators, Pumps, and Welders
The following instructions are intended to assist the user in the assembly of the UWKB Wheel Kit for use on Multiquip
portable generators, pumps, and welders. Please read the entire instructions before assembling the wheel kit.
reqUired tools
„ „ Ratchet„Set„with„10„mm„socket
„ „ Adjustable„Wrench„or„10„mm„open-end„wrench
„ „ Pliers
parts
Verify„that„all„parts„are„accounted„for.„See„Table„1.
table 1. UWKB Wheel Kit parts
item
part no.
no.
1 WK1312
2 8158 Pin,„Cotter„3/16D„x„1-1/2
3 29748 Axle„Mount„W/A,„Left„(3„5/8")
4 29749 Axle„Mount„W/A,„Right„(3„5/8")
5 WK34715
6 0948 Washer,„Flat„SAE1/4
7 WK34717
8 WK2250
9 WK2300
10 29787 Pin,„Clevis„5/16„x„1-1/2
11 0300„B Washer,„Flat„SAE„5/16
12 0683 Pin,„Cotter„3/32D„x„3/4
13 29739
14 19717
15 29746 Handle„Mount„W/A
16 4001 Washer,„Flat„USS„3/8„PLD
17 19716
18 WK34716 Screw,„HHC„M6„x„90
WorK safely!
Only„a„qualified service technician„with„proper„training„
should„perform„this„installation.„Follow„all„shop„safety„rules„
when„performing„this„installation.
UWKB — Wheel Kit instrUctions p/n UWKB01 — rev. #0 (02/03/12) — page 1
description qty.
Wheel/Tire,„Solid 2
2
1
1
Screw,„M6„x„45 4
24
Nut,„Nyloc„M6 12
Clamp,„Small 4
Clamp,„Large 4
2
4
2
Tube,„Handle 2
Grip,„Hand 2
2
2
Crutch„Tip 2
8
procedUre
1.„ Assemble„the„axle„mounts„(See„Figure„1).„Push„the„
wheel„(item„1)„on„the„axle„mount„(item„3)„and„then„
insert„ the„ cotter„ pin„ (item„ 2)„ through„ the„ outer„ axle„
hole.„Bend„the„cotter„pin„to„secure„the„wheel„in„place.„
Repeat„this„step„for„the„other„axle„mount„(item„4).
remarks
Figure 1. Axle Mount Assembly
NOTICE
Axle„Mount„Length„is„3„5/8„inches.
2.„ Turning„your„unit„on„its„side,„or„while„having„a„second„
person„lifting„the„side„in„the„air,„place„the„axle„mount„
under„the„frame„tubing„on„the„side„of„the„unit„as„shown„
in„Figure„2.
5
Figure 2. Securing Axle Mount to the Frame
7
6
3
6
18
8
9
7
