Panasonic KX-TCD400GC Service Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
ORDER NO. KM40304054C2
Telephone Equipment
KX-TCD400GC / KX-TCD400GF / KX-A140EXC / KX-A140EXF
Digital Cordless Phone
Dark Blue Version
Light Purple Version
(for Germany)
SPECIFICATIONS
2003 Panasonic Communications Co., Ltd. All rights reserved.
Unauthorized copying and distribution is a violation of law.
1

Advertisement

loading

Related Manuals for Panasonic KX-TCD400GC

Summary of Contents for Panasonic KX-TCD400GC

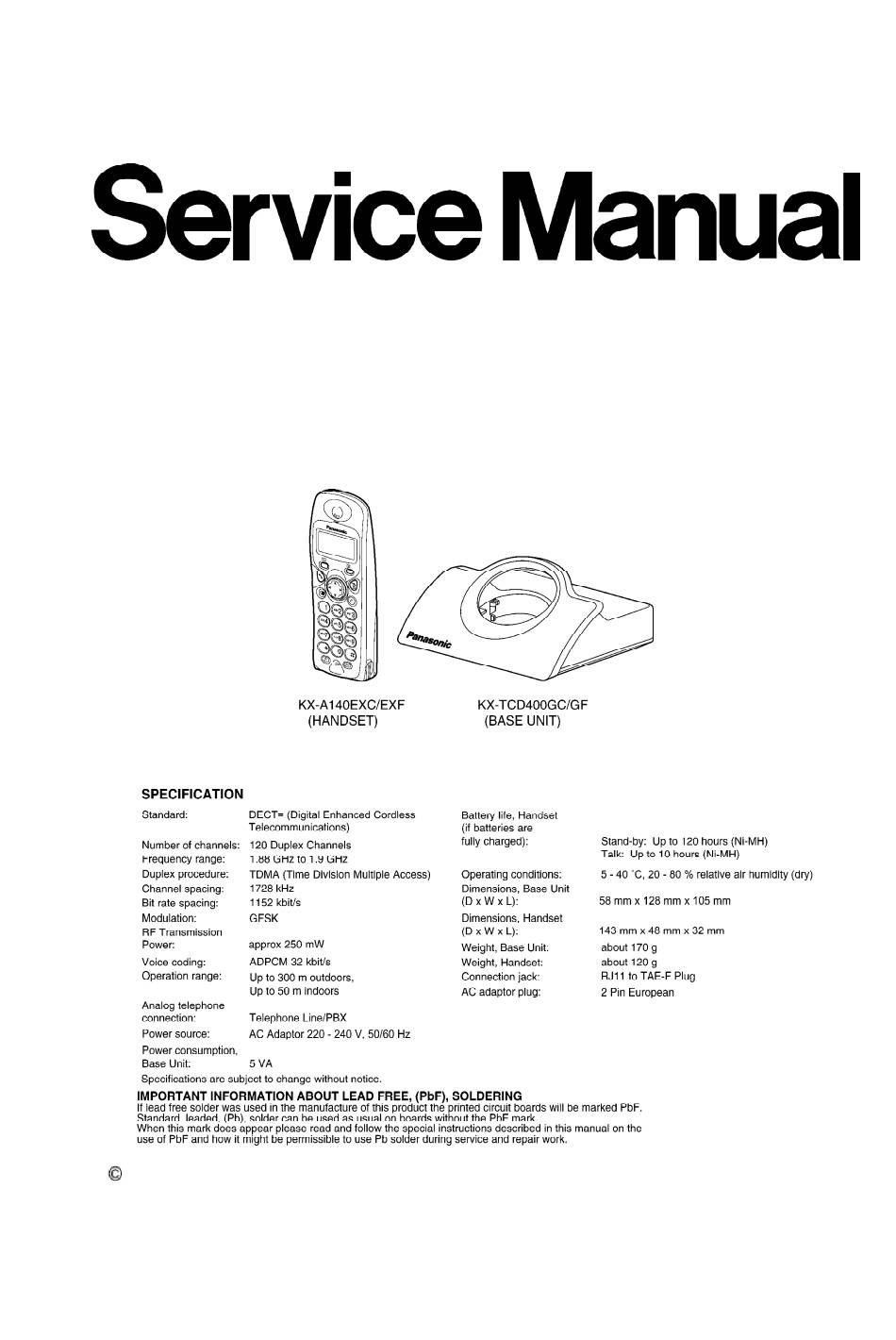

  • Page 1 ORDER NO. KM40304054C2 Telephone Equipment KX-TCD400GC / KX-TCD400GF / KX-A140EXC / KX-A140EXF Digital Cordless Phone Dark Blue Version Light Purple Version (for Germany) SPECIFICATIONS 2003 Panasonic Communications Co., Ltd. All rights reserved. Unauthorized copying and distribution is a violation of law.
  • Page 2 1. ABOUT LEAD FREE SOLDER (PbF: Pb free) Note: In the information below, Pb, the symbol for lead in the periodic table of elements, will refer to standard solder or solder that contains lead. We will use PbF when discussing the lead free solder used in our manufacturing process which is made from Tin (Sn), Silver (Ag), and Copper (Cu).
  • Page 3 1.1. Suggested PbF Solder There are several types of PbF solder available commercially. While this product is manufactured using Tin, Silver, and Copper (Sn+Ag+Cu), you can also use Tin and Copper (Sn+Cu) or Tin, Zinc, and Bismuth (Sn+Zn+Bi). Please check the manufac turer’s specific instructions for the melting points of their products and any precautions for using their product with other materials.
  • Page 4 ICs and LSIs are vulnerable to static electricity. When repairing, the following precautions will help prevent recurring malfunctions. 1. Cover the plastic parts boxes with aluminum foil. 2. Ground the soldering irons. 3. Use a conductive mat on the worktable. 4.
  • Page 5 The handset which power is off will be turned on automatically when it is placed on the base unit. In normal use, the handset and the base unit should be powered on at all times. Note for Service: The battery strength may not be indicated correctly if the battery is disconnected and connected again, even after it is fully charged.
  • Page 6 - Do not use non-rechargeable batteries. If no-rechargeable batteries are fitted and start charging, it may cause the leakage of the battery electrolyte. Please use only Panasonic P03P(Ni-MH) or P03H(Ni-Cd) batteries. 5. LOCATION OF CONTROLS 5.1. Base Unit...
  • Page 7 5.2. Handset 6. SETTINGS 6.1. Connection Plug in the AC adaptor and the telephone line cord in order 1, 2, 3, 4.
  • Page 8 The AC adaptor must remain connected at all times (It is normal for the adaptor to feel warm during use). - Never install telephone wiring during a lightning storm. 6.2. Symbols Used in This Service Manual 6.3. PIN Code 6.3.1. Base Unit...
  • Page 9 - To exit the operation, press any time. For Service Hint: * : If the current 4-digit PIN is forgotten, press and you will be able to enter new PIN. 6.3.2. Handset - To exit the operation, press any time. For Service Hint: * : If the current 4-digit PIN is forgotten, press and you will...
  • Page 10 6.3.3. Reset Base Unit PIN to Default (0000) -When There is NO Handset Registered- 6.3.3.1. Symptom There is no way to reset base PIN when there is no handset registered to the base. 6.3.3.2. Thinkable Situation - Customer may ask to reset base PIN because they forget it. - Customer may bring only a base unit for repair and there is no handset registered to the base (Need to register another handset to the base to confirm if the unit works properly after repair).
  • Page 11 6.4. Reset 6.4.1. Base Unit - To exit the operation, press any time. - *1: The factory preset is 0000. 6.4.2. Handset You can reset all of the handset settings to their initial settings. - To exit the operation, press any time.
  • Page 12 6.5. Key Lock You can lock the handset dialling buttons. Only incoming calls are accepted while the key lock is on. The key lock is cancelled if the handset is turned off. When the key lock is on, emergency calls cannot be made until key lock is cancelled. is displayed and all dialling buttons are locked.
  • Page 13 A dialling pause is used when a pause in the dialling of the phone number is necessary using a PBX or accessing a long distance service. For example, when 9 (line access number) is dialled followed by a pause to access an outside line through a PBX: - Entering a pause prevents misdialling when you redial or dial a stored number.
  • Page 14 - To exit the operation, press any time. - *1 You can select one of 10 languages. If you set a language you cannot read, reset the handset to its initial settings. Press MENU DOWN RIGHT RIGHT 4-digit Handset All handset setting will be reset to their initial settings, however, the Phonebook data will be saved.
  • Page 15 7. DISPLAY 7.1. Handset Display 7.2. Before Requesting Help (Troubleshooting) If you experience any problems with the normal use of your apparatus, you should unplug it from the telephone outlet and connect a known working telephone in its place. If the known working telephone still has problems, then please contact the customer service department of your Network provider.
  • Page 16 Cross Reference: Power On/Off Call BAR On/Off Key Lock 8. OPERATIONS 8.1. Power On/Off *1 When button is released, the display changes to the standby mode. *2 The display goes blank. 8.2. Making a Call...
  • Page 17 *1 If you need correction, press CLEAR. Digit is cleared to the left, then enter numbers. 8.3. Answering Calls - Each ringer will start ringing with lower volume then gradually increase the volume when receiving a call. *1 You can also answer a call by pressing any dialling button, HOLD, , or 8.4.
  • Page 18 8.5.1. Storing a Caller Information - To exit the operation, press any time. *1 If you need correction, press RIGHT or LEFT to move cursor then clear a character by pressing CLEAR, and/or enter characters. Characters are cleared or added to the left of the flashing character.
  • Page 19 - To exit the operation, press any time. *1 If there is no item stored in the phonebook, the display shows *2 Digits are cleared to the left of the flashing digit. *3 Digits are added to the left of the flashing digit. If you need to clear or add more than one digit, repeat the steps from 5.
  • Page 20 - To exit the operation, press any time. *1 If you need correction, press CLEAR. Digit is cleared to the left, then enter numbers. 8.5.3. Storing the Number from the Redial List into the Phonebook - To exit the operation, press any time.
  • Page 21 - To exit the operation, press any time. *1 If there is no item stored in the phonebook, the display shows *2 The number is flashing if the dialling button is already assigned as a hot key. *3 Phonebook registration will be remained even hot key registration is cleared. 9.
  • Page 22 Shown in Fig.- To Remove Remove Lower Cabinet Screws (2.6 × 12)..(A) × 2 Main P.C. Board Main P.C. Board 9.2. Handset Shown in Fig.- To Remove Remove Rear Cabinet Screws (2 × 10)..(B) × 2 Main P.C. Board Screw (2 × 8)....(C) × 1 Main P.C.
  • Page 23 10.1. Warning When Constructing the Base Unit 11. TROUBLESHOOTING GUIDE Flow Chart Cross Reference: Check Power Bell Reception Check Battery Charge Check Link Check Handset Transmission Check Handset Reception SIGNAL ROUTE 11.1. Check Power 11.1.1. Base Unit Is the AC Adaptor inserted into AC outlet? (Check AC Adaptor’s specification.)
  • Page 24 Cross Reference Power Supply Circuit Note: BBIC is IC2. 11.1.2. Handset Cross Reference Power Supply Circuit/Reset Circuit Note: BBIC is IC1. 11.2. Check Battery Charge 11.2.1. Base Unit Cross Reference: Charge Circuit...
  • Page 25 11.2.2. Handset Cross Reference: Check Power Charge Circuit Note: BBIC is IC1. 11.3. Check Link 11.3.1. Base Unit Cross Reference: Power Supply Circuit Adjustment 11.3.2. Handset...
  • Page 26 Cross Reference Power Supply Circuit Adjustment 11.4. Check Handset Transmission Cross Reference: SIGNAL ROUTE 11.5. Check Handset Reception Cross Reference: HOW TO CHECK THE HANDSET SPEAKER SIGNAL ROUTE 11.6. Bell Reception...
  • Page 27 11.6.1. Base Unit Note: BBIC is IC2. 11.6.2. Handset Cross Reference: Telephone Line Interface Check Link Note: BBIC is IC1. 12. CHECK PROCEDURE (BASE UNIT) 12.1. Preparation 12.1.1. Equipment Required - DECT tester: Rohde & Schwarz, CMD 60 is recommended. - Frequency counter: it must be precise to be able to measure 1Hz (precision;...
  • Page 28 - EEPROM serial JIGs 1. I2C PCB: PQZZTCD705BX 2. RS232C cable: PQZZ1CD705BX 3. Clip cable: PQZZ2CD705BX 4. DC cable: PQZZ3CD705BX - PC which runs in DOS mode - Batch file for setting: PQZZTCD410E 12.2. PC Setting 12.2.1. Connections 12.2.2. PC Setting 1.
  • Page 29 Command name Function Example rdeeprom Read the data of EEPROM Type “rdeeprom 00 00 FF”, and the data from address “00 00” to “FF” is read out. readid Read ID (RFPI) Type “readid”, and the registered ID is read out. writeid Write ID (RFPI) Type “writeid 00 18 E0 0E 98”, and the...
  • Page 30 13.2.2. PC Setting 1. Open a window of MS-DOS mode from the start-up menu. 2. Change a directory to the one with “RTX_COM” contained. 3. Type “SET RTX_COM=1” from the keyboard (when COM port 1 is used for the connection). 4.
  • Page 31 Symptom Remedy The base unit dose not respond to a call from handset. Make adjustments in item (I)~(M) The base unit dose not transmit or the transmit frequency is off. Make adjustments in item (H)~(J), (L) The transmit frequency is off. Make confirmation in item (H)~(J), (L) The transmit power output is low, and the operating distance between...
  • Page 32 Items Procedure* Check Adjustment Point 1. Confirm that the voltage between J102 and GND is 0V ± 0.4V. VBACK Status IC2,Q8,C23 Confirmation C24,C25,C2 C27,C38,R3 R36,D5,C41 R41,R42,Q C40,D4,R33 X1,C32,C3 1. BBIC Selftest (Execute the command "getchk"). BBIC Selftest IC2,X1,C32 2. Confirm the returned checksum value. Connection of checksum value and program number is shown below.
  • Page 33 Items Procedure* Check Adjustment Point 1. Connect J1 (Telephone Socket) to DTMF tester. DTMF Generator IC2,R32,C2 2. Execute the command "hookoff" and "dtmf_up". Confirmation 3. Confirm that the high frequency group is -6.5dBm ~ -9.5dBm. 4. Execute the command "dtmf_lo". R23,C80,C1 5.
  • Page 34 Items Procedure* Check Adjustment Point Modulatoin Follow steps 1 to 3 of (H) above. IC2,IC3,L1 1. Confirm that the B-Field Modulation is 340kHz/div ~ 402kHz/div using data type Fig31. Check and 2. Adjust the B-Field Modulation if required. (Execute the command "readmod" and Adjustment C43,C78,C7 "wrtmod xx", where xx is the value.)
  • Page 35 Items Procedure* Check Adjustment Point Sensitivity Follow steps 1 to 3 of (H) above. IC2,IC3,L1 1. Set DECT tester power to -88dBm. Receiver 2. Confirm that the BER is < 1000ppm. Confirmation C43,C78,C7 C69,C48,C7 C66,C67,C7 C57,C73,L3 DA1,R66,R6 C55,C56,R7 R79,C54,C5 Timing Follow steps 1 to 3 of (H) above.
  • Page 36 Items Procedure* Check Adjustment Point RSSI Level Follow steps 1 to 3 of (H) above. IC2,IC3,L1 1. Set DECT tester power to -88dBm. Confirmation 2. Execute the command "readrssi". C43,C78,C7 3. Confirm that the returned value is 0x34 ± A (hex). C69,C48,C7 C66,C67,C7 C57,C73,L3...
  • Page 37 Items Procedure* Check Adjustment Point 1. Configure the DECT tester (CMD60) as follows; Receive Audio IC2,C21,R3 <Setting> Check and Adjustment -Testmode: FP C20,C11,R1 -Mode: Normal -PMID: 0000 2. Execute the command "testmode". R16,D3,R12 3. Initiate connection from DECT tester. 4. Execute the command "hookoff". 5.
  • Page 38 Items Procedure* Check Adjustment Point 1. Configure the DECT tester (CMD60) as follows; Transmit Audio IC2,R32,C2 <Setting> Check and Adjustment -Testmode: FP R23,C80,C1 -Mode: Normal -PMID: 0000 2. Execute the command "testmode". C13,R22,R2 3. Initiate connection from DECT tester. 4. Execute the command "hookoff". 5.
  • Page 39 14.2. Adjustment Standard (Base Unit) When connecting the Simulator Equipments for checking, please refer to below. 14.2.1. Component View Note: (H) - (O) is refered to ADJUSTMENTS (BASE UNIT) 14.2.2. Flow Solder Side View Note: (A) - (P) is refered to ADJUSTMENTS (BASE UNIT) 15.
  • Page 40 Items Procedure* Check Adjustment Point 1. Confirm that the consumption current is < 200mA , that is, there is no short circuit. 4.0V Supply IC1,F1,R21 2. Confirm that the voltage between TP14 and GND is 4.1V ± 0.2V. Confirmation R4,C33,L2 D1,C15,C2 C14,Q1,R3 R2,D2,R22...
  • Page 41 Items Procedure* Check Adjustment Point 1. Apply 6V between TP5(+) and TP6(-) with current limit of PSU to 200mA. (D) Charge Control IC1,D4,L4, 2. Confirm that the charge current is ON/OFF. Check & Charge L5,Q2,Q3, 3. SW to decrease current limit of PSU to 100mA. Current Monitor 4.
  • Page 42 Items Procedure* Check Adjustment Point (I)* Transmitted TP15 Remove the Antenna before starting step from 1 to 5. IC1,IC3,C54 1. Configure the DECT tester(CMD60) as follows; Power <Setting> Confirmation C66,C60,L3 -Testmode: PP -RFPI: 0102030405 C57,C55,C5 -Traffic Channel: 5 -Traffic Slot: 4 -Mode: Loopback C62,R23,R2 2.
  • Page 43 Items Procedure* Check Adjustment Point Sensitivity Follow steps 1 to 4 of (I) above. IC1,IC3,C54 1. Set DECT tester power to -88dBm. Receiver 2. Confirm that the BER is < 1000ppm. Confirmation C66,C60,L3 C57,C55,C5 C62,R23,R2 C63,C64,C6 Timing Follow steps 1 to 4 of (I) above. IC1,IC3,C54 1.
  • Page 44 Items Procedure* Check Adjustment Point 1. Configure the DECT tester (CMD60) as follows; Receive Audio TP15 IC1,C12,C3 <Setting> Check and Adjusment -Testmode: PP R17,R20,C1 -Mode: Nomal -RFPI: 0102030405 2. Execute the command "testmode". C11,D7,D6 3. Execute the command "regcmd60" 4. Initiate connection from DECT tester. 5.
  • Page 45 Note: (A) - (P) is refered to ADJUSTMENTS (HANDSET) 16. RF SPECIFICATION 16.1. Base Unit Item Value Refer to -. * Remarks TX Power More than 20 dBm ~ 25 Adjustment Modulation 340 kHz/div ~ 402 kHz/ Data type: Fig31 Adjustment Frequency Offset -40 kHz ~ +40 kHz...
  • Page 46 18. FREQUENCY TABLE (MHz)
  • Page 47 BASE UNIT HANDSET Receive Frequency Channel No Transmit Frequency Transmit Frequency Receive Frequency 1897.344 1897.344 1897.344 1897.344 1895.616 1895.616 1895.616 1895.616 1893.888 1893.888 1893.888 1893.888 1892.160 1892.160 1892.160 1892.160 1890.432 1890.432 1890.432 1890.432 1888.704 1888.704 1888.704 1888.704 1886.976 1886.976 1886.976 1886.976 1885.248 1885.248...
  • Page 48 - Detector - Compress/Expander - First/Second Mixer - Amplifier for transmission and reception - EEPROM: IC1 - Temporary operating parameters (for RF, etc.) - Additionally, - Power Supply Circuit (+4.0V, +2.65V output) - Crystal Circuit (10.368MHz) - Charge Circuit - Telephone Line Interface Circuit 20.2.
  • Page 49 20.3. Telephone Line Interface <Function> - Bell signal detection - Clip signal detection - ON/OFF hook circuit - Metering Pulse circuit - Audio circuits Bell & Clip (: Calling Line Identification Presentation: Caller ID) signal detection: In the standby mode, Q2 is open to cut the DC loop current and decrease the ring load. When ring voltage appears at the TP3 (A) and TP40 (B) leads (when the telephone rings), the signal is transferred as follows;...
  • Page 50 20.4. Transmitter/Receiver Base Unit and Handset mainly consist of RF Module and DECT BBIC. Base Unit and Handset transmit/receive voice signal and data signal through the antenna on carrier frequency. Signal Pass: *Refer to SIGNAL ROUTE 20.4.1. Transmitter Block The voice signal input from the TEL LINE interface goes to RF Module (IC3) through DECT BBIC (IC2) as shown in BLOCK DIAGRAM (BASE UNIT) The voice signal passes through the analog part of IC2 where it is amplified and converted to a...
  • Page 51 - RF Module: IC3 - PLL Oscillator - Detector - Compress/Expander - Amplifier for transmission and reception 22.2. Power Supply Circuit/Reset Circuit Circuit Operation: When power on the Handset, the voltage is as follows; BATTERY(2.2 V ~ 2.6V: TP3) TP14(4V) IC3(6, 27), D3 IC1(37) IC1(39, 63) (2.65V)
  • Page 52 24. CPU DATA (BASE UNIT) 24.1. IC2 (BBIC)
  • Page 53 Description Hi-z Remarks PA_Driver_Amp PA_ON PA_OFF TX/RX SW RX_Data Data Data PLL_Strobe Latch Normal PLL_Data Active Active PLL_Clk Active Active TX_Data Active Active (NO USE) RF_System_Clk Active Active RESETQ Normal Reset VDDPM VSSO LOAD XTAL 10.368 MHz VDDLR VDDA VSSA Audio_Out_N Audio_Out_P Bandgap_Ref...
  • Page 54 Description Hi-z Remarks VBACK (NO USE) (I_PD) (NO USE) (Fixed) (NO USE) (Fixed) (NO USE) (Fixed) (NO USE) (Fixed) (NO USE) (Fixed) KEY_IN No Key (NO USE) D.I/O (I_PD) (NO USE) D.I/O (I_PD) (NO USE) D.I/O (I_PD) (NO USE) D.I/O (I_PD) (NO USE) D.I/O...
  • Page 55 Description Hi-z Remarks LCD_SEGMENT Active LCD_COMMON Active LCD_COMMON Active LCD_COMMON Active LCD_COMMON Active LCD_COMMON Active LCD_COMMON Active PA_SW PA ON T/R SW Transmit RX_DATA Active SYEN Active SYDA Active SYCL Active TX_DATA Active KEY_IN No Key KEY_IN No Key KEY_IN No Key KEY_IN No Key...
  • Page 56 MICP...
  • Page 57 Description Hi-z Remarks MICN Reference Voltage RSSI P0.4 AD4N AD4P (NO USE) KEY_STRB Active KEY_STRB Active KEY_STRB Active LCD_SEGMENT Active LCD_SEGMENT Active LCD_SEGMENT Active KEY_STRB Active KEY_STRB Active LCD_SEGMENT Active LCD_SEGMENT Active VDD for EEPROM I2DAT D.I/O Active I2CLK D.I/O Active MODE (NO USE)
  • Page 58 Description Hi-z Remarks Power Select Low Power LCD_SEGMENT Active LCD_SEGMENT Active LCD_SEGMENT Active LCD_SEGMENT Active LCD_SEGMENT Active LCD_SEGMENT Active LCD_SEGMENT Active LCD_SEGMENT Active LCD_SEGMENT Active LCD_SEGMENT Active LCD_SEGMENT Active 26. HOW TO REPLACE FLAT PACKAGE IC 26.1. Preparation - PbF (: Pb free) Solder - Soldering Iron Tip Temperature of 700°F ±...
  • Page 59 2. Apply flux to all of the pins on the IC. 3. Being careful to not unsolder the tack points, slide the soldering iron along the tips of the pins while feeding enough solder to the tip so that it flows under the pins as they are heated. 26.3.
  • Page 61 28. CABINET AND ELECTRICAL PARTS LOCATION (HANDSET) 29. ACCESSORIES AND PACKING MATERIALS...
  • Page 62 30. TERMINAL GUIDE OF THE ICs TRANSISTORS AND DIODES 30.1. Base Unit 30.2. Handset...
  • Page 63 31. REPLACEMENT PARTS LIST Note: 1. RTL (Retention Time Limited) The marking (RTL) indicates that the Retention Time is limited for this item. After the discontinuation of this assembly in production, the item will continue to be available for a specific period of time. The retention period of availability is dependant on the type of assembly, and in accordance with the laws governing part and product retention.
  • Page 64 PQGT15738Z NAME PLATE (for KX-TCD400GC) PQGT15635Z NAME PLATE (for KX-TCD400GF) PQJT10203Z TERMINAL PQKE10356Z1 GUIDE, CHARGE TERMINAL CASE POM-HB PQSA10131Z ANTENNA, MAIN PQSA10132Z ANTENNA, SUB PQYF10560Z2 CABINET COVER (for KX-TCD400GC) PS-HB PQYF10560Z1 CABINET COVER (for KX-TCD400GF) PS-HB 31.1.2. Main P.C.Board Parts...
  • Page 65 Ref. No. Part No. Part Name & Description Remarks PCB1 PQWP1D400GH MAIN P.C.BOARD ASS'Y (RTL) (ICS) PQVI24LC32AI C2HBAK000001 J3FKK0000003 PQVILM1117MP (TRANSISTORS) 2SA1625 TRANSISTOR(SI) PQVTBF822T7 TRANSISTOR(SI) B1ADGE000004 TRANSISTOR(SI) (DIODES) PQVDS1ZB60F1 DIODE(SI) MA1Z300 DIODE(SI) B0JAME000085 DIODE(SI) MA2Z74800L DIODE(SI) B0DDCM000001 DIODE(SI) (COILS) PQLQR4D4R7K COIL PQLQR2M33NK COIL...
  • Page 66 Ref. No. Part No. Part Name & Description Remarks ERJ3GEYJ565 5.6M ERJ3GEYJ184 180K ERJ3GEYJ103 ERJ3GEYJ103 ERJ3GEYJ390 ERJ3GEYJ390 PQ4R10XJ000 ERJ3GEYJ181 ERJ3GEYJ181 ERJ3GEYJ565 5.6M ERJ3GEYJ184 180K ERJ3GEY0R00 ERJ3GEY0R00 ERJ3GEY0R00 PQ4R10XJ000 ERJ3GEY0R00 (CAPACITORS) ECKD2H681KB 680P ECKD2H681KB 680P ECQE2223KF 0.022 ECQE2223KF 0.022 ECUV1H472KBV 0.0047 PQCUV1C474KB 0.47 PQCUV1A105KB 1 PQCUV1C224KB 0.22...
  • Page 67 PQKM10587Z1 CABINET BODY (for KX-TCD400GF) ABS-HB PQHS10553Z TAPE, DOUBLE SIDE PQHS10554Z SPACER, LCD PQBC10375Z1 PUSH BUTTON, NAVI PQSX10224S KEYBOARD SWITCH, 20KEY (for KX-TCD400GC) PQSX10224T KEYBOARD SWITCH, 20KEY (for KX-TCD400GF) PQHS10467Z COVER, SP NET L0AD02A00016 SPEAKER PQSA10133Z ANTENNA PQJT10204Z TERMINAL (L)
  • Page 68 Ref. No. Part No. Part Name & Description Remarks PCB100 PQWP1D400GR MAIN P.C.BOARD ASS'Y (RTL) (ICs) C2HBAK000002 PQVI24LC32AI J3FKK0000003 (TRANSISTORS) PQVTFDN335N TRANSISTOR(SI) B1ADGE000004 TRANSISTOR(SI) UN5216 TRANSISTOR(SI) (DIODES) B0JCME000035 DIODE(SI) MA2Z74800L DIODE(SI) MA8390MTX DIODE(SI) MA2Z74800L DIODE(SI) MA2Z74800L DIODE(SI) (COILS) G1A470L00001 COIL PQLQR4D4R7K COIL G1C100MA0072...
  • Page 69 Ref. No. Part No. Part Name & Description Remarks ECUV1C104KBV 0.1 ECUV1C104KBV 0.1 ECUV1C104KBV 0.1 ECUV1C104KBV 0.1 ECUV1C104KBV 0.1 ECUV1C104KBV 0.1 ECUV1C104KBV 0.1 ECUV1C104KBV 0.1 ECUV1C104KBV 0.1 ECUV1C104KBV 0.1 ECUV1C104KBV 0.1 ECUV1H100DCV 10P ECUV1A225KB ECUV1H100DCV 10P ECUV1H020CCV 2P ECUV1H020CCV 2P ECUV1H330JCV 33P ECUV1A475KB ECUV1A105KBV 1...
  • Page 70 32. EEPROM LAYOUT (BASE UNIT) 32.1. Scope The purpose of this section is to describe the layout of the EEPROM (IC1) for the KX-TCD400 Base Unit. The EEPROM contains hardware, software, and user specific parameters. Some parameters are set during production of the base e.g. crystal frequency adjustment at address 0000 and 0001, some are set by the user configuration e.g.
  • Page 71 Address Default Name Type Description Country Setting 0000-01 00 E0 EepromOscillator Frequency adjustment 0002 ModulationDeviation Modulation adjustment 0020 RFPI (ID for Base Unit) RFPI 0025 00 00 AC (Base PIN code) AC code 0028 TBR22Test TBR22 test 0030-0034 FF .. FF IPUI_1 Ipui for handset 1.
  • Page 72 Address Default Name Type Description Country Setting 09F1 Handset registration info - registration HsRegInfo.RegFlags 6..7: not used 0..5: handset 1..6 info, 1=reg, 0=no 09F2 Handset registration info - EMC flags HsRegInfo.EmcFlags 6..7: not used 0..5: handset 1..6 info, 1=known , 0 unknown 09F3 RingMode...
  • Page 73 Address Default Name Type Description Country Setting 0F4C Config2 BsUiTask configuration (LSB) Bits 1=enable 0=disable 0: FlashTime1Enabled, enabled 1: FlashTime2Enabled, enabled 2: FlashTime3Enabled, enabled 3: KeyClicksEnable, disabled 4: ARSCarrierMenuEnabled, enabled 5: ARSIntDeletionMenuEnabled, 6: ARSMultipleCarrierMenuEnabled, enabled 7: ARSMultipleAreaCodeMenuEnabled, enabled 0F4D UserData.SmsPabxSuport x SMS PABX Support On/Off 33.
  • Page 74 33.3. EEPROM contents 33.3.1. General Setup Address Default Name Type Description 0000-0001 EepromOscillator Frequency adjustment 0002 ModulationDeviation Mudulation adjustment 0030-0034 IPEI (ID for Handset) IEPI 0036-003A PARK_1 PARK for registration 1 003B-003F PARK_2 PARK for registration 2 0040-0044 PARK_3 PARK for registration 3 0045-0049 PARK_4 PARK for registration 4...
  • Page 75 Address Default Name Type Description Country Setting 0190-0194 RFPI_4 RFPI for registration 4 0195 SerClass_4 Service class for registration 4 0196 LAL_4 Location area level for registration 0197 IPUI_LEN_4 IPUI length for registration 4 0198-01A4 IPUI_4 IPUI for registration 4 01A5 ZAP_4 ZAP for registration 4...
  • Page 76 Address Default Name Type Description 0F04 LowVoltage Voltage on which to start battery low indication. The voltage has to be measured under value for 8 seconds before the handset start signaling low battery. LowVoltage[eeprom]=[ADC-steps] LowVoltage[mV](14.35[mV/step]) 33.3.4. Default Audio-Parameters Address Default Name Type Description...
  • Page 77 37. CIRCUIT BOARD (HANDSET) 37.1. Component View 37.2. Flow Solder Side View M / KXTCD400GC / KXTCD400GF / KXA140EXC / KXA140EXF...
  • Page 78 (F) (G) 2.20V ~ 2.40V TP16 TP12 TP13 TP17 TP14 TP19 AF SG DECT TESTER CMD60 TP18 TP10 Digital DECT tester Volt Meter CMD60 AF Volt Meter Oscilloscope DECT TESTER CMD60 Digital (I) (J) (K) (L) (M) Volt Meter (N) (O) (P) Frequency (D) (E) Current...
  • Page 79 Analog ADPCM RSSI Front End Codec Filter SYRI Interface SYEN HOOK RF Module DTXAF BBIC DTXAF Interface Limit CHARGE XTAL Register CONTACT 10.368 VUNREG 4.0V o AC Adaptor Reg. EEPROM 4.0V BBIC 2.65V Reg. 2.65V KX-TCD400GC/GF BLOCK DIAGRAM (BASE UNIT)
  • Page 80 Speech Burst RXDA Decoding Decoding EARPIECE TXDA Speech Burst Encoding Encoding Module RSSI ADPCM SYRI Codec Interface Analog SYEN Filter Front XTAL CHARGE CHARGE CHARGE 10.368 CONTACTS CIRCUIT CHARGE DETECT ON SWITCH EEPROM VDDBAT 53~55, 59, 60 BATTERY SWITCHED ROWS TERMINAL SUPPLY SWITCH...
  • Page 81 +60V DC ON-HOOK +10V DC OFF-HOOK LINE VOL TAGE 60V DC OV ON-HOOK TP39 +0.7V DC OFF-HOOK JMP1 TP45 680p/500V 100K 2.7K TP40 JMP2 JMP3 2.2K 680p/500V JMP8 JMP5 +2.65V JMP4 OPTION4 RLY1 K0.022 1.5M K0.02 1.5M (10) (11) (12) SD A (13) 32K_EEPROM...
  • Page 82 7 G ND (13) 44 R1 46:VSS(DSPCLK) RXDA 8 SYCL 47:P1.4(TONE) RXDSG 9 SYDA RXDA DRON 10 SYEN RX-DATA 48 VDD 11 GND 4.7u (14) 10.368MHZ burst (15) +2.65V 428 s 406 s peak +3.1V KX-TCD400GC/GF SCHEMATIC DIAGRAM (BASE UNIT)
  • Page 83 7 G ND (13) 44 R1 46:VSS(DSPCLK) RXDA 8 SYCL 47:P1.4(TONE) RXDSG 9 SYDA RXDA DRON 10 SYEN RX-DATA 48 VDD 11 GND 4.7u (14) 10.368MHZ burst (15) +2.65V 428 s 406 s peak +3.1V KX-TCD400GC/GF SCHEMATIC DIAGRAM (BASE UNIT)
  • Page 84 Frequency 324KHz 4.3V 4.1V DC TP14 47uH 2.4V BATTERY+ BATTERY- 3.3K 2.65V 10uH CHARGE+ CHARGE- 10uH ’BATT’ K0.1 TP12 ’SDA’ K0.1 ’SCL’ ’VBACK’ TP18 ’GND’ TP10 PL.13 81 PL.13 P0.5(AD4N) PL.14 51:P0.6(AD4P) 82 PL.14 P0.4(ADBAT) PL.15 83 PL.15 ADRSSI PL.16 84 PL.16 ADREF 2.65V...
  • Page 85 TP11 K0.1 R5 330 C4 K0.1 R7 330 R1 2.2K K0.1 K0.1 (24) K0.1 R17 0 K0.1 1 SP+ 2 SP- R20 0 TP16 TP17 (25) (26) ’POWER’ (27) (28) (29) A201 TP15 R24 0 VCC_PA (30) TXDA 5 RSSI PAON R18 33 6 VCC_OC...
  • Page 86 TP11 K0.1 R5 330 C4 K0.1 R7 330 R1 2.2K K0.1 K0.1 (24) K0.1 R17 0 K0.1 1 SP+ 2 SP- R20 0 TP16 TP17 (25) (26) ’POWER’ (27) (28) (29) A201 TP15 R24 0 VCC_PA (30) TXDA 5 RSSI PAON R18 33 6 VCC_OC...
  • Page 87 (BBIC: 44 (BBIC: 14) 10.368 MHz) JMP2 JMP6 JMP5 A201 JMP7 JMP8 RLY1 JMP4 JMP3 JMP1 A202 B C E LED1 Bell LED Q8 Collector Bell Bell (BBIC: 44) (2.65V) (BBIC: 27) (BBIC: 26) KX-TCD400GC/GF CIRCUIT BOARD (BASE UNIT) Component View...
  • Page 88 RF Clock CHARGE - (10.368MHz) CHARGE+ J103 J104 J102 J105 J101 TP84 TP82 TP187 CHARGE+ CHARGE TP97 TP50 TP45 TP188 TP91 TP89 TP40 TP39 TP90 TP101 Q9 Output Q9 Input (4V) (5.5V) KX-TCD400GC/GF CIRCUIT BOARD (BASE UNIT) Flow Solder Side View...
  • Page 89 TP14 RF Clock (BBIC: 27) (2.65V) (TP3) (4V) (BBIC: 23 10.368 MHz) TP16 TP12 TP13 TP17 TP14 TP19 TP18 TP10 (BBIC: 41) (BBIC: 42) KX-A140EXC/EXF CIRCUIT BOARD (HANDSET) Component View...
  • Page 90 TALK REDIAL BOOK LEFT DOWN RIGHT PROG POWER KX-A140EXC/EXF CIRCUIT BOARD (HANDSET) Flow Solder Side View...
  • Page 91 Marked...
  • Page 92 J102 J103 J104 J105 J101 TP84 TP82 TP187 CHARGE+ CHARGE TP97 TP50 TP45 TP188 TP91 TP89 TP40 TP39 TP101 TP90 Marked...
  • Page 93 Marked...
  • Page 94 TALK REDIAL BOOK LEFT DOWN RIGHT PROG POWER Marked...
  • Page 95 Base PCB Clip...
  • Page 96 Microsoft Windows 2000 [Version 5.00.2195] (C) Copyright 1985-2000 Microsoft Corp. C: >cd dect C: DECT>SET RTX_COM=1 C: DECT>DOSKEY C: DECT>initbspin C: DECT>call wreeprom.bat 00 25 00 C: DECT>call wreeprom.bat 00 26 00 C: DECT>_...
  • Page 97 CHG terminal is properly fit in the cabine CHG terminal comes out of rib by pulling black lead wire when opening the cabinet and turning the PCB over. The terminal cannot have enough elastic force, cannot have good contact with handset, and it will result in charge problem.
  • Page 98 DECT tester CMD60 To Tel Simulator (H) (I) (J) (K) (L) (M) (N) (O) JMP2 JMP6 JMP5 A201 JMP7 JMP8 RLY1 JMP4 JMP3 JMP1 A202 B C E LED1...
  • Page 99 Digital Volt Meter (D) (E) (F) (G) 12Ω/2W (H) (N) (O) Digital Digital To PC (JIG) Volt Meter Volt Meter J105 J101 TP84 TP82 TP187 CHARGE+ CHARGE TP97 TP50 TP45 TP188 TP91 Frequency Counter TP89 TP40 TP39 To DECT tester TP101 TP90 DTMF...
