Overview

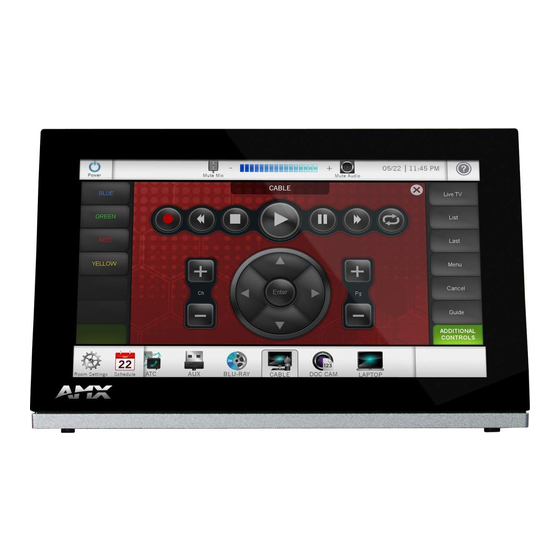

The MST-701 7" Tabletop Touch Panel (FG2265-06) includes VoIP, brilliant 24-bit
color depth, PoE connectivity, USB and streaming video. The MST-701 also supports
Bluetooth keyboard and mouse via the optional MXA-BT Bluetooth Adapter.
Sleep Button Microphone
MST-701
FIG. 1
Product Specif ications
MST-701 SPECIF ICATIONS
Dimensions (HWD) 4 1/2" x 7 3/8" x 3 3/16" (115 mm x 188 mm x 81 mm)
Weight 1.4 lbs (.635 Kg)
Power Consumption • Full-On: 13W
• Typical: 7W
• Standby: 4.5W
• Shutdown: 0.7W
• Start-Up Inrush Current: Not applicable due to PoE standard
External Power Optimal performance requires use of one of the following AMX PoE
Supply Required power supplies (not included):
• PS-POE-AF-TC, PoE Injector, 802.3AF Compliant (FG423-83)
• NXA-ENET8-2POE, Gigabit PoE Ethernet Switch (FG2178-63)
Certifications • FCC Part 15 Class B
• CE EN 55022, 55024, 60950-1
• IEC 60950-1
• C-Tick CISPR 22 Class B
• IC CISPR 22 Class B
• UL 60950-1
• VCCI CISPR 22 Class B
• RoHS
• WEEE
Environmental • Temperature (Operating): 32°F to 104°F (0°C to 40°C)
• Temperature (Storage): 4°F to 140°F (-20°C to 60°C)
• Humidity (Operating): 20% to 85% RH
• Humidity (Storage): 5% to 85% RH
• Power ("Heat") Dissipation:
On: 27.3 BTU/hr
Standby: 10.9 BTU/hr
Included • MXA-USB-C, USB Port Cover Kit (FG5968-18)
Accessories • Cat5e Ethernet Cable, Flat Black (ECA2265-10)
• UTP CAT.5E Snap In Coupler, Black (64-5968-01)
Connector Locations
USB peripherals (mouse, keyboard, etc.) may be connected to the USB port on the rear
of the device. Updates to the device's firmware can also made via the USB port.
USB Port
Speaker
RJ-45 Port
MST-701 USB PORT LOCATION
FIG. 2
MST-701
Power via Power Over Ethernet
Power for the MST-701 is supplied via Power Over Ethernet (PoE), utilizing an AMX-
certified, capacitive touch-compliant PoE injector such as the PS-POE-AT-TC High
Power PoE Injector (FG423-83) or other approved AMX PoE power source.
The incoming Ethernet cable should be connected to the RJ45 port on the panel.
Conf iguring and Programming
S Series touch panels are equipped with a Settings menu that provides the ability to set
and configure various features on the panels.
Note: Information on the Settings menu, panel conf iguration and programming is
provided in the Modero S Series Programming Guide, available at www.amx.com.
Accessing the Settings Menu
USB Port
To access the Settings menu, press and hold the Sleep button on the top of the panel
for 3 seconds. This invokes an on-screen prompt to release the button to enter the main
Settings page (FIG. 3).
FIG. 3
Accessing the Conf iguration Page
1.
2.
FIG. 4
Setting the Panel's Device Number and Device Name
In the Conf iguration page:
1.
2.
3.
4.
5.
6.
7.
7" Modero S Series Tabletop Touch Panel
SETTINGS MENU
From the Settings menu, select Conf iguration.
If the Conf iguration page is password protected, this opens a password keypad.
Enter the panel password into the keypad (the default is 1988) and select OK to
access the page (FIG. 4).
CONFIGURATION PAGE
• To reboot the panel, press and hold the text under the Reboot section for two
seconds.
• To shut down the panel, press and hold the text under the Shutdown section for
two seconds.
Press Panel to open the Panel Conf iguration page.
In the Device Name page, ensure that the Synchronize Device Names button is not
selected, and click it to deselect it if it is.
Press Device Number to open the Device Number keypad.
Enter a unique Device Number assignment for the panel and press OK.
Press the Device Name field to open the Device Name keypad.
Enter a unique Device Name assignment for the panel and press OK.
Click the arrow on the top left of the page once to return to the Conf iguration
page and twice to return to the Settings page.
