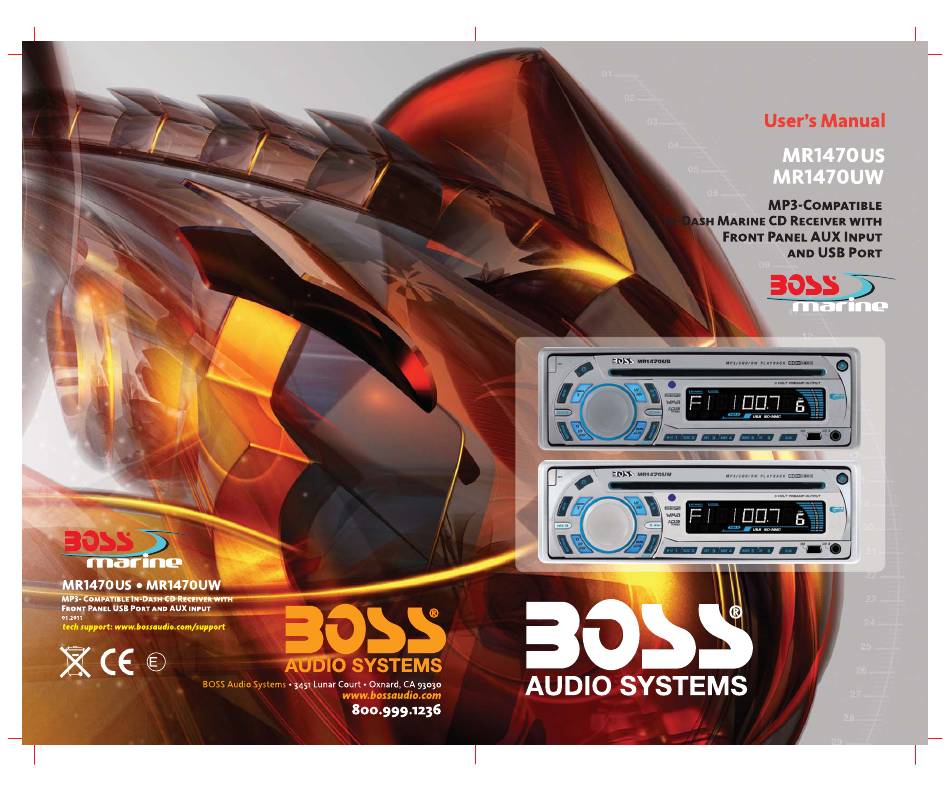

- Page 1 10 R - 02 0896...
-
Page 2: Table Of Contents
CONTENTS LIST PAGE CONTENTS BUTTONS LOCATION AND FUNCTIONS HANDLING COMPACT DISCS ACCESSORY INCLUDED INSTALLATION DETACHABLE CONTROL PANEL WIRING DIAGRAM BASIC OPERATIONS AUDIO OPERATIONS RADIO OPERATIONS CD OPERATIONS USB DRIVE OPERATIONS SD/MMC OPERATIONS MP3/WMA OPERATIONS REMOTE CONTROL SPECIFICATIONS TROUBLE SHOOTING... -
Page 3: Buttons Location And Functions
1. BUTTONS LOCATION AND FUNCTIONS 1. Tecla para remover o painel frontal 1. Panel Release Button 2. Mute Button 2. Tecla Mute 3. CD Eject Button 3. Tecla para ejetar o disco 4. Audio Button 4. Tecla de ajuste de audio 5. -
Page 4: Handling Compact Discs
2. HANDLING COMPACT DISCS MOISTURE CONDENSATION On a rainy day or in a very damp area, moisture may condense on the lenses inside the unit. Should this occur, the unit will not operate properly. In such a case, remove the disc and wait for about an hour until the moisture has evaporated. -
Page 5: Accessory Included
3. ACCESSORY INCLUDED When first unpacking your new head unit, please check first that the package contains all of the items below. If something is missing, contact the store where you purchased the player. Owner’s Manual Warranty Card Remote control Lithium Battery Half Sheeve Insert Key... -
Page 6: Installation
4. INSTALLATION Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and system work properly. Use only the parts included with the unit to ensure proper installation. The use of unauthorized parts can cause malfunctions. - Page 7 Removing the unit a. Frame b. Insert fingers into the groove in the front of frame and pull out to remove the frame. (When re-attaching the frame, point the side with a groove down wards and attach it.) c. Insert the levers supplied with the unit into the grooves at both sides of the unit as shown in figure until they click.
-
Page 8: Detachable Control Panel
5. DETACHABLE CONTROL PANEL (D.C.P .) Removing The Detachable Control Panel (D.C.P .). 1. Turn the power off 2. Press the D.C.P . release button 3. Remove the D.C.P . PANEL RELEASE BUTTON Attaching the DCP 1. Attach the panel at the right side first, with point B on the main unit touching point A on the D.C.P . -
Page 9: Wiring Diagram
6. WIRING DIAGRAM (20 PIN HARNESS PLUG) FUSE SICHERUNG FUSIBLE ANTENNA CABLE INPUT FUSíVEL FUSIBLE ANTENNENVERLÄNGERUNGSKABEL FUSIBILE CÂBLE D'EXTENSION D' ANTENNE ENTRADA PARA CABO DE ANTENA CABLE DE ANTENA CAVO ANTENNA ESTENDIBILE 20-PIN AUDIO/POWER HARNESS (See Figure 1) 20-PIN AUDIO/STROM- KABELGESCHIRR PLAQUE 20 FICHES AUDIO/ALIMENTATION CONECTOR DE 20 PINOS PARA AUDIO E ALIMENTACAO CONECTOR DE AUDIO / POTENCIA DE 20 PIN... -
Page 10: Basic Operations
7. BASIC OPERATIONS 1) PANEL RELEASE BUTTON (REL) Press this button to remove the control panel. 12) POWER ON/OFF BUTTON Press this button to turn on or off the power. 5) DISPLAY BUTTON (DISP) Press this button briefly, the LCD will display the clock for about 2 seconds, then return to previous display mode. -
Page 11: Audio Operations
8. AUDIO OPERATIONS 10) VOLUME KNOB Turn this knob to adjust desired volume level. 4) AUDIO BUTTON Press this button to select desired audio function. ORDER OF FUNCTION: VOLUME(VOL) -> BASS(BAS) -> TREBLE(TRE) ->BALANCE(BAL) ->FADER(FAD) While the selected function is displayed, turn Volume Knob to adjust the level within 5 seconds, otherwise the unit will return to volume adjustment mode. -
Page 12: Radio Operations
9. RADIO OPERATIONS 11) AUTO MEMORY STORE/PRESET SCAN BUTTON (AS/PS) 1. PRESET SCAN: Press AS/PS button briefly to enter Preset Scan mode, it will scan all the preset stations in the memories, you can hear that it will stay on each station for about 5 seconds. 2. -
Page 13: Cd Operations
10. CD OPERATIONS M1) PAUSE BUTTON (PAUSE) Press this button to pause CD play, press again to release pause. M2) SCAN BUTTON (SCAN) Press this button, the first 10 seconds of each track will be played sequentially until this button is pressed again, then normal play will resume at the current track. -
Page 14: Usb Drive Operations
PLEASE READ THIS INSTRUCTION CAREFULLY BEFORE OPERATING THE UNIT 11. USB DRIVE OPERATIONS COMPATIBILITY Due to the fast changing technology world, this unit may or may not P .1 be compatible to all the USB drive / device available with all the future technology, especially those USB drive / device which require to install a driver. -
Page 15: Sd/Mmc Operations
12. SD/MMC OPERATIONS 1. Press panel release button to release the front panel.(P .1) 2. The SD/MMC card slot is located on the unit as indicated in (P .2). 3. Insert the SD/MMC card into the card slot in the correct direction until a “CLICK” sound is heard.(P .3) 4. -
Page 16: Mp3/Wma Operations
13. MP3/WMA OPERATIONS Notes : - An MP3 directory is shown in this manual as “D irectory ”, and an MP3 file is shown as “Track”. - Maximum length of file name : 28 characters. - Maximum length of directory : 16 characters. - Supports Multi-Session recording. - Page 17 Press MP3 ENTER BUTTON and continue to search the directory or file name in the directory by TUNE UP / DOWN Button (TUNE DOWN First). The selected file can be played by pressing MP3 Enter Button The distribution of alphabetical characters are listed as follow : Button DISP MODE TUNE DN TUNE UP...
-
Page 18: Remote Control
14. REMOTE CONTROL OPERATIONS: Radio Mode CD Player Mode MP3 Mode 1. Power Power On/Off Power On/Off Power On/Off Adjust Vol,Bas, 2. Volume Up/Down Adjust Vol,Bas, Adjust Vol,Bas, Tre,Fad,Bal Tre,Fad,Bal Tre,Fad,Bal 3. ID3/DISP Display Clock Display Clock ID3 tag information Display Clock, Numeric key 0* 4.Stereo/Mono... -
Page 19: Specifications
15. SPECIFICATIONS CD PLAYER CD Player System Compact disc audio system Sistema: Sistema áudio CD Usable disc Compact disc Tipo de disco: Sampling frequency 44.1KHz Frequência de Amostragem: 44.1KHz No of quantization bits 1bit Conversor D/A: 1bit Frequency 5-20,000Hz Resposta de frequencia 5-20,000Hz Number of channels 2 stereo... -
Page 20: Trouble Shooting
16. TROUBLE SHOOTING Before going through the check list, check wiring connection. If any of the problems persist after check list has been made, consult your nearest service dealer. Symptom Cause Solution If the power supply is properly connected No power The car ignition is not on.
