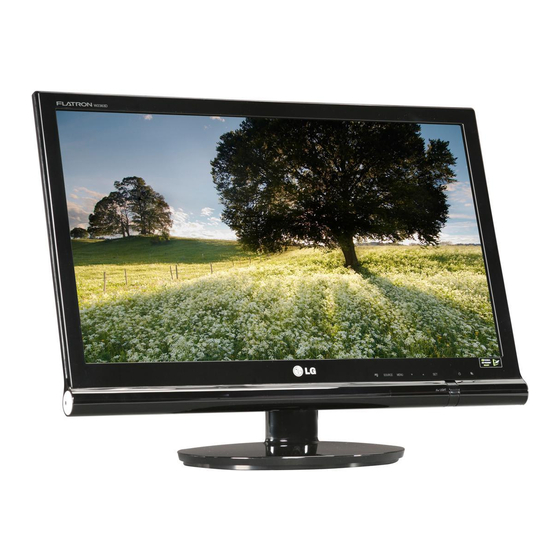

LG W2363D Owner's Manual

Lg 3d gaming monitor
Hide thumbs Also See for W2363D:
Table of Contents

Advertisement

Quick Links

See also: Service Manual
OWNER'S MANUAL

LCD MONITOR

Please read this manual carefully before operating your set and
retain it for future reference.
LCD MONITOR MODELS
W2363D
www.lg.com

Advertisement

Table of Contents
loading

Related Manuals for LG W2363D

Summary of Contents for LG W2363D

  • Page 1: Lcd Monitor

    OWNER’S MANUAL LCD MONITOR Please read this manual carefully before operating your set and retain it for future reference. LCD MONITOR MODELS W2363D www.lg.com...

  • Page 2: Important Precautions

    Important Precautions This unit has been engineered and manufactured to ensure your personal safety, however improper use may result in potential electrical shock or fire hazards. In order to allow the proper operation of all safeguards incorporated in this display, observe the following basic rules for its installation, use, and servicing.
  • Page 3 Important Precautions On Installation Do not allow anything to rest upon or roll over the power cord, and do not place the display where the power cord is subject to damage. Do not use this display near water such as near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool.

  • Page 4: On Cleaning

    Important Precautions On Cleaning Unplug the display before cleaning the face of the display screen. Use a slightly damp (not wet) cloth. Do not use an aerosol directly on the display screen because over-spraying may cause electrical shock. When cleaning the product, unplug the power cord and scrub gently with a soft cloth to prevent scratching.
  • Page 5 Accessories !!! Thank for selecting LGE products !!! Please make sure the following items are included with your monitor. If any items are missing, contact your dealer. OWNER'S MANUAL/Cards DVI-D Signal Cable IMPORTANT This accessories may look different from those shown here. User must use shielded signal interface cables (DVI-D cable) with ferrite cores to maintain standard compliance for the product.

  • Page 6: Connecting The Display

    Connecting the Display Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off. Connecting and Disassembling the stand Place the monitor face down on the soft cloth. Assemble the Stand Base into the Stand Body in the correct direction. Make sure you push the Stand Base until the end.
  • Page 7 Connecting the Display Turn the screw to the right to fix the Stand Body to the Stand Base. Screw Turn the screw by using the screw handle. Then fold the screw handle flat. To disconnect the Stand Base from the Stand Body, unfold the screw handle and turn it to the left.

  • Page 8: Positioning Your Display

    Connecting the Display Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off. Positioning your display After installation, adjust the angle as shown below. Adjust the position of the panel in various ways for maximum comfort. Tilt Range: -5˚...
  • Page 9 Connecting the Display Connecting with the PC/AV equipment Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off. Connect signal input cable screw of the signal cable. Connect DVI-D (Digital signal) Cable Connect HDMI Cable (HDMI1, HDMI2) NOTE This is a simplified representation of the rear view.

  • Page 10: Front Panel Controls

    Control Panel Functions Front Panel Controls Button SOURCE Button MENU Button Use this button to enter THRU MODE, SRS TRUSURROUND HD, ARC or AUTO BRIGHT menus. For more information, refer to page 13 to 14. When two input signals are connected, you can select the input signal (DVI-D/HDMI1/HDMI2) you want.

  • Page 11: Power Button

    Control Panel Functions Buttons SET Button TRU-LIGHT Button Power Button Power Indicator Use these buttons to select or adjust functions in the On Screen Display. Use this button to enter a selection in the On Screen Display. You can select GAME, MOVIE or MUSIC by using this button and the LED light shape will change according to each mode.

  • Page 12: Screen Adjustment

    On Screen Display (OSD) Control Adjustment Screen Adjustment Making adjustments to the image size, position and operating parameters of the display is quick and easy with the On Screen Display Control system. A short example is given below to familiarize you with the use of the controls.
  • Page 13 On Screen Display (OSD) Control Adjustment The following table indicates all the On Screen Display control, adjustment, and setting menus. Main menu G-MODE THRU MODE SRS TRUSURROUND HD AUTO BRIGHT BRIGHTNESS PICTURE CONTRAST GAMMA BLACK LEVEL COLOR PRESET (sRGB / 6500K / 9300K) GREEN BLUE SATURATION...

  • Page 14: On Screen Display(Osd) Selection And Adjustment

    On Screen Display(OSD) Selection and Adjustment The OSD screen will appear when you press the of the monitor. Menu Name Icons Sub-menu Name Main menu When operating 3D screen, THRU MODE function is inactivated. It is not supported in 1080i input signal. Sub menu THRU MODE This prevents the response speed of the...
  • Page 15 On Screen Display(OSD) Selection and Adjustment Main menu When operating 3D screen, AUTO BRIGHT function is inactivated. Sub menu The picture will be displayed depends on Input resolution.No Scaling. If 640 x 480 resolution input, the picture will just display 640 x 480 size even though the 1920 x 1080 size panel.
  • Page 16 On Screen Display(OSD) Selection and Adjustment You were introduced to the procedure of selecting and adjusting an item using the OSD system. Listed below are the icons, icon names, and icon descriptions of the all items shown on the Menu. Press the MENU Button, then the main menu of the OSD appears.
  • Page 17 On Screen Display(OSD) Selection and Adjustment Main menu PICTURE DVI-D input HDMI input MENU : Exit : Decrease : Increase : Select another sub-menu When operating 3D screen, Sub menu BRIGHTNESS To adjust the brightness of the screen. CONTRAST To adjust the contrast of the screen. GAMMA Set your own gamma value: -50 / 0 / 50 On the monitor, high gamma values...
  • Page 18 On Screen Display(OSD) Selection and Adjustment Main menu COLOR DVI-D input HDMI input MENU : Exit : Decrease : Increase SET : Select another sub-menu HUE, SATURATION Sub menu PRESET • sRGB: Set the screen color to fit • 6500K: Slightly reddish white. •...
  • Page 19 On Screen Display(OSD) Selection and Adjustment Main menu TRACKING DVI-D, HDMI input MENU : Exit : Decrease : Increase : Select another sub-menu Sub menu Description To adjust the clearness of the screen. SHARPNESS...
  • Page 20 On Screen Display(OSD) Selection and Adjustment Main menu SETUP DVI-D input HDMI input MENU : Exit : Decrease : Increase : Select another sub-menu When operating 3D screen, RTC function is inactivated. If this does not improve the screen image, restore the factory default settings. Sub menu Description To choose the language in which the control...

  • Page 21: Troubleshooting

    Troubleshooting Check the following before calling for service. No image appears No image appears Is the power cord of the display connected? Is the power indicator light on? Is the power indicator blinking? Do you see an "OUT OF RANGE" message on the screen? Do you see a "CHECK SIGNAL CABLE"...

  • Page 22: Display Image Is Incorrect

    • Be sure to install the display driver from the display driver CD (or diskette) that comes with your display. Or, you can also download the driver from our web site: http://www.lg.com. • Make sure to check if the video card supports Plug&Play function.

  • Page 23: Specifications

    Specifications Display 58.4 cm (23.0 inch) Flat Panel Active matrix-TFT LCD Anti-Glare coating Visible diagonal size: 58.4 cm 0.266 mm x 0.266 mm (Pixel Pitch) Sync Input Horizontal Freq. Vertical Freq. Input Form Video Input Signal Input Input Form Resolution Recommend Recommend Plug&Play...

  • Page 24: Hdmi Vedio Input

    Specifications Preset Modes (Resolution) - DVI-D(Digital) INPUT Display Modes (Resolution) 640 x 350 720 x 400 640 x 480 640 x 480 800 x 600 800 x 600 1024 x 768 1024 x 768 1152 x 864 1280 x 1024 1280 x 1024 1680 x 1050 1680 x 1050...

  • Page 25: Installing The Wall Mount Plate

    Installing the Wall mount plate This monitor satisfies the specifications of the Wall mount plate or the interchange device. Place the monitor face down on the soft cloth. To disconnect the Stand Base from the Stand Body, unfold the screw handle and turn it to the left.
  • Page 26 Installing the Wall mount plate Install the Wall mount plate. Wall mount plate(Separate purchase) This is stand-type or wall mount type and is connectable with Wall mount plate. Please refer to the installation guide for more details, which is provided when Wall mount plate is purchased.
  • Page 27 Make sure to read the Important Precautions before using the product. Keep the User’s Guide(CD) in an accessible place for furture reference. The model and serial number of the SET is located on the back and one side of the SET. Record it below should you ever need service.

This manual is also suitable for:

W2363d-pf
