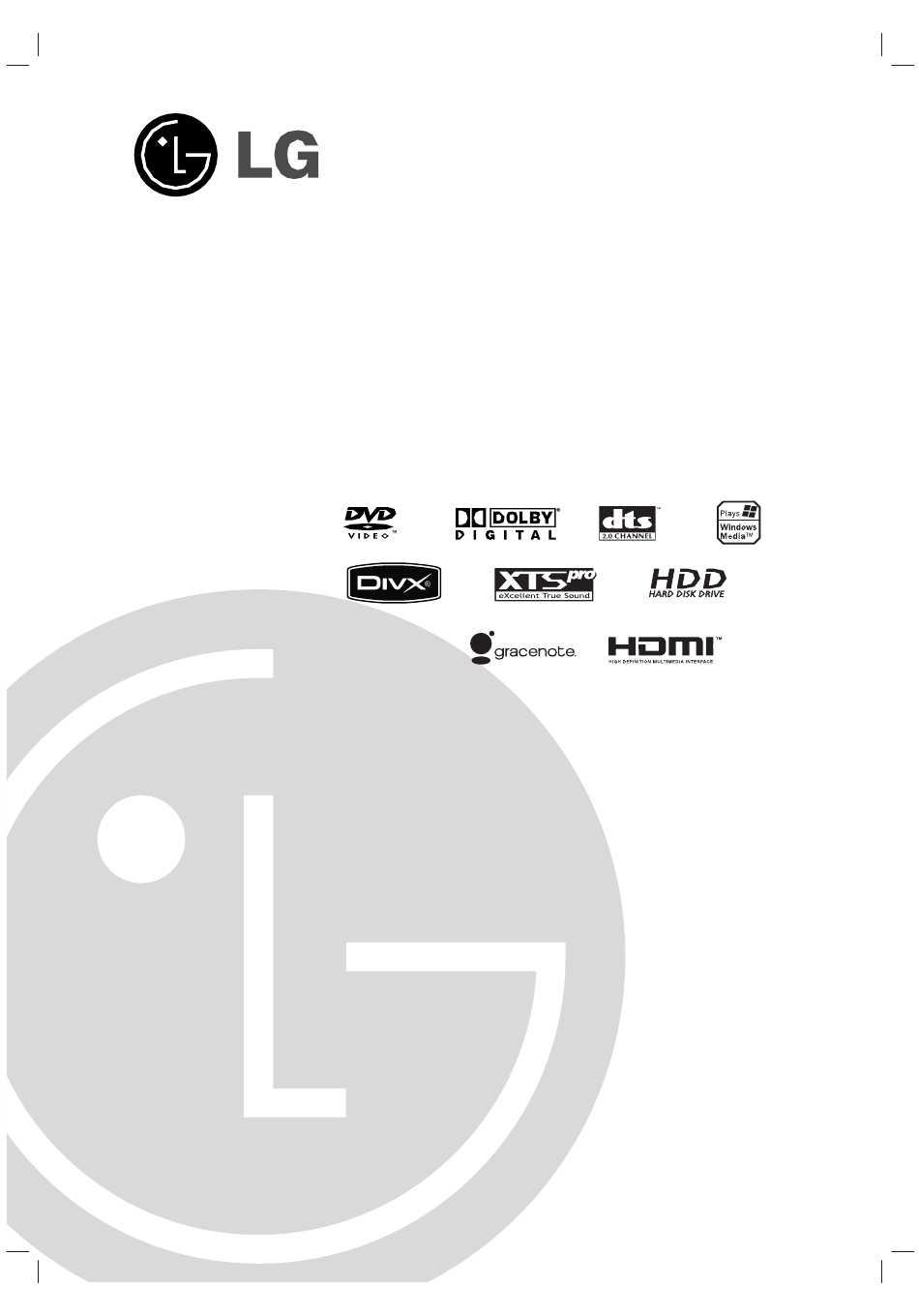

- Page 1 J10HD-A_JA4GLLA_ENG_MFL38591008 2.1CH Home Theater System OWNER’S MANUAL MODEL: J10HD SPEAKERS: J10HD-SF/J10HD-SA Before connecting, operating or adjusting this product, please read this instruction booklet carefully and completely.
- Page 2 CAUTION concerning the Power Cord CAUTION Most appliances recommend they be placed upon a RISK OF ELECTRIC SHOCK dedicated circuit; DO NOT OPEN That is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. CAUTION: THESE SERVICING Check the specification page of this owner's manual to be INSTRUCTIONS ARE FOR USE BY...
- Page 3 ® Gracenote End User License Agreement Version 20061005 This application or device contains software from Gracenote, Inc. of Emeryville, California (“Gracenote”). The software from Gracenote (the “Gracenote Software”) enables this application to perform disc and/or file identification and obtain music-related information, including name, artist, track, and title information (“Gracenote Data”) from online servers or embedded databases (collectively, “Gracenote Servers”) and to perform other functions.
-
Page 4: Table Of Contents
Contents Reference ......33-37 Additional Information ....33 Presetting the Radio Stations . -
Page 5: Introduction
Introduction About the Symbol Display To ensure proper use of this product, please read this owner’s manual carefully and retain for future “ ” may appear on your TV display during reference. operation and indicates that the function explained in this owner’s manual is not available on that specific This manual provides information on the operation media. -
Page 6: Playable Discs
Playable Discs DVD (8 cm / 12 cm disc) Discs such as movies that can be purchased or rented Video CD (VCD) (8 cm / 12 cm disc) VIDEO CDs or CD-Rs/CD-RWs in VIDEO CD/Super VIDEO CD format Audio CD (8 cm / 12 cm disc) Music CDs or CD-Rs/CD-RWs in music CD format that can be purchased CD-R/CD-RW (8 cm / 12 cm disc) CD-R/CD-RW discs that contain audio titles, DivX, MP3, WMA, or JPEG files. -
Page 7: About The Internal Hard Disk Drive
About the internal hard disk Playing media files using the drive USB feature The internal hard disk drive (HDD) is a fragile piece of You can enjoy the media files such as pictures equipment. Please use the unit following the (JPEG), movies (DivX) and tunes (MP3/WMA) saved guidelines below to protect against possible HDD in an MP3 player or USB memory by connecting the... -
Page 8: Main Unit
Main Unit a HDMI Connector (Type A) HDMI output providing a high quality interface for digital audio and video. b SYSTEM Connector Connect the main unit to the active subwoofer. c Display window d * Touch pad You can point to, select, and scroll objects on the display window. -
Page 9: Active Subwoofer
* Touch pad This unit has touch sensitive controls that respond to the touch of your fingers. Notes: Do not place objects on the top panel of the main unit. Do not touch the touch pad hard to make it work. Slowly and lightly touch the touch pad. -
Page 10: Remote Control
Remote Control SLEEP: Set the system to turn off RETURN (O): Removes the automatically at a specified time. menu. EJECT: Ejects or inserts disc from PRESET(+/-): Select programme the slot loader. of Radio. DISC: Selects a DISC mode. TUN.(+/-): Tunes in the desired radio station. -
Page 11: Hookup And Settings
Hookup and Settings Making system connections 2. Connect the L (left) speaker cable (S2) into the rear jack of the left speaker. Connect the R (right) speaker cable (S2) into the rear jack of the right Caution speaker. Do not plug the active subwoofer into an AC power(mains) outlet until all the components are L (left) speaker R (right) speaker... - Page 12 Connecting Your TV to the active subwoofer Optical digital connection Connect an optical output of digital device into the Portable audio OPTICAL IN jack on the rear of the active subwoofer Digital Device devices using optical cable (O). Caution OPTICAL Headphones or Line out jack When you use HDMI connection, if the resolution is...
-
Page 13: Hdmi Connection
HDMI connection Rear of the unit If you have a HDMI TV or monitor, you can connect it to this unit using a HDMI cable. 1. Connect the HDMI jack on the unit to the HDMI jack on a HDMI compatible TV or monitor (H). 2. -
Page 14: Using The Home Menu
Using the Home Menu General Operation 1. Select SETUP and press ENTER From the Home Menu screen you can access all the 2. Use v / V to select the desired option. Media for playback and recording of the unit. 3. -
Page 15: Pbc (Version 2.0)
PBC (Version 2.0) Audio Settings PBC stands for Playback Control and refers to special menus and navigation features that are available on some Video CDs. [ON] Video CDs are played according to the PBC, if available. [OFF] Video CDs are played the same way as Audio CDs. -
Page 16: Lock (Parental Control) Settings
Lock (Parental Control) Settings Note: If you set a rating for the unit, all disc scenes with the same rating or lower are played. Higher rated scenes are not played unless an alternate scene is available on the disc. The alternative must have the same rating or a lower one. -
Page 17: Displaying Disc Information On-Screen
Displaying Disc Information on-screen You can display various information about the disc loaded on-screen. 1. Press DISPLAY to show various playback information. The items displayed differ depending on the disc type or playing status. 2. You can select an item by pressing v / V and change or select the setting by pressing b / B. -
Page 18: Playback
Playback General Playback Features 1. Insert your chosen disc into CD loader, with the playback side down. 2. Starts playback using HOME menu (see page 14). 3. To stop the playback, press x (STOP). The unit records the stopped point, depending on the disc. “Xx” appears on the screen briefly. Press B (PLAY) to resume playback (from the scene point). - Page 19 General Playback Features (Continued) Buttons Operations Discs REPEAT During playback, press REPEAT repeatedly to select a desired repeat mode. DivX DVD (Title/Chapter/Off) Video CD, DivX (Title/ALL/Off) Audio CD, MP3/WMA (TRACK/ALL/(OFF)) Notes: On a Video CD with PBC, you must set PBC to [OFF] in the Setup menu to use the Repeat function.
- Page 20 To Recall or Clear a Marked Scene If a menu screen is displayed 1. During disc playback, press SEARCH. The marker The menu screen may be displayed first after loading a search menu appears on the screen. DVD or Video CD which contains a menu. 2.
-
Page 21: Playing A Divx Movie File
[Delete] Deletes the file(s) or folder(s) from the Playing a DivX Movie File media. [Rename] Edits the file name. (page 28) The unit can play Divx files. Before playing DivX files, [Move] Moves the file(s) to another folder or read “DivX file requirement” on right. media. -
Page 22: Playing An Audio Cd Or Mp3/Wma File
Playing an Audio CD or Audio CD and Music menu options MP3/WMA file 1. Press v / V to select a folder/file on the Audio CD or Music menu then press ENTER. The unit can play audio CDs and MP3/WMA files. Before The menu options appear. - Page 23 Music List Folder (HDD) 8. Select [Update] option then press ENTER. [Folder View] The identified and unidentified audio files in the hard disk are displayed in the folder list view. [Song List] The identified audio files in the hard disk are displayed in the file list view. [Artist] The identified audio files in the hard disk is displayed by the artist’s name.
-
Page 24: Identifying The Audio Cd Tracks Or The Stored Music Files In The Hard Disk
Identifying the audio CD tracks 2. Repeat step 1 to mark additional track. or the stored music files in the 5. Press ENTER. The menu options appear on the menu. hard disk 6. Select [Identify] option then press ENTER. Make signature and search matched song. You can identify the audio CD tracks or music files from built-in database the CD track information. -
Page 25: Program Playback With Audio Cd And Mp3/Wma File
Program Playback with Audio Program list menu options CD and MP3/WMA file 1. Press v / V to select a track/file on the Program list then press ENTER. Program Playback enables you to make custom The menu options appear. playlists of Audio CD or MP3/WMA tracks. Programs can contain up to 99 Audio CD tracks or 256 MP3/WMA files. -
Page 26: Viewing A Jpeg File
Viewing a JPEG File Photo List menu options 1. Press v / V to select a file on the [Photo List] This unit can play JPEG files. Before playing JPEG menu then press ENTER. recordings, read “Photo file requirement” on page 27 The menu options appear. - Page 27 View Slide Shows Tip: You can create new folder in the HDD. Slide show will automatically go to next picture at a Select [Edit-Copy-New Album] option then press specified interval. ENTER. “NONAME###” folder is created. 1. Select [Slide Show] option on the [Photo List] menu.
-
Page 28: Editing A Mp3/Wma, Jpeg, Divx File
Editing a MP3/WMA, JPEG, DivX Naming a file on the HDD file You can name the files on the HDD independently. 1. Select a file you wish to rename on the menu. These descriptions are MP3 file’s operation for 2. Press ENTER. example, other kind’s files are operated same way. - Page 29 Copying a file(s) to another media or Moving a file(s) folder You can move a file(s)/folder(s) to HDD or folder. After moving, the file(s)/folder(s) are deleted from the You can copy a file(s)/folder(s) to HDD or folder. current location. 1. Select a file you wish to copy on the menu. 1.
-
Page 30: Aux/Mobile/Optical (Listening To An External Source)
AUX/MOBILE/OPTICAL Using Apple iPod (Listening to an external source) You can perform the basic operations of your iPod using the supplied remote control with this unit. You can listen to the sound of the connected external Notes: device through your unit. You need an Apple iPod universal dock with a built- 1. -
Page 31: Recording
Recording To find your ripped tracks You can find and playback the ripped tracks in hard disk. By ripping CDs and recording from radio you can build 1. Press HOME and select [MUSIC] option. your music library on hard disk. 2. -
Page 32: Timeshift
Timeshift Jump to Start or End during Timeshift Do not miss a part from a live broadcast. 1. Press ENTER during timeshift. The menu will If the telephone rings while you are listening to your appear. favorite live broadcast, just press TIMESHIFT and X 2. -
Page 33: Reference
Reference Listening to the Radio Preset radio stations in the unit’s memory first (see “Presetting the radio stations” on the left). Additional Information 1. Press TUNER until AM (MW) or FM appears in the Presetting the Radio Stations display window. The last received station is tuned in. -
Page 34: Sleep
You can control the sound level, input source, and 1. On the remote control, press SLEEP repeatedly to power switch of your LG/GoldStar TV with the select the desired time period options (in minutes): supplied remote. -
Page 35: Language Codes
Language Codes Use this list to input your desired language for the following initial settings: Disc Audio, Disc Subtitle, Disc Menu. Language Code Language Code Language Code Language Code Abkhazian 6566 Fiji 7074 Lingala 7678 Singhalese 8373 Afar 6565 Finnish 7073 Lithuanian 7684... -
Page 36: Troubleshooting
Troubleshooting Check the following guide for the possible cause of a problem before contacting service. Cause Solution Symptom The power cord is disconnected. Plug the power cord into the wall No power. outlet securely. No picture. The TV is not set to receive unit Select the appropriate video input mode signal output. -
Page 37: Specifications
Specifications General Dimensions (approx.) 326 X 215 X 78 mm (w x h x d) without foot Mass (approx.) 3.1kg Operating temperature 5˚C to 35˚C Operating humidity 5 % to 90 % Audio recording format Sampling frequency 44.1kHz Compression format Sampling bitrate 128Kbps Recording... - Page 38 P/NO : MFL38591008...
