Fortinet FortiToken-200B Quick Start Manual

FortiToken-200B
FortiToken-200B is a small hardware One Time Password (OTP) generator,
aka Token, that fits on a key-chain. Simply press the button and the
FortiToken-200B generates and displays a secure one-time password (OTP)
that you enter along with your regular password for secure authentication and
access to critical applications and sensitive data.
The time remaining is shown on a circular time in 10-second increments.
After the 60 seconds is up, the password expires and the FortiToken display
turns off.
Step 1. Unpacking
Open the shipping carton and carefully unpack its contents. The carton should contain the following items:
• FortiToken-200B units
• FortiToken-200B QuickStart Guide (QSG)
If any item is found missing or damaged, please contact your local reseller for replacement.

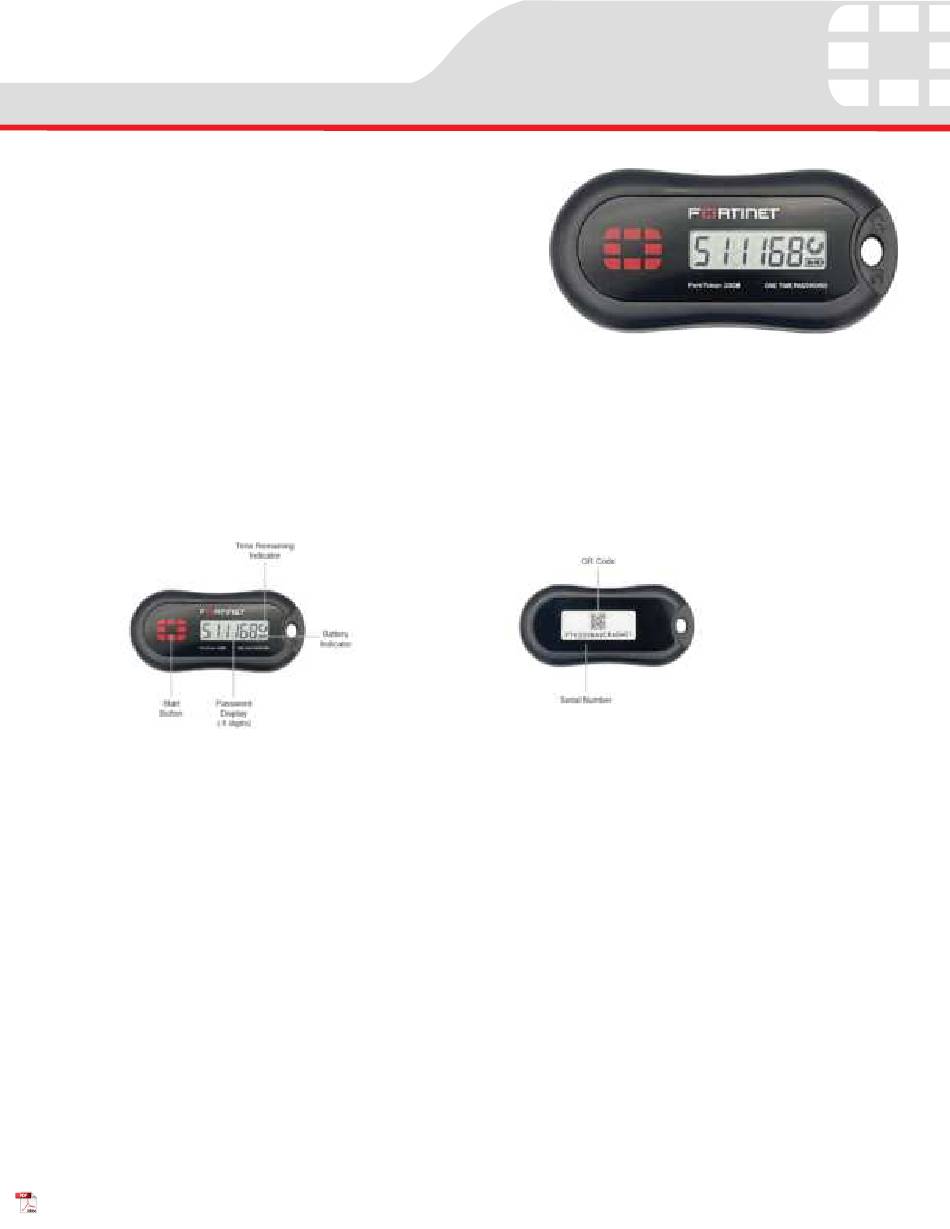

Package Contents:
Step 2. Activating the FortiToken unit
Before you can successfully use the FortiToken-200B token generator, it must be activated on the FortiGate or FortiAuthenticator system.
The following requirements must be met before you can do this:
• The FortiGate or FortiAuthenticator unit system time must be configured to synchronize with a Network Time
Protocol (NTP) server. Note that with FortiOS, FortiToken identifiers must be entered into the FortiGate unit, which
then contacts FortiGuard servers to verify the information before activating them.
FortiAuthenticator on the other hand acts as a repository for all FortiToken devices used on your network. It is
•
a single point of registration and synchronization for easier installation and maintenance
The FortiGate or FortiAuthenticator unit must be able to access the FortiGuard Distribution Network (FDN).
•
To activate one or more FortiToken units with your FortiGate unit.
1. Log in to the web-based manager of your FortiGate unit.
2. Go to User > FortiToken > FortiToken. Select Create New. Then add the serial numbers for each FortiToken unit you have and select OK.
3.
Each FortiToken unit will automatically activate. The Status field will indicate Activating. Select Refresh, and you should see the Status field
changed to Active.
4. Select the check box for the activated FortiToken unit, then on the toolbar select Synchronization. The Synchronize FortiToken dialog box
appears.
5.
Press the Start button of your FortiToken unit and enter the 6-digit token password in the First Code field. Wait until the
FortiToken time expires, then press the Start button again to generate a second password and enter it into the Next Code field. Select OK.
QuickStart Guide
