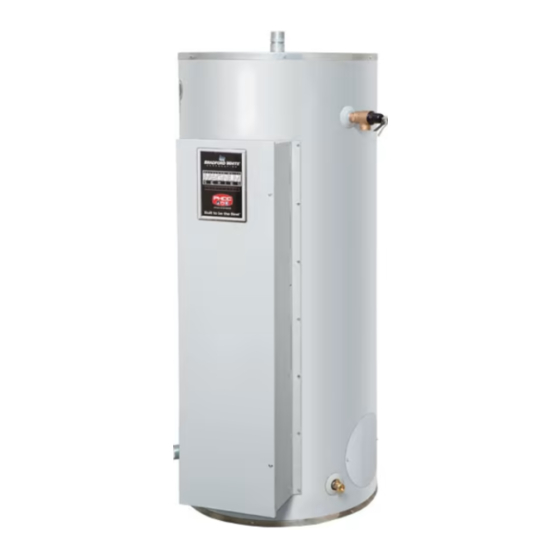

COMMERCIAL ELECTRIC WATER HEATER
A Spanish language version of these instructions is available by
contacting the company listed on the rating plate.
La versión espãnola de estas instrucciones se puede obtener al
escribirle a la fábrica cuyo nombre aparece en la placa de
especificaciones.
THE WARRANTY ON THIS WATER HEATER IS IN EFFECT ONLY WHEN
THE WATER HEATER IS INSTALLED AND OPERATED IN
ACCORDANCE WITH LOCAL CODES AND THESE INSTRUCTIONS.
THE MANUFACTURER OF THIS HEATER WILL NOT BE LIABLE FOR
ANY DAMAGE RESULTING FROM FAILURE TO COMPLY WITH THESE
INSTRUCTIONS. READ THESE INSTRUCTIONS THOROUGHLY
BEFORE STARTING.
For your family's comfort, safety and convenience, it is
recommended this water heater be installed and serviced by a
plumbing professional.
INSTALLATION & OPERATION
INSTRUCTION MANUAL
238-51313-00C REV 5/18
Advertisement
Table of Contents
Related Manuals for Bradford White ElectriFLEX HD CEHD50
Summary of Contents for Bradford White ElectriFLEX HD CEHD50
- Page 1 COMMERCIAL ELECTRIC WATER HEATER A Spanish language version of these instructions is available by contacting the company listed on the rating plate. La versión espãnola de estas instrucciones se puede obtener al escribirle a la fábrica cuyo nombre aparece en la placa de especificaciones.
-
Page 2: Table Of Contents
TABLE OF CONTENTS General Information ............Installation................Locating the Water Heater ............ 4 Water Connections ............... 6 Electrical Connections ............11 Wiring Diagrams ..............12 Amperage Chart ..............22 GPH Recovery Capacities ............ 22 General Operation ............. Thermostat Adjustment ............24 Maintenance ............... -
Page 3: General Information
GENERAL INFORMATION This electric water heater’s design is certified by Intertek (ETL) and listed in accordance with UL1453. CETL listed in accordance with Canadian National Standard C22.2, No. 110-M90. This water heater must be installed in accordance with local codes. In the absence of local codes, install this water heater in accordance with the N.E.C. -
Page 4: Installation
General Information continued- Additionally, the water heater should be flushed with appropriate dissolvers to eliminate any bacteria. IMPORTANT Before proceeding, please inspect the water heater and its components for possible damage. DO NOT install any damaged components. If damage is evident, please contact the supplier where the water heater was purchased or the manufacturer listed on the rating plate for replacement parts. - Page 5 General Information continued- Water heater corrosion and component failure can be caused by the heating and breakdown of airborne chemical vapors. Examples of some typical compounds that are potentially corrosive are: spray can propellants, cleaning solvents, refrigerator and air conditioning refrigerants, swimming pool chemicals, calcium or sodium chloride, waxes and process chemicals.
-
Page 6: Water Connections
Water Connections NOTE: BEFORE PROCEEDING WITH THE INSTALLATION, CLOSE THE MAIN WATER SUPPLY VALVE. After shutting the main water supply valve, open a faucet to relieve the water line pressure to prevent any water from leaking out of the pipes while making the water connections to the water heater. - Page 7 Water Connections continued- WARNING For protection against excessive temperatures and pressure, install temperature and pressure protective equipment required by local codes, but not less than a combination temperature and pressure relief valve certified by a nationally recognized testing laboratory that maintains periodic inspection of production of listed equipment or materials, as meeting the Requirements for Relief Valves and Automatic Gas Shutoff Devices for Hot Water Supply Systems, ANSI Z21.22, and the Standard...
- Page 8 Water Connections continued- WARNING Hydrogen gas can be produced in a hot water system served by this water heater that has not been used for a long period of time (generally two weeks or more). Hydrogen gas is extremely flammable. To reduce the risk of injury under these conditions, it is recommended that the hot water faucet be opened for several minutes at the kitchen sink before using any electrical appliance connected to the hot water system.
- Page 9 Water Connections continued- Water temperature over 125°F can cause severe burns instantly or death from scalds. Children, disabled and elderly are at highest risk of being scalded. Review this instruction manual before setting temperature at water heater. Feel water before bathing or showering.
- Page 10 Water Connections continued- Figure 2 (Single Installation With Storage Tank Gravity Circulation) Figure 3 (Dual Water Heater Installation)
-
Page 11: Electrical Connections
Electrical Connections Before any electrical connections are made, be sure that the water heater is full of water and that the manual shut-off valve in the cold water supply line is open. If the heating elements are not completely immersed in water at all times, they will be damaged (burned-out) if energized for even a short period of time. -
Page 12: Wiring Diagrams
3 Element Contactor Models... - Page 13 3 Element Contactor Fused Models...
- Page 14 600V 3 Element Contactor Fused Models...
- Page 15 6 Element Contactor Models...
- Page 16 6 Element Contactor Fused Models...
- Page 17 600V 6 Element Contactor Fused Models...
- Page 18 9 Element Contactor Models...
- Page 19 9 Element Contactor Fused Models...
- Page 20 600V 9 Element Contactor Fused Models...
-
Page 22: Amperage Chart
Electrical Connections continued- Amperage Chart 208V 240V 277V 380V 415V 480V 600V Input 1Ø 3Ø 1Ø 3Ø 1Ø 3Ø 3Ø 1Ø 3Ø 3Ø 13.5 Water heaters with amperage draw of 48 AMPS or more require factory installed internal fusing to comply with INTERTEK requirements. GPH Recovery Capacities Temperature Rise Input... -
Page 23: General Operation
GENERAL OPERATION Before closing the switch to allow electric current to flow to the water heater, make certain that the water heater is full of water and that the cold water inlet valve is open. Complete failure of the heating elements will result if they are not totally immersed in water at all times. -
Page 24: Thermostat Adjustment
Thermostat Adjustment The thermostat(s) or temperature control dial has been preset to the off position. To adjust the thermostat, locate the dial on the right hand side of the control box. Turn the dial to the desired temperature (see Figure 4). DANGER Hotter water increases the risk of scald injury. -
Page 25: Maintenance
MAINTENANCE IMPORTANT The water heater should be inspected at a minimum of annually by a qualified service technician for damaged components. DO NOT operate this water heater if any part is found damaged. Shut off the electric power whenever the water supply to the water heater is off. - Page 26 Maintenance continued- 3. At least once a year, check the combination temperature and pressure relief valve to ensure that the valve has not become encrusted with lime. Lift the lever at the top of the temperature-pressure relief valve several times until the valve seats properly without leaking and operates freely. WARNING When lifting lever of temperature-pressure relief valve, hot water will be released under pressure.
- Page 27 Maintenance continued- Contact your local plumbing supplier or plumbing professional for replacement parts or contact the company at the address displayed on the rating plate of the water heater. For faster and better service, please provide the part name, model, and serial number(s) of the water heater(s) when ordering parts.
- Page 28 NOTES...
