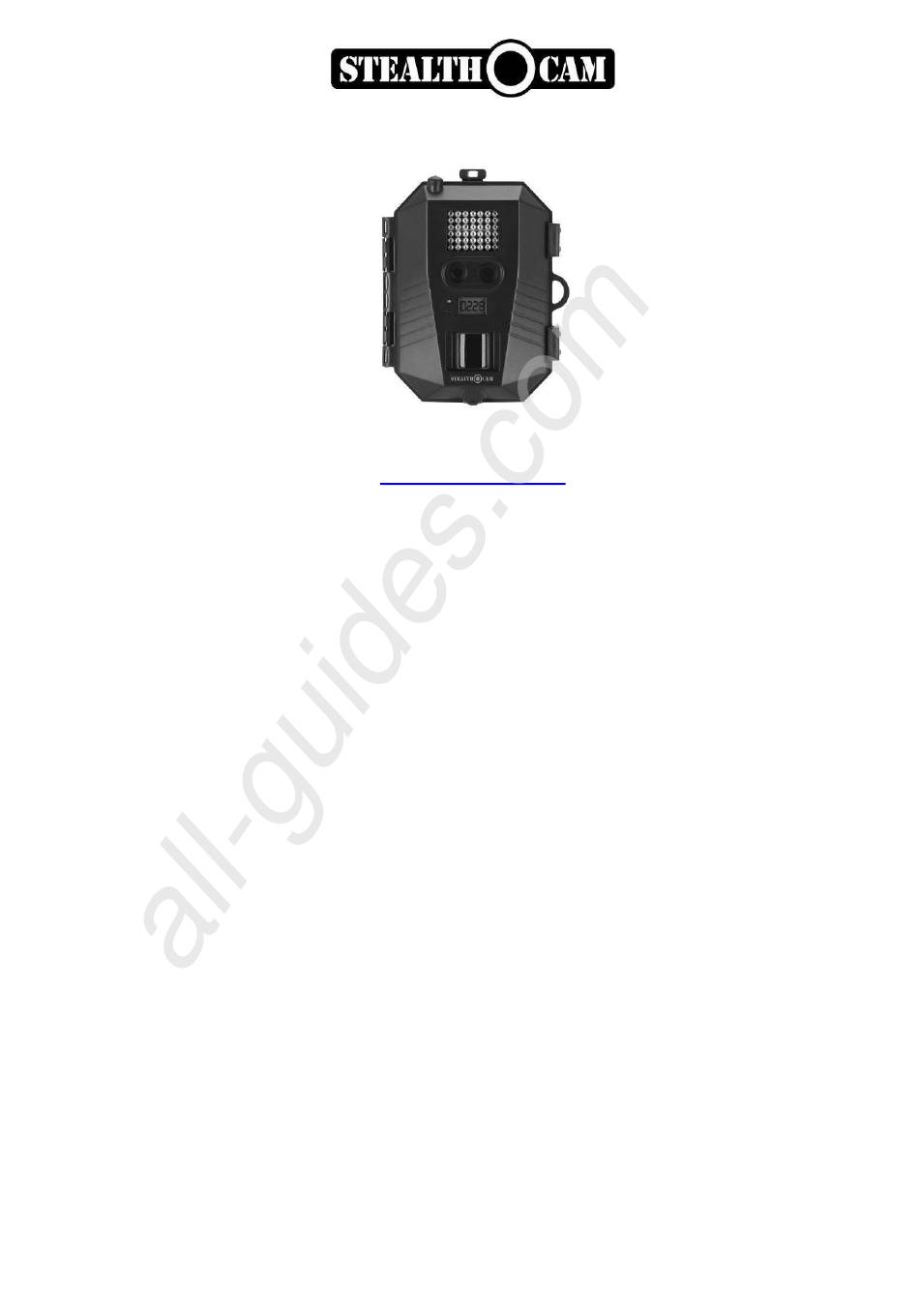

- Page 1 All manuals and user guides at all-guides.com STC-DVIR5 PROWLER User’s Manual Toll Free Customer Support 1-877-269-8490 www.stealthcam.net Version 1.0 07/07...
- Page 2 Stealth Cam Limited Warranty Your Stealth Cam scouting camera is covered by a 90 days Limited Warranty on parts and labor from the date of original purchase, and purchases must be made through an authorized dealer. The warranty covers defects in workmanship and materials.
-
Page 3: Table Of Contents
All manuals and user guides at all-guides.com STC-DVIR5 PROWLER Manual Contents Camera overview Camera kit contents Battery and memory Installation Set up and programming Camera use Mounting the camera Viewing & Deleting images Memory compatibility chart Technical Specs General Information Moon phase chart www.stealthcam.net... -
Page 4: Camera Overview
All manuals and user guides at all-guides.com STC-DVIR5 PROWLER Camera overview Front housing image with major parts indication. www.stealthcam.net Toll Free 877-269-8490... - Page 5 All manuals and user guides at all-guides.com STC-DVIR5 PROWLER Open view image with major parts indication www.stealthcam.net Toll Free 877-269-8490...
- Page 6 All manuals and user guides at all-guides.com STC-DVIR5 PROWLER Side view with major parts indication www.stealthcam.net Toll Free 877-269-8490...
- Page 7 All manuals and user guides at all-guides.com STC-DVIR5 PROWLER Picture / Image Capacity High Base SD card (in seconds) Color B&W Color B&W Color B&W Color B&W 16MB 32MB 64MB 160s 180s 128MB 1280 320s 360s 256MB 1280 1280 2560...
-
Page 8: Camera Kit Contents
All manuals and user guides at all-guides.com STC-DVIR5 PROWLER Camera kit contents Model STC-DVIR5 PROWLER Digital Scouting Camera • CDROM (Contains Ulead Photo Explorer 8.0 and camera • driver) User Manual. • USB cable. • TV out cable for TV (RCA Jack). -
Page 9: Battery And Memory Installation
Doing so will damage the camera and will void the warranty. The Stealth Cam STC-DVIR5 PROWLER Advanced Digital Scouting Camera is designed to operate using two different types of battery power options. - Page 10 All manuals and user guides at all-guides.com STC-DVIR5 PROWLER 12V Lead Acid external battery The STC-DVIR5 PROWLER is equipped with an external power jack designed to accept a barrel plug cable to attach to a sealed lead acid battery. (sold separately). Battery cable and complete 12V Lead Acid battery kits are available wherever Stealth Cam scouting cameras are sold or call toll free 877-269-8490.
- Page 11 All manuals and user guides at all-guides.com STC-DVIR5 PROWLER the camera will use the built in 32MB memory. If an SD card is inserted into the slot then the camera will bypass the built in memory and utilize the SD memory. The front counter display will...
-
Page 12: Set Up And Programming
All manuals and user guides at all-guides.com STC-DVIR5 PROWLER Set up and Programming When the camera is first turned on the internal LCD screen displays the camera status. The following information is present on this screen. If no buttons are pressed after 30 seconds the LCD screen will power down to conserve battery life and enter 1 minute count down to enter PIR detection mode. - Page 13 All manuals and user guides at all-guides.com STC-DVIR5 PROWLER Definition Time out: To set the amount of time in minutes the camera will • sleep between PIR triggering. Capture mode: • 1P ~ 9P: 1 to 9 burst mode image capturing per PIR triggering.
- Page 14 All manuals and user guides at all-guides.com STC-DVIR5 PROWLER B&W Night time o 2.0M : Select this option to capture a 2.0M pixels image. (High image quality) o 1.3M : Select this option to capture a 1.3M pixels image. (Low image quality) o 0.3M : Select this option to capture a 0.3M pixels image.
- Page 15 All manuals and user guides at all-guides.com STC-DVIR5 PROWLER Day and Time: It shows the date and time that you have set. • Moon phase and Temperature: It shows the moon phase and • temperature. www.stealthcam.net Toll Free 877-269-8490...
- Page 16 • (HIGH/LOW/BASE) and press [OK] to save and exit to CAPTURING setting Set the Capturing sequence. The Stealth Cam STC-DVIR5 PROWLER can be programmed to shoot 1~9 pictures per triggering. The number of burst mode next to the word CAMERA will be •...
- Page 17 Press [OK] to confirm your selection and exit to TIME OUT • settings. Set the Video Mode: The Stealth Cam STC-DVIR5 PROWLER can be programmed to shoot 5~90 seconds of video per triggering. The video length in seconds will be blinking •...
- Page 18 All manuals and user guides at all-guides.com STC-DVIR5 PROWLER Set Date and Time: This camera uses the 24hr military time format. The date and time digit will be blinking. Press [OK] one more • time to enter time setting first.
- Page 19 All manuals and user guides at all-guides.com STC-DVIR5 PROWLER Date digit will be blinking. Press [UP] or [DN] to increase or • decrease the date value. (1 – 31) Once this is done, press [OK]. You’ll see the word {No-dL} blink. Now press [MENU] to exit program setting and back to status screen.
-
Page 20: Camera Use
All manuals and user guides at all-guides.com STC-DVIR5 PROWLER Using the camera Once all program setting has been completed your Stealth Cam is ready for field use. Getting started It is recommended that you mount the camera 4-5 ft off the ground with the camera pointed at a slight downward angle. -
Page 21: Mounting The Camera
All manuals and user guides at all-guides.com STC-DVIR5 PROWLER Mounting the camera Mounting the camera with Tree Screw (Optional Accessory sold separately) Hand twists the screw into the tree or post at the desired • position. Attached the camera to the screw by turning the camera onto •... - Page 22 All manuals and user guides at all-guides.com STC-DVIR5 PROWLER Attached camera to tree screw. Do not over tighten as this may cause damage to camera housing. Using the nut and washer that came with the tree screw, tighten to the bottom of camera for greater stability.
- Page 23 All manuals and user guides at all-guides.com STC-DVIR5 PROWLER Stealth Cam offers a Security Lock Bracket for uses exclusively with this camera. See included accessory card or call toll free 877-269-8490. In order to obtain proper weather resistance, please make sure that both door latches are securely locked in place.
- Page 24 All manuals and user guides at all-guides.com STC-DVIR5 PROWLER LED light on the front will blink when you have intruded the coverage area. Adjust the camera position as needed and repeat testing until • the desired coverage area is achieved.
- Page 25 All manuals and user guides at all-guides.com STC-DVIR5 PROWLER Using the camera in PIR detection mode Mount the camera to tree or other sturdy object using either a • tree screw (optional accessory) or supplied mounting strap (You may refer to the mounting suggestions section in this manual) Open the front housing and move the switch to the ON position.
- Page 26 All manuals and user guides at all-guides.com STC-DVIR5 PROWLER The IR LED will only activate in low light conditions. When using the AVI function, Time/Date stamp will not appear on the AVI video clips. www.stealthcam.net Toll Free 877-269-8490...
-
Page 27: Viewing & Deleting Images
All manuals and user guides at all-guides.com STC-DVIR5 PROWLER Viewing and deleting the images The STC-DVIR5 PROWLER cam offers the user different options for viewing the images. The external LCD display on the front of the housing will show the number of images in memory. - Page 28 All manuals and user guides at all-guides.com STC-DVIR5 PROWLER Turn on both the camera and TV monitor. Your camera is preset to NTSC TV out system by default. If • the handheld TV screen does not flicker, then you do not need to set your TV out system.
- Page 29 All manuals and user guides at all-guides.com STC-DVIR5 PROWLER On the upper left hand corner of your TV monitor, it will either • display the picture icon or video icon to show you whether that image is a still image or video clip.
- Page 30 STC-DVIR5 PROWLER Viewing images by computer download The Stealth Cam STC-DVIR5 PROWLER Digital Scouting Camera is a plug and play USB storage device. This means users of Windows 2000 / ME / and XP operating systems need not install the camera driver.
- Page 31 All manuals and user guides at all-guides.com STC-DVIR5 PROWLER completely install the driver and application program. Restart windows. • Successful installation will create “Ulead Photo Explorer” icon • on you desktop. Connect your camera to the PC by the USB cable, the PC will •...
- Page 32 All manuals and user guides at all-guides.com STC-DVIR5 PROWLER If your computer doesn’t run automatically, please click “Start” • button and choose “Run”, and then browse the CD drive and click “Setup”. Operation manual of Ulead Photo Explorer is contained on the •...
- Page 33 All manuals and user guides at all-guides.com STC-DVIR5 PROWLER At the same time, your computer will recognize the camera as • a mass storage device and will be found under MY COMPUTER. Deleting images At any time while viewing images on Handheld TV or Home TV you may delete images one at a time or all at once.
- Page 34 All manuals and user guides at all-guides.com STC-DVIR5 PROWLER Press [OK] to confirm your selection. • Press [UP] or [DN] until you see (NO-dL) and then press • [MENU] to return to image viewing. If you choose to delete one picture at a time, (d-ONE), it will •...
- Page 35 All manuals and user guides at all-guides.com STC-DVIR5 PROWLER At the end of each program set up selection, you may press [MENU] to exit and return to camera status ready for the 1 minute count down mode to enter PIR capturing.
-
Page 36: Memory Compatibility Chart
All manuals and user guides at all-guides.com STC-DVIR5 PROWLER SD Memory Card Compatibility Chart The following cards have been tested and approved for use in the STC-DVIR5 PROWLER model. 32MB, 64MB, 128MB, 256MB, 512MB San Disk 32MB, 64MB, 128MB, 512MB, 1GB, 2GB... -
Page 37: Technical Specs
All manuals and user guides at all-guides.com STC-DVIR5 PROWLER Technical Specifications System Requirements and Compatibility Windows 98/98se/2000/Me/XP. • P 450MHz or equivalent processor. • 128MB SDRAM or above. • VGA Video Card with 32MB RAM for minimum, Color 16 bit or •... - Page 38 All manuals and user guides at all-guides.com STC-DVIR5 PROWLER Camera Features and Specification. Image sensor 1: 1.3 CMOS Color sensor • Camera lens 1 4P glass lens with IR coating • Image sensor 2: 3.0 CMOS Color sensor • Camera lens 2: 5P glass lens with IR coating •...
- Page 39 All manuals and user guides at all-guides.com STC-DVIR5 PROWLER Effective Range for Still picture (up to 50 ft) Effective Range for AVI clip (up to 50 ft) Real time clock for date and time stamping. • 4 digits LCD Image counter.
- Page 40 All manuals and user guides at all-guides.com STC-DVIR5 PROWLER External power: 12 volts battery pack • Image format: Standard JPEG or Motion JPEG (AVI) • www.stealthcam.net Toll Free 877-269-8490...
-
Page 41: General Information
All manuals and user guides at all-guides.com STC-DVIR5 PROWLER General Information Storing conditions Operating Environment: 14 to 104 deg F (-10 to 40 deg C). 20- • 85% relative humidity, non-condensing. Special care instructions!! The camera is designed to be weather resistant. Never attempt •... - Page 42 All manuals and user guides at all-guides.com STC-DVIR5 PROWLER cause serious damage to the unit and will void the warranty. This camera is a precision electronic device. Do not attempt to service this camera yourself, as opening or removing covers may expose you to dangerous voltage points or other risks.
-
Page 43: Moon Phase Chart
All manuals and user guides at all-guides.com STC-DVIR5 PROWLER Moon Phase Symbol Chart Product specifications are subject to change. Stealthcam is not responsible for any photographic or typographical errors. WF072_R0 Printed In China www.stealthcam.net Toll Free 877-269-8490...
