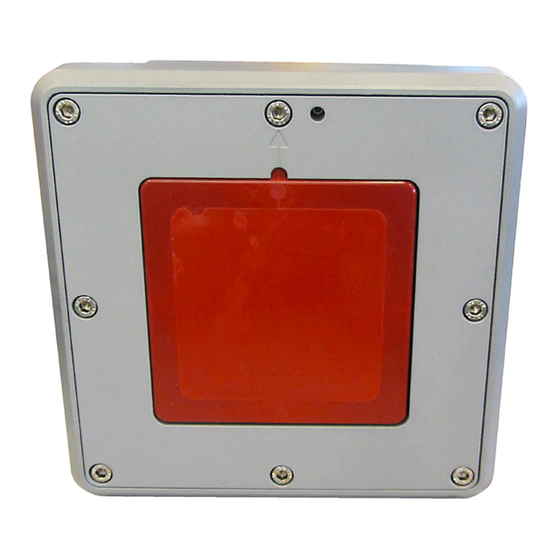

Purse Seine and Trawling Sonar
This is the Harbour Acceptance Test for the Simrad SN90 Purse Seine
and Trawling Sonar.
The purpose of this Harbour Acceptance Test is to verify that the SN90
system provided to the vessel is correctly installed, and fully functional.
It is then ready for the Sea Acceptance Test. When all the tasks have
been done, the report form must be signed by the relevant parties. The
completed document then becomes the official report.
Vessel/Customer
Serial numbers (if applicable)
Processor Unit
Operating Panel
Transceiver Unit
Hull Unit
Transducer
Simrad SN90
Harbour Acceptance Test
May 2018 © Kongsberg Maritime AS
438850/A

Advertisement

Table of Contents
loading

Related Manuals for Simrad SN90

Summary of Contents for Simrad SN90

  • Page 1 This is the Harbour Acceptance Test for the Simrad SN90 Purse Seine and Trawling Sonar. The purpose of this Harbour Acceptance Test is to verify that the SN90 system provided to the vessel is correctly installed, and fully functional. It is then ready for the Sea Acceptance Test. When all the tasks have been done, the report form must be signed by the relevant parties.
  • Page 2 If you require maintenance or repair, contact your local dealer. You can also contact us using the following address: simrad.support@simrad.com. If you need information about our other products, visit https: //www.simrad.com. On this website you will also find a list of our dealers and distributors. Kongsberg Maritime AS www.kongsberg.com...

  • Page 3: Table Of Contents

    Visual inspection of the hull unit ..................23 Environmental inspection of the Transceiver Unit ............... 25 Verifying that all SN90 cables are properly connected............27 TESTING THE SN90 OPERATIONAL FUNCTIONALITY ....29 Checking the transducer lower and hoist functionality............30 Checking the transducer lower and hoist functionality - Bridge operations ....
  • Page 4 Simrad SN90 Verifying SN90 operation by means of the BITE functionality ........... 40 Verifying SN90 operation by means of the Element BITE functionality ......44 Measuring the BITE noise in Passive mode with the transducer connected to Transceiver Unit ....................... 49 TESTING THE INTERFACES WITH PERIPHERAL DEVICES ...

  • Page 5: Introduction

    Introduction Introduction Topics Purpose, page 6 Personnel and location, page 6 Referenced documents, page 6 Tools and test equipment, page 7 438850/A...

  • Page 6: Purpose

    This is the Harbour Acceptance Test for the Simrad SN90 Purse Seine and Trawling Sonar. The purpose of this Harbour Acceptance Test is to verify that the SN90 system provided to the vessel is correctly installed, and fully functional. It is then ready for the Sea Acceptance Test.

  • Page 7: Tools And Test Equipment

    Introduction Note Unless specified in the applicable procedure(s), the SN90 publications listed here are not required during this Harbour Acceptance Test. All the document numbers refer to the English version of each publication. End user manuals • : 381294 Reference Manual and On-line Help •...

  • Page 8: Acceptance Test Summary

    A hull unit may be provided as an optional method to lower and hoist the transducer. Note All information and tasks related to the hull unit may be disregarded and omitted if the SN90 is known to be supplied without this unit.

  • Page 9: Hardware And Software Registration

    Hardware and software registration Hardware and software registration Topics Verification of previously tested items, page 10 Software items, page 11 Hardware items, page 12 438850/A...

  • Page 10: Verification Of Previously Tested Items

    Verification of previously tested items Neither user interface software nor hardware units have been changed on this SN90 system since the Factory Acceptance Test. For this reason, the registration tables have not been filled out. Date and signature...

  • Page 11: Software Items

    385347 When applicable, the software media item can be any memory device (CD, DVD, USB flash drive, etc) that contains the SN90 software. End user documentation may be included on the same software media, or provided on a separate device.

  • Page 12: Hardware Items

    Serial number Revision Fill in the make, model and serial number for each unit that is provided with the SN90 delivery. If applicable, add the order number. The unit contains neither circuit boards nor modules that need to be identified separately.

  • Page 13: Transceiver Unit

    The unit contains neither circuit boards nor modules that need to be identified separately. Transceiver Unit The Transceiver Unit provided with the SN90 delivery must be uniquely identified. Make, model, part number and serial number must be registered. The Transceiver Unit contains circuit boards and modules that must be recorded separately.

  • Page 14: Operating Panel

    Hull Unit A hull unit may be provided as an optional method to lower and hoist the transducer. The hull unit provided with the SN90 delivery must be uniquely identified. Type, part number and serial number must be registered. 438850/A...

  • Page 15: Transducer

    The unit contains neither circuit boards nor modules that need to be identified separately. Transducer The transducer provided with the SN90 delivery must be uniquely identified. The SN90 transducer is available in four different versions. Only the version ordered is provided with the delivery.

  • Page 16: Visual Inspection

    Environmental inspection of the Transceiver Unit, page 25 Verifying that all SN90 cables are properly connected, page 27 Visual inspection of the display A visual inspection of the SN90 display is required to verify that the unit has not been physically damaged during the installation. Prerequisites The SN90 is installed as specified in the SN90 Installation manual.
  • Page 17 Visual inspection Procedure Make sure that the unit’s serial number has been recorded in the list of hardware items. Make sure that the physical installation of the unit has been completed. Make sure that the structure to which the display is fastened is substantial enough to hold the unit securely under all operating conditions.

  • Page 18: Visual Inspection Of The Processor Unit

    The display is properly grounded. Date and signature: Visual inspection of the Processor Unit A visual inspection of the SN90 Processor Unit is required to verify that the unit has not been physically damaged during the installation. Prerequisites The SN90 is installed as specified in the SN90 Installation manual. The SN90 is turned off.
  • Page 19 Visual inspection Make sure that the bolts, screws or studs holding the unit are of the correct size. Make sure that the correct flat and shake-proof washers have been used. Make sure that all nuts have been tightened properly. Make sure that all welds and brackets have been painted with the correct preservation medium to prevent corrosion.

  • Page 20: Visual Inspection Of The Operating Panel

    A visual inspection of the Operating Panel is required to verify that the unit has not been physically damaged during the installation.. Prerequisites The SN90 is installed as specified in the SN90 Installation manual. The SN90 is turned off. You need the following equipment: • Multimeter Procedure Make sure that the unit’s serial number has been recorded in the list of hardware items.

  • Page 21: Visual Inspection Of The Transceiver Unit

    A visual inspection of the Transceiver Unit is required to verify that the unit has not been physically damaged during the installation. Prerequisites The SN90 is installed as specified in the SN90 Installation manual. The SN90 is turned off. You need the following equipment: • Multimeter Procedure Make sure that the unit’s serial number has been recorded in the list of hardware items.
  • Page 22 Simrad SN90 Harbour Acceptance Test Make sure that ample space is provided around the unit to allow for maintenance and replacement of parts. Make sure that the bolts, screws or studs holding the unit are of the correct size. Make sure that the correct flat and shake-proof washers have been used.

  • Page 23: Visual Inspection Of The Hull Unit

    It is also important to check that the unit has been installed correctly. Prerequisites The SN90 is installed as specified in the SN90 Installation manual. The SN90 is turned off. You need the following equipment: • Multimeter Procedure Make sure that the unit’s serial number has been recorded in the list of hardware items.
  • Page 24 Make sure that the transducer cables can move freely when the transducer is lowered and hoisted. Repeat the inspection of the transducer cables when the SN90 is turned on and put to operational use. Make sure that the unit is firmly connected to vessel ground.

  • Page 25: Environmental Inspection Of The Transceiver Unit

    Transceiver Unit. An environmental inspection of the Transceiver Unit is required to verify the quality of the sonar room. Prerequisites The SN90 is installed as specified in the SN90 Installation manual. You need the following equipment: • Thermometer •...
  • Page 26 Make sure that the relative humidity in the sonar room meets the environmental specifications. Measure the relative humidity in the sonar room. 30 minutes after the SN90 has been switched on and put to normal operation, measure the relative humidity one more time. Record the values in the result table.

  • Page 27: Verifying That All Sn90 Cables Are Properly Connected

    Before you can do this task, the following prerequisites must be met: • The SN90 is installed as specified in the SN90 Installation manual. • The SN90 has been set up with its hardware units connected as specified in the SN90 Installation manual.
  • Page 28 Simrad SN90 Harbour Acceptance Test If possible, use a multimeter or a dedicated cable tester to check the continuity in each cable. Use a qualification tester to verify that each Ethernet cable is correctly wired, and meets the specifications related to quality and bandwidth.

  • Page 29: Testing The Sn90 Operational Functionality

    Testing the user interface to verify basic functionality, page 39 Verifying SN90 operation by means of the BITE functionality, page 40 Verifying SN90 operation by means of the Element BITE functionality, page 44 Measuring the BITE noise in Passive mode with the transducer connected to Transceiver...

  • Page 30: Checking The Transducer Lower And Hoist Functionality

    The hull unit provided with the SN90 is designed to lower the transducer down below the ship’s hull when the SN90 shall be used. This is a key functionality of the SN90. It is very important that the hoist/lower function is tested before the SN90 is put to operational use.

  • Page 31: Checking The Transducer Lower And Hoist Functionality - Bridge Operations

    The hull unit provided with the SN90 is designed to lower the transducer down below the ship’s hull when the SN90 shall be used. This is a key functionality of the SN90. It is very important that the hoist/lower function is tested before the SN90 is put to operational use.
  • Page 32 (S302). Set the switch to position STOP. Hoist/Lower Switch 12 Power down the SN90. If the transducer is lowered when you power off the SN90, it is automatically retracted to its upper position. The Transceiver Unit powers down. The SN90 program closes down.

  • Page 33: Checking The Transducer Lower And Hoist Functionality - Sonar Room Operations

    The hull unit provided with the SN90 is designed to lower the transducer down below the ship’s hull when the SN90 shall be used. This is a key functionality of the SN90. It is very important that the hoist/lower function is tested before the SN90 is put to operational use.
  • Page 34 10 [Bridge] Notify the sonar room to do the next step. 11 Locate (S302). Set the switch to position STOP. Hoist/Lower Switch 12 [Bridge] Power down the SN90. 13 [Bridge] Notify the sonar room that the test is finished. Result Requirements...

  • Page 35: Measuring The Bite Noise With The Transducer Disconnected From The Transceiver Unit

    Low noise is a key factor for high quality and reliable measurements. The performance of the SN90 will always be limited by different noise sources. A high noise level will mask the echoes and make them difficult to read and interpret. The noise is measured while the SN90 operates in Passive mode with the transducer disconnected.
  • Page 36 Simrad SN90 Harbour Acceptance Test Select to open the page. Noise Select Start Noise Measurements Observe the noise curve. Read the maximum and average noise values. Repeat for selected frequencies. Record the frequencies and the measured values in the result table.

  • Page 37: Measuring The B-Scan Noise With The Transducer Disconnected From The Transceiver Unit

    Low noise is a key factor for high quality and reliable measurements. The performance of the SN90 will always be limited by different noise sources. A high noise level will mask the echoes and make them difficult to read and interpret. The noise is measured while the SN90 operates in Passive mode with the transmit pulses disabled.
  • Page 38 Simrad SN90 Harbour Acceptance Test Open the (Element Built-In Test Equipment) dialog box. Element BITE Open the menu. Setup Select to open the (Built-In Test Equipment) dialog box. BITE BITE Select to open the page. Processor Select to open the dialog box.

  • Page 39: Testing The User Interface To Verify Basic Functionality

    • The vessel is berthed. Neither tools nor instruments are required. Caution You must never set the SN90 to "ping" unless the transducer is submerged in water. The transducer may be damaged if it transmits in open air. Procedure Make sure that the SN90 user interface is fully operational.

  • Page 40: Verifying Sn90 Operation By Means Of The Bite Functionality

    Simrad SN90 Harbour Acceptance Test Make sure that the relevant views are operational. Move the cursor to the views in the main SN90 presentation. Click inside one of the views. Make sure that the view is activated, and that relevant changes are made in any dynamic menus.
  • Page 41 Neither tools nor instruments are required. Caution You must never set the SN90 to "ping" unless the transducer is submerged in water. The transducer may be damaged if it transmits in open air. For the best possible conditions to complete the test, the ship must be "silent".
  • Page 42 Make sure that the water depth under the keel permits you to lower the transducer. Lower the transducer to its bottom position. Do the following preparations. At the bottom of the SN90 presentation, select a suitable presentation mode, and activate the Horizontal view. Open the menu.
  • Page 43 If faulty channels are grouped together on the transducer face, this may cause a visible defect in the SN90 presentation. If they are scattered, the visible defect may be a lot harder to see. In all cases, the echoes from the neighbouring channels cause an interpolation that will restore a lot of the degraded presentation.

  • Page 44: Verifying Sn90 Operation By Means Of The Element Bite Functionality

    B-Scan of the elements in the SN90 transducer. The start sample and the number of samples to be displayed are adjustable. Prerequisites The SN90 is installed as specified in the SN90 Installation manual.
  • Page 45 B-Scan of the elements in the SN90 transducer. The start sample and the number of samples to be displayed are adjustable. When you move the cursor over the B-Scan presentation of the SN90 transceiver channels, each element in the transducer is clearly identified as a long coloured vertical rectangle.
  • Page 46 Look at the pattern in the B-Scan presentation, and compare them with the example provided. The sample frequency in the SN90 is 5 kHz. Since the sound travels approximately 750 meter back and forth every second, each sample will cover 750 m divided by 5000 Hz, which is approximately 15 cm.
  • Page 47 Hoist the transducer back up to its upper position. Result Requirements Results The information presented by the page verifies that the SN90 is fully B-Scan operational. All elements are operational in both transmit and receive. The maximum number of unserviceable elements is 3.
  • Page 48 Simrad SN90 Harbour Acceptance Test Example This screen capture shows the B-Scan pattern while testing the receiver in the near range. 438850/A...

  • Page 49: Measuring The Bite Noise In Passive Mode With The Transducer Connected To Transceiver Unit

    SN90 transducer may however mounted on the port or starboard side of the vessel, and with a fixed tilt. Since the bearing and tilt choices on the SN90 menu are relative to the vessel heading, you must compensate for the installation angles.
  • Page 50 Make sure that the water depth under the keel permits you to lower the transducer. Lower the transducer to its bottom position. Make the following preparations. At the bottom of the SN90 presentation, select a suitable presentation mode, and activate the Horizontal view. to: 1500 m...
  • Page 51 ≤46 dB. If this level is exceeded in any direction you must locate the noise source(s). If the noise originates on your own vessel we strongly suggest that relevant actions are taken to reduce the noise and thus increase the SN90 performance. Maximum noise level measured on the...

  • Page 52: Testing The Interfaces With Peripheral Devices

    Prerequisites This procedure assumes that: • The sensor is connected to the SN90. It is switched on and in normal operation. • The interface port is set up with the correct communication parameters. • You are familiar with NMEA and other relevant datagram formats.
  • Page 53 Make sure that the information from the sensor is displayed. If necessary, enable the read-out in the dialog box. Display Options If possible, use another instrument to verify that the information provided by the SN90 is correct. Fill in the result tables. 438850/A...

  • Page 54: Verifying The Communication With Speed Log

    Date and signature: Verifying the communication with speed log In order to operate correctly, the SN90 requires input from a speed log. The vessel speed is shown on the top bar if you have enabled this in the dialog box. The Display Options communication with the sensor is tested.
  • Page 55 Testing the interfaces with peripheral devices Context In order to operate correctly, the SN90 requires input from a speed log. Without the input from a speed log, the SN90 will neither be able to present correct navigational information, nor compensate for vessel movements. This lack of compensation will prevent the SN90 from providing correct echo information.

  • Page 56: Verifying The Communication With The Course Gyro

    Prerequisites This procedure assumes that: • The sensor is connected to the SN90. It is switched on and in normal operation. • The interface port is set up with the correct communication parameters. • You are familiar with NMEA and other relevant datagram formats.
  • Page 57 Make sure that the information from the sensor is displayed. If necessary, enable the read-out in the dialog box. Display Options If possible, use another instrument to verify that the information provided by the SN90 is correct. Fill in the result tables. Result...

  • Page 58: Verifying The Communication With The Motion Reference Unit (Mru)

    Prerequisites This procedure assumes that: • The sensor is connected to the SN90. It is switched on and in normal operation. • The interface port is set up with the correct communication parameters. • You are familiar with NMEA and other relevant datagram formats.
  • Page 59 Display Options Note In order to read the motion compensation values, the SN90 must be "pinging". As long as the vessel is in port, you can not expect major changes in the values. If possible, use another instrument to verify that the information provided by the SN90 is correct.
  • Page 60 Simrad SN90 Harbour Acceptance Test Result Port Baud rate Protocol X Offset Y Offset Z Offset Rotation Around X Rotation Around Y Rotation Around Z Requirements Results Motion compensation is operational. The compensated values are shown. Date and signature: 438850/A...

  • Page 61: Verifying The Installation Parameters

    The physical length and width of the ship are important parameters that needs to be recorded in the SN90 software. Prerequisites For the accurate locations of the ship dimensions, you need the detailed vessel drawings. Neither tools nor instruments are required. The SN90 is turned on, and it is working normally. Procedure Open the menu.
  • Page 62 Installation Result Ship Dimensions Length Width Vessel origin X-offset Y-offset Z Offset Results Requirements The ship dimensions are entered into the SN90. All values are correct. All values are recorded in the relevant table. Date and signature: 438850/A...

  • Page 63: Verifying The Installation Parameters For The Transducer

    Verifying the installation parameters for the transducer Information from a few key sensors are vital for the SN90 accuracy. In order to achieve maximum accuracy, the physical locations of these sensors - normally referred to the Ship Origin - must be recorded in the SN90 setup.

  • Page 64: Verifying The Installation Parameters For The Global Positioning System (Gps) Antenna

    Verifying the installation parameters for the global positioning system (GPS) antenna Information from a few key sensors are vital for the SN90 accuracy. In order to achieve maximum accuracy, the physical locations of these sensors - normally referred to the Ship Origin - must be recorded in the SN90 setup.

  • Page 65: Verifying The Installation Parameters For The Motion Reference Unit (Mru)

    (MRU) The physical location of the motion reference unit (MRU) relative to the transducer is required to allow the SN90 to adjust for roll and pitch as accurately as possible. Prerequisites For accurate location of the motion reference unit (MRU), you need the detailed vessel drawings.
  • Page 66 For maximum accuracy, we strongly recommend that you use the information provided by a dimensional survey. Neither tools nor instruments are required. The SN90 is turned on, and it is working normally.
  • Page 67 - and other GPS systems - allow you to define the MRU location in the positioning system. If this is done, the MRU offset values in the SN90 must be set to 0 (zero) to avoid "dual compensation". The rotation information is normally not recorded by the positioning system, and must therefore be defined in the SN90.

  • Page 68: Customer Acceptance Form

    When this test procedure has been completed with all relevant signatures and applicable forms filled in, the document must be sent to the Simrad Support Department at Strandpromenaden 50, P.O.Box 111, 3191 Horten, Norway. Alternatively, scan all the pages to PDF using minimum 200 DPI resolution, and send the file to simrad.support@simrad.com.
